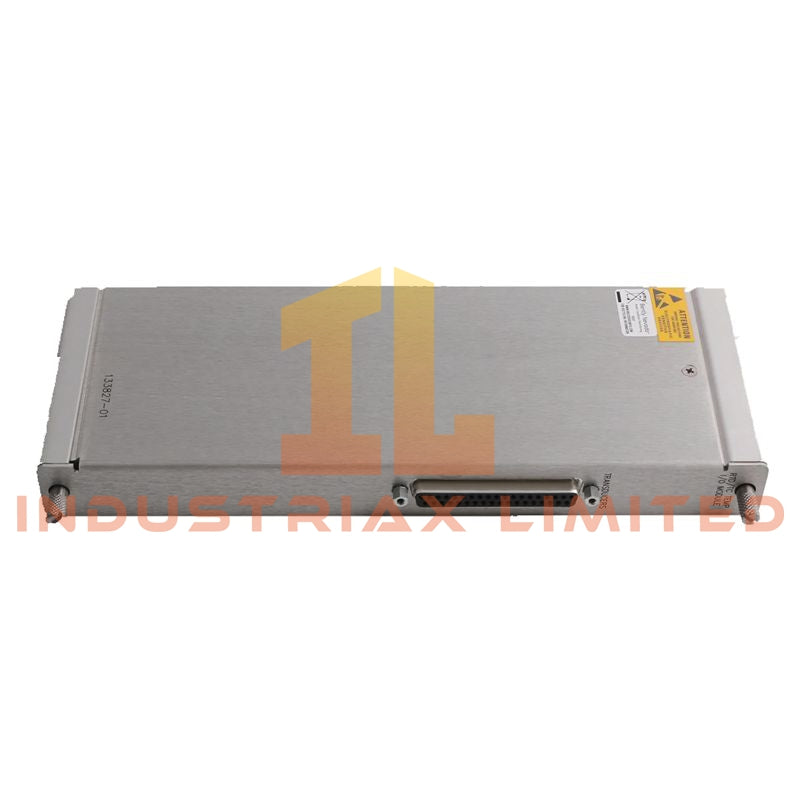

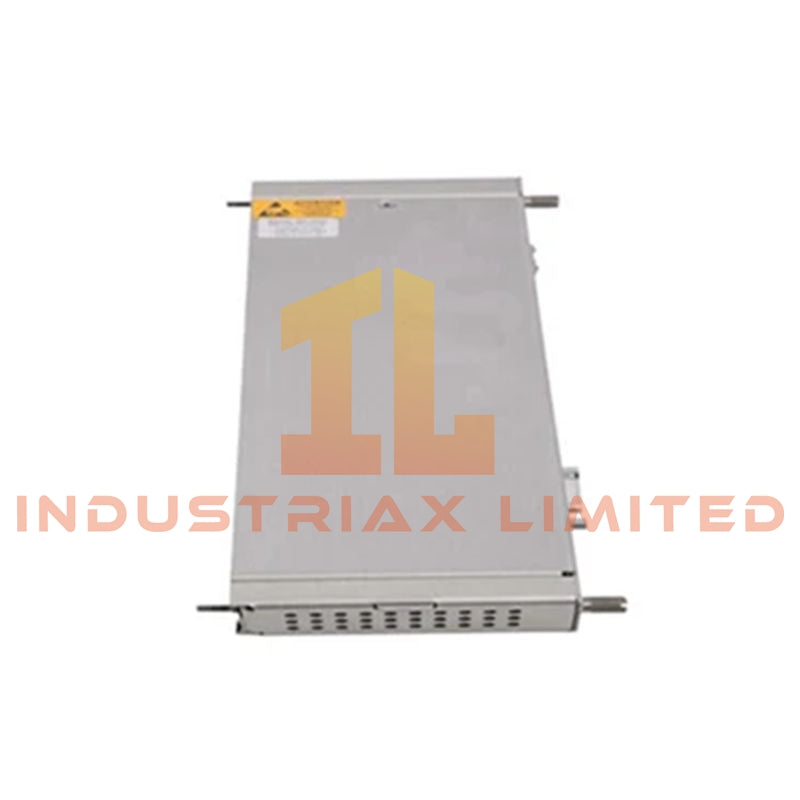

Bently Nevada 176499-02 Proximitor/Seismic Monitor Module
The Bently Nevada 176499-02, also cataloged as the 176499-02 3500/42M Proximitor/Seismic Monitor, operates as a dedicated hardware component for multi-channel vibration and position signal acquisition within the 3500 rack system. The Bently Nevada 176499-02 provides direct physical and electrical execution of 4-channel measurement processing for proximity probe and seismic transducer inputs, supporting configurable signal pairing for rotor dynamic parameter tracking.
Hardware Specifications
| Parameter |
Specification |
| Model |
176499-02 |
| Brand |
Bently Nevada |
| Origin |
USA |
| Weight |
0.5 kg |
| Dimensions |
255 x 28 x 242 mm |
| Operating Temp |
-30 deg C to +65 deg C |
| Storage Temperature |
-40 deg C to +85 deg C |
| Power Consumption |
7.7 W typical |
| Channels |
4 (programmable in pairs) |
| Installation |
Rack-mounted, hot-swappable |
| Supported Measurements |
Radial vibration, acceleration, eccentricity, REBAM, differential expansion, thrust position, shaft absolute, velocity |
| Certifications |
CE, RoHS |
Bently Nevada Rotor Dynamics Signal Processing Behavior
The 176499-02 module implements multi-channel synchronous acquisition logic for vibration and position measurement within the 3500 architecture. Channel pairing configuration allows mapping of eddy-current proximity probe inputs to displacement-based vibration vectors, enabling phase-coherent tracking of rotor dynamics.
Cross-talk suppression is implemented at the analog front-end stage to minimize inter-channel coupling during high-energy transient events. This preserves waveform separation for eccentricity and shaft absolute measurement paths, particularly when multiple probes operate within close spatial proximity on rotating assemblies.
Frequently Asked Questions (FAQ)
Q: Can the 176499-02 be hot-swapped while the 3500 rack is energized?
A: Yes. The module supports hot-swap operation. Trip inhibit must be enabled to prevent unintended alarm or trip state transitions during insertion or removal.
Q: How are channel pairs configured in the 176499-02?
A: Channels are software-configurable in pairs, allowing selection between vibration, position, or acceleration input modes depending on connected transducer type.
Q: Does the module support simultaneous measurement of vibration and thrust position?
A: Yes. Different channel pairs can be assigned to separate measurement functions such as radial vibration and thrust position within the same module.
Field Installation Guidelines
The module must be installed into a compatible Bently Nevada 3500 rack slot with full backplane engagement verified before system energization. Hot-swap operations require active trip inhibit state to prevent protection logic activation.
Proximity probe and seismic sensor wiring must be routed using shielded twisted pairs. Shield termination shall be implemented at a single-point ground reference within the cabinet to prevent ground loop formation.
Cable separation between low-level sensor inputs and high-current or switching conductors is required to maintain measurement integrity during transient electrical events.
