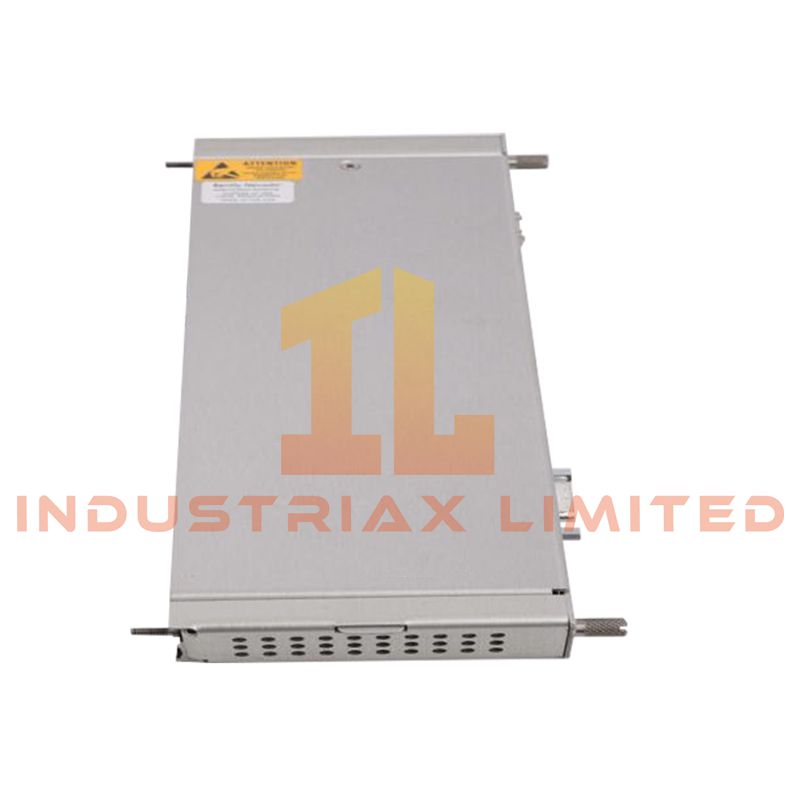

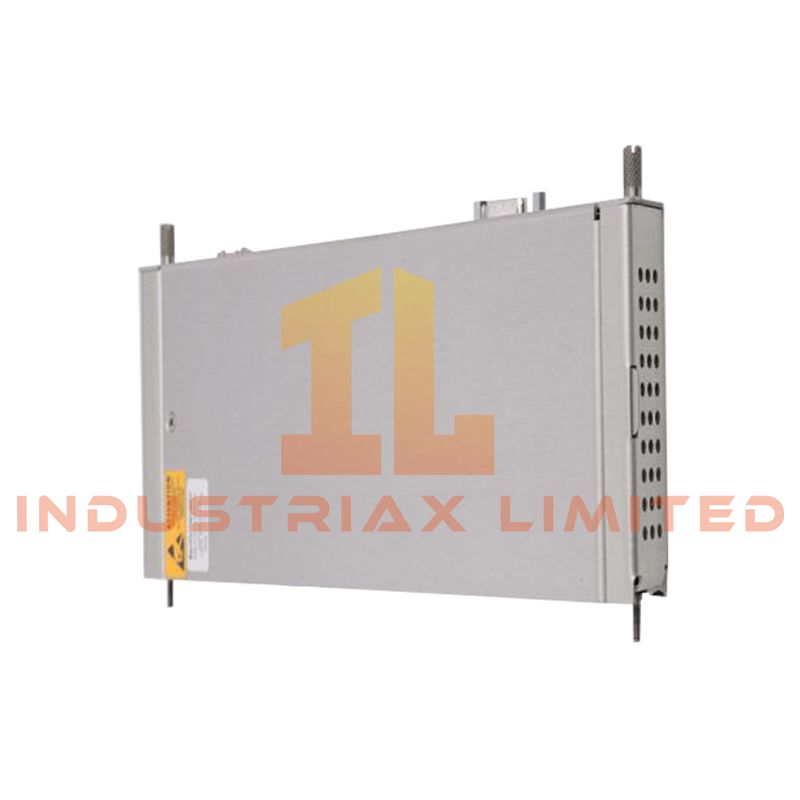

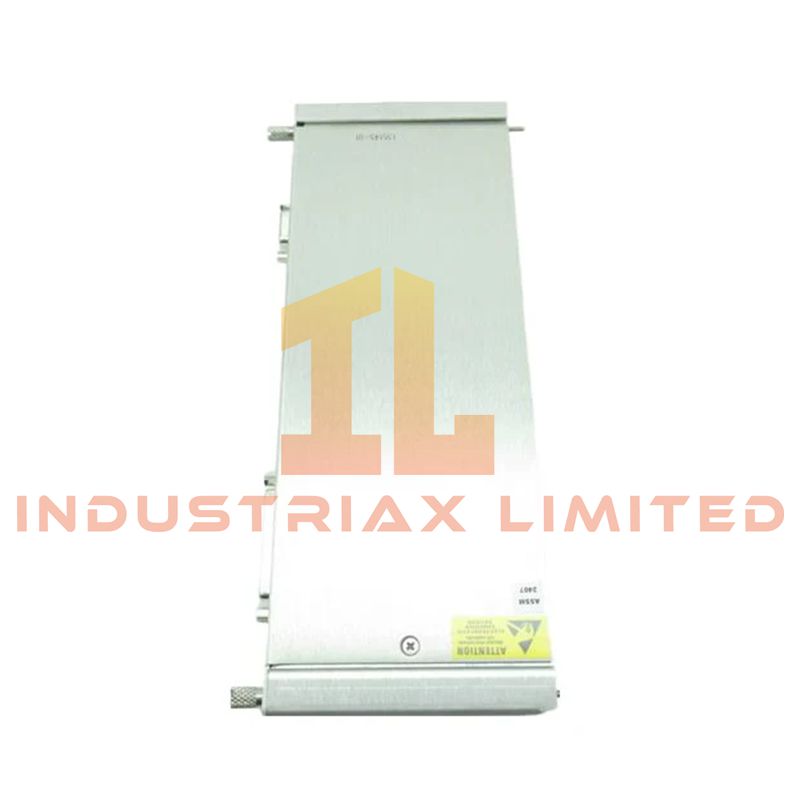

Bently Nevada 125769-01 Proximitor/Seismic Monitor Module
The Bently Nevada 125769-01, also cataloged as the 125769-01 Proximitor/Seismic Monitor Module, operates as a dedicated hardware component for continuous vibration signal acquisition and processing within the 3500 Machinery Protection System. The 125769-01 Proximitor/Seismic Monitor Module provides direct electrical execution of 4-channel measurement aggregation for proximity probe and seismic transducer inputs, delivering conditioned outputs for downstream monitoring logic.
Suffix Breakdown & Model Matrix
No formal suffix segmentation is defined for model 125769-01. The identifier functions as a fixed catalog number within the 3500/42M module family.
Hardware Specifications
| Parameter |
Specification |
| Model |
125769-01 |
| Brand |
Bently Nevada |
| Origin |
USA |
| Weight |
0.85 kg |
| Dimensions |
241.3 x 24.4 x 163.1 mm |
| Operating Temp |
-30 deg C to +65 deg C |
| Power Consumption |
7.7 W max |
| Channels |
4-channel vibration monitoring |
| Signal Inputs |
Proximity probes / seismic transducers |
| Signal Outputs |
4-20 mA DC proportional outputs |
| Installation |
3500 chassis rack-mounted |
| Hot-Swap Capability |
Supported (trip inhibit required) |
| Sensor Bias Monitoring |
-1 VDC to -19 VDC window detection |
| Cross-talk Suppression |
Integrated channel isolation circuitry |
Bently Nevada Cross-talk Suppression Behavior in 3500 Architecture
The 125769-01 module implements channel-level signal separation to reduce interference between adjacent vibration measurement paths. In multi-probe rotor systems, cross-talk suppression maintains waveform independence during high-amplitude shaft vibration conditions, preventing phase distortion in synchronous demodulation processes.
Within eddy-current proximity probe interfaces, isolation behavior preserves gap voltage stability referenced around the -10 VDC operating region. This ensures that adjacent channel excitation does not influence bias tracking or displacement scaling accuracy during transient mechanical events. The suppression network operates at the analog conditioning stage prior to 4-20 mA conversion.
Frequently Asked Questions (FAQ)
Q: Can the 125769-01 be hot-swapped while the 3500 rack is energized?
A: Yes, hot-swap is supported. However, trip inhibit must be applied to the corresponding protection channels to prevent unintended alarm or shutdown signals during module replacement.
Q: What happens if sensor bias voltage moves outside the -1 VDC to -19 VDC window?
A: The module interprets this as a sensor fault condition, triggering diagnostic indication for probe failure, open circuit, or incorrect gap setting.
Q: Does each channel share signal conditioning circuitry?
A: No. Each channel is independently processed with isolation paths to reduce inter-channel interference and maintain measurement separation.
Field Installation Guidelines
The module must be installed into a compatible 3500 chassis slot with secure backplane engagement. Mechanical seating should be verified before energizing the rack.
Proximity probe and seismic transducer cables must be routed separately from high-voltage conductors. Shield termination should be implemented at a single grounding point to prevent ground loop formation across measurement channels.
During hot-swap operations, ensure trip inhibit is active on affected channels before removal. Post-installation verification should include confirmation of sensor bias voltage stability and channel readiness status.
