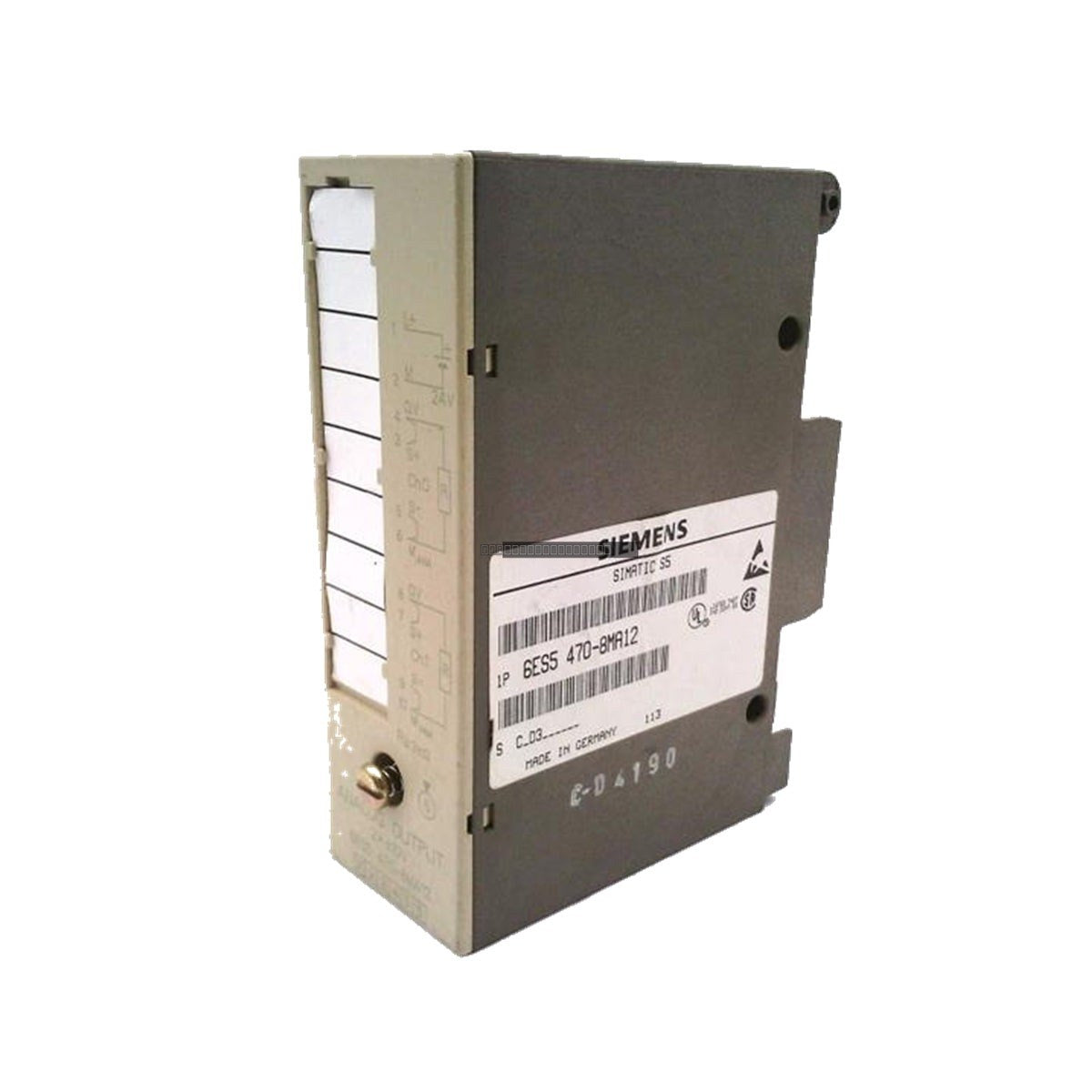

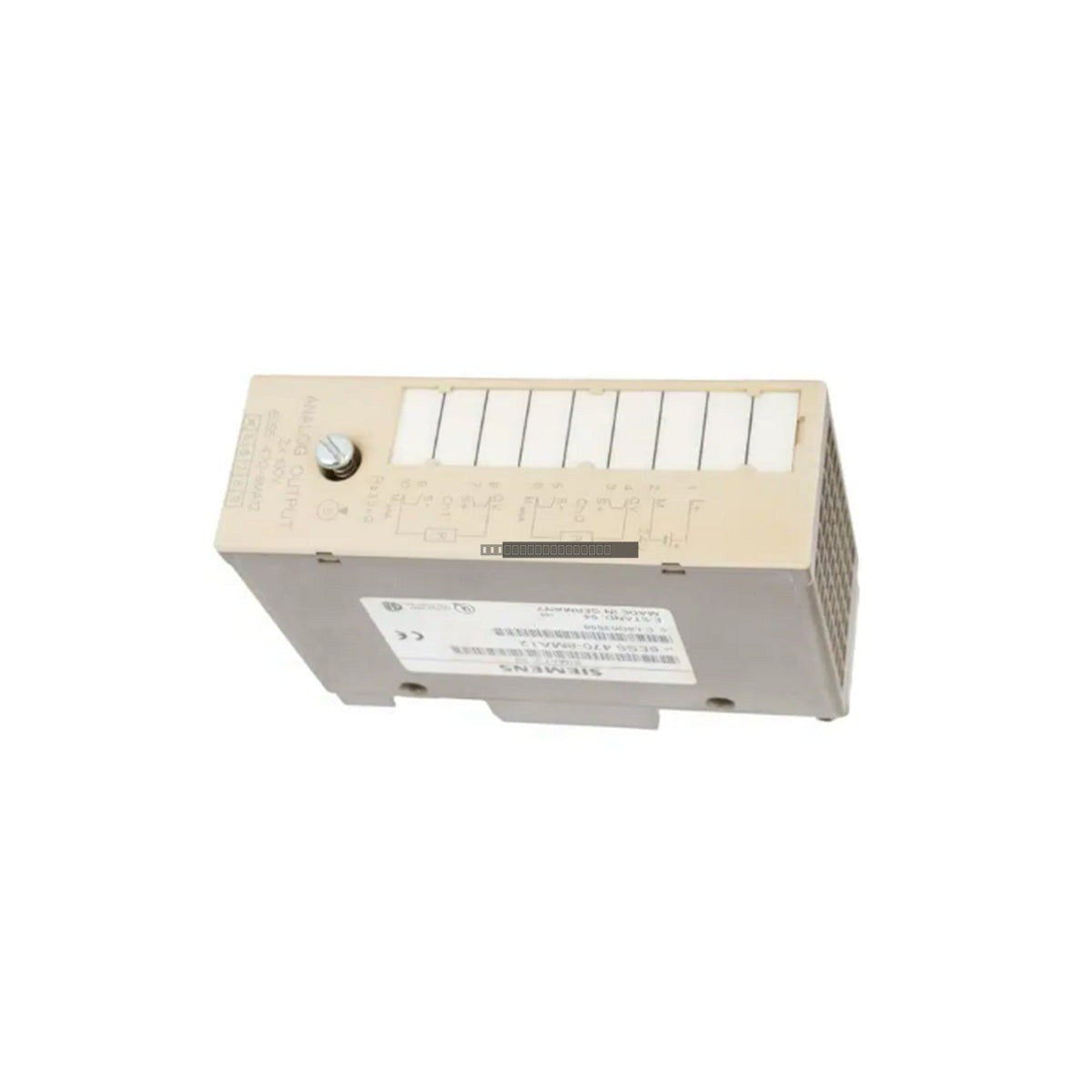

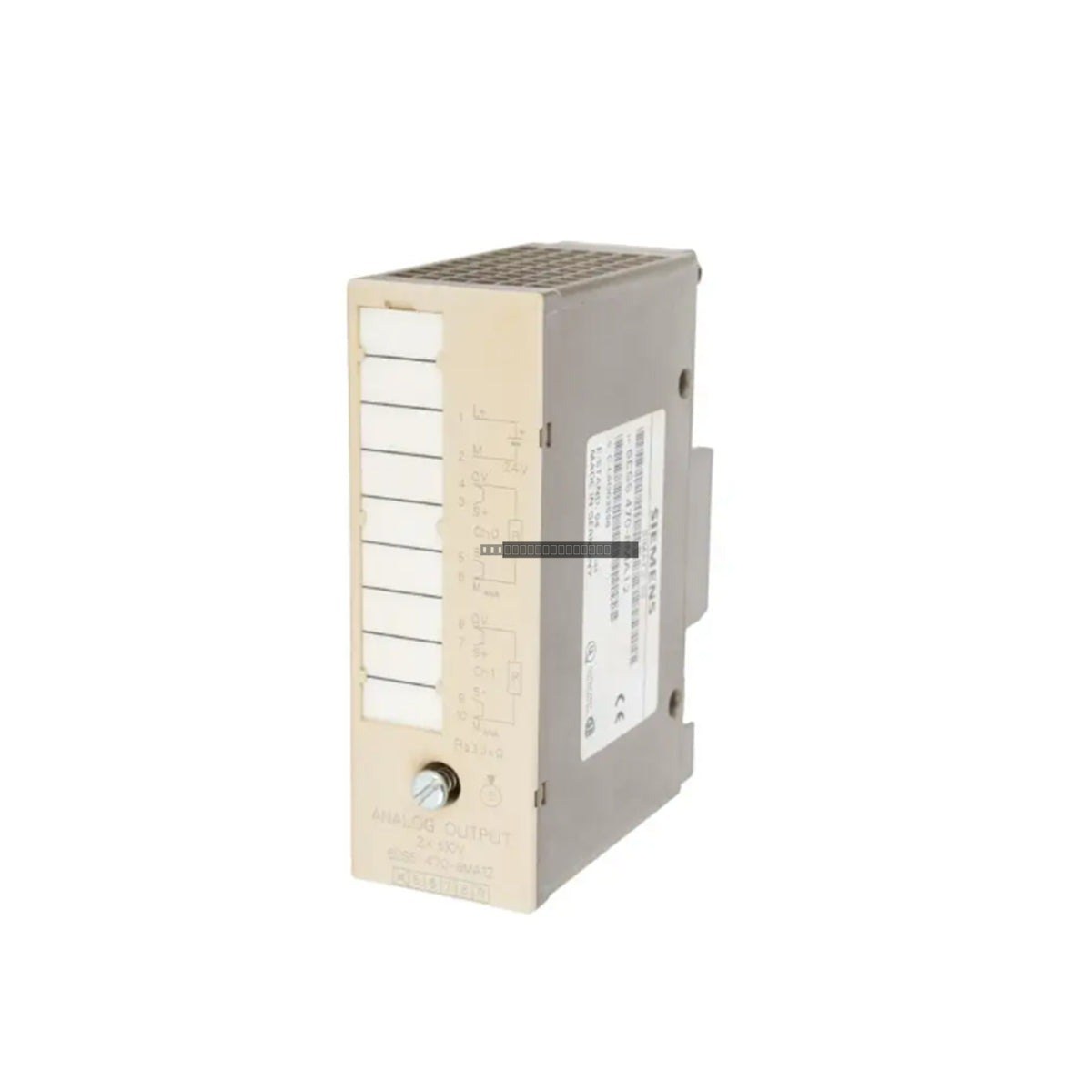

The Siemens Simatic S5 6ES5 470-8MA12 is a high-performance, two-channel analog output module designed specifically for the Simatic S5-090, S5-095, and S5-100 PLC families. This module serves as a critical interface for industrial control systems, providing isolated analog signals to drive variable speed drives, proportional valves, and various industrial actuators. By ensuring precise signal delivery and robust galvanic isolation, the module effectively mitigates the risk of ground loops and signal interference, maintaining the integrity of sensitive process control loops.
Features
- Dual-channel analog output configuration for independent control of two field devices.
- Galvanic isolation between the PLC backplane and field-level output circuitry to protect the CPU from transient surges.
- Engineered for seamless integration with the Simatic S5-090, S5-095, and S5-100 rack-based architectures.
- Optimized for stable control of flow, temperature, and chemical dosing applications.
Applications
This module is widely utilized in legacy automation environments where precise analog control is required. Typical applications include the modulation of variable frequency drives (VFDs), the positioning of proportional control valves, and the regulation of actuators in chemical processing or HVAC systems.
Technical Specifications
| Model |
6ES5 470-8MA12 |
| Brand |
Siemens Simatic S5 |
| Output Channels |
2 isolated channels |
| Output Signal |
10 VDC |
| Power Consumption |
5 W nominal |
| Operating Temperature |
0 to 55 deg C |
| Compatibility |
Simatic S5-090, S5-095, S5-100 series |
Installation Guidelines
- Ensure the PLC system power is fully disconnected before inserting or removing the module from the rack.
- Verify that the module is securely seated in the S5 modular rack system to ensure proper bus connection.
- Use shielded twisted-pair cabling for analog signal runs to minimize EMI/RFI susceptibility.
- Maintain proper grounding practices for the S5 rack to ensure the effectiveness of the module's galvanic isolation.
- Avoid installing the module in areas with excessive vibration or extreme temperature fluctuations outside the specified 0 to 55 deg C range.
FAQ
Is this module compatible with S5-115U systems?
No, the 6ES5 470-8MA12 is specifically designed for the S5-090, S5-095, and S5-100 series. Please verify your specific PLC backplane architecture before installation.
Does this module require external power for the outputs?
The module is powered via the S5 rack backplane, but field devices connected to the outputs may require their own power supplies depending on the specific loop configuration and load requirements.
