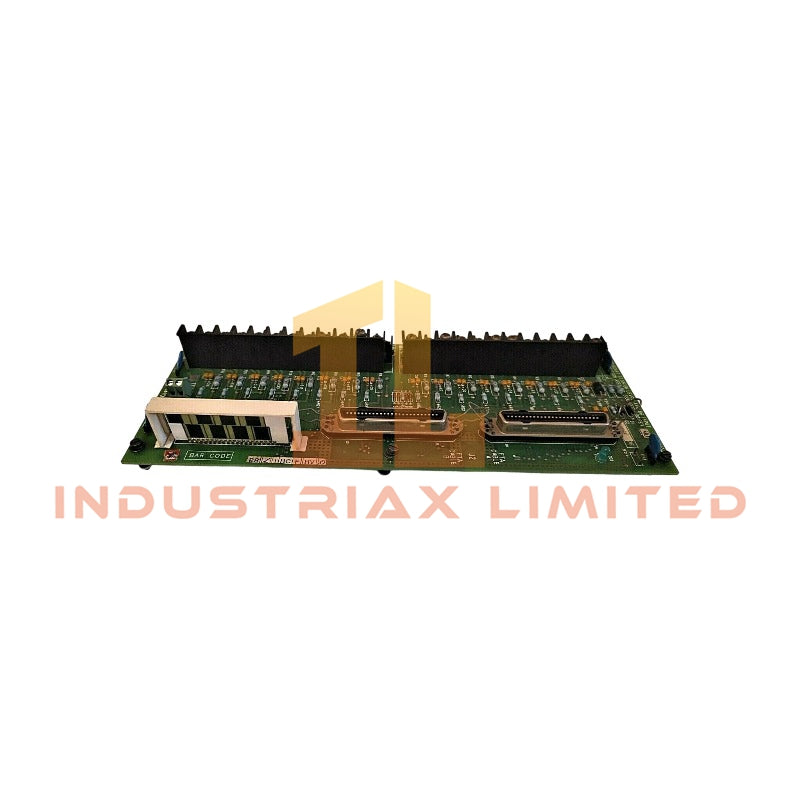

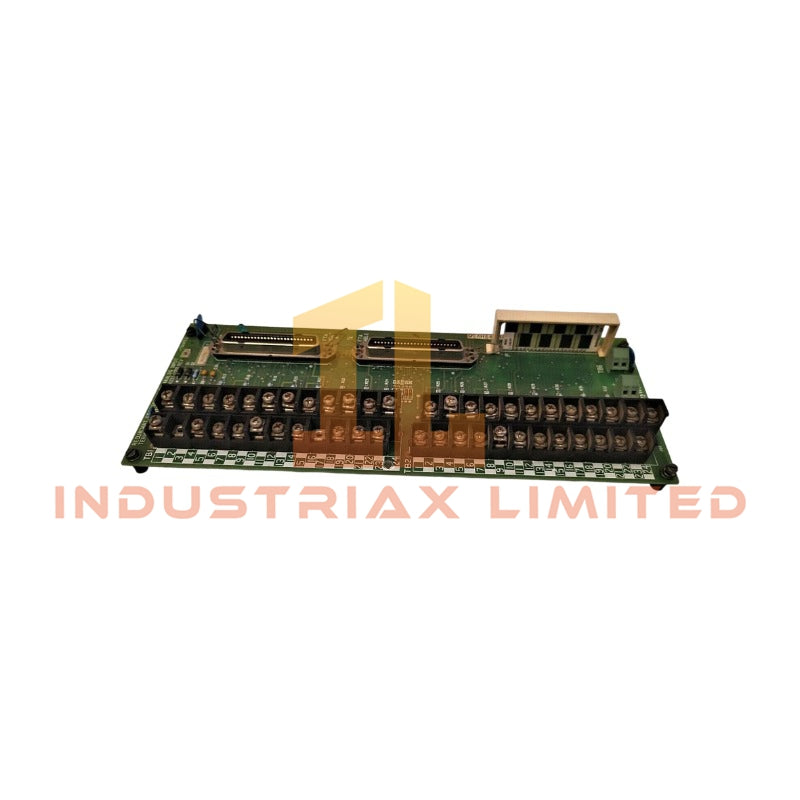

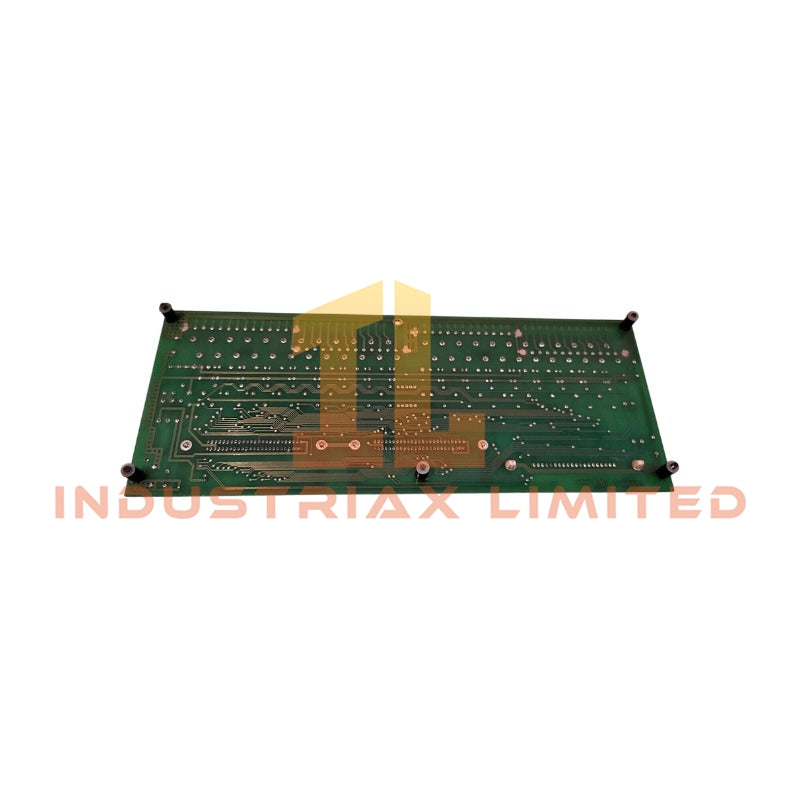

Honeywell MU-TAIH62 High-Level Analog Input Field Termination Assembly

Configured for high-level analog signal termination in Honeywell TDC 3000 and Experion PKS systems, the Honeywell MU-TAIH62 (MU-TAIH62 High-Level Analog Input Field Termination Assembly) provides direct physical and electrical execution between field transmitters and DCS I/O processing channels.

Hardware Specifications

Parameter	Specification
Model	MU-TAIH62
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to +60 deg C
Power Consumption	24 VDC nominal supply, value not specified
Product Type	High-Level Analog Input (HLAI) Field Termination Assembly
System Platform	Honeywell TDC 3000 / Experion PKS
Signal Input Type	4-20 mA current loop, 1-5 VDC or 0-10 VDC voltage input
Channel Function	Analog field signal termination, conditioning, and routing
Isolation Type	Galvanic isolation between field wiring and control-side circuits
Termination Method	Compression screw terminals / marshalling cabinet interface
Analog Processing	12-bit to 16-bit conversion path compatibility
Storage Temperature	-40 deg C to +85 deg C
Relative Humidity	5% to 95% RH, non-condensing

HART Loop and DCS Signal Interface Characteristics

The MU-TAIH62 processes analog instrumentation signals through Honeywell DCS field termination architecture. It supports standard 4-20 mA HART loop protocol interfaces when applied with compatible field devices and I/O processing modules.

Additionally, the assembly provides channel-to-channel isolation to reduce ground loop influence and electrical interference between independent process measurement circuits. The termination design maintains signal integrity before transmission to the associated DCS I/O subsystem.

The module supports direct integration with process measurement devices including pressure transmitters, temperature transmitters, and flow transmitters. Furthermore, the field wiring interface allows organized cabinet termination for distributed analog measurement loops.

Frequently Asked Questions

Q: Does the MU-TAIH62 provide direct analog signal conversion?

A: The MU-TAIH62 provides field termination, signal conditioning, and routing functions. Analog conversion processing depends on the connected Honeywell I/O controller or processor module.

Q: Can the MU-TAIH62 operate with isolated analog input loops?

A: Yes. The assembly design supports galvanic isolation functions between field-side circuits and DCS-side interfaces to reduce ground loop effects.

Q: Is hot-swap replacement supported for the MU-TAIH62?

A: Hot-swap capability depends on the installed Honeywell I/O cabinet configuration and associated control system hardware. Field replacement procedures must follow the applicable TDC 3000 or Experion PKS maintenance documentation.

Field Installation Guidelines

• Install the MU-TAIH62 inside the designated Honeywell I/O cabinet or approved FTA mounting location.
• Verify field wiring polarity before connecting current loop or voltage input signals.
• Use shielded instrumentation cables for analog signal circuits where electrical noise conditions exist.
• Connect cable shields according to the plant grounding standard to minimize signal interference.
• Separate analog signal wiring from high-voltage power cables and switching circuits.
• Confirm terminal identification against the system engineering drawings before commissioning.
• Inspect connector and terminal conditions before energizing the associated I/O channel.
• Validate loop continuity and transmitter output scaling through the DCS maintenance interface.
