Description

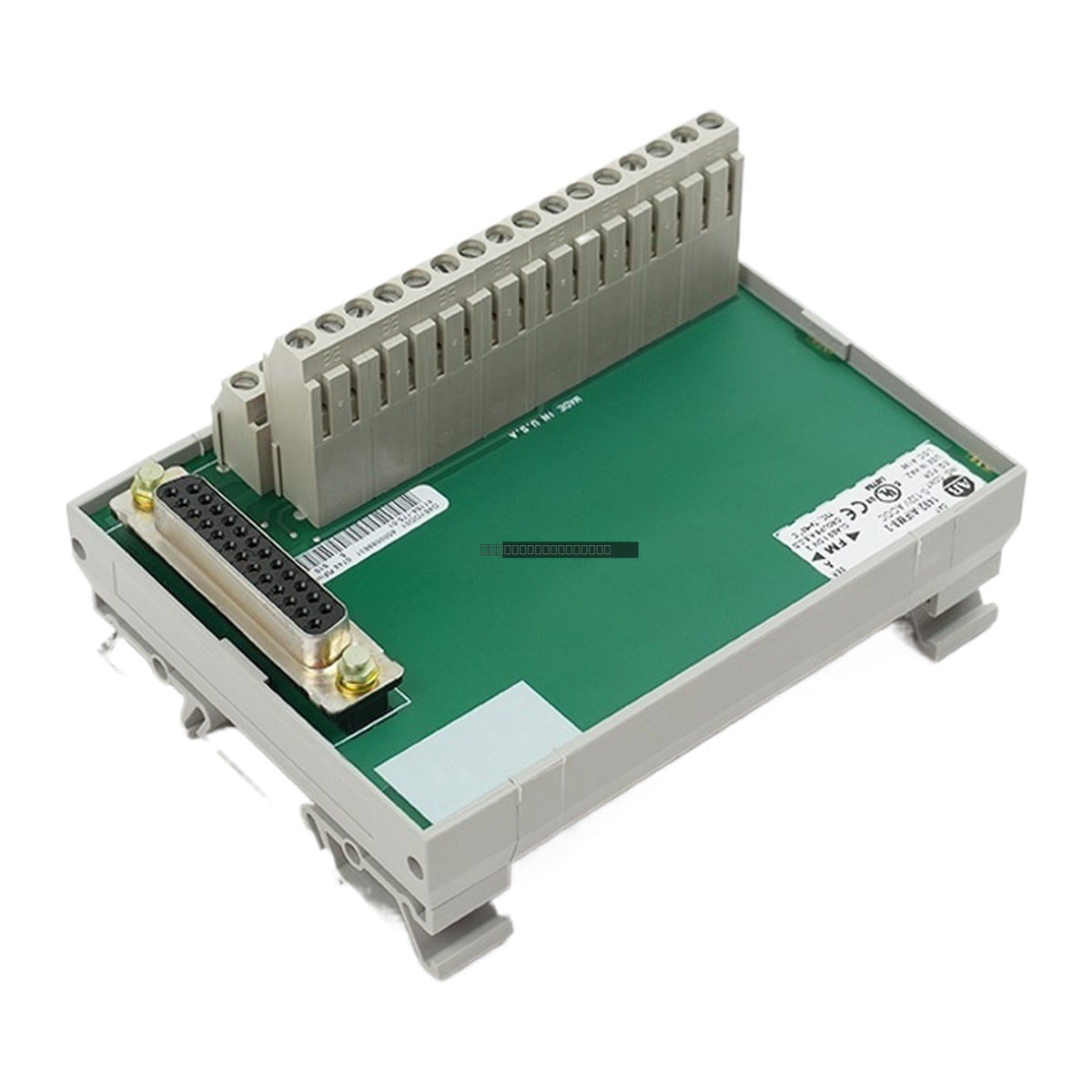

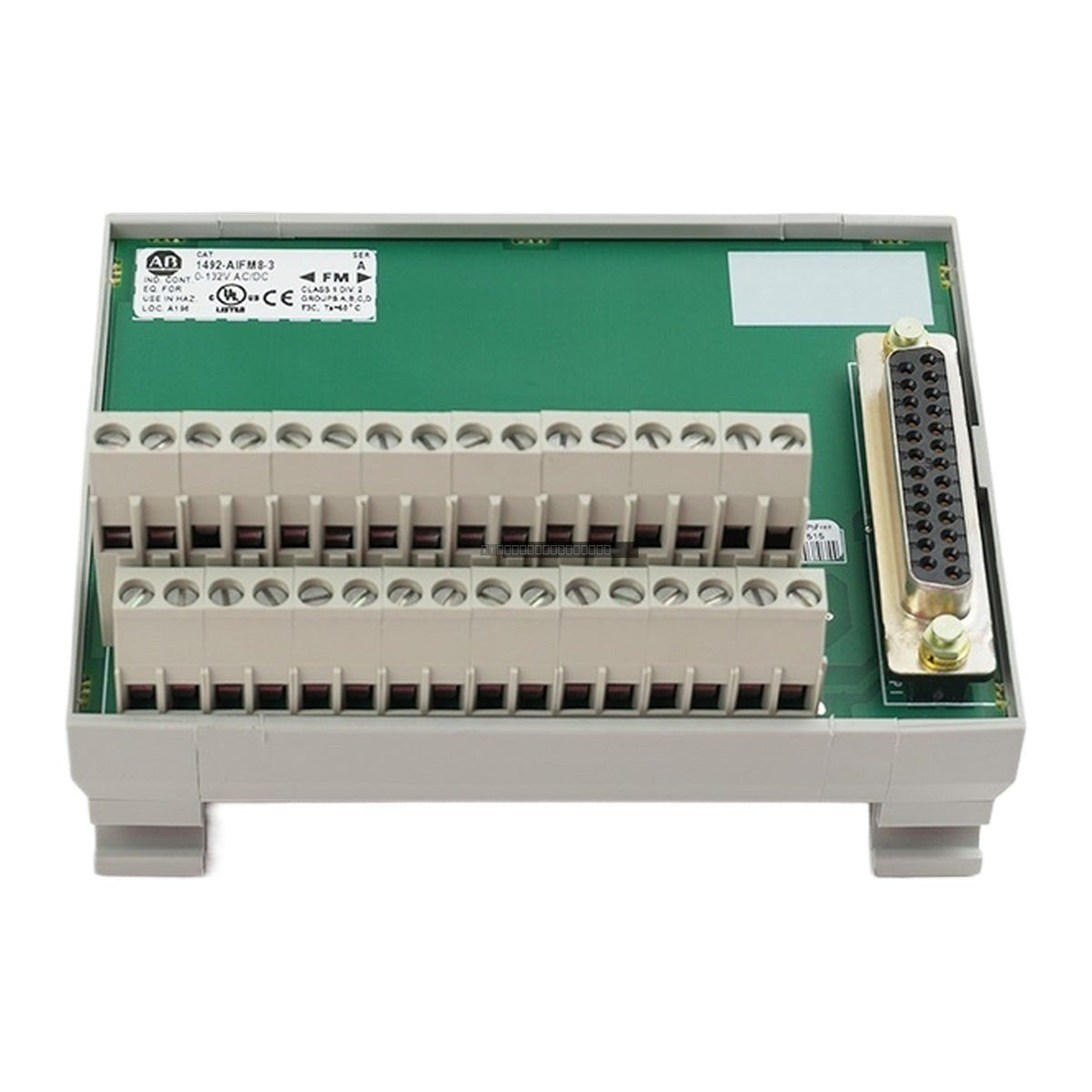

The Allen-Bradley 1492-AIFM8-3 is an 8-channel feed-through Analog Interface Module (AIFM) designed to simplify field wiring for PLC analog I/O systems. This module serves as a bridge between field devices and the controller, providing a clean, organized termination point that reduces the need for external terminal blocks and jumper accessories. It features 3 terminals per input channel, allowing for efficient signal, common, and shield connections.
Features
- 8-channel feed-through design for streamlined analog signal management.
- 3 terminals per input channel to support signal, common, and shield wiring.
- Integrated power bus with eight extra terminals jumpered together for common or power supply distribution.
- Internal jumpering to the D-shell housing for effective shield grounding.
- Compatible with various PLC analog I/O cards, facilitating faster panel assembly and maintenance.
Applications
This interface module is widely used in industrial control panels where high-density analog I/O is required. It is commonly deployed with Allen-Bradley SLC 500 and ControlLogix systems to interface with sensors, transmitters, and actuators, ensuring reliable signal integrity and simplified troubleshooting.
Technical Specifications
| Model |
1492-AIFM8-3 |
| Channels |
8 |
| Terminals per Channel |
3 |
| Rated Voltage |
0 – 132 V AC |
| Rated Current |
2 A per channel |
| Operating Temperature |
0 to +60 degC |
| Storage Temperature |
-40 to +85 degC |
| Humidity |
5 – 95 % RH, non-condensing |
Installation Guidelines
- Ensure the control system power is disconnected before installing or removing the module.

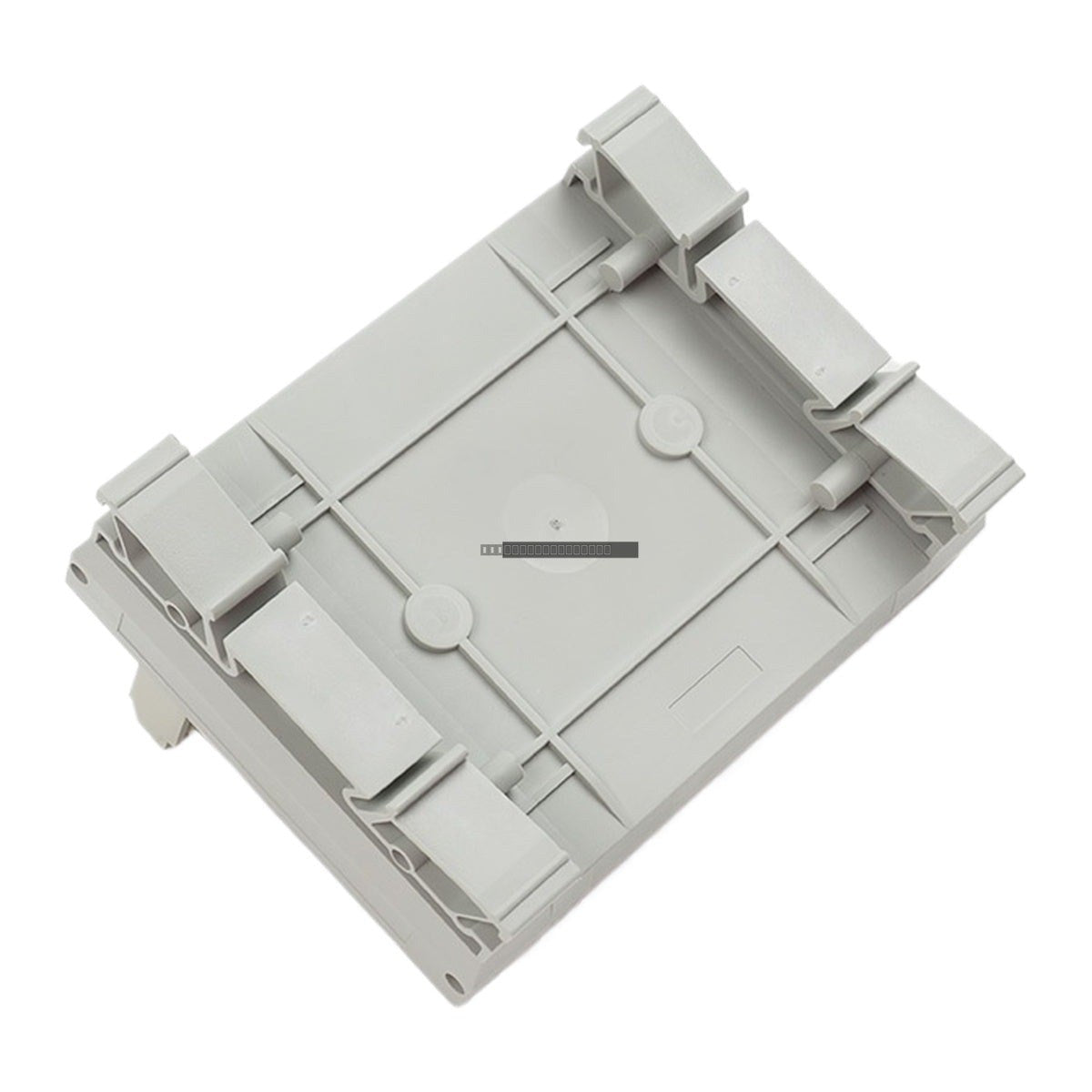

- Mount the AIFM securely on a standard DIN rail within the control cabinet.
- Verify that the field-side wiring does not exceed the rated voltage and current specifications of the module.
- Utilize the commoned power bus terminals for efficient distribution of common or power supply lines.
- Ensure proper grounding by connecting the shield terminals as required by the specific I/O module pinout.
- Maintain adequate spacing for ventilation to ensure the module operates within the specified temperature range.
FAQs
What is the 1492-AIFM8-3?
The 1492-AIFM8-3 is an 8-channel analog interface module that provides 3 terminals per channel, supporting 16 single-ended points or 8 differential points, simplifying panel wiring by consolidating connections for faster installation.
Can it handle 16 single-ended channels?
Yes, it supports 16 single-ended analog points by providing shared common and shield terminals, allowing for 16 inputs or outputs using the 3-terminal-per-channel configuration.
Is this product brand new?
Yes, the 1492-AIFM8-3 is supplied as a new, original, and factory-sealed unit.
Do you provide a warranty?
We provide a full 12-month warranty for this module, covering any defects from the date of delivery.
