Description

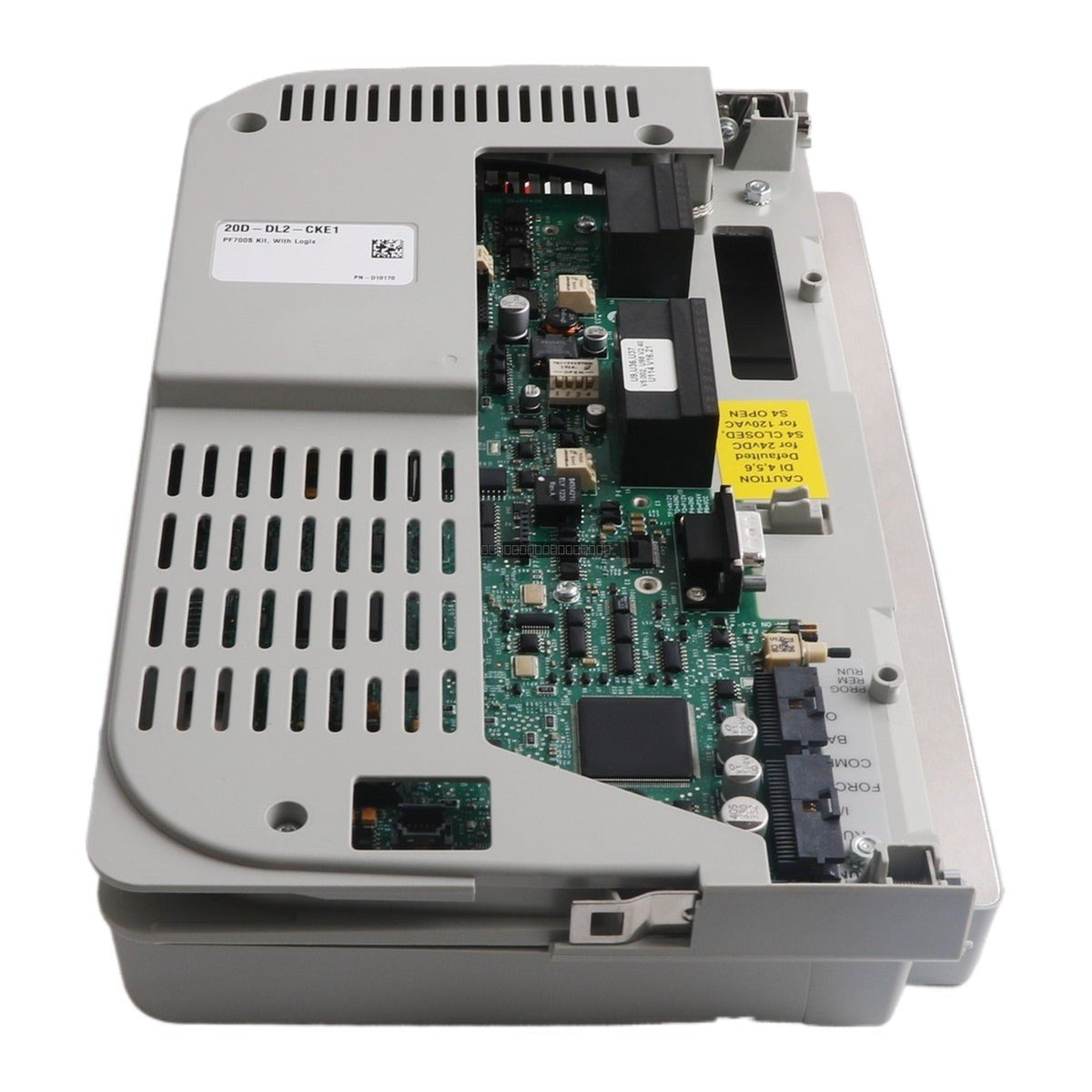

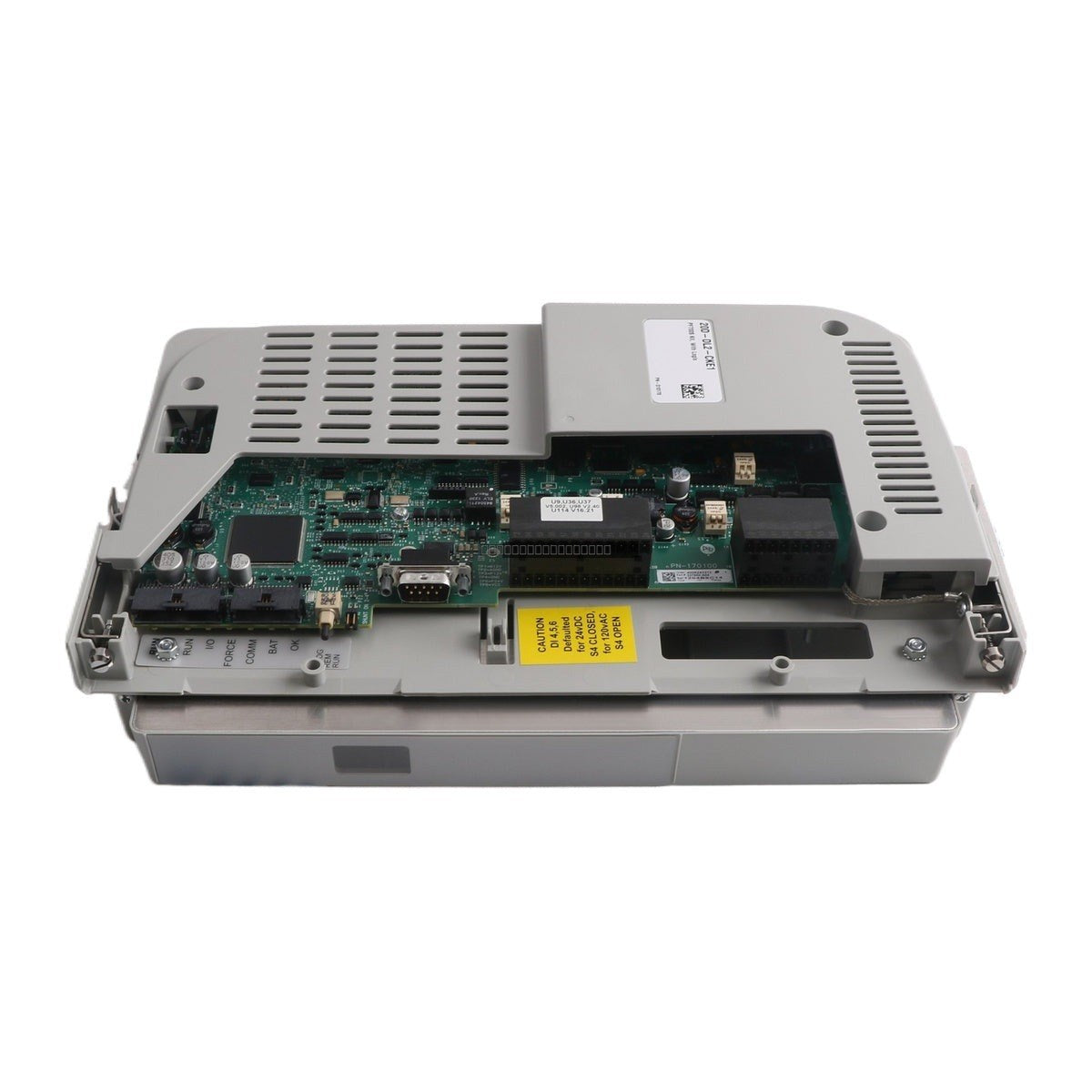

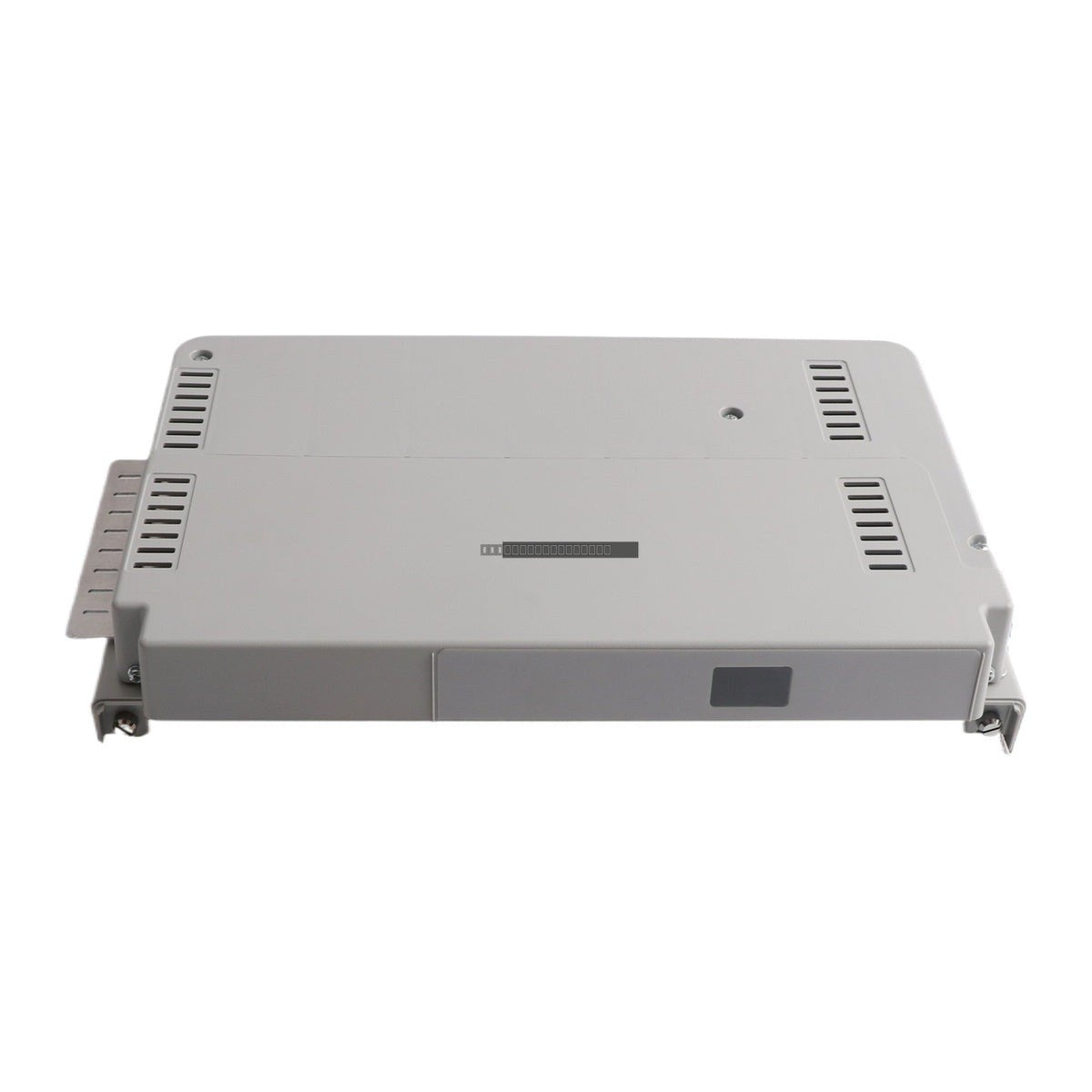

The Allen-Bradley 20D-DL2-CKE1 is a DriveLogix control module upgrade kit designed for the PowerFlex 700S series variable frequency drives. This kit provides the necessary hardware to expand the drive's control capabilities, incorporating the DriveLogix 5730 controller functionality. It is specifically engineered for Phase II PowerFlex 700S configurations, allowing for advanced logic processing and enhanced drive control within a single integrated package.

Features

• Integrated DriveLogix 5730 controller for advanced logic execution.
• Expanded cassette design for seamless integration with PowerFlex 700S drive frames.
• Facilitates complex motion and machine control tasks directly at the drive level.
• Designed for Phase II PowerFlex 700S drive systems.
• Robust construction consistent with Allen-Bradley industrial standards.

Installation Guidelines

• Ensure the drive is fully de-energized and locked out before attempting to install or remove the control module.
• Verify that the drive firmware is compatible with the DriveLogix 5730 module before commissioning.
• Use appropriate ESD protection when handling the module to prevent damage to sensitive internal electronics.
• Ensure the cassette is fully seated and the retaining screws are tightened to the manufacturer's specified torque to maintain proper grounding and electrical contact.
• Check all ribbon cable connections for secure seating to avoid communication errors between the control module and the drive power structure.

Technical Specifications

Manufacturer	Allen-Bradley
Model Number	20D-DL2-CKE1
Series	PowerFlex 700S
Component Type	DriveLogix Control Module Upgrade Kit
Compatibility	PowerFlex 700S Phase II
Weight	0.96 kg

FAQ

What is the primary function of the 20D-DL2-CKE1 kit?
This kit serves as a control module upgrade that adds DriveLogix 5730 capabilities to a PowerFlex 700S drive, enabling the drive to perform programmable logic controller (PLC) functions.

Is this module compatible with all PowerFlex 700S drives?
This specific kit is intended for Phase II PowerFlex 700S drives. Please verify your drive's specific hardware revision and firmware compatibility before installation.
