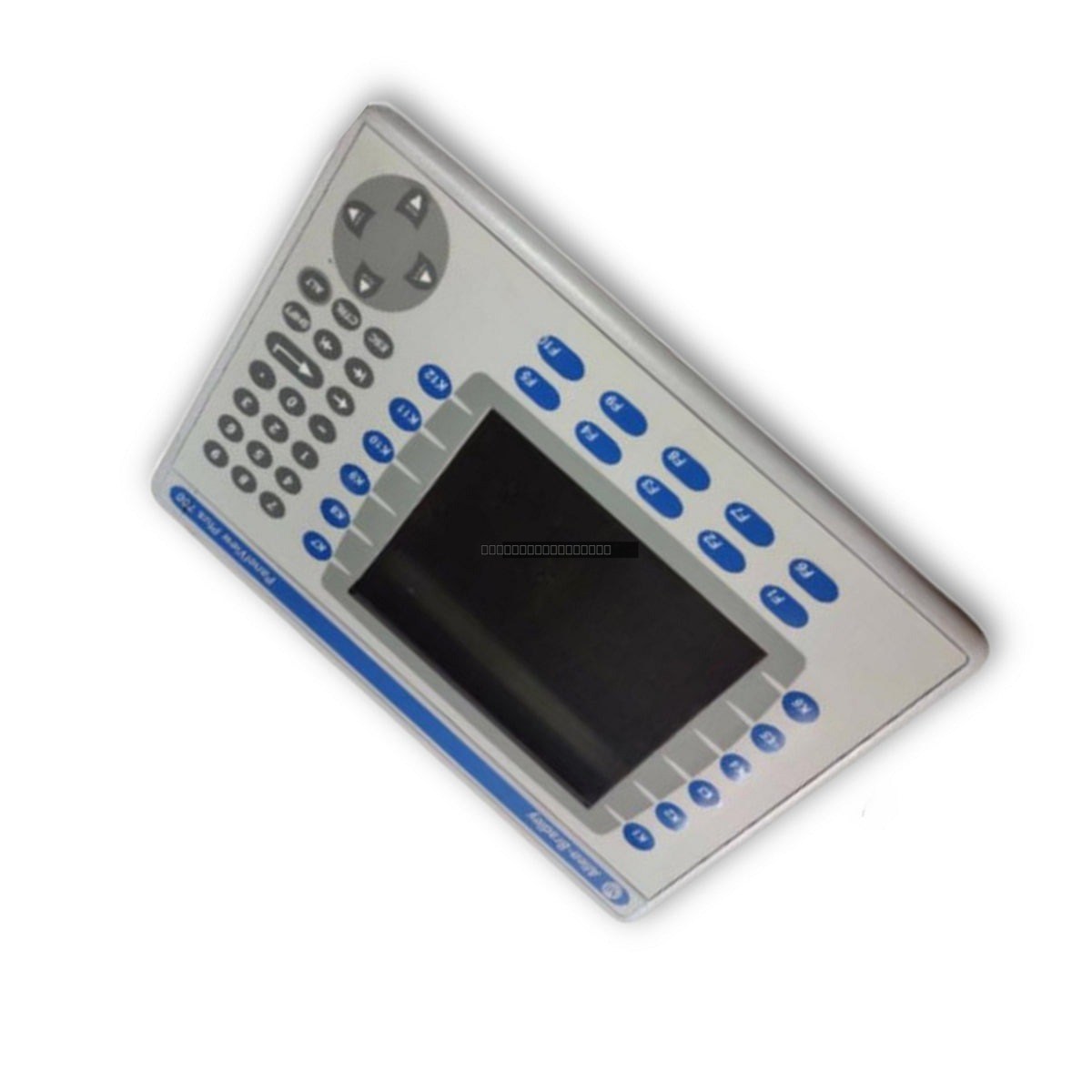

The Allen-Bradley 2711P-K10C4D8 is a PanelView Plus 6 1000 operator terminal designed for robust industrial human-machine interface (HMI) applications. This unit features a 10.4-inch color display and a dedicated keypad interface, allowing operators to interact with machine processes, monitor real-time data, and input setpoints effectively.
Features
- 10.4-inch color display with 640 x 480 resolution (18-bit color graphics).
- Integrated keypad interface including function keys (F1-F16, K1-K16), numeric keypad, and navigation buttons.
- 512 MB RAM and 512 MB non-volatile flash memory for application storage.
- Connectivity options include embedded Ethernet (EtherNet/IP), RS-232 serial port, and two USB host ports.
- Operates on an 18-32V DC input power supply.
Applications
- Packaging and palletizing lines for high-speed control and jam clearing.
- Material handling systems, including conveyor control and ASRS management.
- Process skids for chemical dosing, pumping, and filtration.
- Food and beverage processing environments, including mixing and bottling lines.
- Machine tool and CNC support for coolant and chip removal monitoring.
Technical Specifications
| Model |
2711P-K10C4D8 |
| Display Size |
10.4 inches |
| Resolution |
640 x 480 |
| Input Type |
Keypad |
| Memory |
512 MB RAM / 512 MB Flash |
| Input Voltage |
18-32V DC |
| Communication Ports |
Ethernet, RS-232, 2x USB Host |
| Weight |
4.28 kg |
Installation Guidelines
-
Panel Cutout: Prepare a precise cutout in the enclosure; ensure the area is free of metal debris before installation.
-
Sealing: Ensure the integrated sealing gasket is properly seated against the enclosure to maintain the required NEMA/IP rating.
-
Mounting: Insert the terminal into the cutout and secure it using the provided mounting clips. Tighten screws in a cross-pattern to 0.90–1.1 N·m (8–10 lb·in) to ensure uniform pressure.
-
Power Wiring: Connect to a stable 18-32V DC supply. Always isolate power before performing wiring tasks.
-
Environment: Install in a location with adequate ventilation to prevent overheating. Avoid high-EMI sources near communication cabling.
FAQ
What is the primary input method for this terminal?
The 2711P-K10C4D8 utilizes a physical keypad interface, which includes function keys, numeric keys, and directional buttons for operator input.
Can this terminal be used on an EtherNet/IP network?
Yes, the unit includes an embedded Ethernet port that supports EtherNet/IP for real-time I/O messaging and data exchange with controllers.
What should I do if the unit fails to power up?
Check the DC power supply connections. A common issue in DC-powered PanelView units is a blown internal fuse, often caused by a short circuit between the power supply and the chassis.
