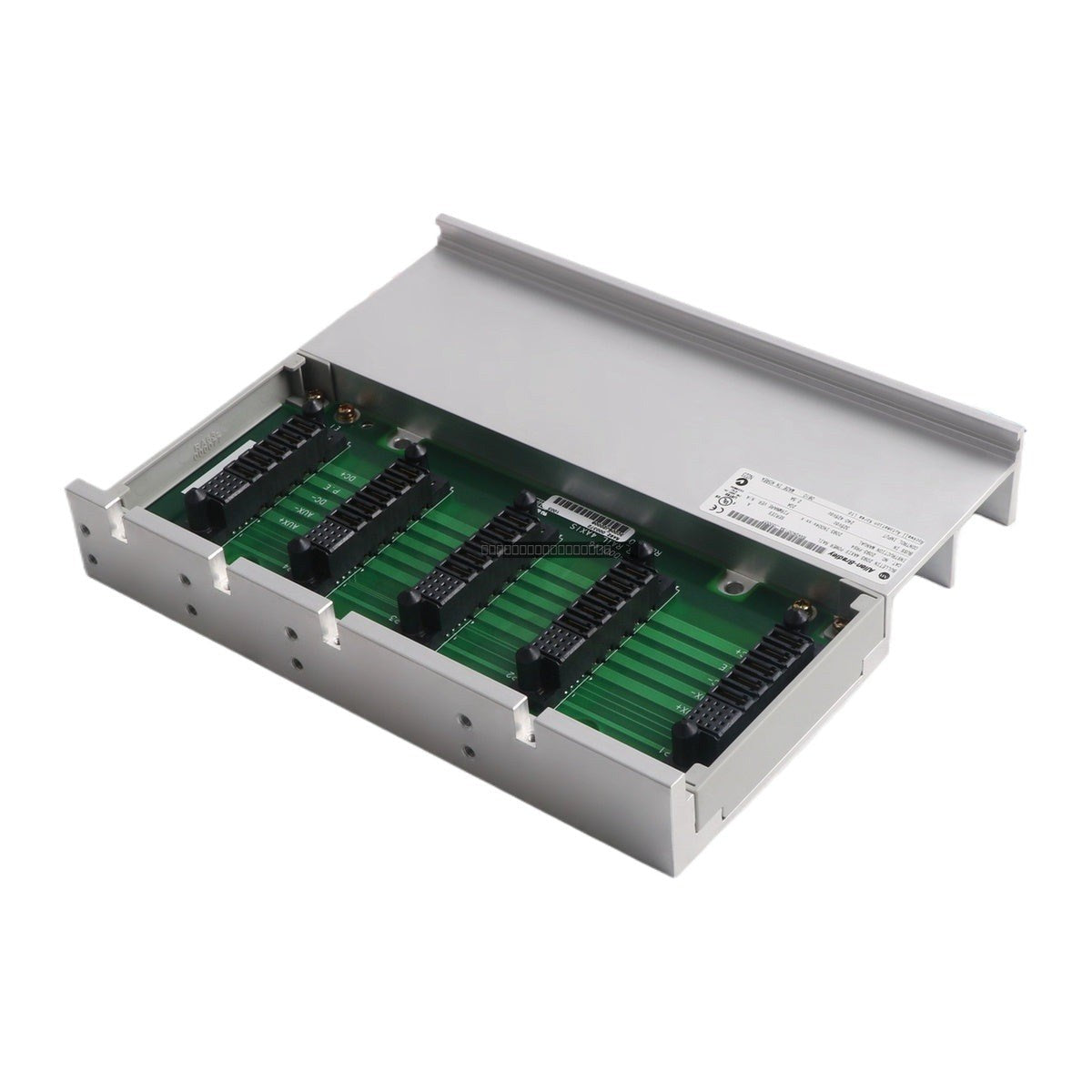

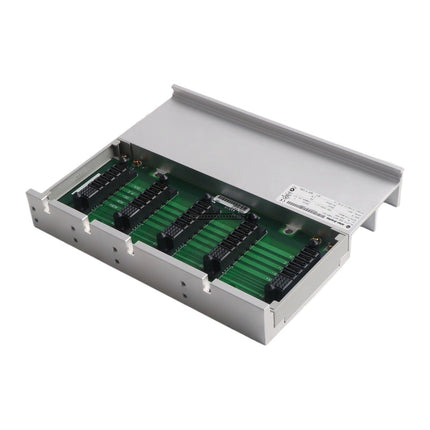

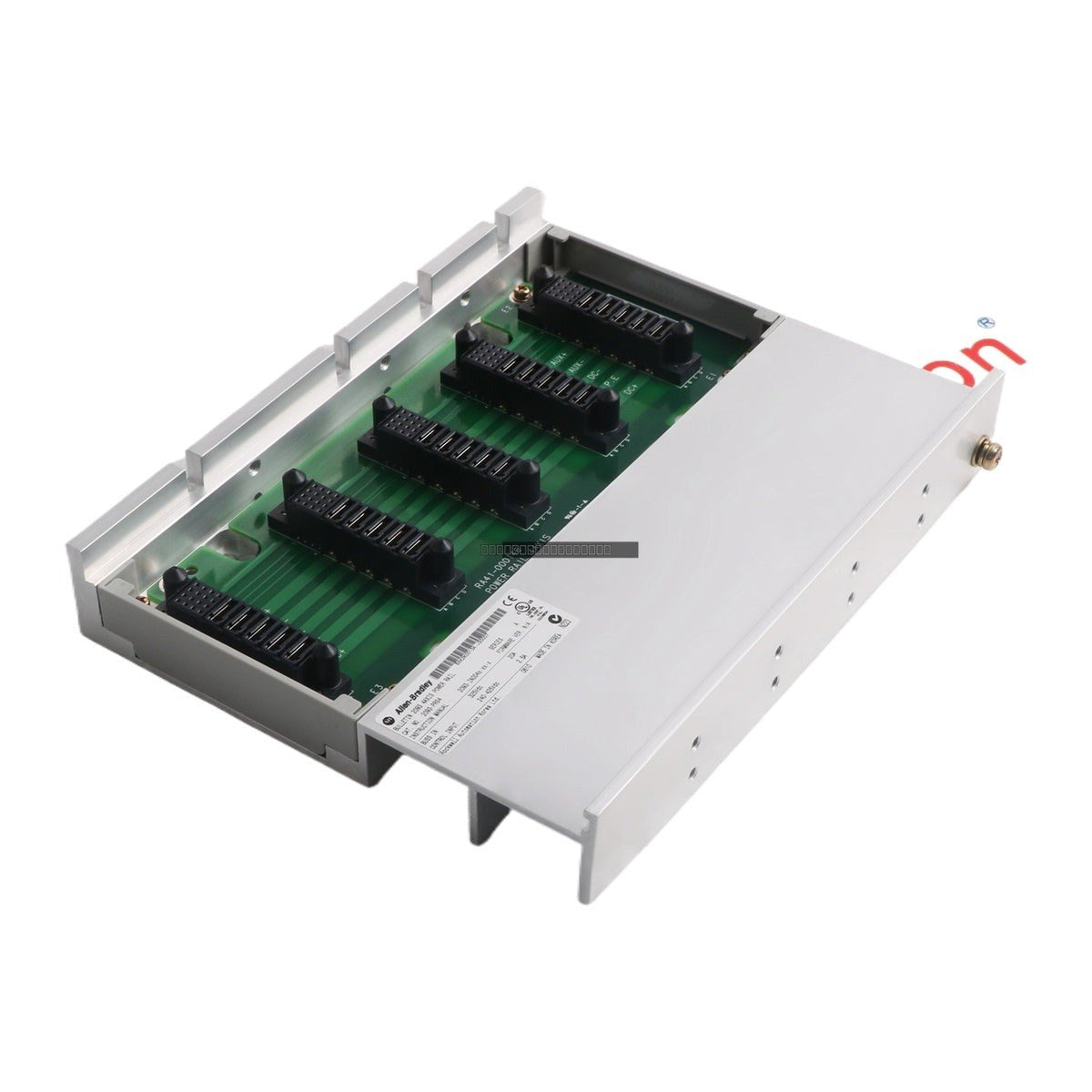

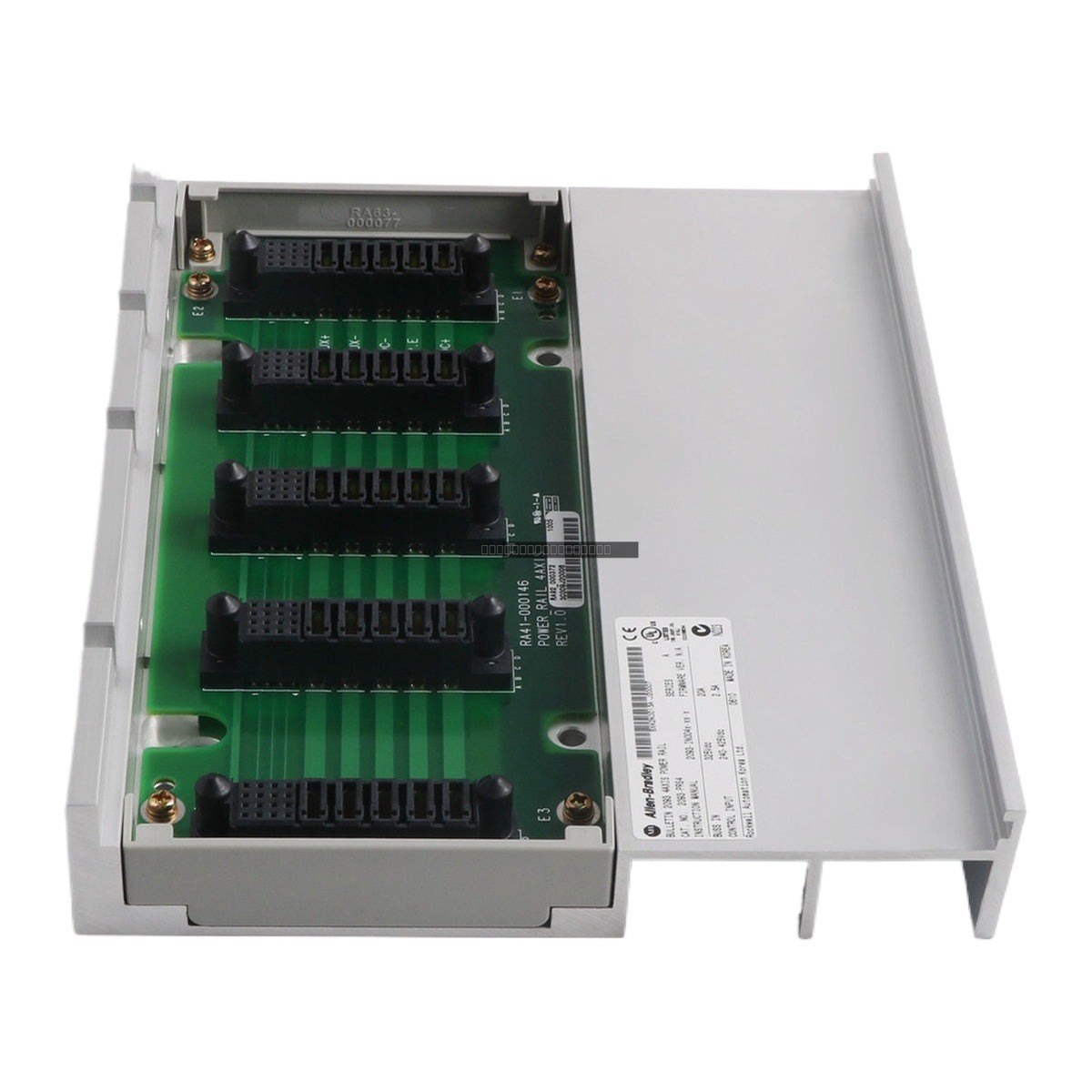

The Allen-Bradley 2093-PRS4 is a 4-axis slim power rail designed for use with the Kinetix 2000 multi-axis servo drive system. This power rail provides the necessary electrical distribution and mechanical mounting interface for integrating multiple servo drive modules into a single, compact cabinet footprint.
Features
- Designed specifically for Kinetix 2000 servo drive systems.
- Supports up to four axes of motion control.
- Slim profile design to optimize panel space.
- Integrated power distribution bus for simplified drive installation.
Applications
The 2093-PRS4 power rail is utilized in industrial automation environments requiring high-density motion control, such as packaging machinery, material handling systems, and precision assembly equipment where Kinetix 2000 drives are deployed.
Technical Specifications
| Product Model |
2093-PRS4 |
| Series |
Kinetix 2000 |
| Axis Capacity |
4-Axis |
| Type |
Slim Power Rail |
| Manufacturer |
Allen-Bradley |
Installation Guidelines
- Ensure the power rail is mounted on a flat, rigid surface within the control cabinet to prevent mechanical stress.
- Verify that all drive modules are securely seated and locked into the power rail connectors before applying power.
- Maintain adequate clearance around the power rail and installed drives to ensure proper airflow and heat dissipation.
- Follow all local electrical codes and Allen-Bradley installation manuals regarding grounding and power supply wiring.
- Always disconnect main power before installing or removing any servo drive modules from the power rail.
FAQ
Is this power rail compatible with other Kinetix series drives? No, the 2093-PRS4 is specifically engineered for the Kinetix 2000 platform. It is not compatible with Kinetix 6000 or other series power rails.
Does this unit include the servo drives? No, the 2093-PRS4 is the power rail mounting and distribution hardware only. Servo drive modules must be purchased separately.
