Description

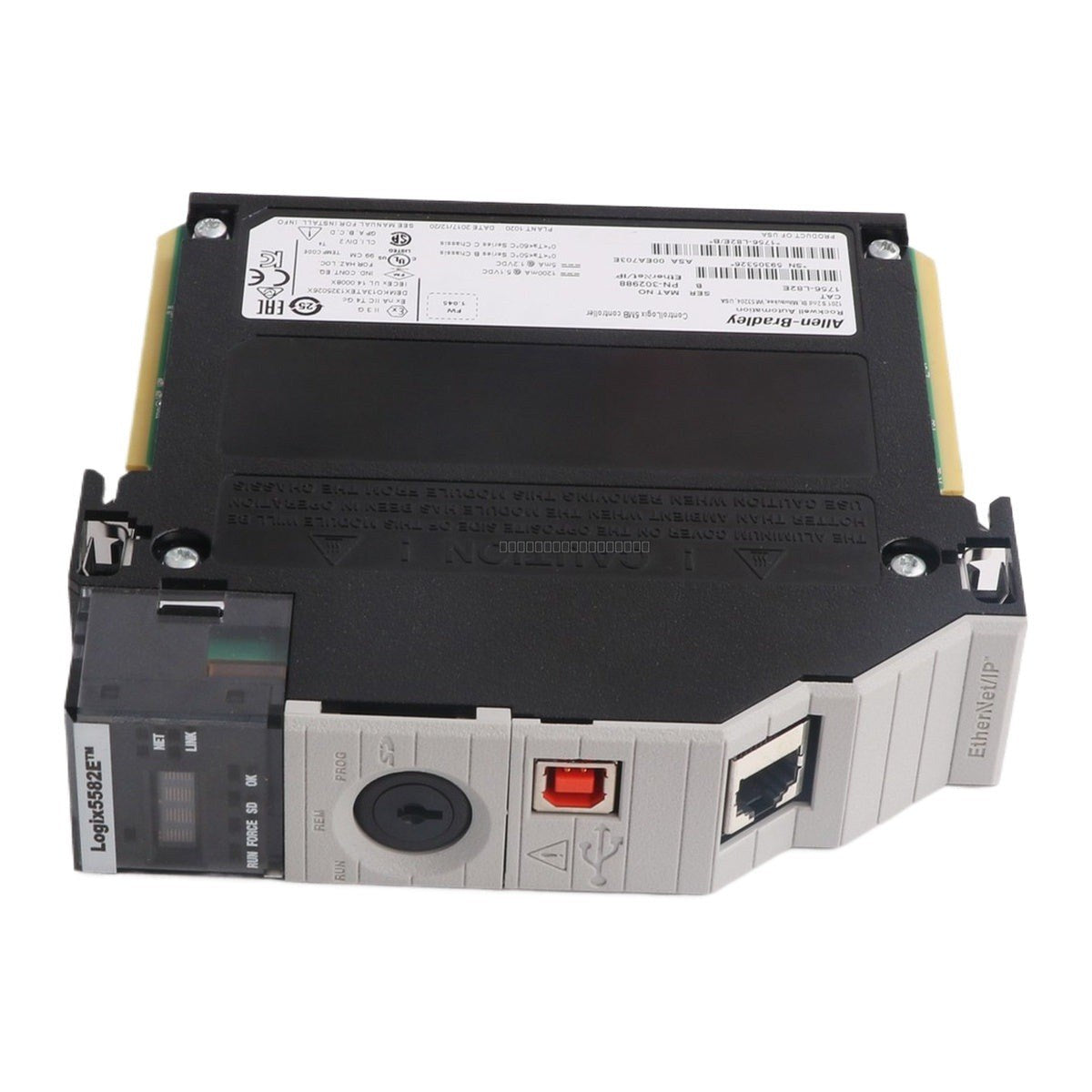

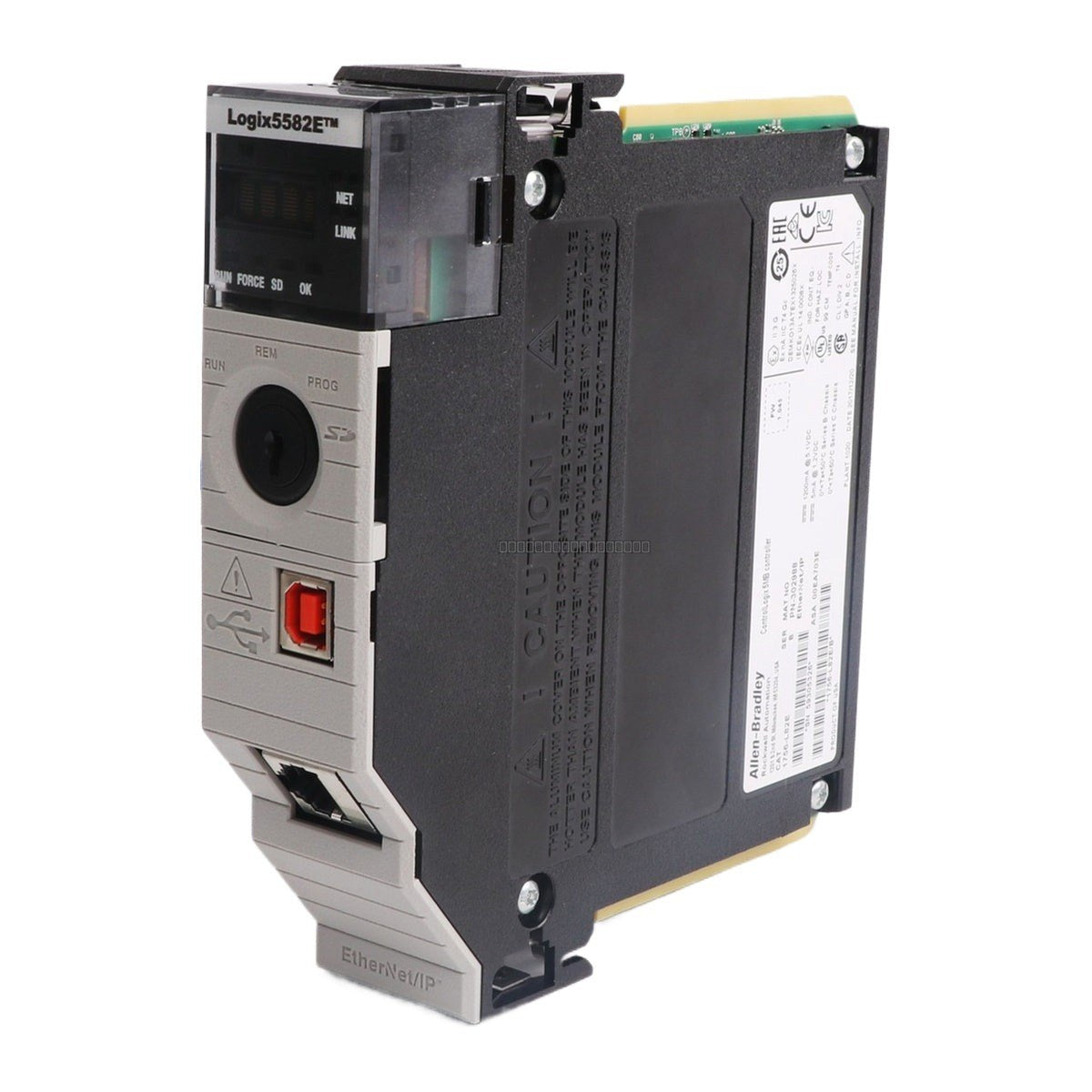

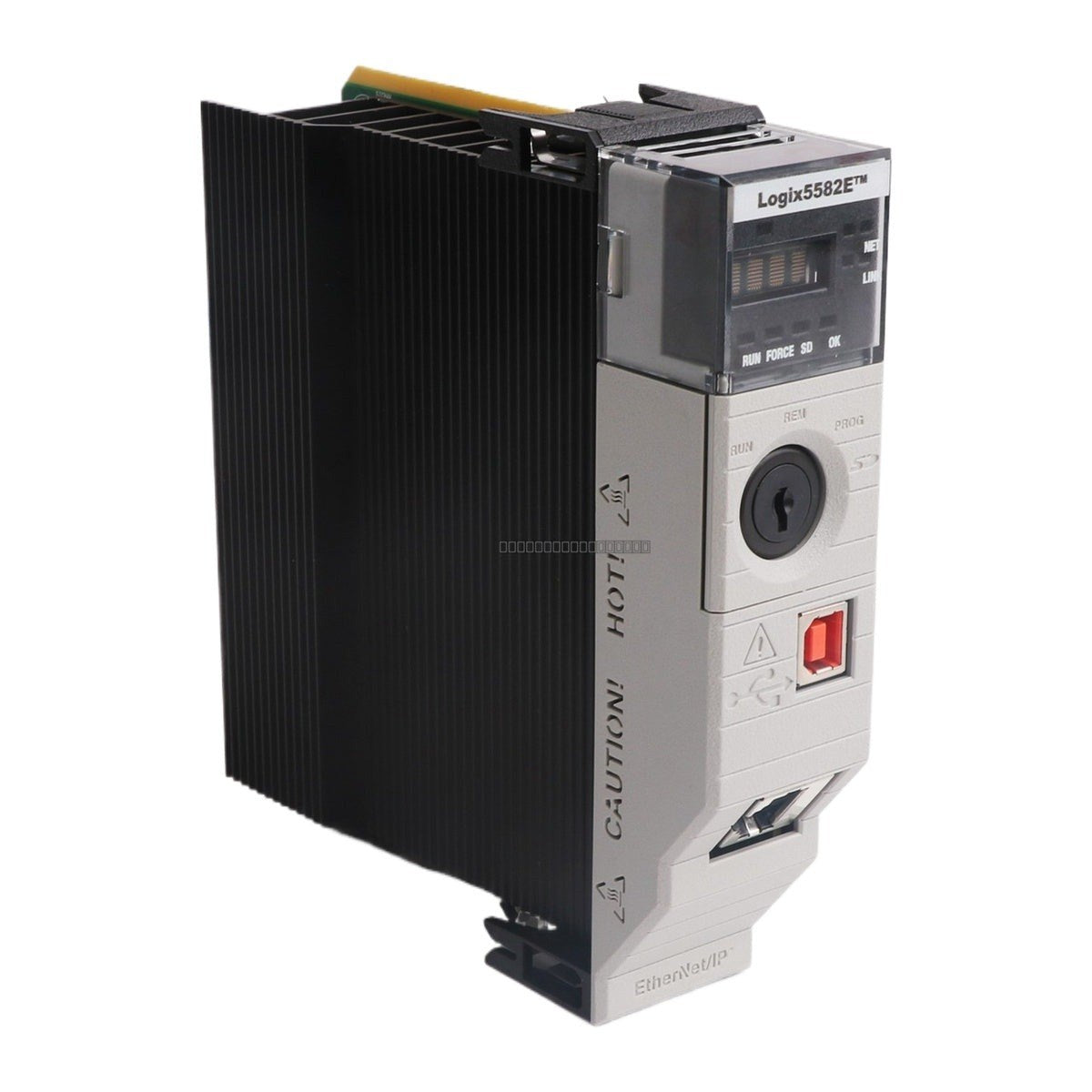

The Allen-Bradley 1756-L82E is a high-performance controller module from the ControlLogix 5580 series. Designed for demanding industrial automation environments, this processor provides robust computational power and integrated communication capabilities to manage complex control tasks. It features 20 MB of user memory and supports high-speed connectivity via an integrated 1 GB Ethernet port, facilitating seamless integration into EtherNet/IP networks.
Features
- Integrated 1 GB Ethernet port for high-speed communication and EtherNet/IP connectivity.
- Supports up to 175 EtherNet/IP devices for scalable system architecture.
- 4-character alphanumeric display for status monitoring and diagnostics.
- Built-in USB port for local programming and configuration.
- High-capacity memory designed for large-scale control applications.
Applications
This controller is widely utilized in large-scale industrial automation, including manufacturing, process control, and material handling systems where high-speed processing and reliable network communication are critical.
Technical Specifications
| Product Model |
1756-L82E |
| Series |
ControlLogix 5580 |
| User Memory |
20 MB |
| Ethernet Port |
1 GB |
| Max EtherNet/IP Devices |
175 |
| Max I/O Capacity |
Up to 256 modules |
| Power Supply |
5V DC |
| Power Consumption |
8W (typical) |
| Operating Temperature |
0 degC to 60 degC (32 degF to 140 degF) |
| Humidity |
5% to 95% (non-condensing) |
Installation Guidelines
- Ensure the ControlLogix chassis is properly grounded before installing the module.
- Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
- Power down the chassis before inserting or removing the processor module to prevent electrical arcing or data corruption.
- Ensure the module is fully seated in the slot and the locking tabs are engaged.
- Route communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Maintain adequate clearance around the chassis to ensure proper ventilation and cooling during operation.
FAQ
What is the primary function of the 1756-L82E?
The 1756-L82E acts as the central processor for a ControlLogix system, executing control logic, managing I/O data, and handling communication across industrial networks.
Does this module require a specific firmware version?
Yes, the 1756-L82E requires compatible firmware versions as specified by the Studio 5000 Logix Designer software. Always verify compatibility with your existing project files before deployment.
