Description

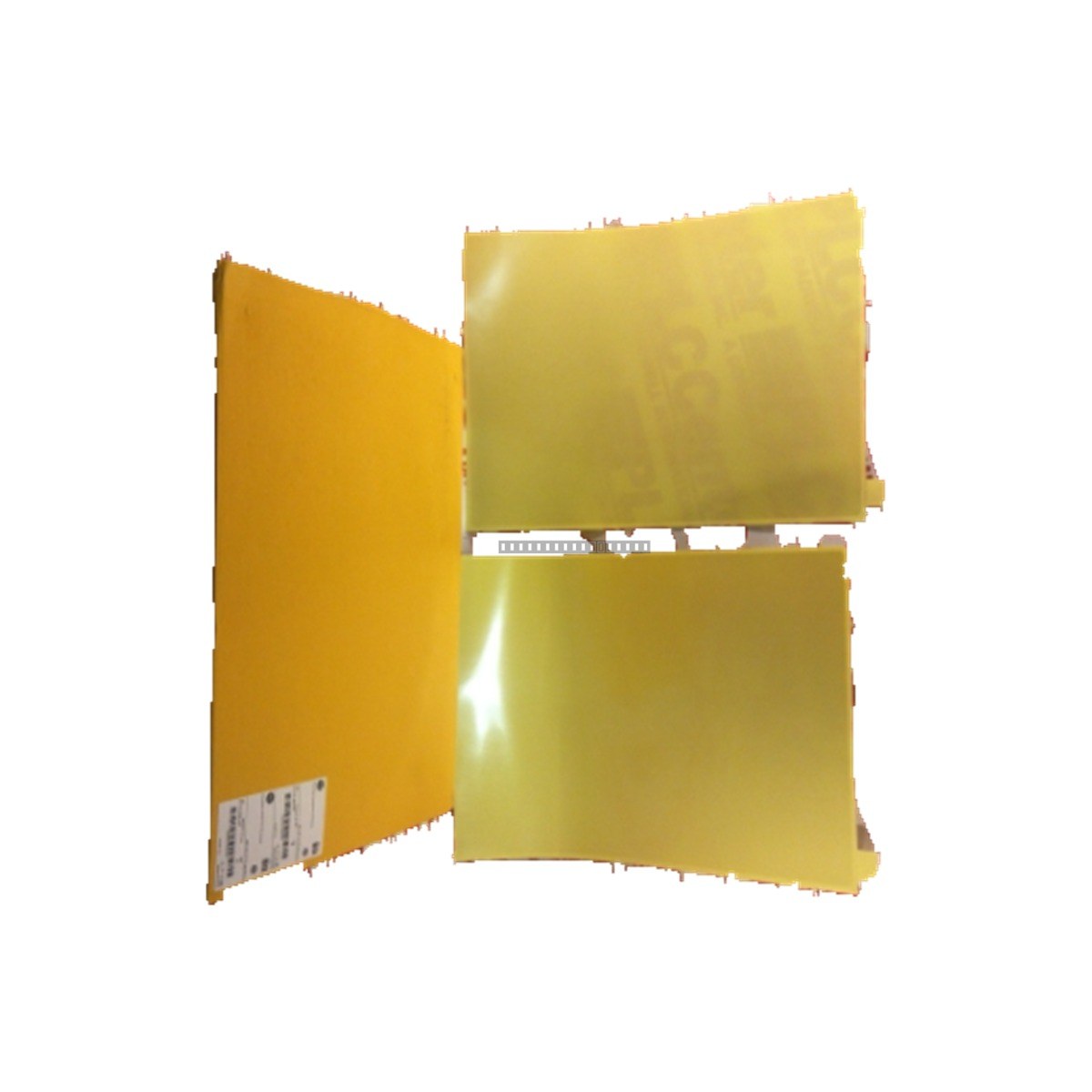

The Allen-Bradley 2711C-RG10T is an industrial-grade protective anti-glare screen overlay designed specifically for the PanelView Component C1000 HMI terminal series. This maintenance accessory provides a robust physical barrier over the terminal's integrated analog resistive touchscreen, protecting the display from factory-floor contaminants, abrasive particles, and fluid exposure. By diffusing harsh ambient light and eliminating specular reflections, the overlay ensures high visibility of process metrics in demanding environments, including petrochemical, material handling, and food manufacturing facilities.
Features
-
Optical Clarity: High-diffusion matte finish reduces glare and improves readability under intense industrial lighting.
-
Rugged Protection: Guards the touchscreen against scratches, dust, grease, and chemical washdowns without degrading over time.
-
Touch Sensitivity: Engineered to maintain full touch fidelity and input accuracy for the underlying resistive touch matrix.
-
Environmental Resilience: Supports NEMA Type 4X, 12, 13, and IP65 ratings when properly installed on a flush-mounted terminal.
-
Precision Fit: Custom-cut for the 10.4-inch display area of the PanelView Component C1000 series.
Applications
This overlay is intended for use in industrial HMI applications where display visibility and screen longevity are critical. It is suitable for deployment in high-ambient light areas, washdown-prone zones, and environments with high particulate matter where the native touchscreen surface requires additional protection.
Technical Specifications
| Model |
2711C-RG10T |
| Compatibility |
PanelView Component C1000 (e.g., 2711C-T10C) |
| Screen Size |
10.4 inches |
| Surface Finish |
Matte Anti-Glare |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-25 to 70 deg C |
| Relative Humidity |
0% to 95% non-condensing |
| Adhesion Method |
Pressure-sensitive perimeter adhesive |
Installation Guidelines
- Ensure the HMI display surface is clean, dry, and free of oils or debris before application.
- Use a lint-free cloth and approved industrial cleaner to prepare the bezel and screen area.
- Peel the backing carefully and align the overlay with the terminal's viewing window, ensuring no air bubbles are trapped during application.
- Apply firm, even pressure around the adhesive perimeter to ensure a secure, environmental-tight seal.
- Power down the HMI terminal during the cleaning and installation process to prevent accidental touch inputs.
FAQ
Does this overlay affect the touch sensitivity of the screen? No, the 2711C-RG10T is engineered to maintain 100% transmission mapping, ensuring that the analog resistive touch matrix remains fully responsive.
Is this overlay compatible with other PanelView models? This specific model is designed exclusively for the PanelView Component C1000 series. Please verify your specific terminal model before installation.
