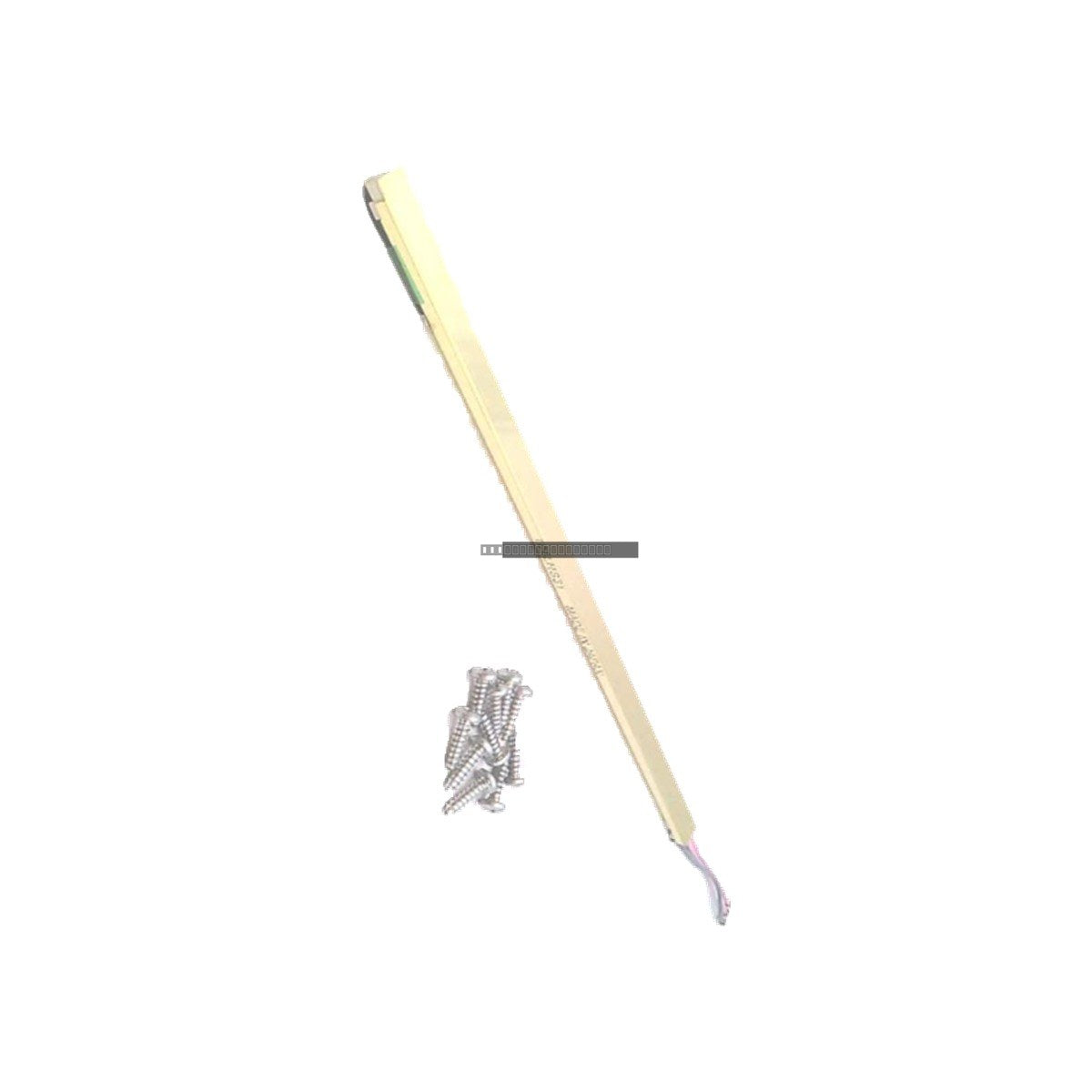

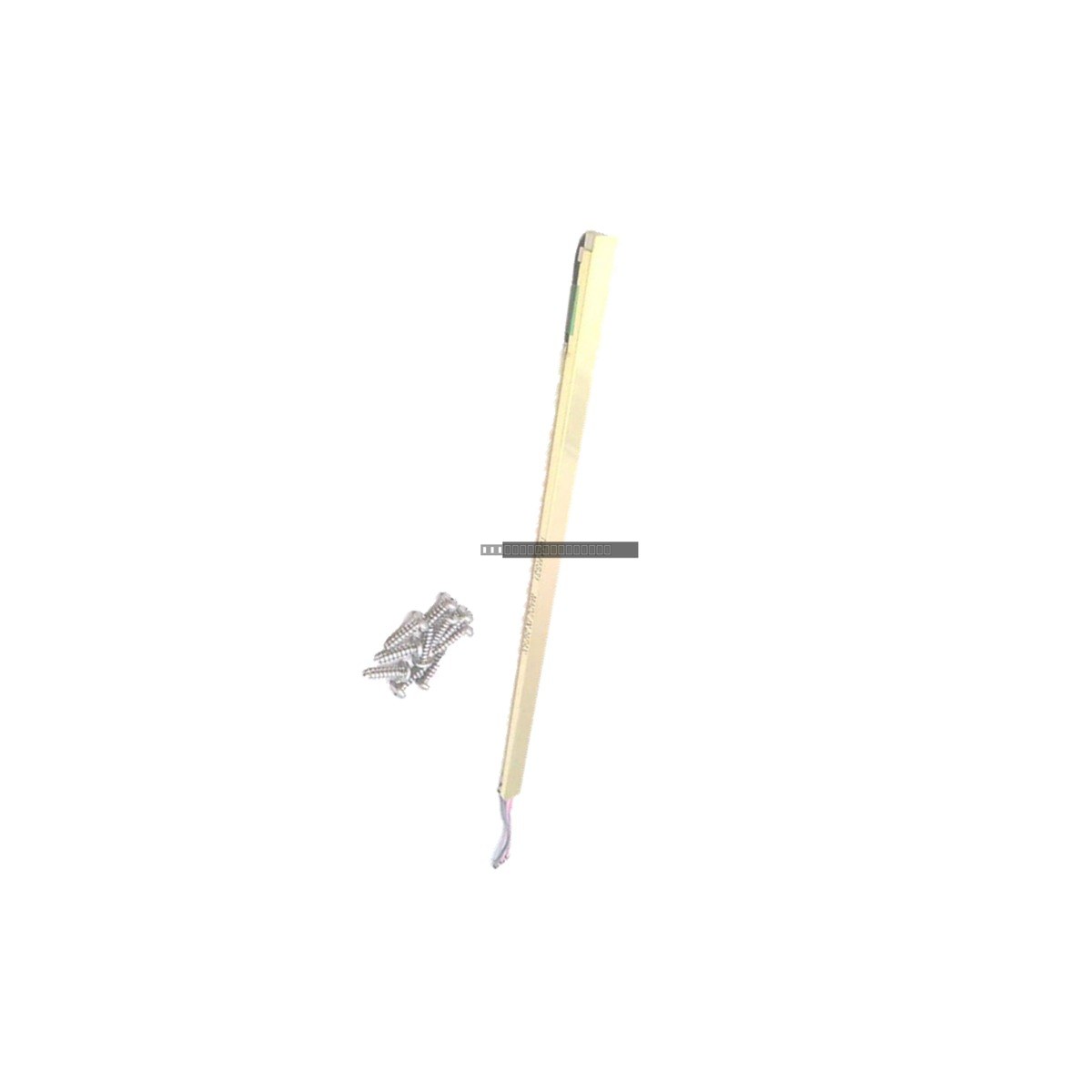

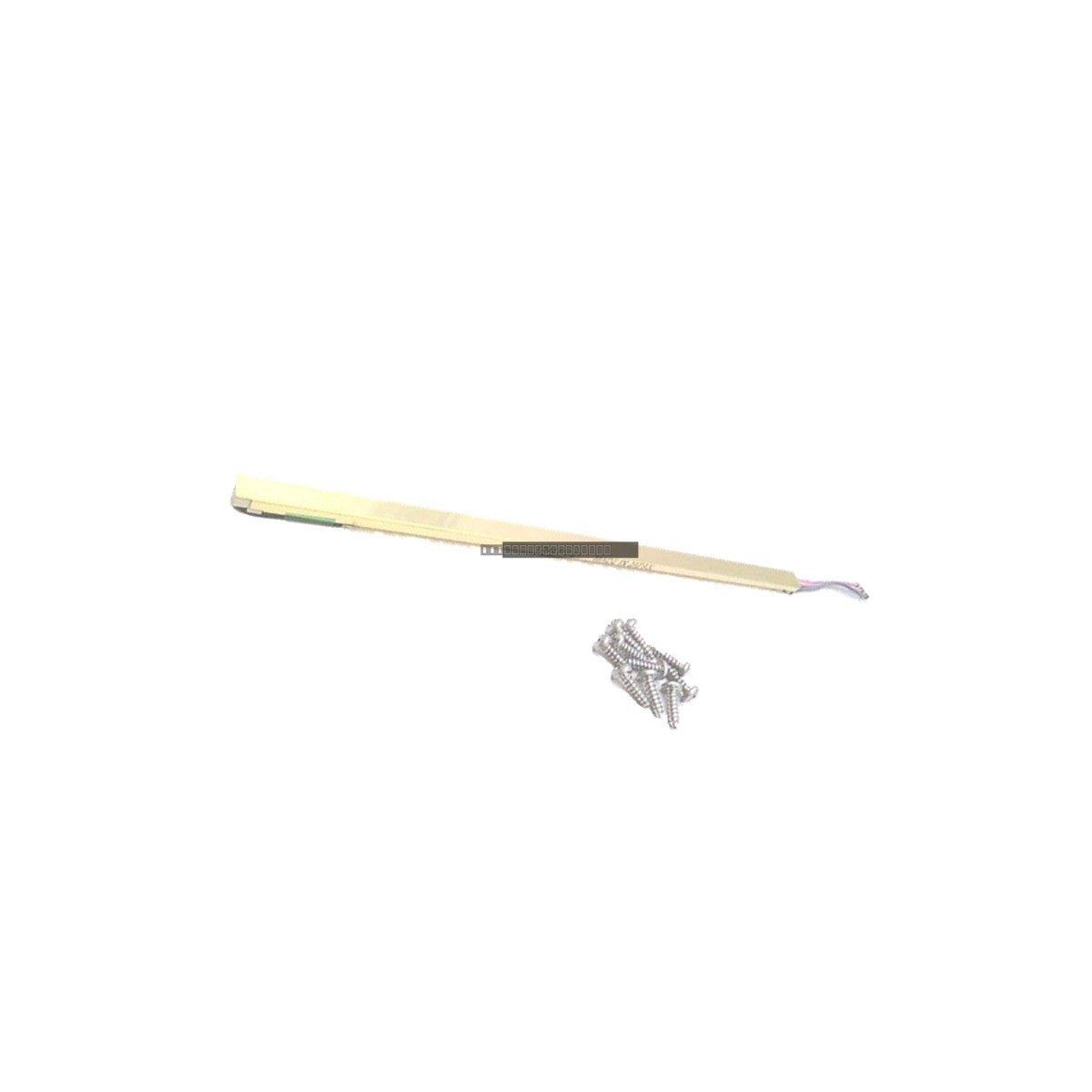

The Allen-Bradley 2711-NL7 is a specialized replacement backlight component engineered for PanelView 1000 color terminals, specifically those within the Series C architecture. This unit is designed to restore display brightness and visual clarity to legacy operator interface terminals, ensuring that critical process data remains legible for operators in industrial environments. By replacing degraded illumination components, this part helps maintain the operational lifespan of existing HMI hardware and avoids the necessity of full terminal replacement.
Features
- Designed specifically for compatibility with PanelView 1000 Series C color terminals.
- Restores optimal screen luminance and contrast for improved operator visibility.
- Lightweight, compact design for direct integration into existing terminal housing.
- Essential for extending the service life of legacy control room and plant floor interfaces.
Applications
This backlight is intended for use in industrial automation systems where PanelView 1000 Series C terminals are deployed. It is typically utilized during maintenance cycles to address dimming or failed display backlighting, ensuring continued compliance with safety and operational monitoring requirements.
Technical Specifications
| Model |
2711-NL7 |
| Brand |
Allen-Bradley |
| Category |
HMI / OIT Component |
| Compatibility |
PanelView 1000 Color Terminals (Series C only) |
| Lifecycle Status |
Discontinued (Effective 2018-08-30) |
| Weight |
0.04 lbs |
Installation Guidelines
- Ensure the PanelView terminal is fully disconnected from all power sources before attempting any disassembly or component replacement.
- Handle the replacement backlight with care to avoid damage to the glass or electrical leads.
- Follow standard ESD (Electrostatic Discharge) mitigation procedures when opening the terminal housing to prevent damage to sensitive internal circuitry.
- Verify that the terminal is a Series C unit before installation; this component is not compatible with other series versions.
- Ensure all internal connectors are securely seated and that the backlight is correctly aligned within the display assembly before re-securing the terminal chassis.
FAQ
Is this part compatible with all PanelView 1000 units? No, the 2711-NL7 is specifically engineered for Series C color terminals only. Please verify your terminal's series designation before purchase.
Is this an original manufacturer part? This is a replacement component intended for use with Allen-Bradley hardware. As the product was discontinued by the manufacturer in 2018, factory warranties no longer apply.
