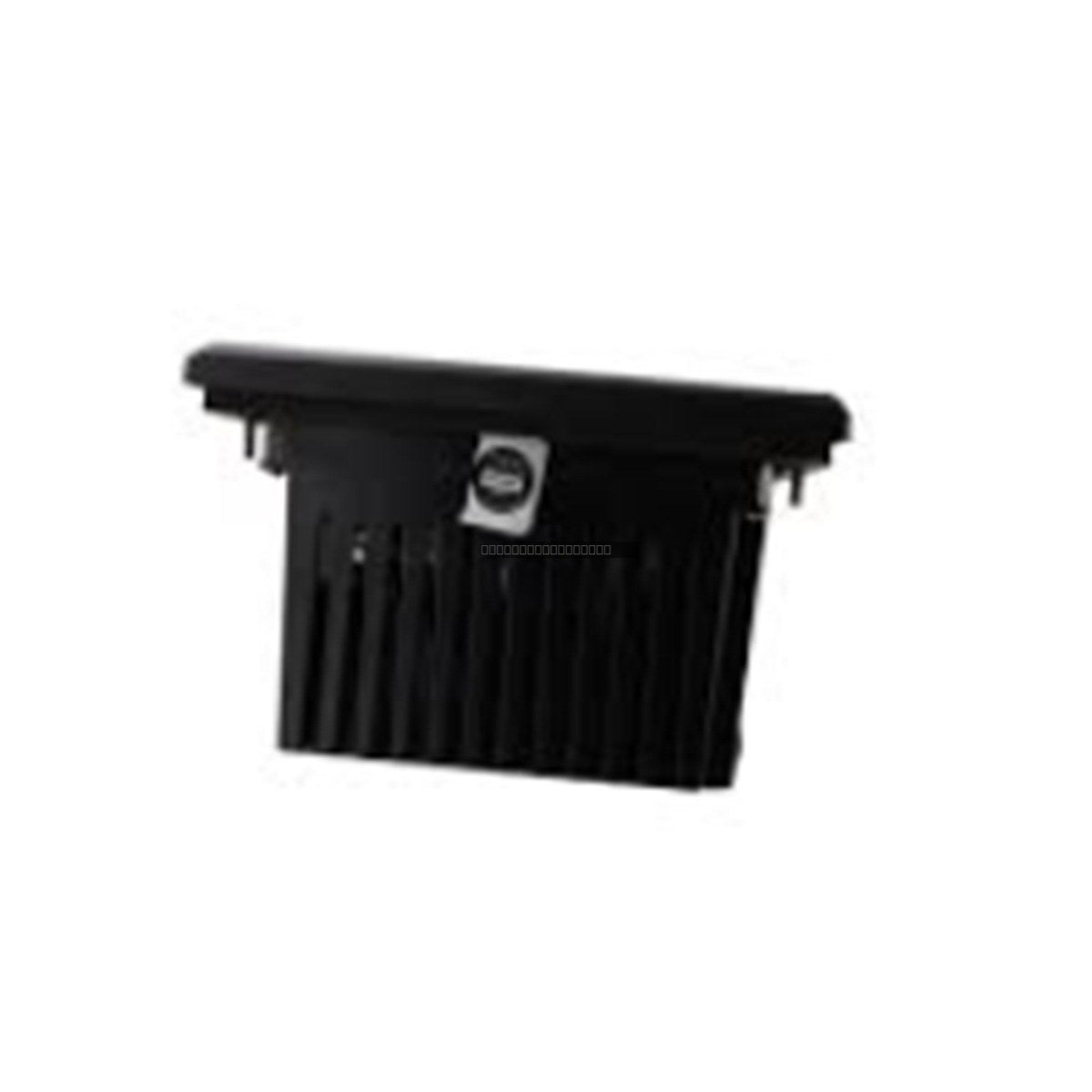

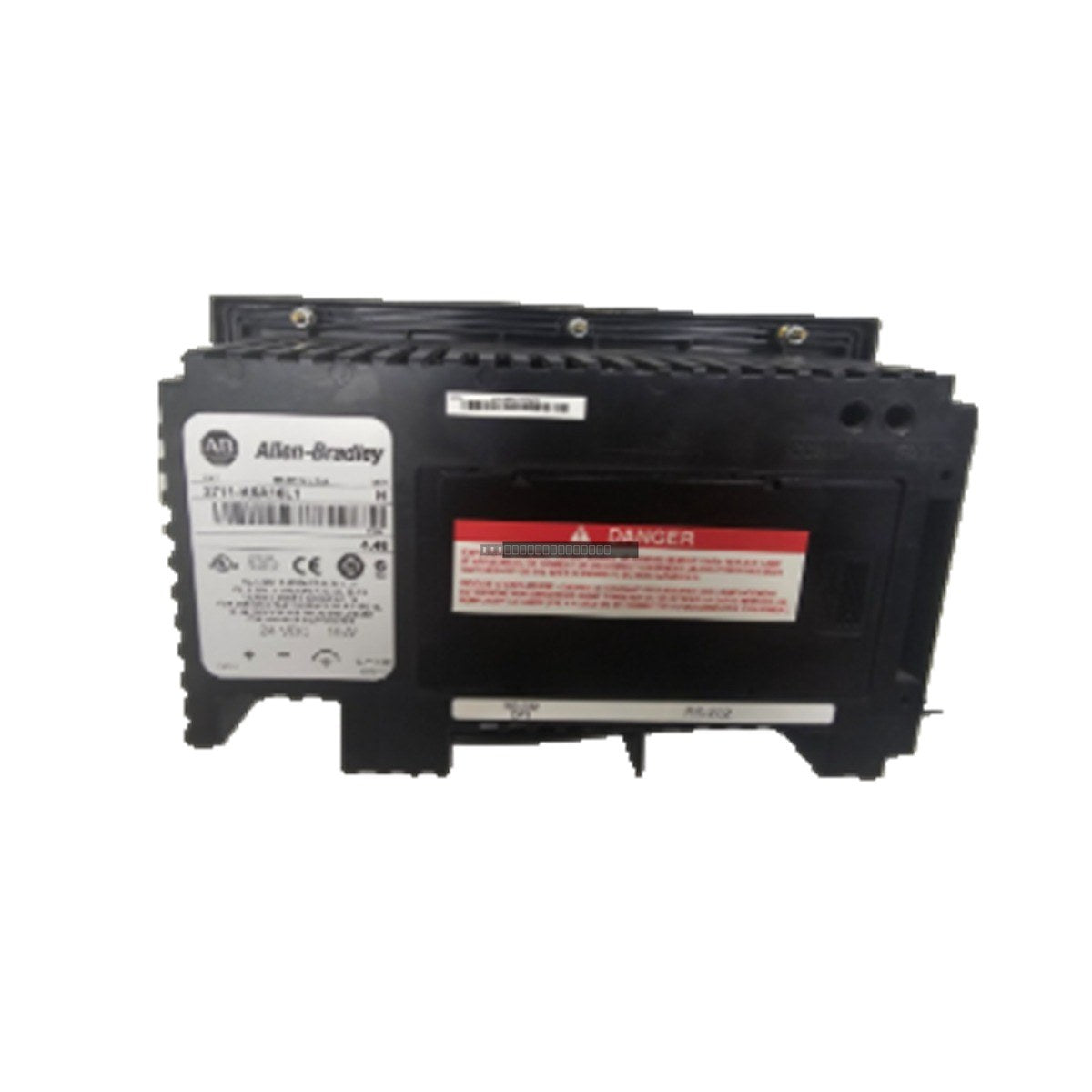

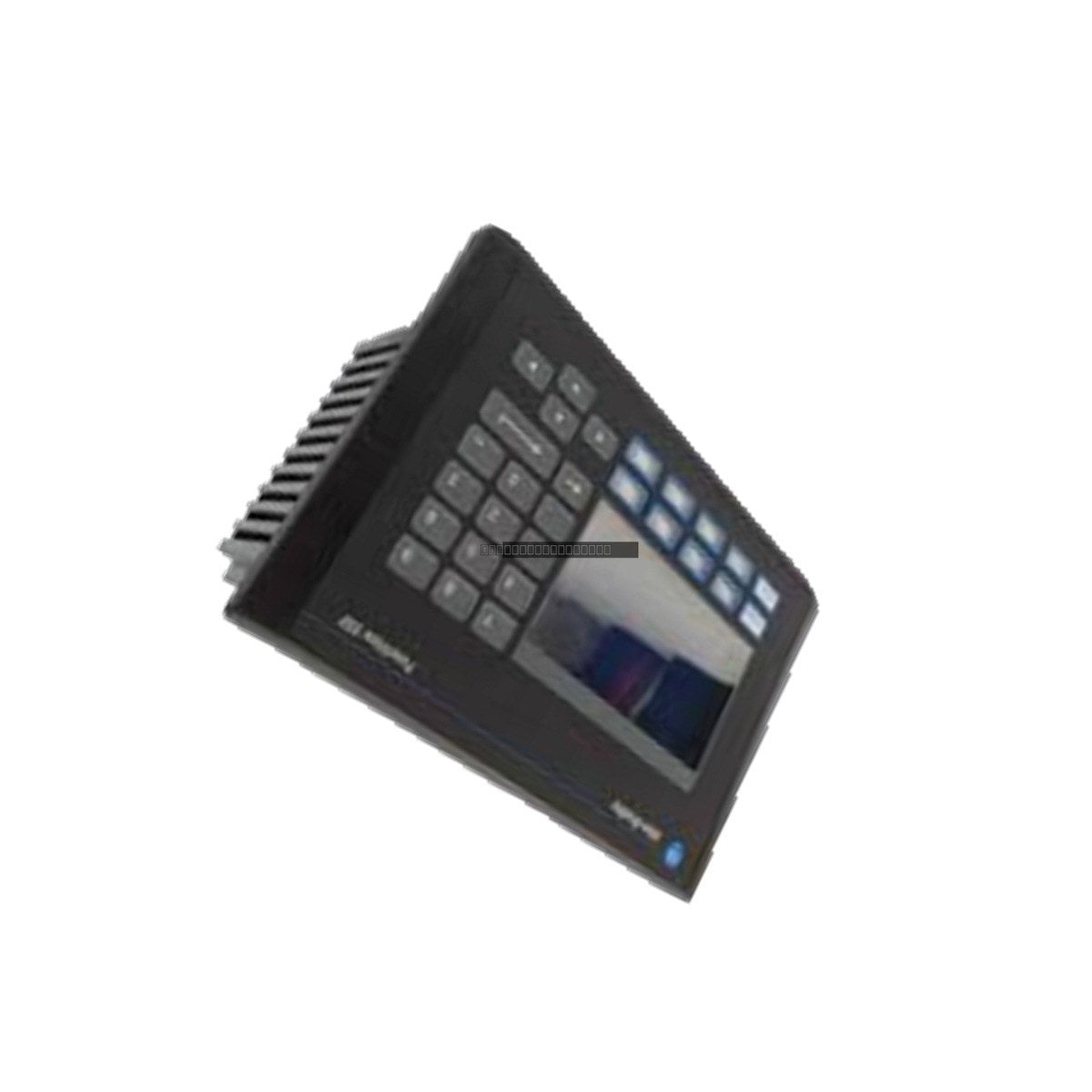

The Allen-Bradley 2711-K6C5 is a PanelView 600 standard operator interface terminal engineered for machine-level visualization and industrial process control. Designed for automation applications such as packaging machines and discrete assembly lines, this human-machine interface delivers reliable graphic monitoring and data entry via an integrated keypad. It is built to provide stable operation and network communication in demanding plant environments.
Features
- Color active-matrix TFT display for clear process visualization.
- Resilient 10-key stainless-steel domed membrane function keypad with dedicated navigation buttons.
- Integrated RS-232 communication port supporting DH-485 protocol for seamless connectivity with SLC 500 and MicroLogix controllers.
- Supports multi-node networking when used with an AIC+ module.
- Nonvolatile flash memory for reliable application storage.
- Field-replaceable display backlight to extend service life.
Applications
This terminal is suitable for various industrial automation tasks, including machine monitoring, process status tracking, and operator-to-controller interaction in manufacturing, assembly, and packaging environments.
Technical Specifications
| Model |
2711-K6C5 |
| Brand |
Allen-Bradley |
| Display Size |
5 in |
| Display Resolution |
320 x 234 pixels |
| Input Type |
Keypad |
| Input Voltage |
85-264 VAC |
| Input Frequency |
47-63 Hz |
| Power Consumption |
50 VA max |
| Memory |
240 KB nonvolatile memory |
| Communication |
RS-232 (DH-485) |
| Operating Temp |
0 to 50 degC |
Installation Guidelines
- Ensure the terminal is mounted in a panel or enclosure that provides adequate protection and ventilation.
- Maintain proper clearance around the unit to prevent overheating.
- Use shielded communication cables for RS-232 connections to minimize electromagnetic interference (EMI).
- Ensure the AC power supply is properly grounded according to local electrical codes.
- Power down the unit before performing any maintenance or replacing the backlight module.
- Follow standard ESD handling procedures when accessing internal components.
FAQ
What controllers is this terminal compatible with? The 2711-K6C5 is designed for use with Allen-Bradley SLC 500 and MicroLogix controllers via the DH-485 protocol.
Can the backlight be replaced in the field? Yes, the display backlight on this model is field-replaceable, allowing for maintenance without replacing the entire terminal.
