Description

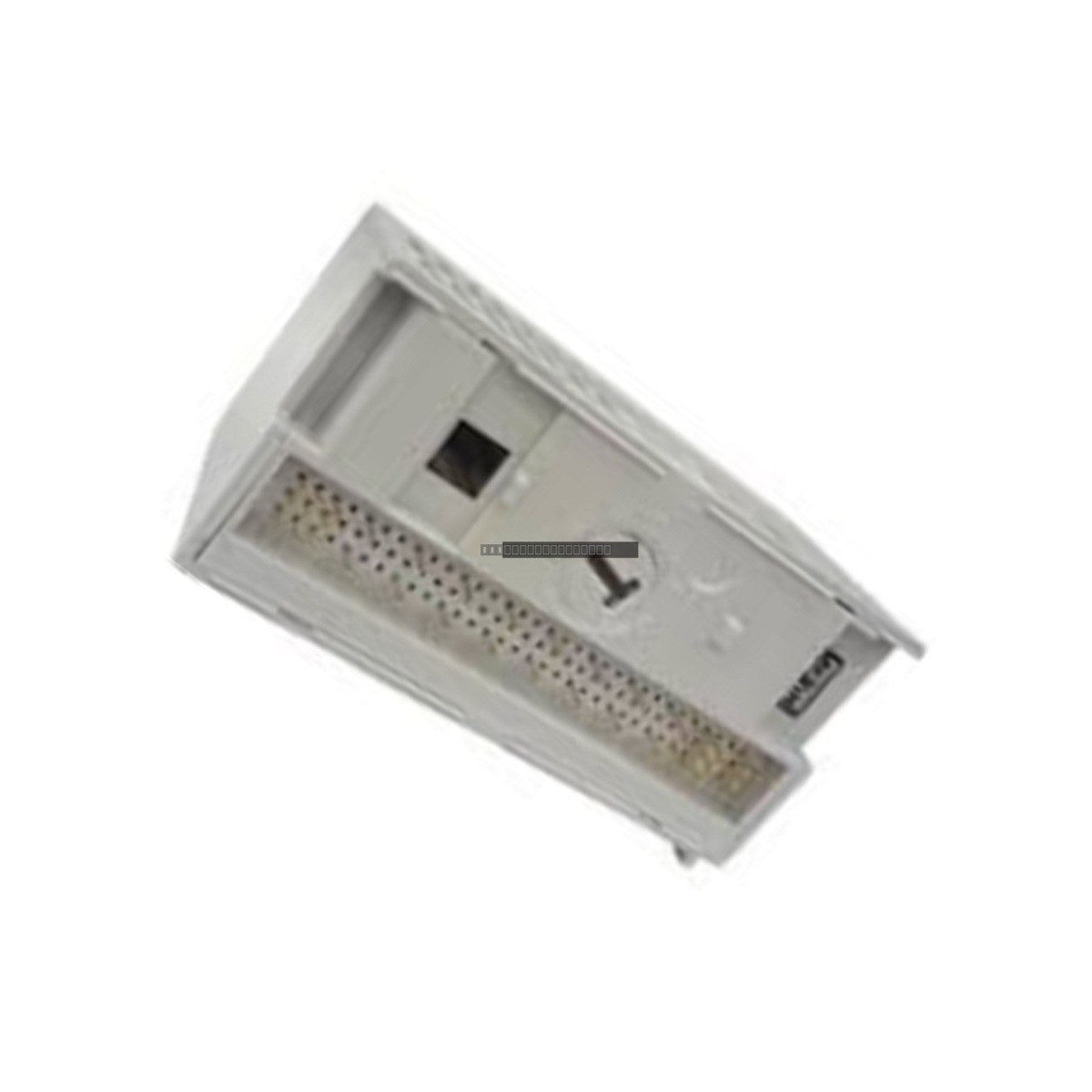

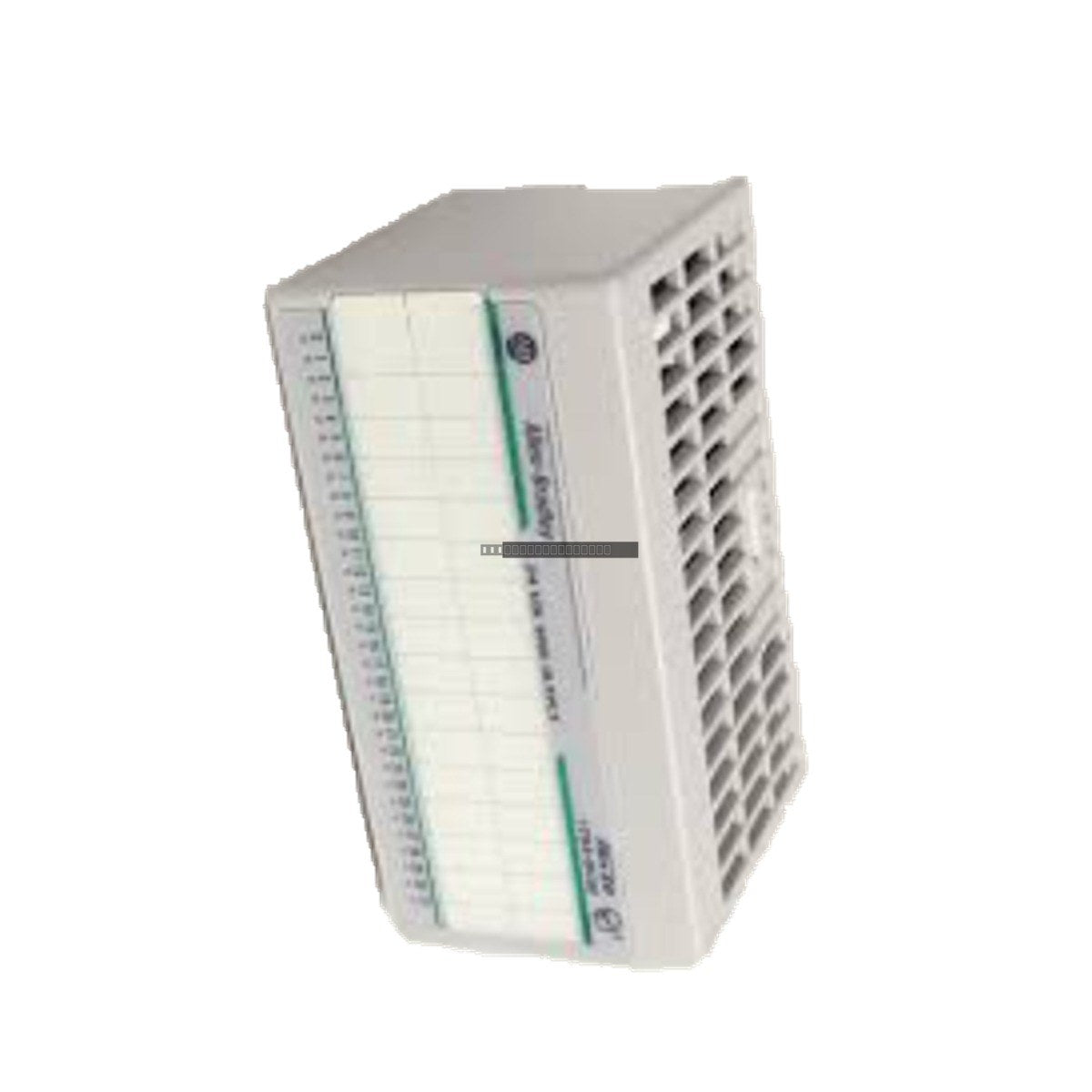

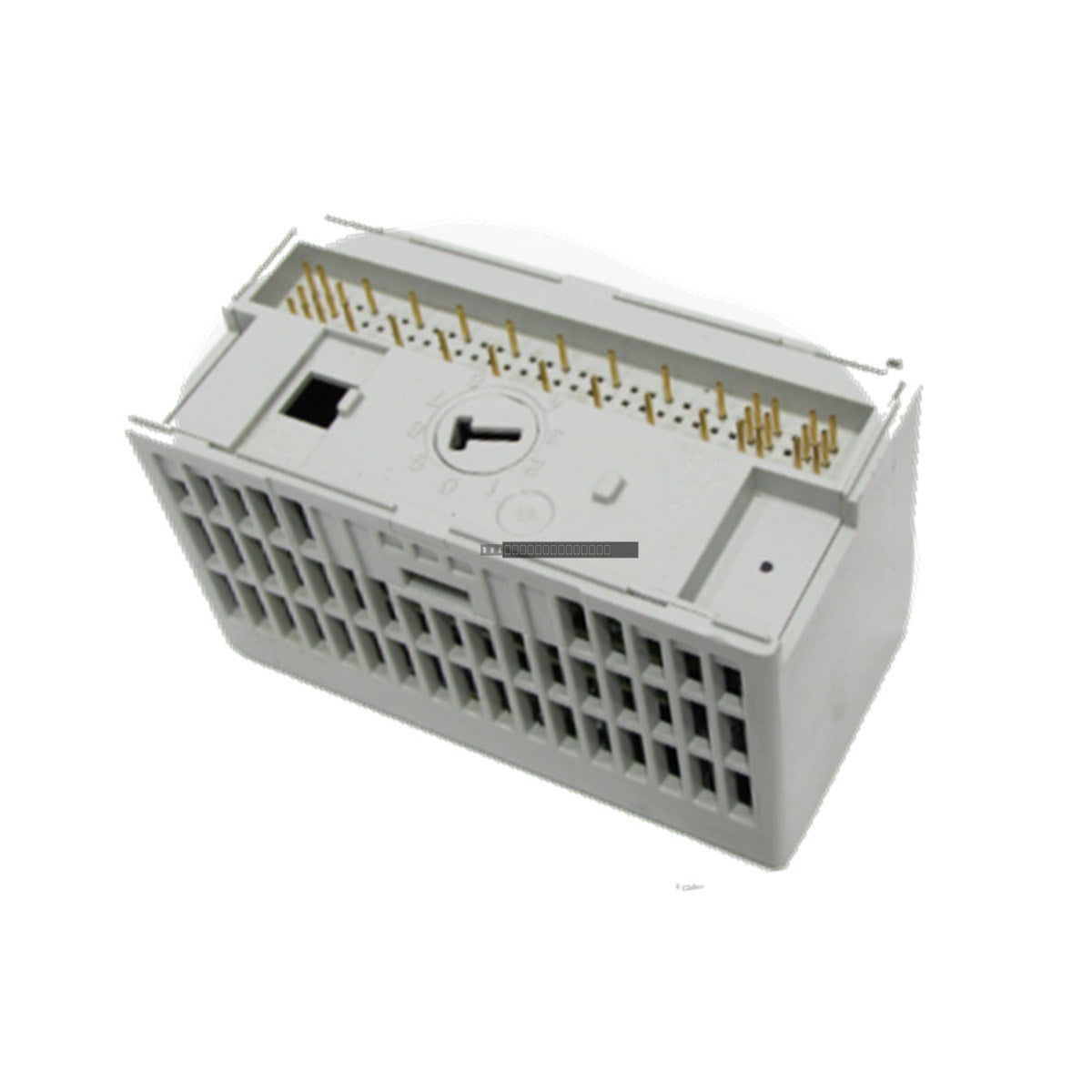

The Allen-Bradley 1794-ID2 is a high-speed, 2-channel incremental encoder counter module engineered for the FLEX I/O 1794 platform. This module functions as a high-speed pulse interface, converting raw mechanical rotational feedback into digital data for the programmable automation controller. It is designed for precision applications requiring high-speed counting, such as robotic positioning, conveyor synchronization, web-tension control, and continuous process monitoring. By processing pulses independently of the main controller scan cycle, the 1794-ID2 minimizes latency and improves tracking accuracy in high-speed industrial environments.
Features
-
Dual-Channel Processing: Features two independent high-speed counter channels, each supporting four optocoupled inputs for versatile signal evaluation.
-
Flexible Signal Configuration: Supports multiple operating modes including standard Quadrature (Phase A/B) and Up/Down count tracking.
-
Robust Isolation: Integrated 500 VAC continuous optical isolation protects internal circuitry from field-side electrical noise and ground potential differences.
-
Diagnostic Indicators: Equipped with 13 front-panel LEDs, including a bi-color system health indicator and 12 channel-specific status indicators for real-time troubleshooting.
Applications
The 1794-ID2 is widely utilized in automation systems where precise motion and position feedback are critical. Typical applications include:
- High-speed conveyor line tracking and synchronization.
- Robotic sorting and material handling cells.
- Metal rolling mill speed and position control.
- Packaging machinery and web-tension monitoring.
Technical Specifications
| Model |
1794-ID2 |
| Product Line |
FLEX I/O 1794 |
| Counter Channels |
2 |
| Inputs per Channel |
4 (Optocoupled) |
| Max Counting Frequency |
100 kHz |
| Nominal Input Voltage |
12/24 VDC |
| Input Voltage Range |
6.0 to 26.4 VDC |
| Backplane Current |
5 mA at 5 VDC |
| Thermal Dissipation |
17.1 BTU/hr at 26.4 VDC |
| Isolation |
500 VAC continuous |
| Mounting |
35 mm DIN Rail or Panel Mount |
Installation Guidelines
-
Power Down: Always disconnect power from the FLEX I/O backplane before installing or removing the module.
-
Grounding: Ensure the DIN rail or mounting panel is properly grounded to provide a low-impedance path for EMI/RFI noise.
-
Shielding: Use shielded twisted-pair cabling for encoder signals to minimize interference in high-EMI environments.
-
Environment: This is an open-style device; it must be installed within a suitable industrial enclosure rated for the operating environment.
-
Ventilation: Maintain adequate clearance around the module to ensure proper thermal dissipation during operation.
FAQ
What is the maximum pulse frequency supported by the 1794-ID2?
The module supports a maximum counting frequency of 100 kHz.
Does this module support differential encoder signals?
Yes, the 1794-ID2 is designed to evaluate both complementary and non-complementary differential encoder signals using its optocoupled inputs.
What type of mounting does this module require?
The 1794-ID2 is designed for standard 35 mm DIN rail mounting or direct surface mounting on a sub-panel within an industrial enclosure.
