Description

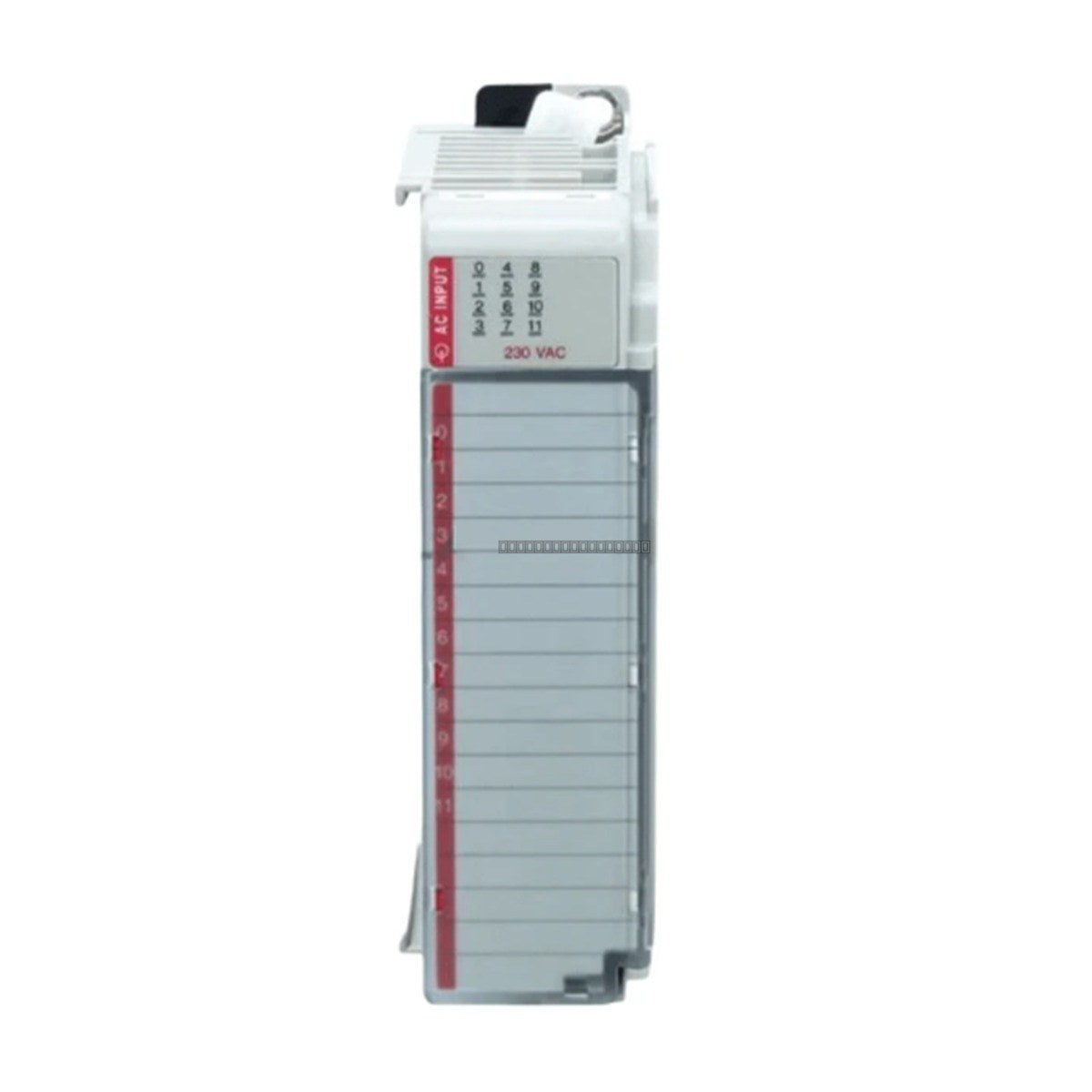

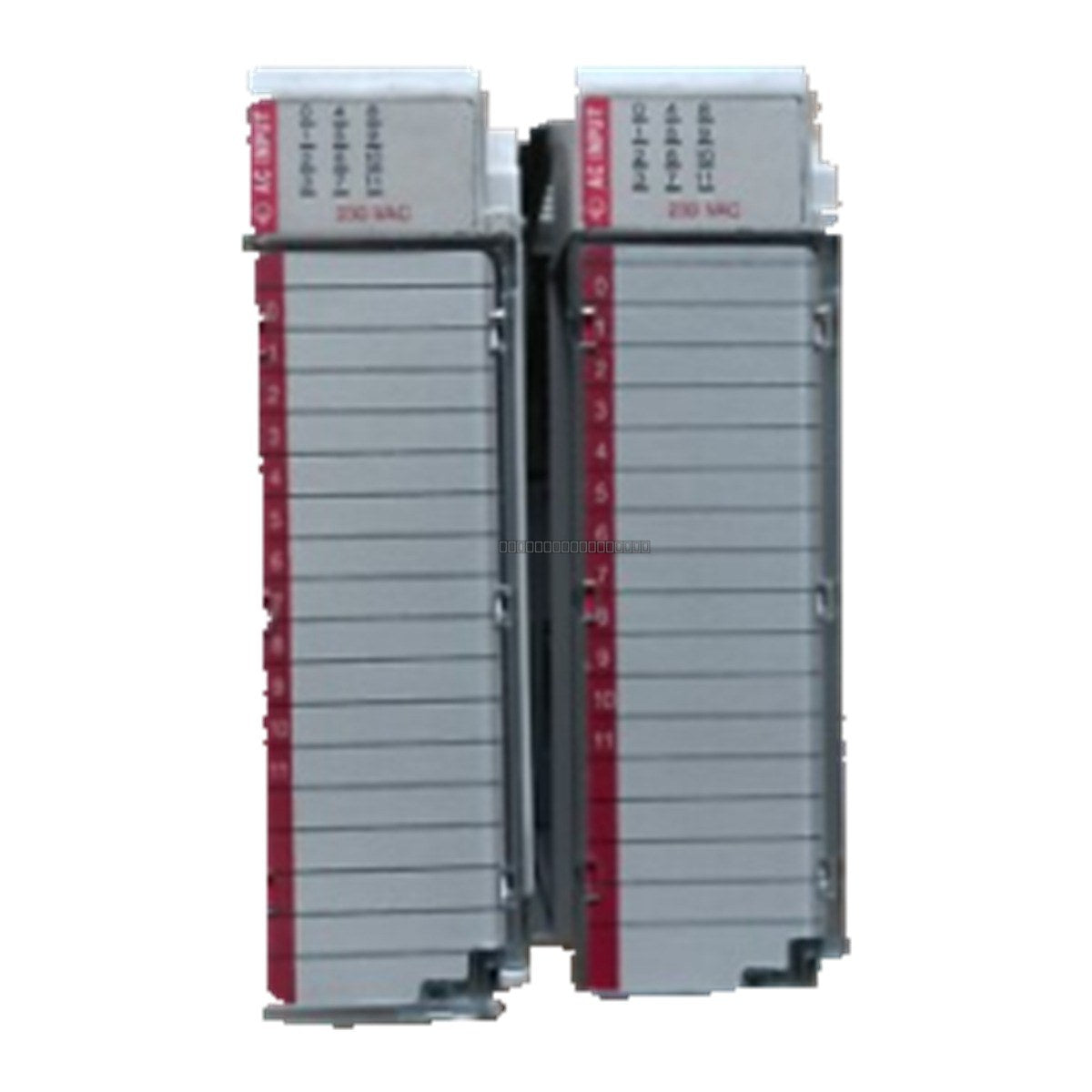

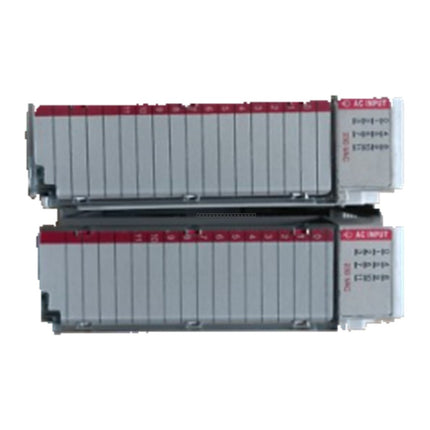

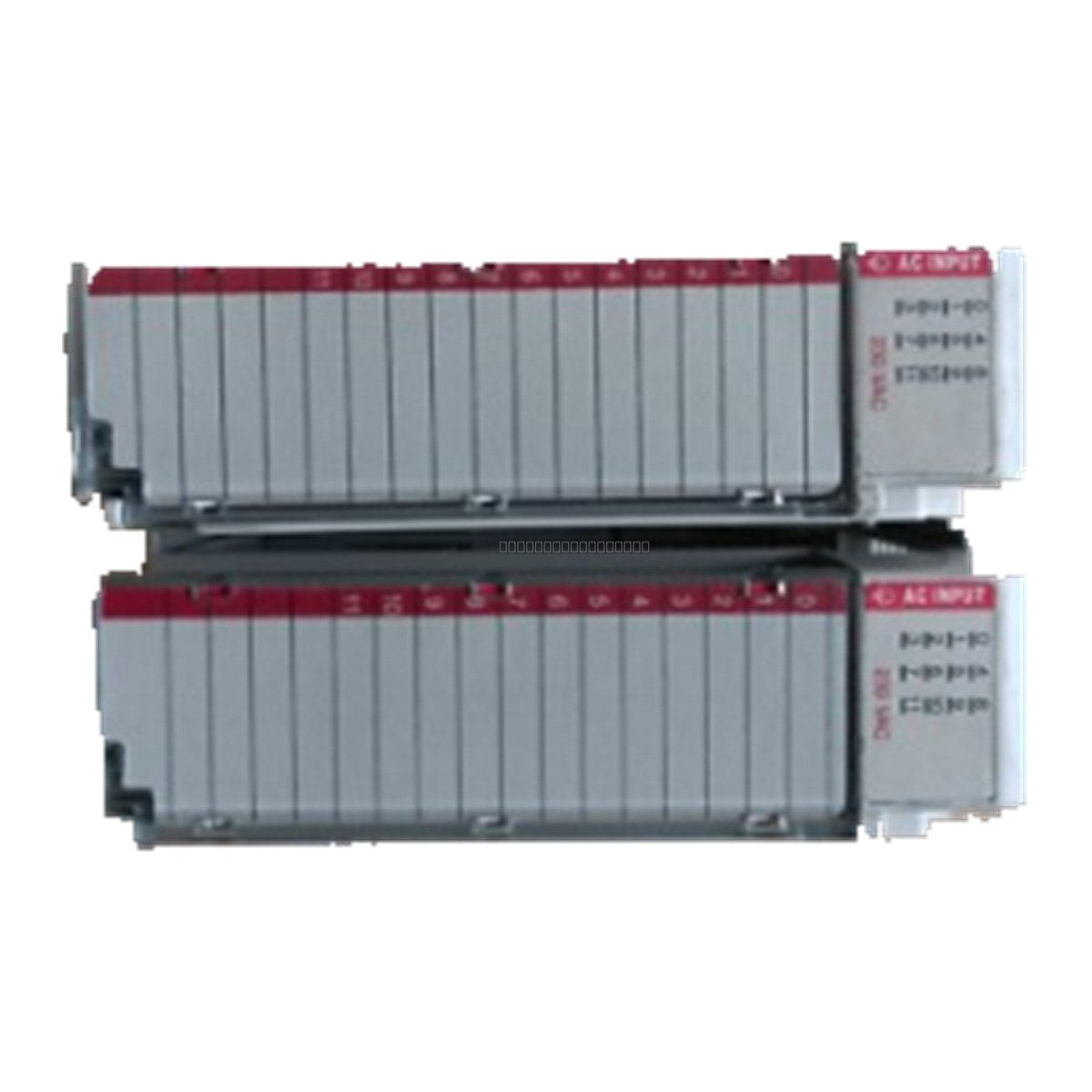

The Allen-Bradley 1769-IM12 is a high-voltage digital AC input module engineered for use within CompactLogix and MicroLogix 1500 controller systems. This module provides 12 isolated input points designed to interface with 200–240 VAC field signals, making it a robust solution for monitoring industrial power distribution circuits, heavy machinery status, and high-voltage sensors. The module is designed to provide reliable signal conditioning and noise immunity in demanding electrical environments.
Features
- 12 high-voltage AC input points for 200–240 VAC applications.
- Integrated signal filtering with a 20 ms delay to mitigate electrical noise.
- Compatible with CompactLogix and MicroLogix 1500 backplane systems.
- Supports DIN-rail or panel mounting for flexible cabinet integration.
- Uses the 1769-RTBN18 removable terminal block for efficient field wiring and maintenance.
Applications
This module is typically deployed in industrial automation systems requiring the monitoring of high-voltage AC signals. Common applications include monitoring motor starter status, power supply health, industrial lighting circuits, and high-voltage limit switches.
Technical Specifications
| Model |
1769-IM12 |
| Number of Inputs |
12 |
| Voltage Category |
200/240 VAC |
| Operating Voltage Range |
159–264 VAC (47–63 Hz) |
| Signal Delay (On to Off) |
20 ms |
| Backplane Current Draw |
100 mA @ 5.1V |
| Heat Dissipation |
3.65 W |
| Off-State Voltage |
40 VAC (Max) |
| On-State Voltage |
159 VAC (Min) |
| Wire Size |
22–14 AWG (Solid) / 22–16 AWG (Stranded) |
| Mounting |
DIN Rail or Panel Mount |
Installation Guidelines
-
Power Down: Always disconnect system power before installing or removing the module from the backplane.
-
Placement: For optimal performance, the module should be located within 8 slots of the system power supply.
-
Grounding: Ensure the DIN rail or panel is properly grounded to provide a low-impedance path for electrical noise.
-
Wiring: Use the 1769-RTBN18 terminal block. Ensure all field wiring is routed away from high-voltage AC power lines to prevent induced noise.
-
ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal circuitry.
FAQ
What is the primary function of the 1769-IM12?
The 1769-IM12 is a digital input module that converts high-voltage AC signals (200–240 VAC) into logic-level signals that can be processed by a CompactLogix or MicroLogix 1500 controller.
Is this module compatible with all CompactLogix systems?
The 1769-IM12 is designed for the Compact I/O platform. It is compatible with CompactLogix systems that support 1769-series I/O modules. Please verify your specific controller's backplane current capacity before adding modules.
Does this module include the terminal block?
The 1769-IM12 typically requires the 1769-RTBN18 removable terminal block for connection. Please check your specific order configuration to confirm if the terminal block is included.
