Description

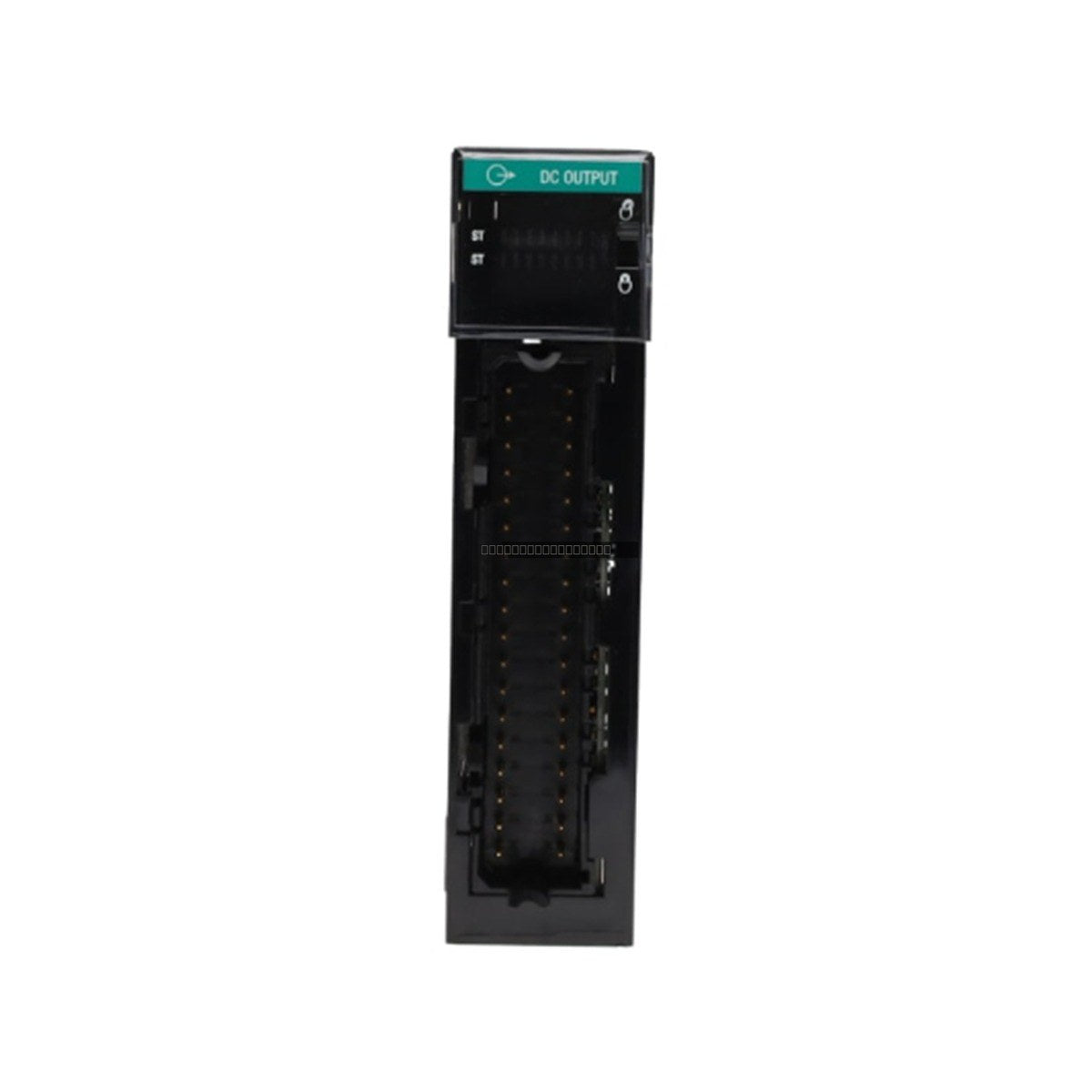

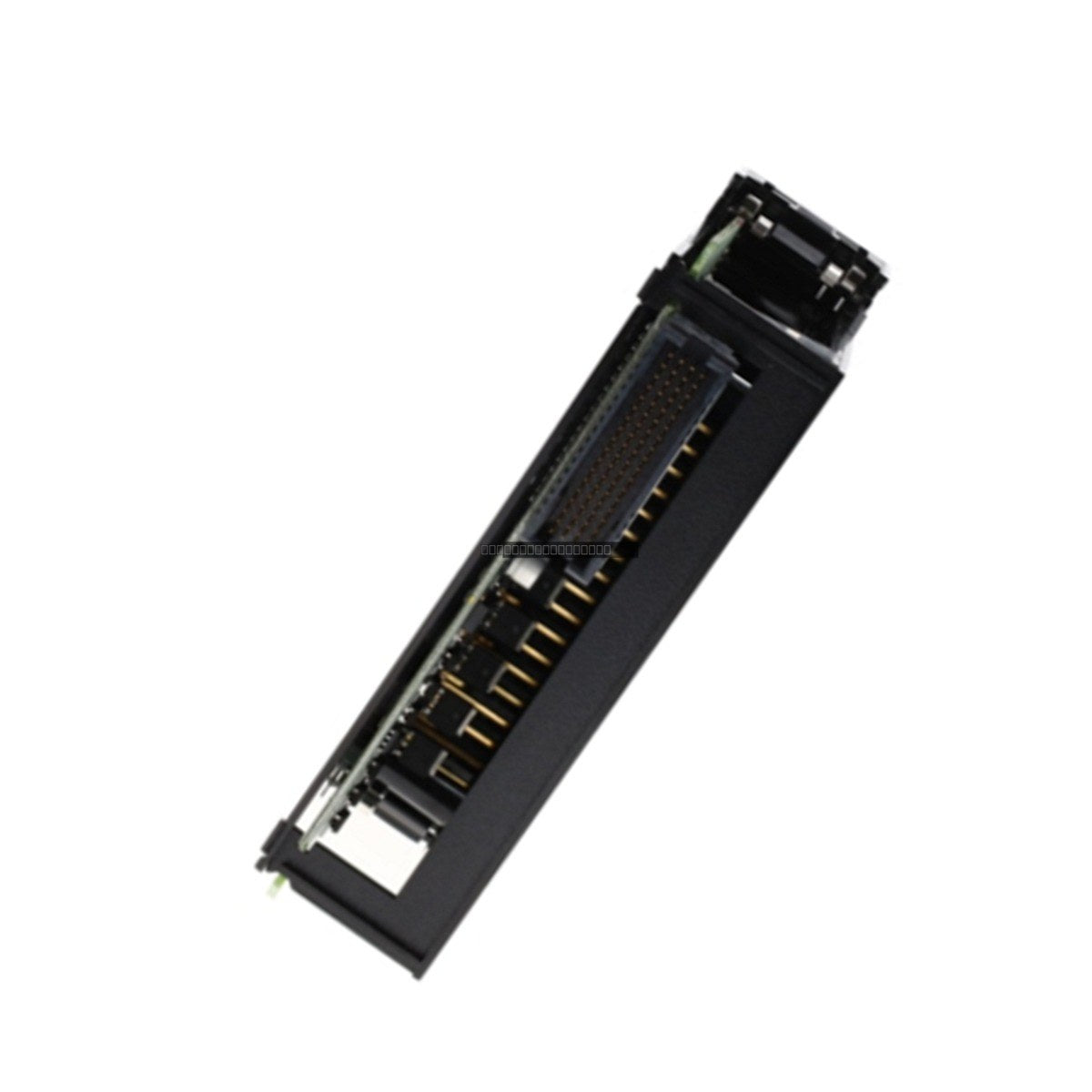

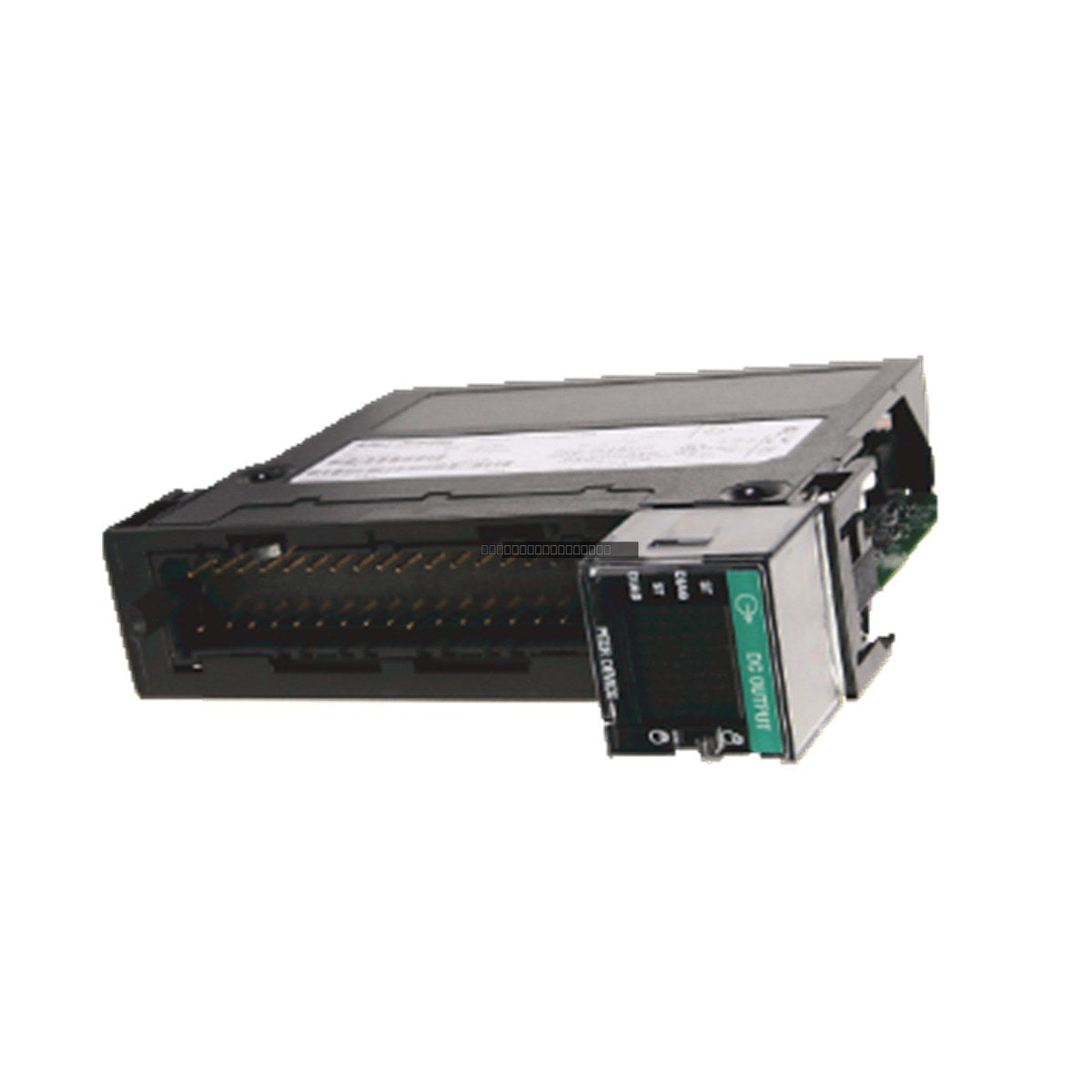

The Allen-Bradley 1756-OB16IEF is a high-performance ControlLogix DC digital output module designed for demanding industrial automation applications. As a fast, isolated output module, it provides 16 points of 10-30 VDC output capability, supporting individual point isolation and high-speed switching requirements. This module is engineered for integration within ControlLogix chassis systems, offering reliable peer-to-peer output functionality and pulse-width modulation (PWM) support for precise control tasks.
Features
- 16 isolated DC digital output points.
- Operating voltage range: 10-30 VDC.
- High-speed output switching capability for fast-response applications.
- Supports peer-to-peer communication and PWM (Pulse Width Modulation).
- 1 A output current rating per point.
- Designed for seamless integration into the Allen-Bradley ControlLogix platform.
Applications
This module is typically utilized in manufacturing and process control environments where high-speed digital switching and electrical isolation between channels are required. It is well-suited for motion control, high-speed solenoid actuation, and complex logic sequences requiring PWM output control.
Technical Specifications
| Model |
1756-OB16IEF |
| Module Type |
Fast Isolated DC Output |
| Point Count |
16 |
| Voltage Range |
10-30 VDC |
| Output Current |
1 A per point |
| Compatibility |
ControlLogix System |
Installation Guidelines
- Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is fully seated in the chassis slot and secured with the top and bottom latches.
- Use appropriate shielded cabling for I/O connections to minimize electromagnetic interference (EMI).
- Ensure proper grounding of the chassis backplane to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
- Check that the external power supply connected to the output points is within the 10-30 VDC range before applying power.
FAQ
What does the 'F' in 1756-OB16IEF stand for?
The 'F' indicates that this is a 'Fast' output module, designed for applications requiring faster switching speeds compared to standard output modules.
Does this module support PWM?
Yes, the 1756-OB16IEF supports Pulse Width Modulation (PWM), making it suitable for applications requiring variable duty cycle control.
