Description

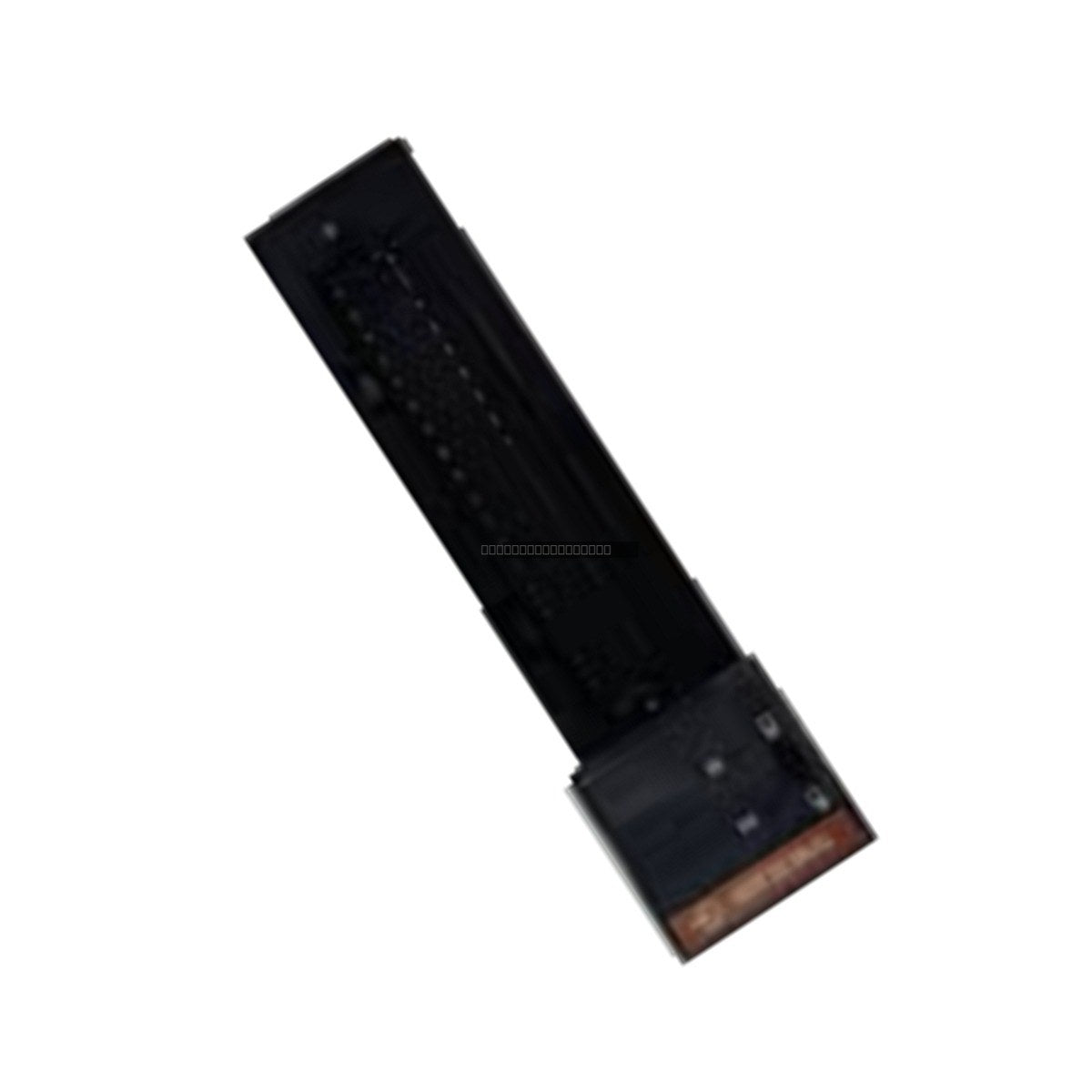

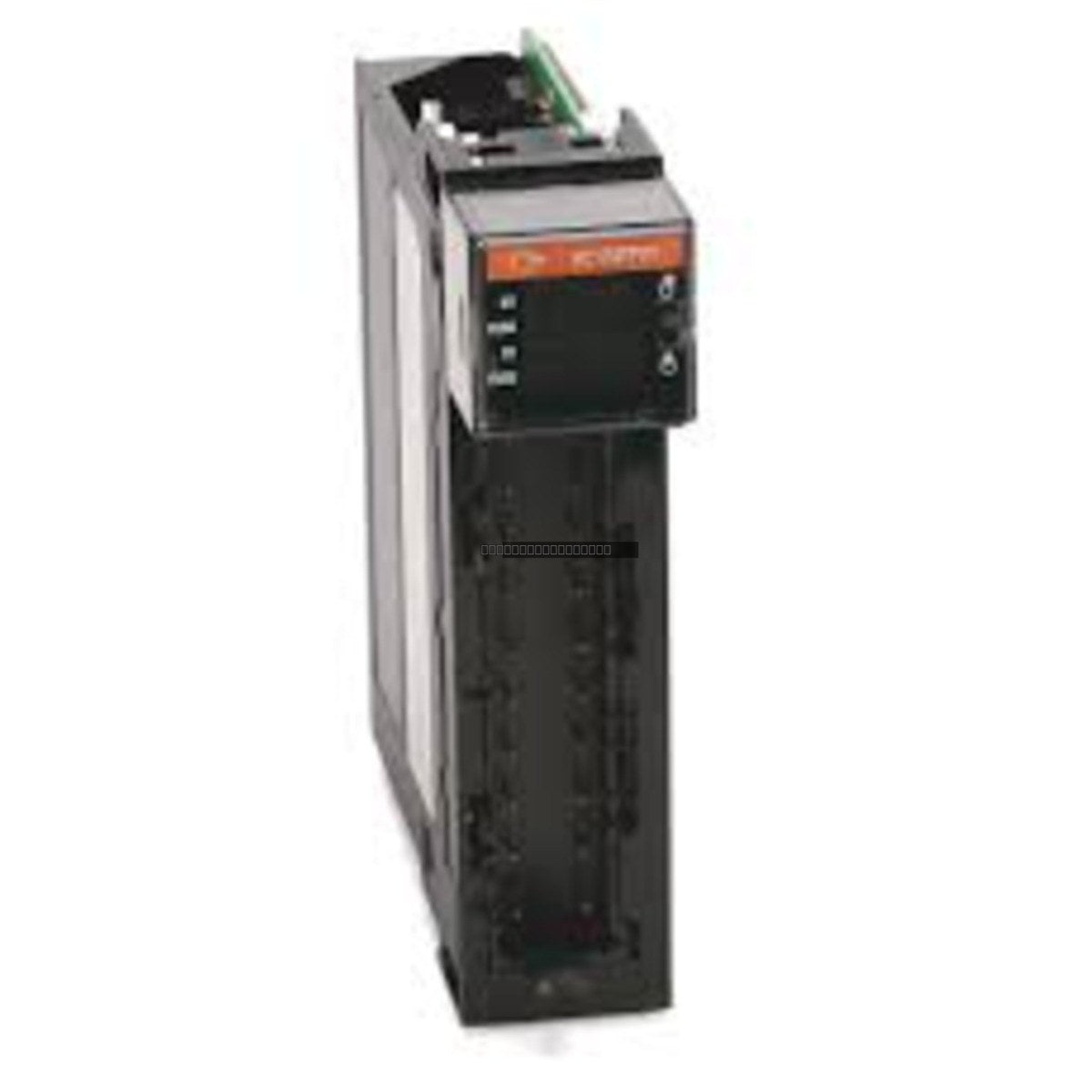

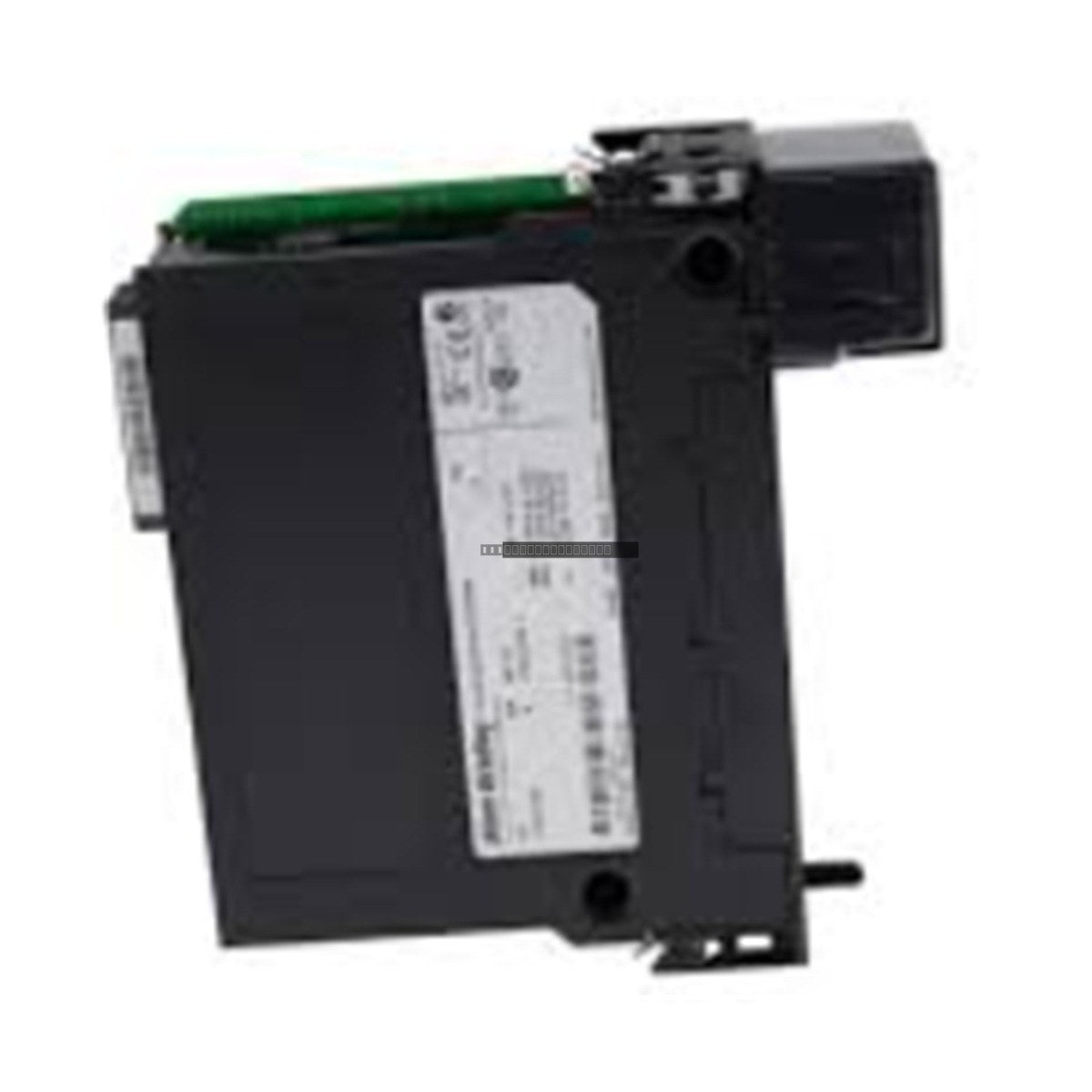

The Allen-Bradley 1756-IF8I is a high-performance analog input module designed for the ControlLogix platform. This module provides eight isolated input channels, allowing for flexible monitoring of various field devices. It supports both voltage and current signal modes, which can be configured per channel to suit diverse industrial measurement requirements. The module utilizes a Sigma-Delta conversion method to ensure precise and reliable data acquisition in demanding automation environments.

Features

• Eight isolated analog input channels for enhanced noise immunity and signal integrity.
• Configurable input modes supporting both voltage (-10 to 10V, 0 to 10V, 0 to 5V) and current (0 to 20 mA) ranges.
• High-resolution analog-to-digital conversion ranging from 16 to 21 bits.
• Integrated power management with a backplane current draw of 200 mA at 5.1V.
• Designed for seamless integration within the ControlLogix chassis system.

Technical Specifications

Model Number	1756-IF8I
Manufacturer	Allen-Bradley
Series	ControlLogix
Input Channels	8 Isolated
Conversion Method	Sigma-Delta
Voltage Ranges	-10 to 10V, 0 to 10V, 0 to 5V
Current Ranges	0 to 20 mA
Resolution	16-21 bits
Backplane Current (5.1V)	200 mA
Current Draw (24V)	150 mA or 400 mA
Enclosure Type	Open

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-IF8I module to prevent electrical damage.
• The module should be installed in an open-type enclosure suitable for the specific application environment.
• Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the cable shields at the signal source or the module end, depending on system design requirements.
• Verify that the module is fully seated in the chassis slot and that the locking mechanism is engaged.

FAQ

What are the primary input modes for the 1756-IF8I?

This module supports multiple voltage ranges including -10 to 10V, 0 to 10V, and 0 to 5V, as well as a 0 to 20 mA current input mode. These can be configured independently for each of the eight channels.

Is this module isolated?

Yes, the 1756-IF8I features eight isolated channels, which helps protect the module and the controller from ground loops and common-mode noise.
