Description

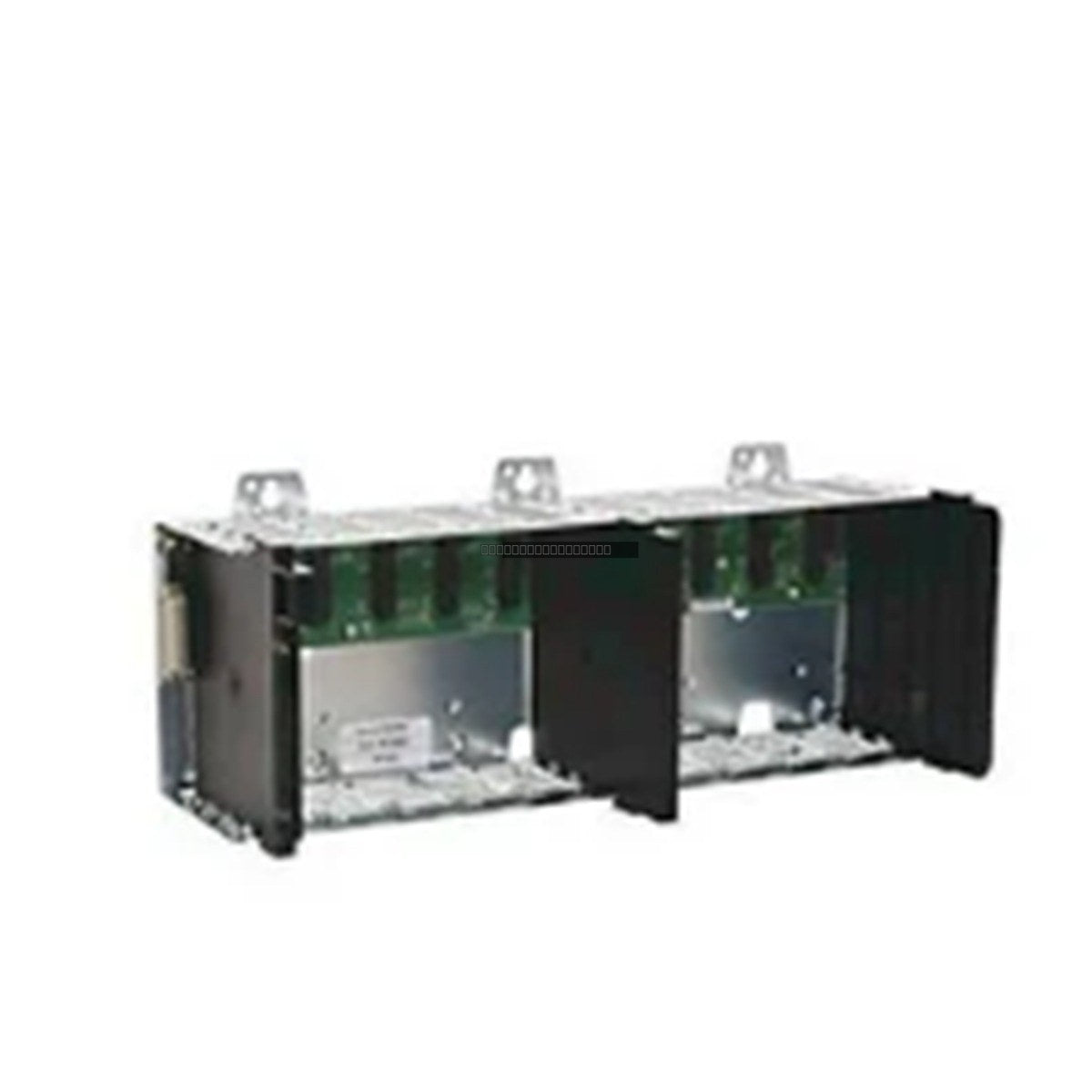

The Allen-Bradley 1756-A7 is a 7-slot chassis designed for the ControlLogix platform. This chassis serves as the physical foundation for mounting ControlLogix modules, providing the necessary backplane communication and power distribution for I/O, communication, and processor modules within an industrial automation system.

Features

• Provides 7 dedicated slots for modular ControlLogix components.
• Supports high-speed backplane communication for seamless data exchange between modules.
• Robust mechanical design for secure mounting in standard industrial enclosures.
• Optimized for efficient power distribution across all installed modules.

Technical Specifications

Model	1756-A7
Slots	7
Power Dissipation (Max)	5 W
Operating Temperature	0 to 60 degC (32 to 140 degF)
Storage Temperature	-40 to +85 degC (-40 to +185 degF)
Relative Humidity	5 to 95% (noncondensing)
Backplane Current @ 1.2V DC	1.5 A
Backplane Current @ 3.3V DC	4 A (per slot max)
Backplane Current @ 5.1V DC	15 A (total) / 6 A (per slot max)
Backplane Current @ 24V DC	2.8 A (per slot max)

Installation Guidelines

• Ensure the chassis is mounted on a flat, stable surface within an industrial enclosure to prevent mechanical stress.
• Maintain adequate clearance around the chassis to allow for proper airflow and cooling, adhering to the specified operating temperature range.
• Always disconnect power before installing or removing modules from the chassis backplane to prevent electrical damage.
• Ensure the chassis is properly grounded in accordance with local electrical codes to minimize EMI and protect against surges.
• Verify that all modules are fully seated and secured using the integrated module locking mechanisms.

FAQ

Is this chassis compatible with all ControlLogix modules? Yes, the 1756-A7 is designed to support standard ControlLogix modules that conform to the 1756 form factor.

What is the maximum power dissipation for this unit? The maximum power dissipation for the 1756-A7 chassis is 5 W.
