Description

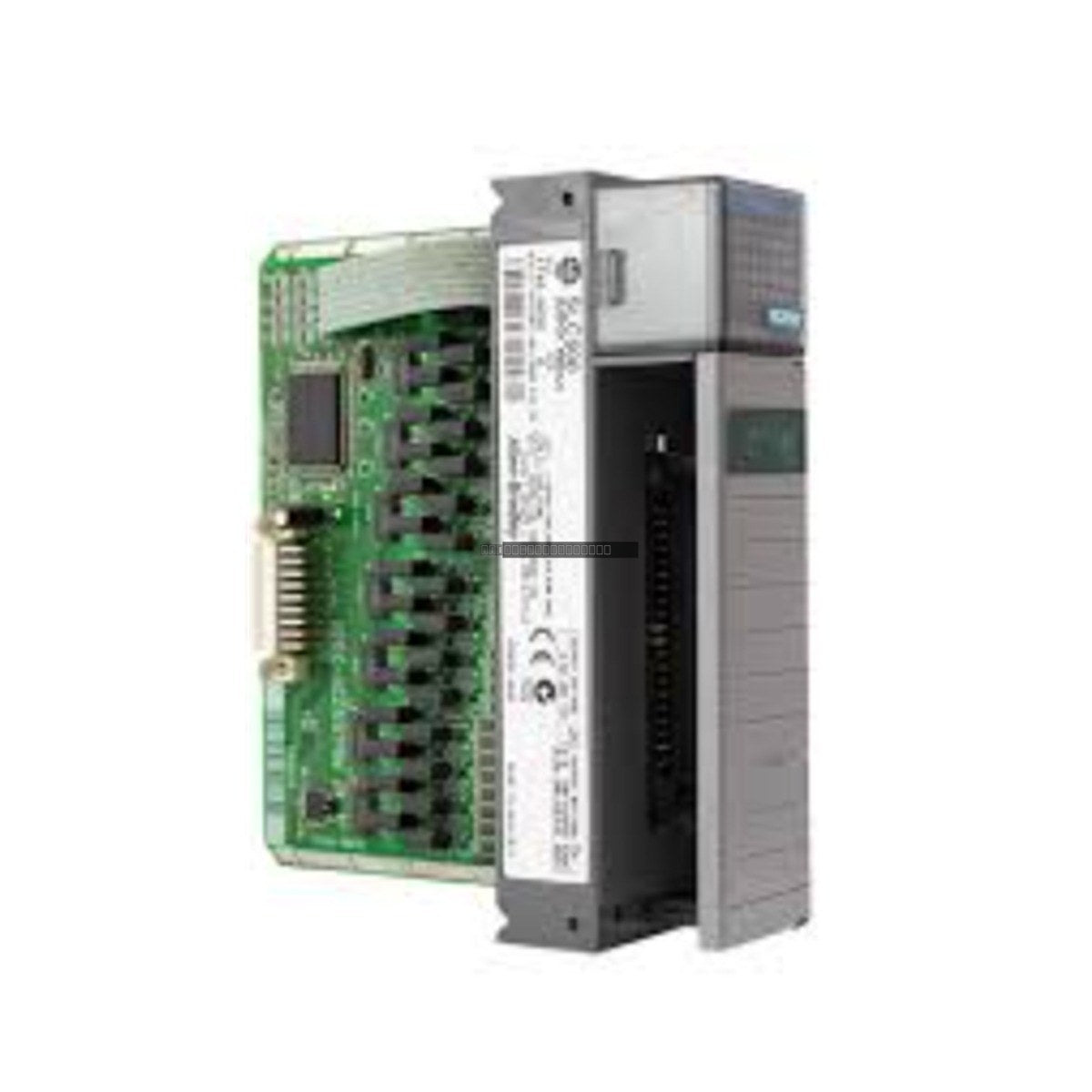

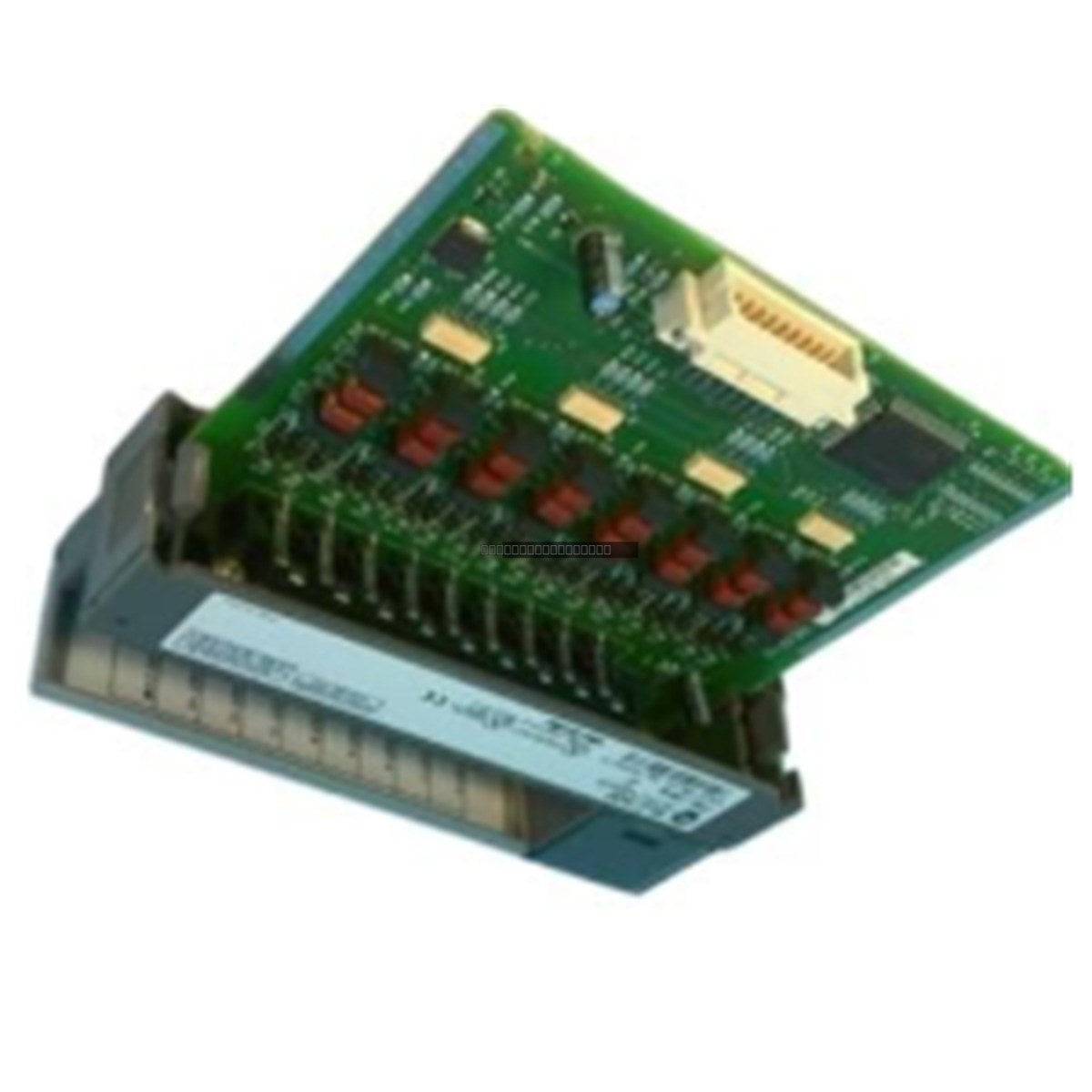

The Allen-Bradley 1746-NI4 is a high-performance analog input module designed for the SLC 500 programmable controller family. This module provides four differential analog input channels, allowing for precise data acquisition in various industrial automation applications. It is engineered to integrate seamlessly into an SLC 500 chassis, facilitating reliable signal processing for sensors and transmitters that utilize standard voltage or current inputs.
Features
- Four differential analog input channels for noise-immune signal sensing.
- Designed specifically for compatibility with the Allen-Bradley SLC 500 modular control system.
- Supports standard industrial voltage and current signal ranges.
- Rack-mount configuration for efficient cabinet space utilization.
- Robust construction suitable for demanding industrial environments.
Applications
This module is frequently utilized in process control systems, manufacturing machinery, and monitoring stations where analog feedback such as temperature, pressure, or flow data is required. It is an essential component for applications requiring precise analog-to-digital conversion within an Allen-Bradley SLC 500 architecture.
Technical Specifications
| Product Model |
1746-NI4 |
| Manufacturer |
Allen-Bradley |
| Module Type |
Analog Input Module |
| Number of Channels |
4 Differential |
| System Compatibility |
SLC 500 |
| Mounting |
Chassis / Rack Mount |
| Weight |
0.3 kg |
Installation Guidelines
- Ensure the SLC 500 chassis power is disconnected before installing or removing the 1746-NI4 module.
- Verify that the module is fully seated in the chassis slot and that the retaining screws are tightened to ensure proper electrical contact and grounding.
- Use shielded twisted-pair cabling for analog signal wiring to minimize electromagnetic interference (EMI).
- Route signal cables away from high-voltage power lines and noisy electrical equipment to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
Is the 1746-NI4 compatible with all SLC 500 processors?
The 1746-NI4 is designed for use within the SLC 500 rack system. Compatibility depends on the specific chassis slot configuration and the power supply load capacity of your system.
Does this module require external power?
The module is powered directly through the SLC 500 backplane. Ensure your chassis power supply is sized correctly to accommodate the total power consumption of all installed modules.
