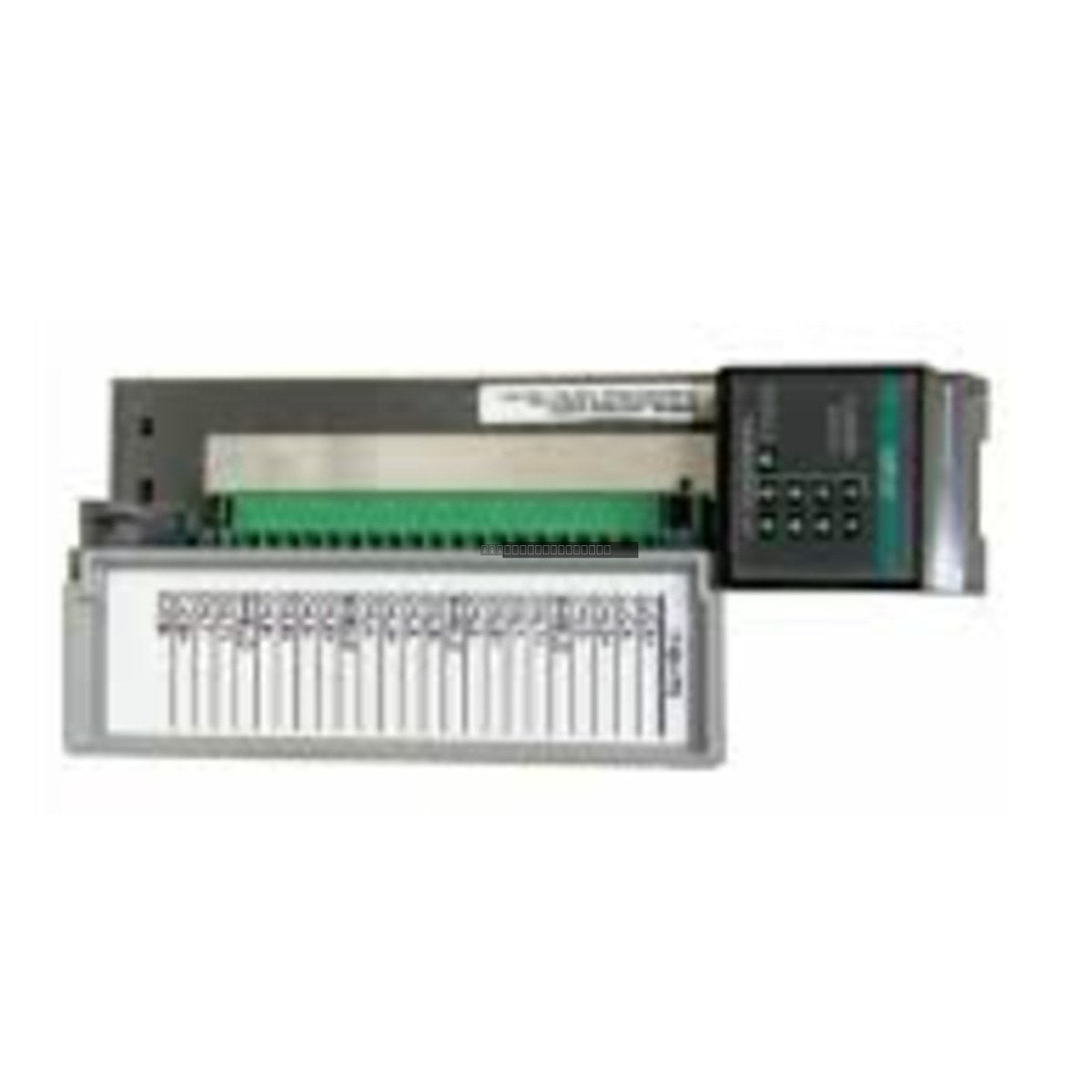

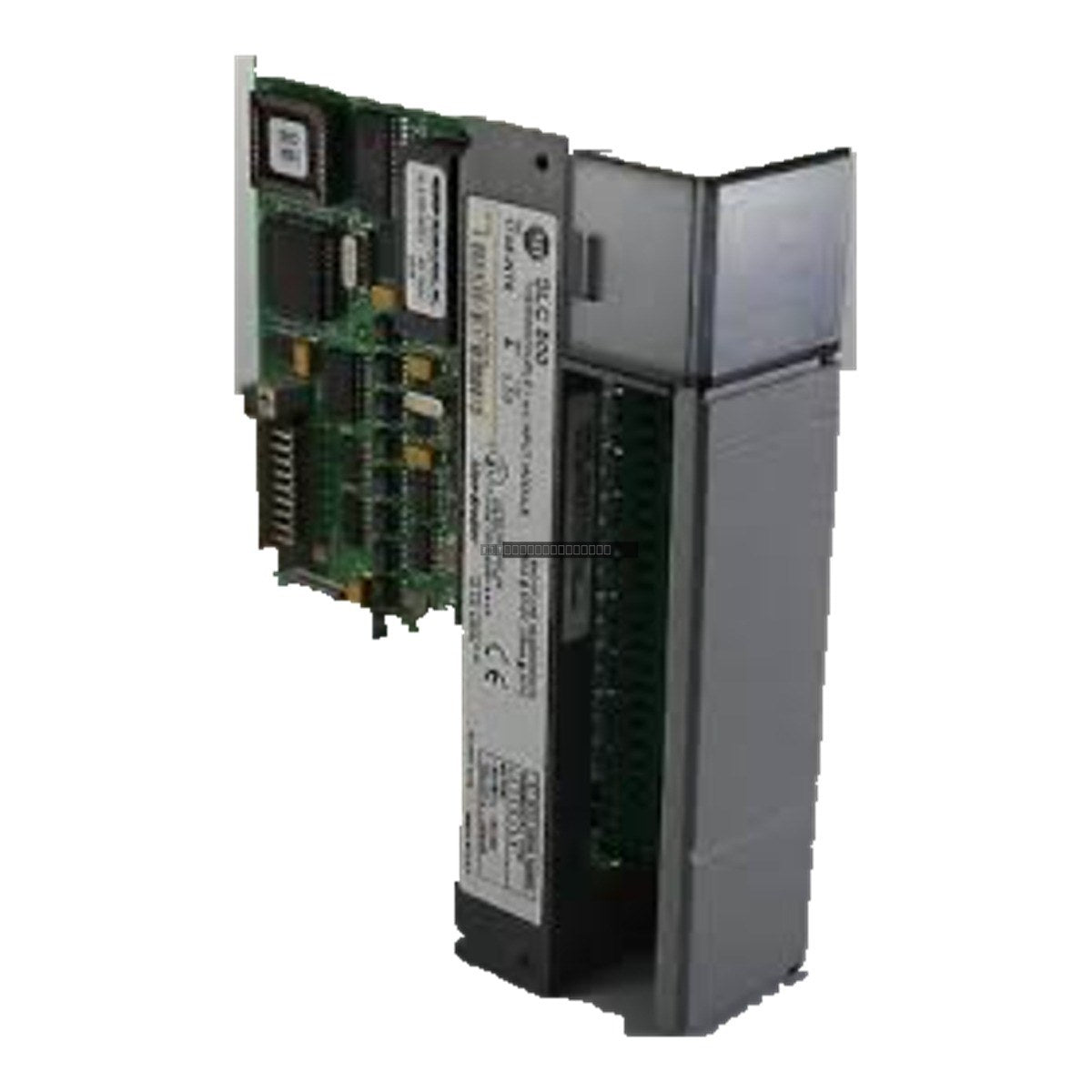

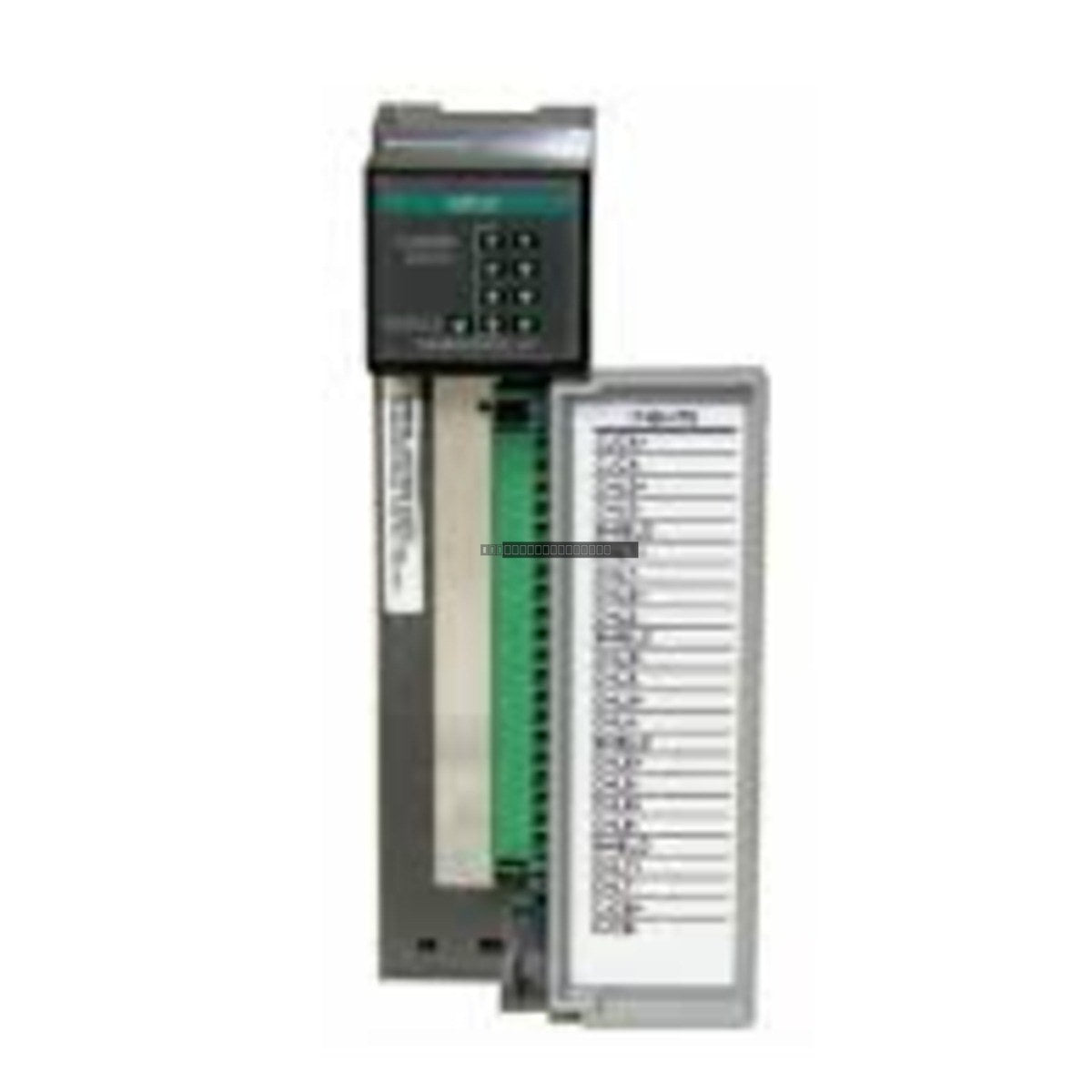

The Allen-Bradley 1746-FIO4V is a high-performance Fast Analog I/O module designed for the SLC 500 control platform. This module provides specialized signal processing capabilities, featuring two high-speed analog input channels and two analog voltage output channels, suitable for applications requiring rapid response times and precise signal conversion.

Features

• Integrated I/O configuration with 2 fast analog inputs and 2 analog voltage outputs.
• Supports versatile input/output ranges including +/-10V DC, 0-10V DC, 0-20mA, and 4-20mA.
• High-speed processing capability with a slew rate of 2V/ms.
• Accuracy rated at +/-0.2% of full scale for reliable process control.
• Designed for seamless integration into the SLC 500 backplane.

Technical Specifications

Product Model	1746-FIO4V
Manufacturer	Allen-Bradley
Input Channels	2
Output Channels	2
Voltage Ranges	+/-10V DC, 0-10V DC
Current Ranges	0-20mA, 4-20mA
Accuracy	+/-0.2% of full scale
Slew Rate	2V/ms
Backplane Power	5V DC
Isolation Voltage	500V AC (continuous)
Operating Temperature	0 degC to 60 degC
Storage Temperature	-40 degC to 85 degC
Humidity	5% to 95% (non-condensing)

Installation Guidelines

• Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the chassis slot and secured with the retaining screws.
• Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices for the chassis and signal shields to ensure operational stability.
• Keep the module away from high-voltage wiring and heat-generating equipment to maintain specified operating temperatures.

FAQ

What is the primary function of the 1746-FIO4V?
This module is designed for fast analog data acquisition and control, offering a 2V/ms slew rate for applications where standard analog modules may be too slow.

Does this module support current outputs?
The 1746-FIO4V is primarily configured for voltage outputs; please refer to the technical specifications for supported input current ranges.
