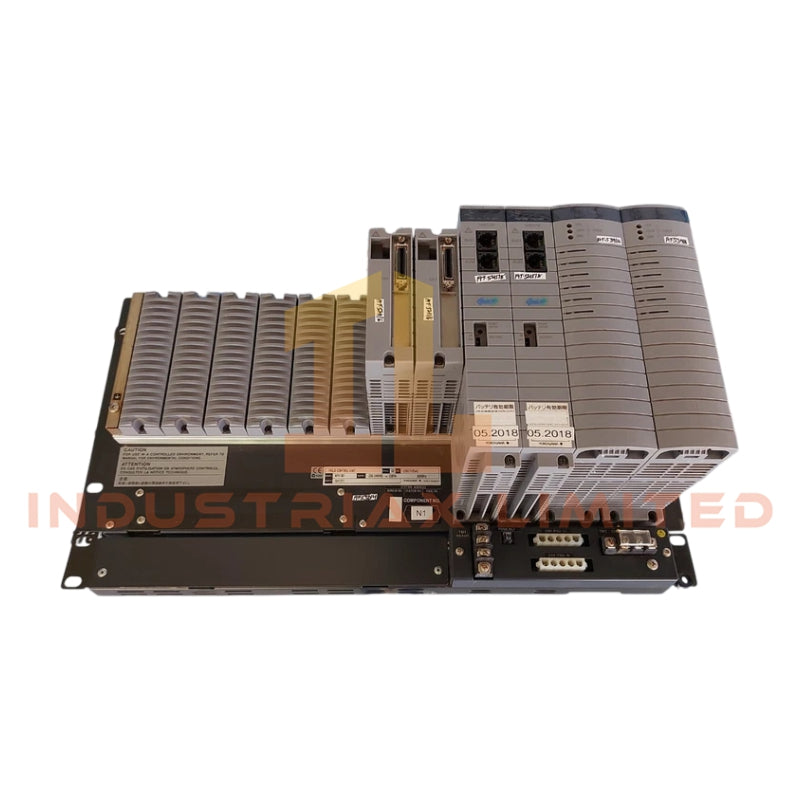

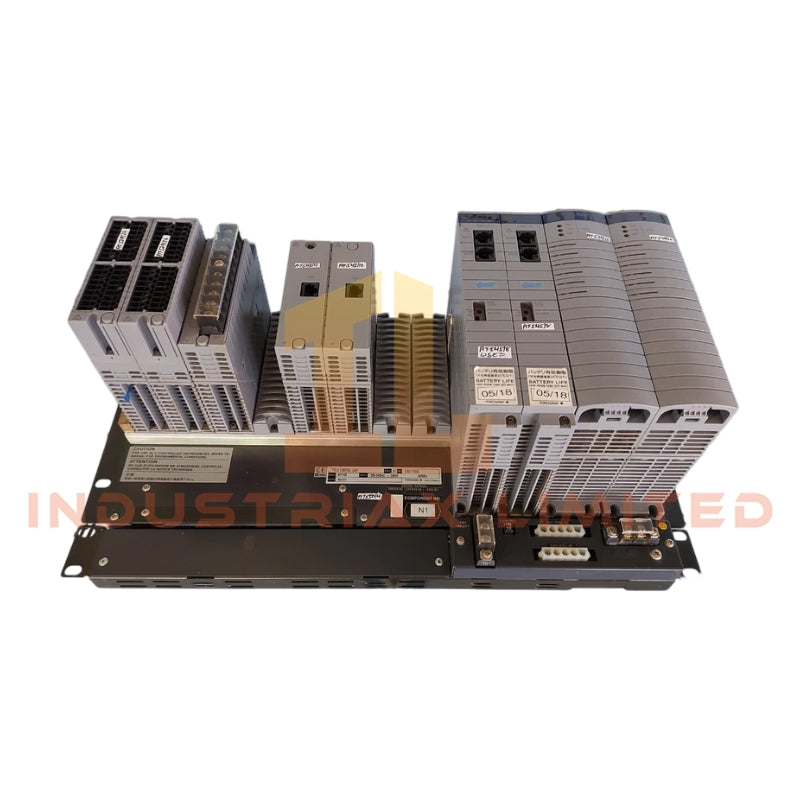

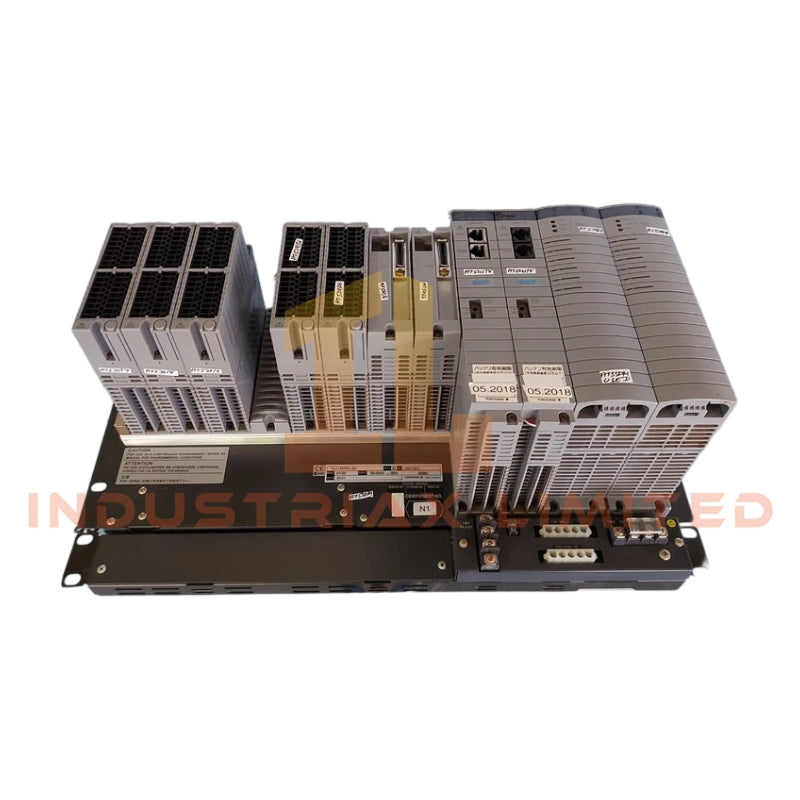

Yokogawa AFV10D-S41211 Field Control Unit

Configured for real-time control execution in CENTUM VP Vnet/IP architecture, the Yokogawa AFV10D-S41211 (AFV10D Field Control Unit FCU) provides direct physical/electrical execution of redundant process control logic across distributed control network nodes.

Suffix Breakdown & Model Matrix

Code Component	Value	Description
Model	AFV10D	Duplex Field Control Unit for Vnet/IP system
Suffix	S	Standard configuration
Redundancy	4	Dual-redundant Vnet/IP and power architecture
Power Option	2	220-240 VAC supply
Option Code	1	Factory-defined configuration set
Protection Level	1	Standard environmental specification

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AFV10D-S41211
OperatingTemp	0 to 50 degC (typical FCU operating range)
PowerConsumption	230 VA max (220-240 VAC input)
Processor	VR5432, 133 MHz class control CPU
Main Memory	32 Mbyte with battery-backed retention (up to 72 h)
Network Interface	Dual-redundant Vnet/IP
I/O Capacity	Up to 14 node units via ESB/ER bus
Power Redundancy	Dual-redundant power supply modules

Field Instrumentation Protocol Handling and Channel Isolation

The AFV10D FCU architecture integrates analog and digital process data handling via deterministic DCS scan cycles over Vnet/IP. I/O subsystem execution supports 4-20 mA loop acquisition with HART superimposed digital communication for device-level diagnostics. Fieldbus integration paths support FOUNDATION Fieldbus and Profibus PA segment routing through node expansion. Internal channel-to-channel isolation is applied at module boundary level to prevent loop interference during mixed-signal acquisition. Cold junction compensation (CJC) is applied in thermocouple input conditioning chains where applicable, maintaining measurement linearity under variable ambient reference junction conditions.

Frequently Asked Questions

Q: Does the AFV10D support hot-swap of processor modules in redundant configuration?
A: Redundant CP451 architecture allows standby-to-active switchover; physical removal is only permitted after system switchover confirmation state.

Q: What is the Vnet/IP redundancy switching behavior under link failure?
A: Dual-redundant Vnet/IP links operate in active/standby mode with automatic failover based on link integrity monitoring and heartbeat loss detection.

Q: Can ESB/ER bus node units be expanded during runtime?
A: Node expansion requires system engineering mode; live insertion depends on configuration lock state and scan cycle synchronization.

Field Installation Guidelines

Shielded twisted pair cabling shall be used for Vnet/IP segments with dedicated grounding at a single-point earth reference. Redundant power feeds must be isolated at upstream breaker level to avoid common-mode failure propagation. Maintain minimum separation between analog field wiring and network backbone cabling to reduce electromagnetic coupling. All module seating into rack backplane shall be verified with mechanical latch engagement prior to energization. Ensure battery backup module is initialized after first power application to activate memory retention circuitry.
