Description

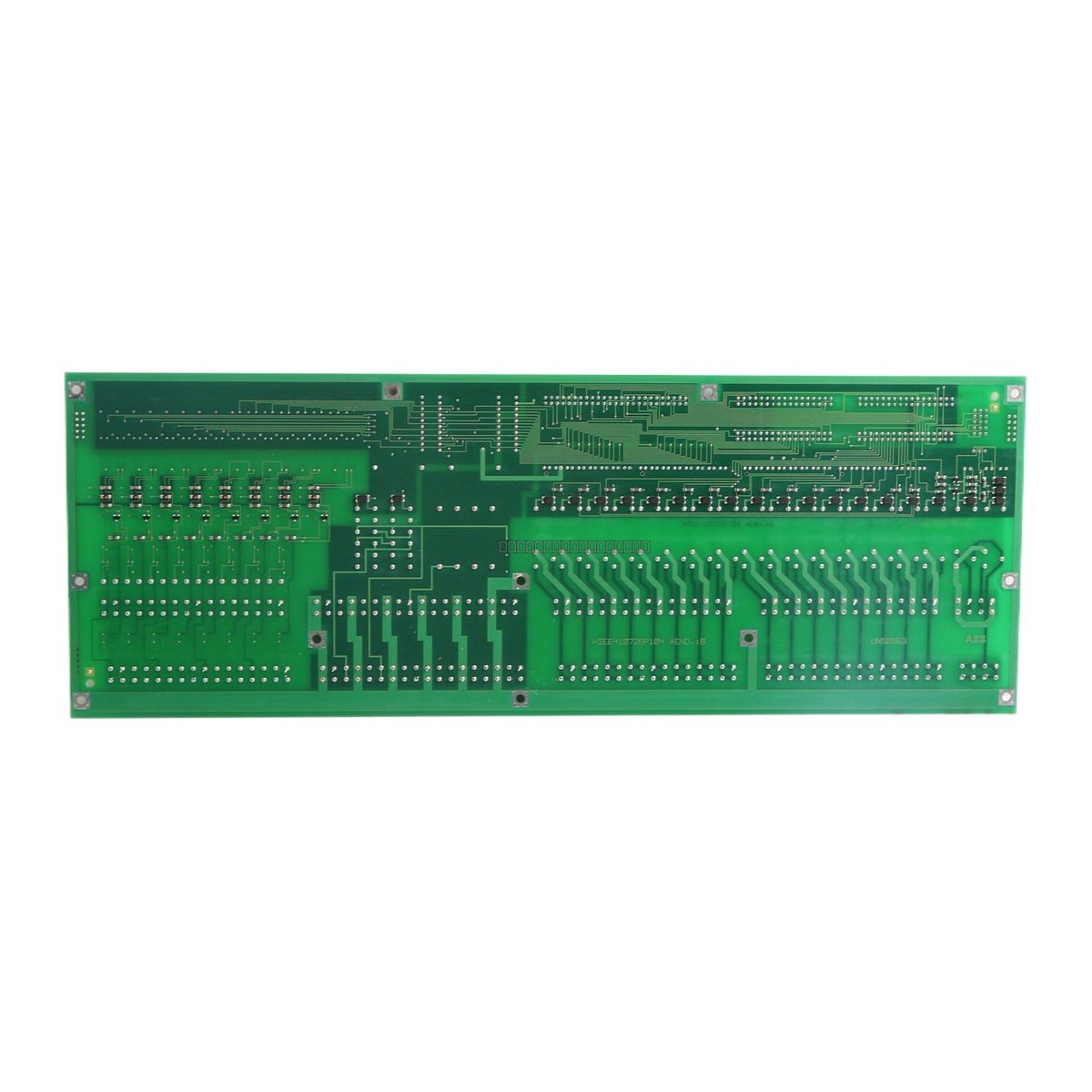

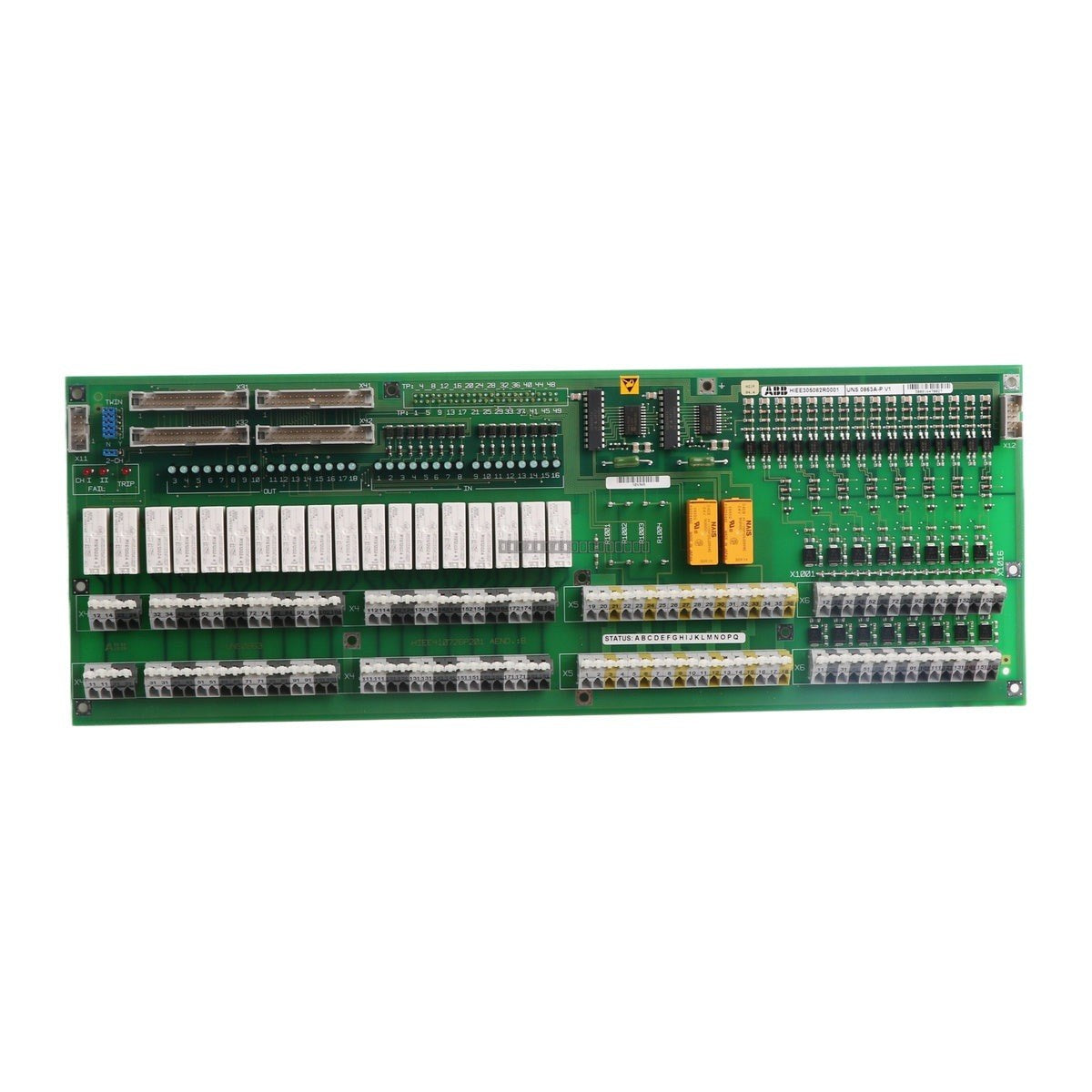

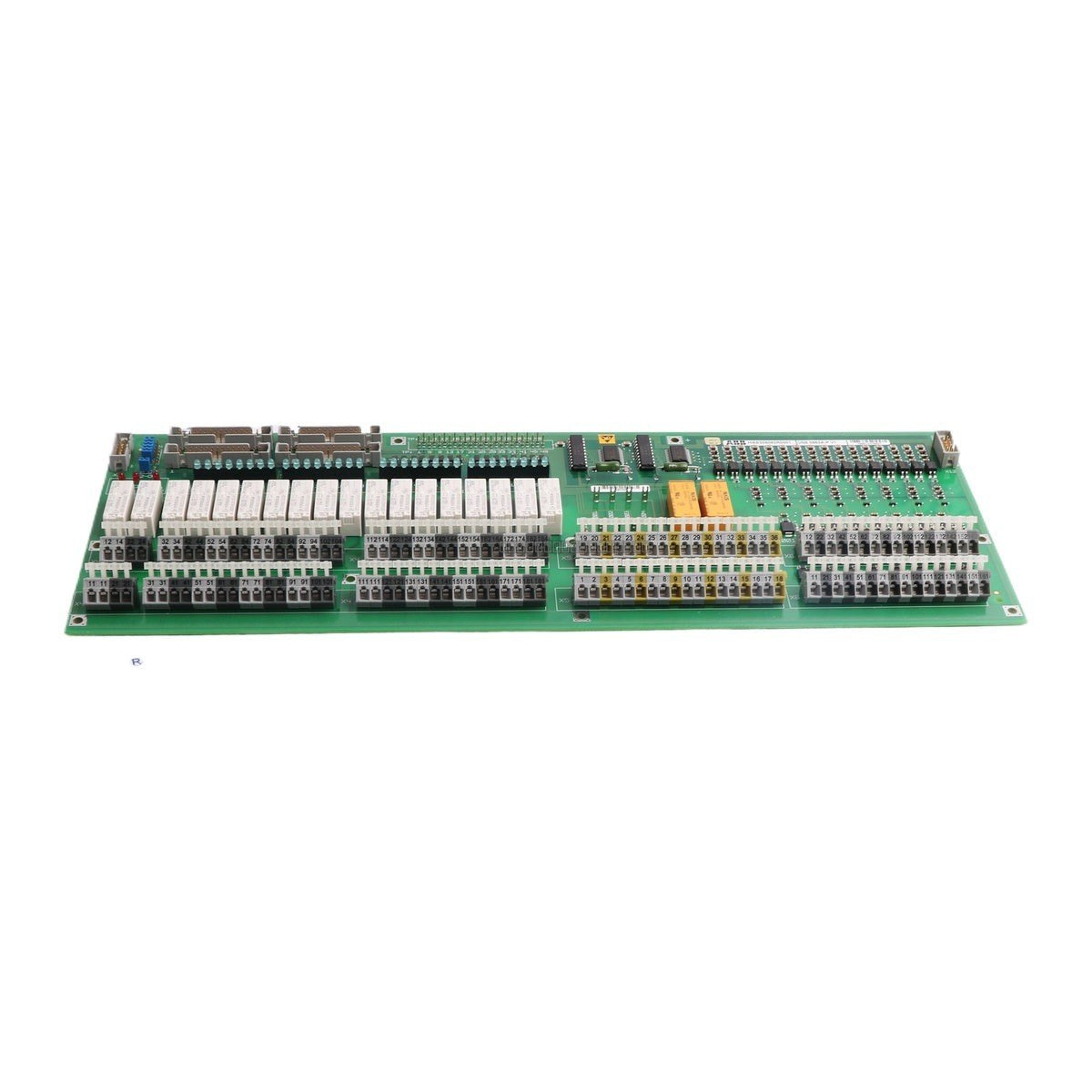

The ABB HIEE305082R0001 is a digital I/O card designed for use within ABB UNITROL excitation systems. This module, also identified by the spare model designation UNS 0863 A-P, serves as a critical interface component for managing digital signal processing within the excitation control architecture. As a discontinued component, it remains essential for the maintenance and repair of legacy power generation and industrial control systems relying on the UNITROL platform.
Features
- Designed for integration with ABB UNITROL excitation systems.
- Functions as a high-reliability digital I/O interface.
- Compatible with legacy UNS 0863 A-P module configurations.
- Engineered for precise signal handling in excitation control applications.
Applications
This digital I/O card is primarily utilized in power plant excitation systems to facilitate the communication between the control logic and external field devices. It is suitable for replacement in existing UNITROL installations where specific digital I/O functionality is required to maintain system availability.
Technical Specifications
| Manufacturer |
ABB |
| Part Number |
HIEE305082R0001 |
| Spare Model |
UNS 0863 A-P |
| Product Type |
Digital I/O Card |
| Weight |
0.56 kg |
Installation Guidelines
- Ensure the excitation system is fully powered down and de-energized before attempting to remove or install the I/O card.
- Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to sensitive electronic components.
- Verify that the slot configuration matches the intended I/O mapping before seating the card.
- Ensure all connectors are fully seated and secured to prevent intermittent signal loss due to vibration.
- Consult the specific UNITROL system manual for calibration or software configuration requirements following the replacement of this module.
FAQ
Is this part still supported by the manufacturer?
No, the HIEE305082R0001 has been discontinued by ABB. It is typically sourced as a spare part for maintaining legacy systems.
What is the relationship between the HIEE and UNS part numbers?
The HIEE305082R0001 is the primary ABB order code, while UNS 0863 A-P is the internal model designation for this specific digital I/O board configuration.
