ABB TU848 Module Termination Unit

ABB TU848 Module Termination Unit

شكل المنتج

ABB TU848 Module Termination Unit Configured for redundant TB840/TB840A Optical ModuleBus Modem interfacing in the ABB S800 I/O system, the... اقرأ المزيد

رمز المنتج: TU848 3BSE042558R1
بلد المنشأ: Sweden

      100% أصلي وحقيقي

    هل تحتاج إلى مخزون كبير؟ تواصل معنا .

      100% جديد تمامًا وجاهز للشحن

    هل تحتاج إلى مخزون كبير؟ تواصل معنا .

      دعم استرداد الأموال، خدمة 7X24 ساعة

    دعم استرداد الأموال، خدمة 7X24 ساعة، اتصل بنا .

      اتصل بنا: +86 135 995 07613

    متاح في أيام العمل من الساعة 9:00 صباحًا إلى 6:00 مساءً

      راسلنا عبر البريد الإلكتروني: sales2@industriaxplc.com

    متاح 24/7 للاستفسارات والدعم

    وصف

    ABB TU848 Module Termination Unit

    Configured for redundant TB840/TB840A Optical ModuleBus Modem interfacing in the ABB S800 I/O system, the ABB TU848 3BSE042558R1 (TU848 Module Termination Unit) provides the physical and electrical termination interface for redundant ModuleBus connections, dual power inputs, and modem installation.

    Hardware Specifications

    Parameter Specification
    Model TU848
    Full Article Number 3BSE042558R1
    Brand ABB
    Product Type Module Termination Unit for redundant TB840/TB840A
    System ABB S800 I/O
    ModuleBus Interface Redundant electrical ModuleBus
    Supported Modems TB840 / TB840A
    Power Input 24 VDC, 19.2 to 30 VDC
    ModuleBus Current Distribution 5 V: max. 1.5 A; 24 V: max. 1.5 A
    Power Consumption 2.5 W
    Rated Insulation Voltage 50 V
    Dielectric Test Voltage 500 VAC
    Mounting DIN rail, vertical or horizontal
    Wire Size Solid / stranded, 0.2 to 2.5 mm2 (24 to 12 AWG)
    Operating Temp 0 to +55 deg C
    Storage Temp -40 to +70 deg C
    Relative Humidity 5 to 95%, non-condensing
    Ingress Protection IP20, IEC 60529
    Dimensions 124 mm x 186.5 mm x 47 mm
    Weight 0.45 kg
    Origin Not specified in supplied data
    Certifications / Standards CE, EN 61010-1, UL 61010-1, ATEX Zone 2, cULus Hazardous Locations Class 1 Zone 2, Marine ABS, BV, DNV-GL, LR

    Redundant ModuleBus and Modem Interface

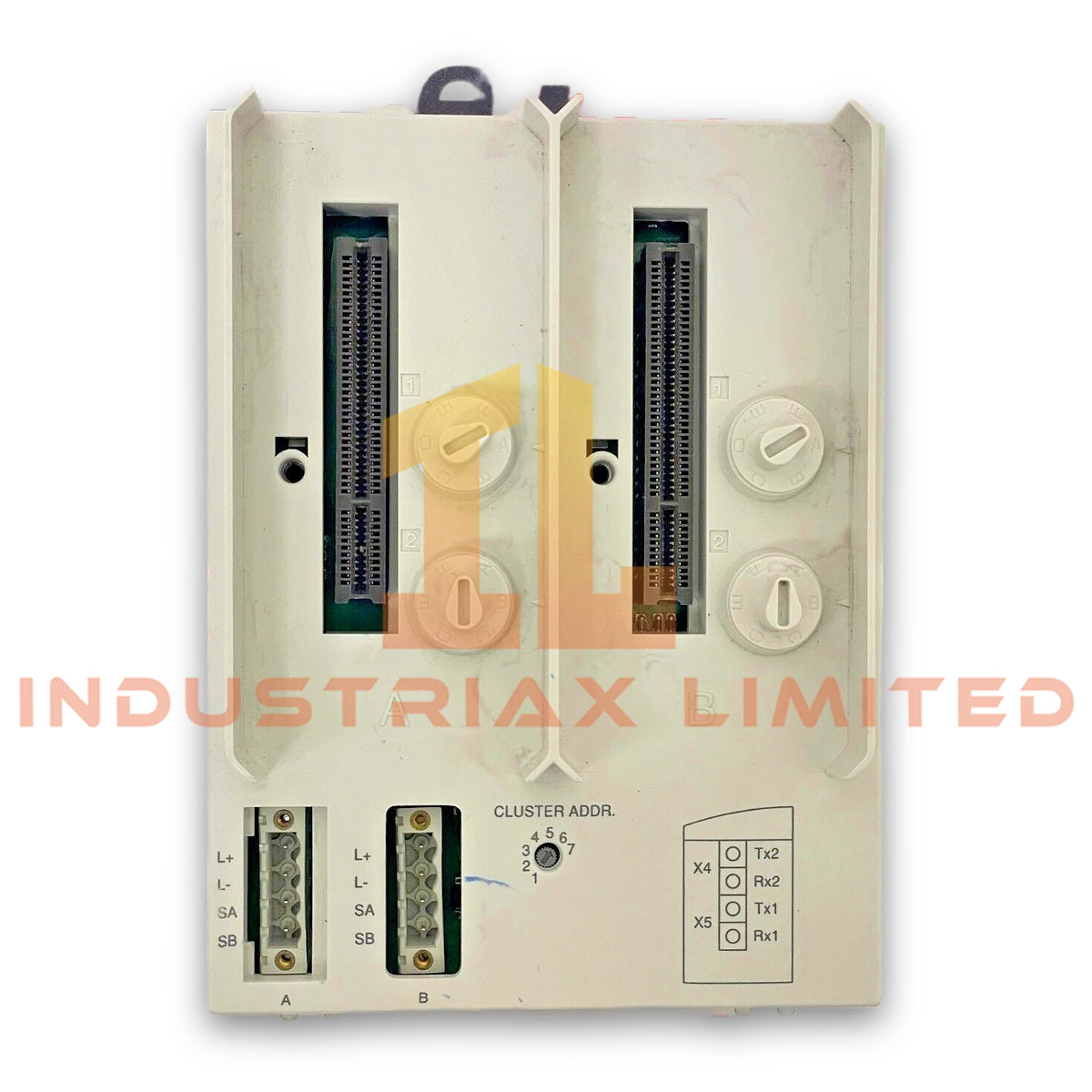

    The TU848 provides two modem positions for redundant TB840 or TB840A Optical ModuleBus Modems. Each modem has an associated power connection, while the MTU distributes the required ModuleBus supply to the installed modem arrangement.

    The unit incorporates a redundant electrical ModuleBus interface for connection to redundant S800 I/O configurations. Therefore, the TU848 functions as the termination and mounting interface rather than as an active communication processor.

    A rotary switch provides cluster address selection from 1 through 7. The setting must correspond to the applicable S800 I/O cluster configuration.

    The mechanical keying system provides 36 configuration combinations. Consequently, the installed module type can be mechanically restricted according to the configured key position, reducing the possibility of installing an incompatible module.

    Frequently Asked Questions

    Q: Does the TU848 operate as an active ModuleBus communication module?
    A: No. The TU848 is a passive Module Termination Unit. It provides physical termination, power distribution, modem mounting, and ModuleBus interconnection for TB840/TB840A modules.

    Q: Can the TU848 support redundant TB840/TB840A configurations?
    A: Yes. The TU848 is specified for redundant TB840/TB840A Optical ModuleBus Modem configurations and provides separate power connections for the redundant modem arrangement.

    Q: What cluster address range can be configured on the TU848?
    A: The integrated rotary switch supports cluster address settings from 1 through 7.

    Field Installation Guidelines

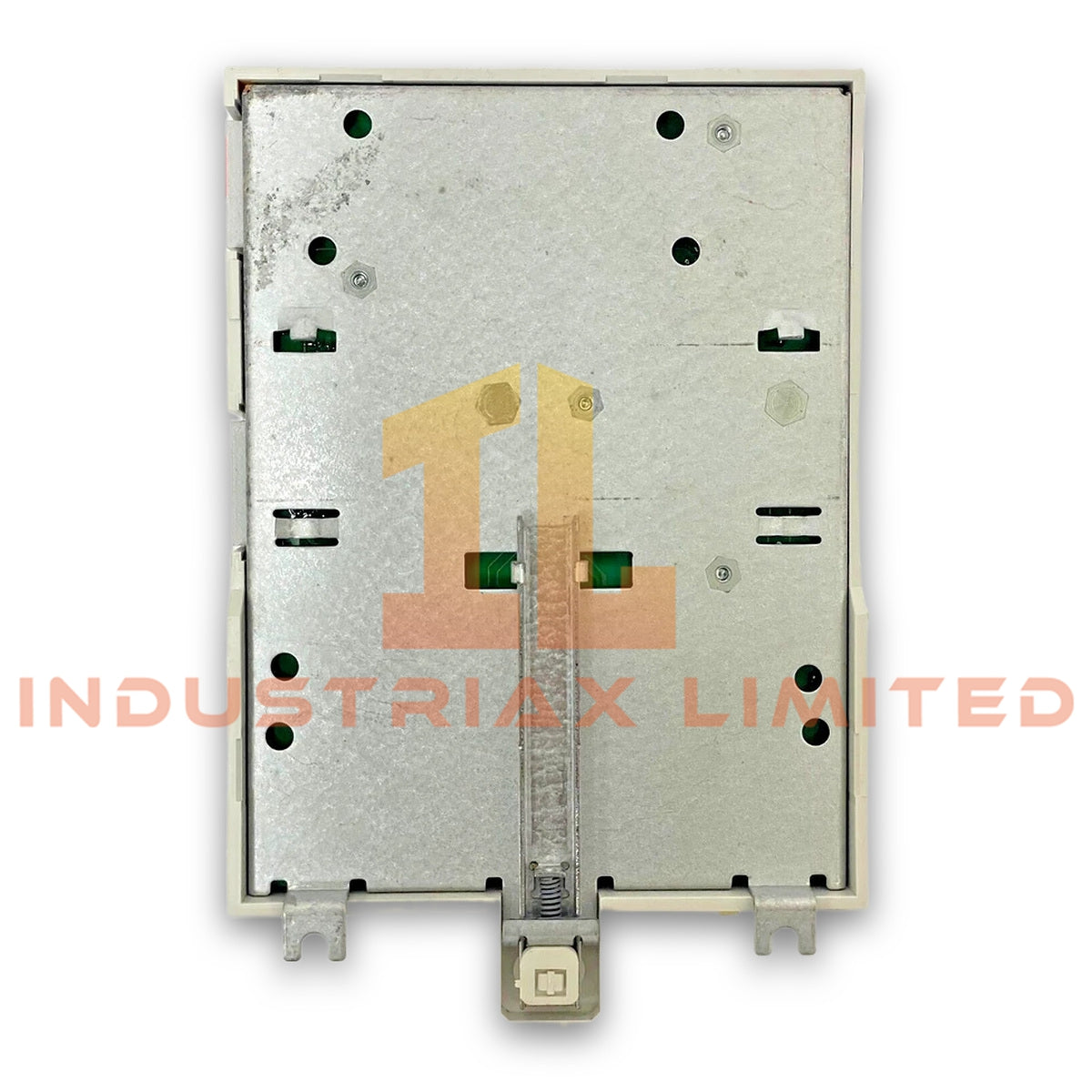

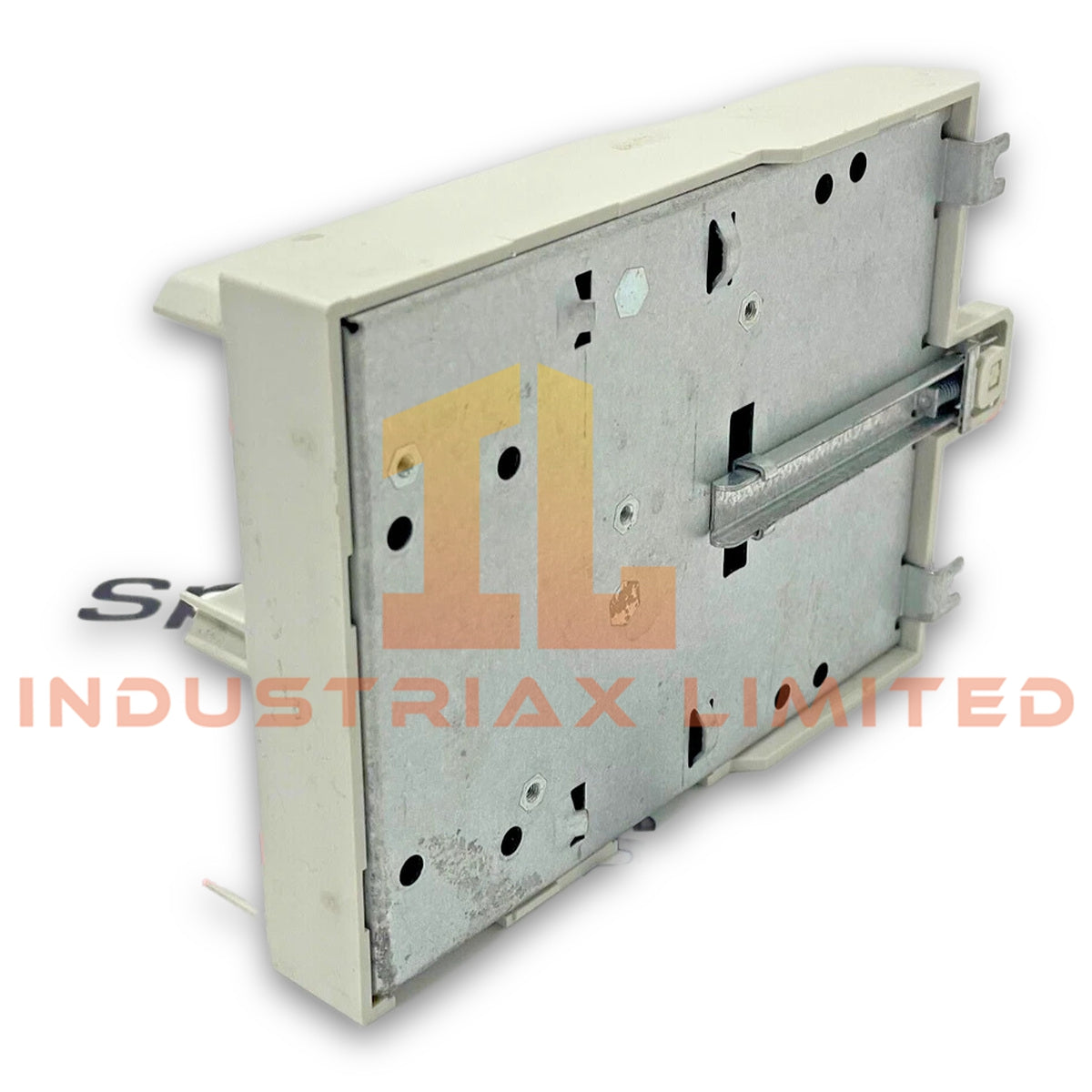

    1. Mount the TU848 on a suitable DIN rail and engage the integrated latching mechanism. Verify that the unit is mechanically secured and that the mounting arrangement provides the required protective grounding path.
    2. Install the applicable TB840 or TB840A modems according to the configured mechanical keying. Confirm that the module key position matches the intended hardware configuration before insertion.
    3. Connect the two 24 VDC supply circuits to their designated power terminals when implementing the redundant modem configuration. Observe the specified 19.2 to 30 VDC input range.
    4. Keep ModuleBus and power wiring separated from high-current switching conductors and sources of electromagnetic interference where practical.
    5. Use solid or stranded conductors within the specified 0.2 to 2.5 mm2 range. Secure each conductor according to the terminal manufacturer's applicable wiring practice.
    6. Set the rotary cluster address before placing the assembly into service. Verify that the selected address corresponds to the S800 I/O cluster configuration.
    7. Verify polarity, terminal assignment, module seating, mechanical keying, and redundant connections before energizing the assembly.
    8. Maintain the specified operating environment of 0 to +55 deg C and 5 to 95% relative humidity, non-condensing. The enclosure rating is IP20; therefore, additional cabinet-level environmental protection may be required.
