Description

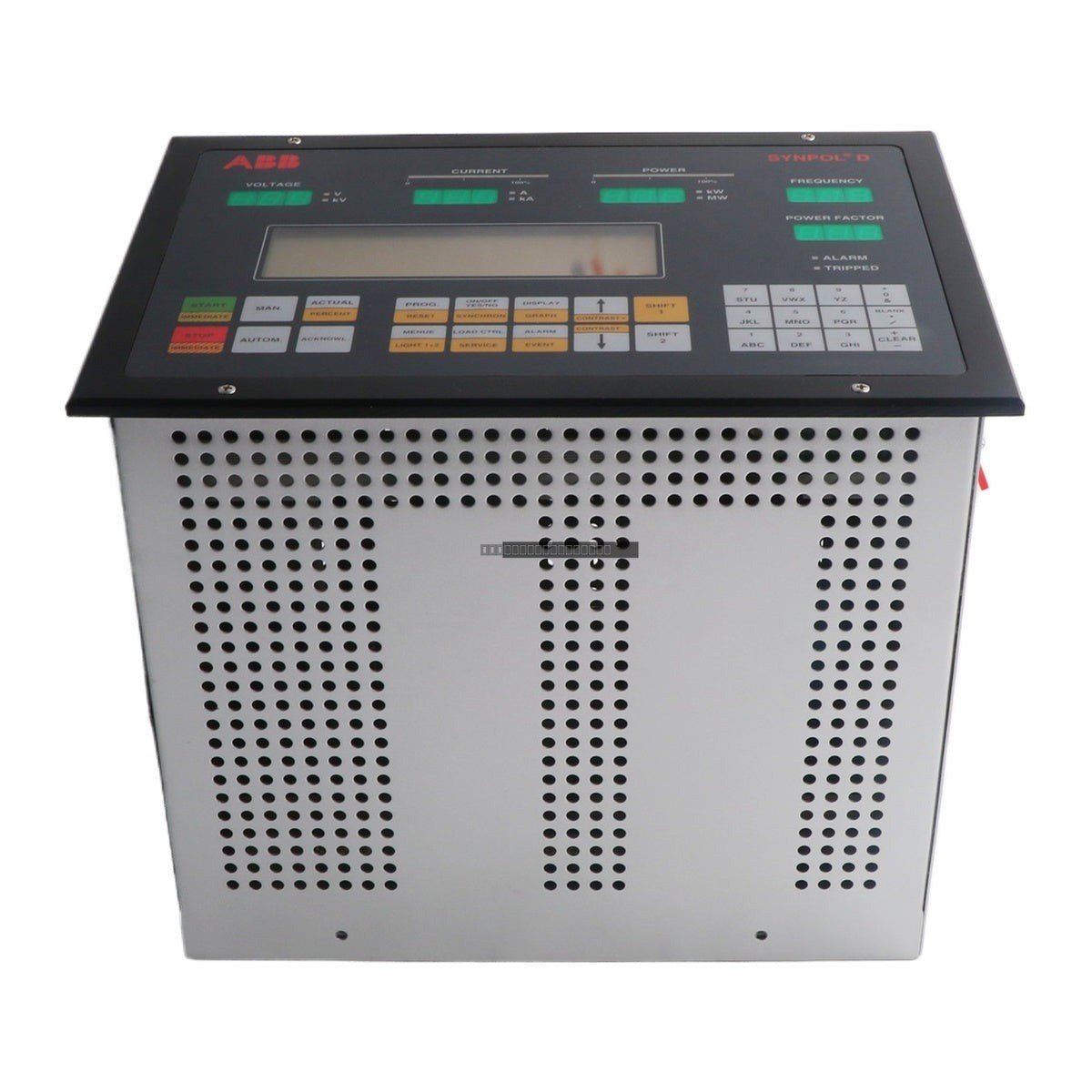

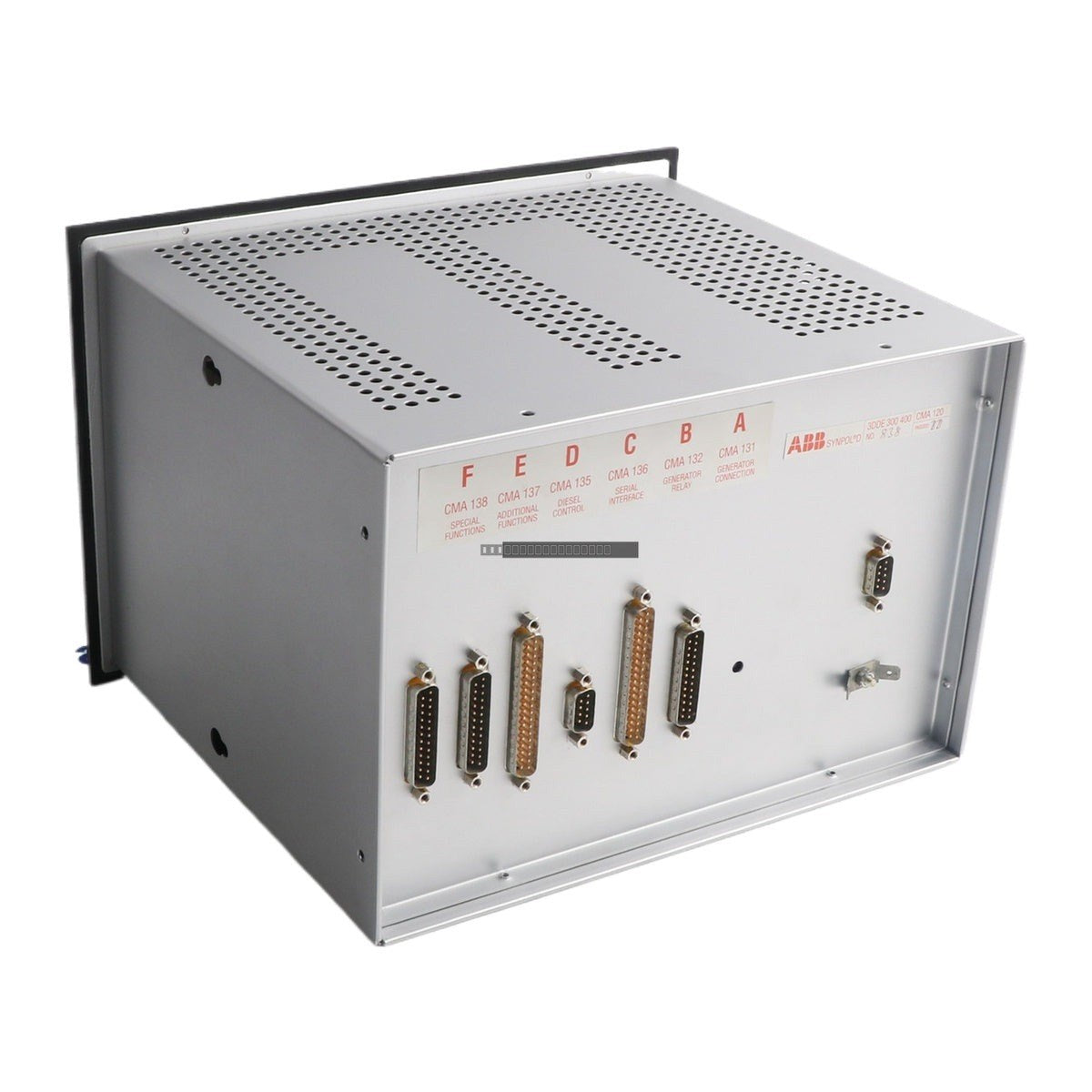

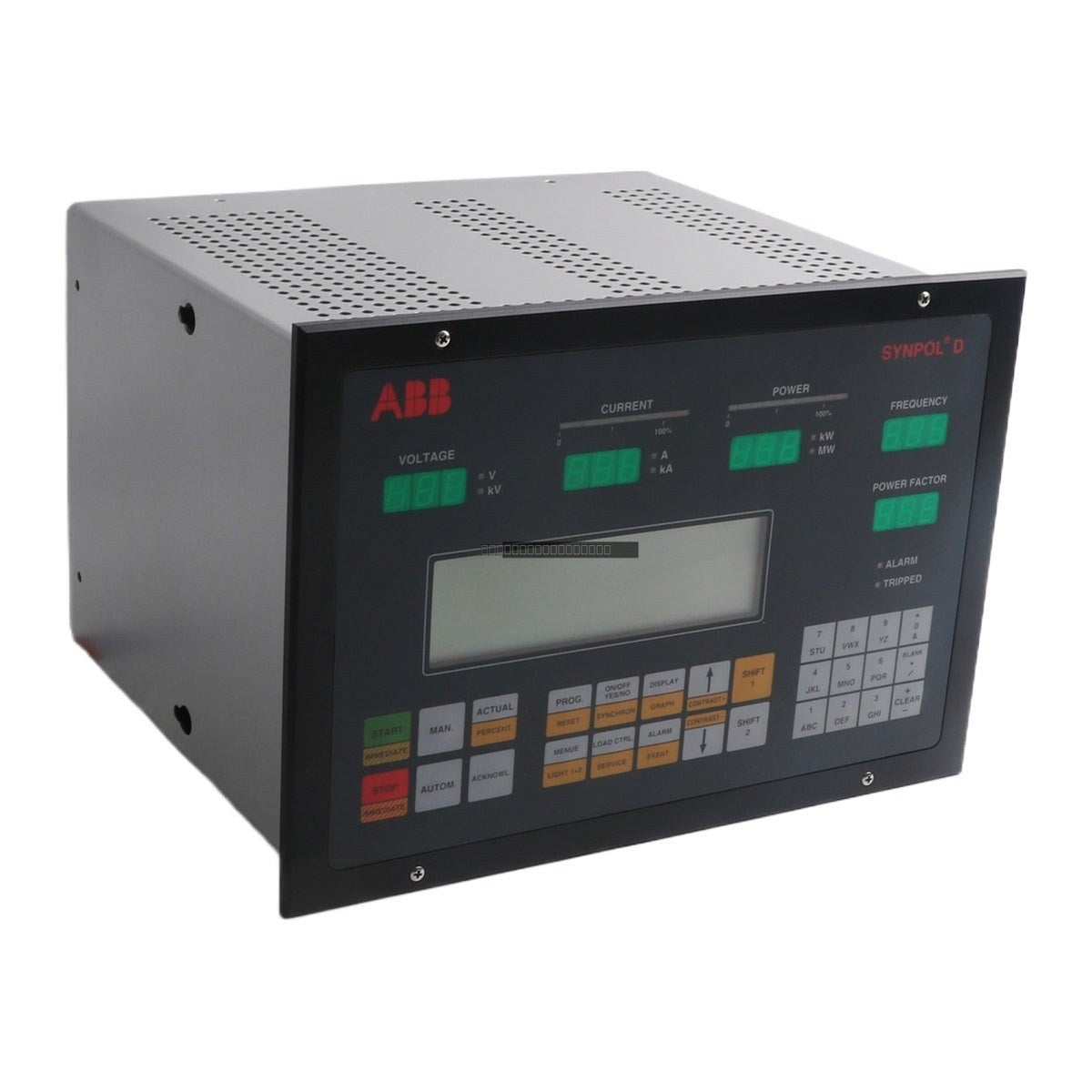

The ABB CMA120 (3DDE300400) is a Synpol D series basic controller panel designed for industrial logic control applications. This programmable logic controller provides robust processing capabilities for automation tasks, featuring integrated digital and analog I/O to handle diverse sensor and actuator signals within a compact, panel-mounted architecture.
Features
- Integrated 32-bit processor for high-speed logic execution.
- Equipped with 256 MB of system memory for complex control routines.
- 16 digital inputs rated for 24 V DC operation.
- 4 configurable analog inputs supporting both 0-10 V and 4-20 mA signals.
- Power-to-logic isolation of 500 V DC to ensure signal integrity and system protection.
- Wide operating temperature range from -20 degC to +60 degC.
Technical Specifications
| Model |
CMA120 (3DDE300400) |
| Processor |
32-bit |
| System Memory |
256 MB |
| Digital Inputs |
16 x 24 V DC |
| Analog Inputs |
4 x 0-10 V / 4-20 mA |
| Supply Voltage |
24 V DC |
| Isolation |
500 V DC (power-to-logic) |
| Operating Temperature |
-20 to +60 degC |
| Storage Temperature |
-40 to +85 degC |
| Humidity |
5 to 95% RH (non-condensing) |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified range.
- Always disconnect the 24 V DC power supply before performing any wiring, module insertion, or removal to prevent electrical damage.
- Use shielded cabling for analog signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Verify that the power supply polarity is correct before energizing the unit.
- Follow standard ESD (electrostatic discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the ABB CMA120?
The CMA120 is a basic controller panel used for programmable logic control, managing digital and analog I/O in industrial automation systems.
Does this module require a specific power supply?
Yes, the unit is designed for a 24 V DC power input.
Can the analog inputs be configured for different ranges?
The analog inputs support both 0-10 V and 4-20 mA signals, providing flexibility for various instrumentation interfaces.
