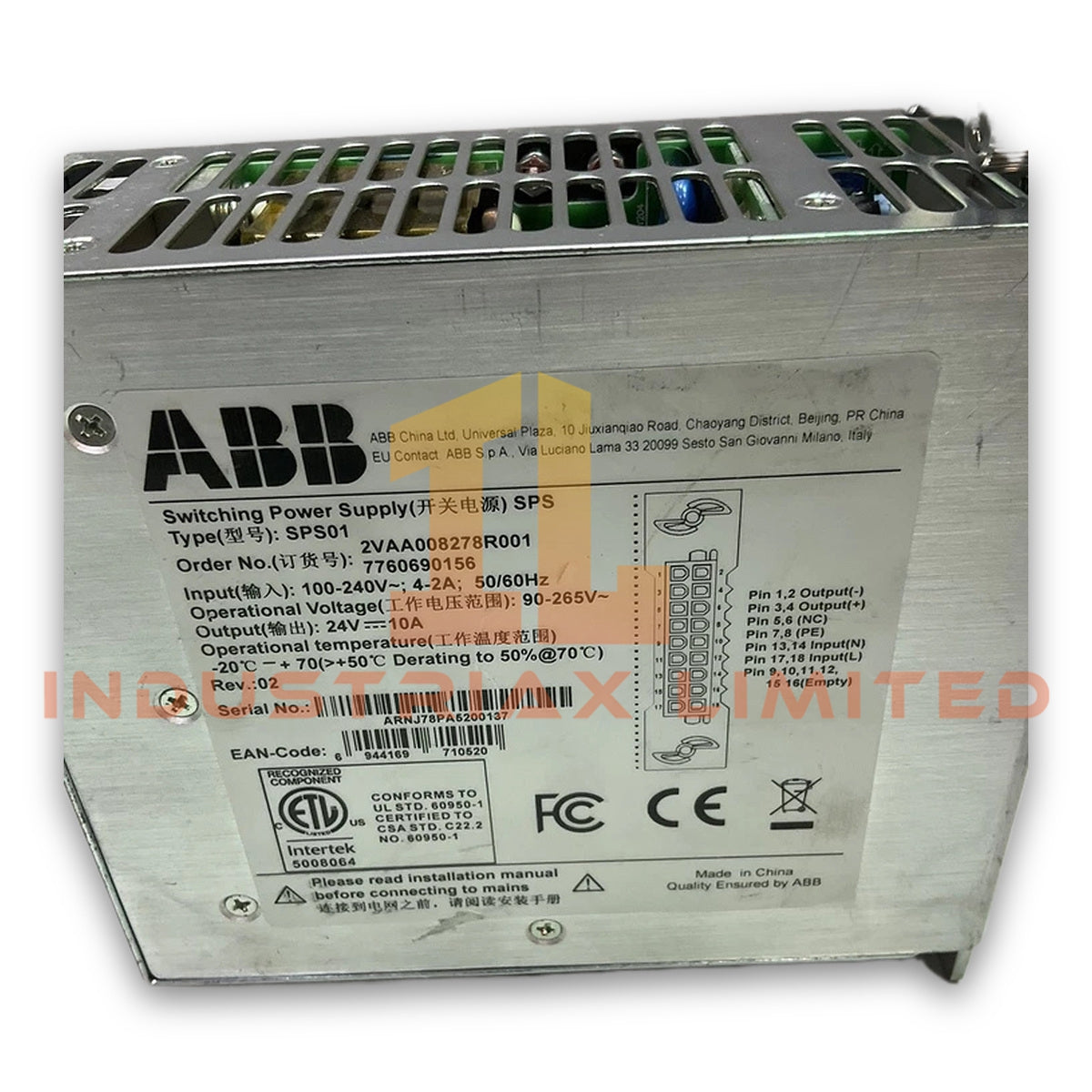

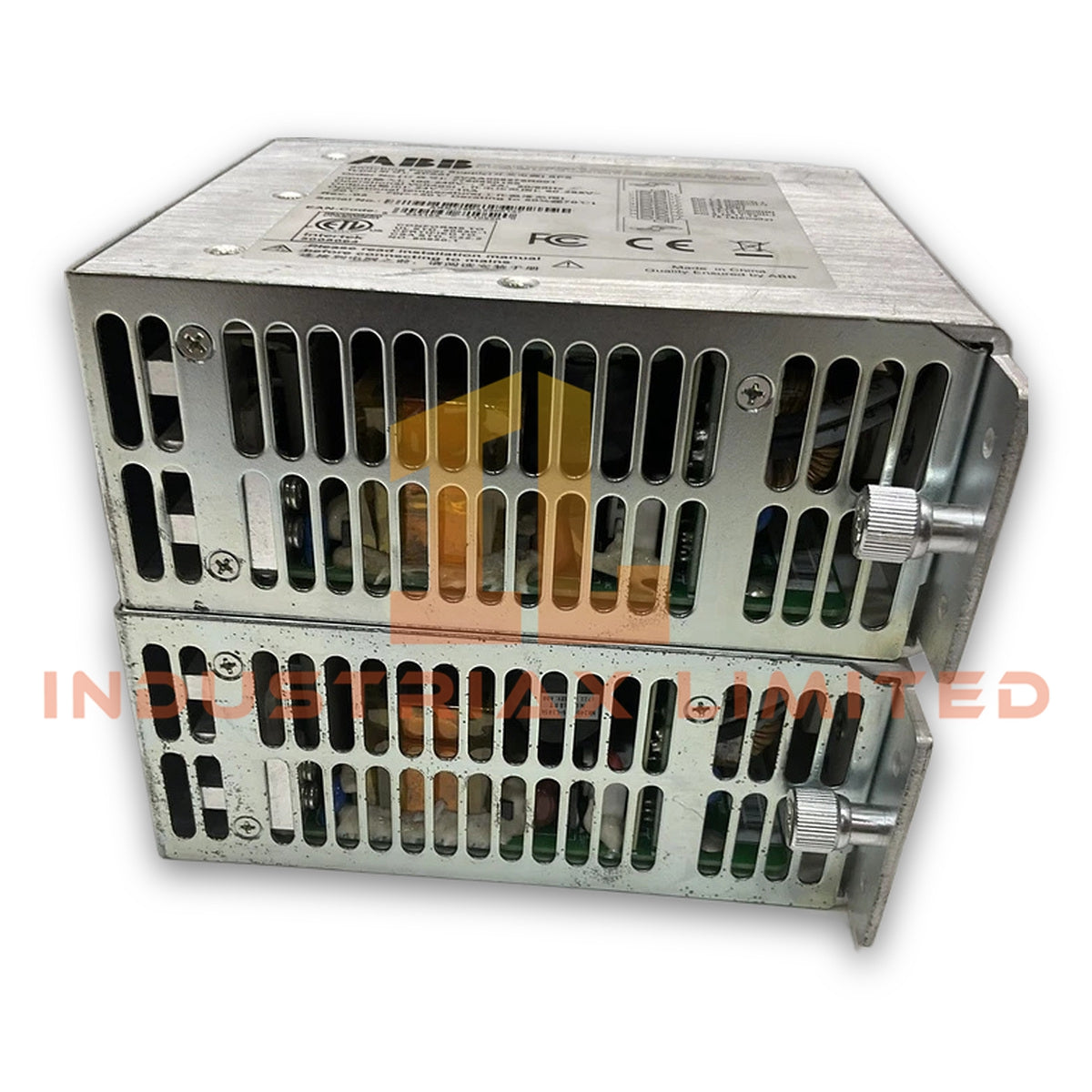

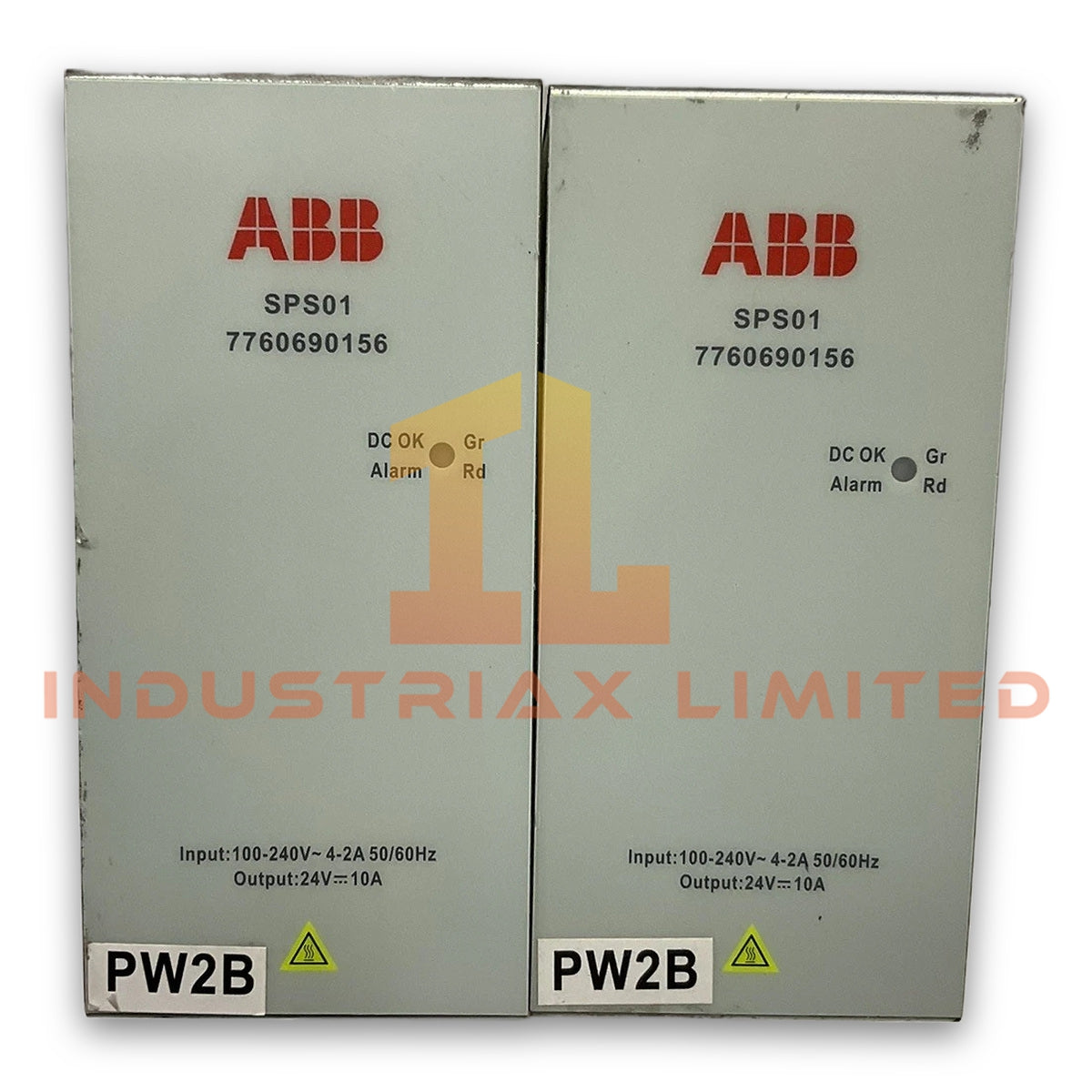

ABB 2VAA008278R001 MPS IV

The ABB 2VAA008278R001 serves as the primary MPS IV Power_Supply utilized to execute 24 VDC voltage regulation across industrial automation platforms. Specifically, this hardware unit converts incoming alternating current into a stable direct current rail, thereby ensuring continuous operational availability for attached control modules. Furthermore, engineers deploy this module to eliminate voltage sags and suppress high-frequency line transients within critical system cabinets.

Hardware Specifications

Parameter	Specification
Model	2VAA008278R001
Brand	ABB
Origin	Check manufacturing label
Weight	0 kg (Refer to technical documentation for packed weight)
Dimensions	Standard modular form factor for MPS IV
Operating Temp	-20 deg C to +60 deg C
Power Consumption	24 VDC, 10 A output capacity

Firmware Flash Compatibility & Backplane Integration

The ABB 2VAA008278R001 incorporates robust firmware flash compatibility features, which actively facilitate seamless integration into existing MPS IV rack architectures. Additionally, the unit maintains strict backplane bus communication stability while delivering continuous current under full load conditions. Consequently, system integrators observe minimal ripple voltages during peak operational cycles, ensuring that sensitive downstream processor boards remain protected against erratic power surges. Furthermore, the built-in diagnostic registers continuously report operational status parameters back to the central controller via dedicated hardware lines.

Frequently Asked Questions

Q: Does the ABB 2VAA008278R001 support live hot-swap insertion during active system operations?

A: No, technicians must completely de-energize the rack before inserting or removing the power supply module to prevent internal arc flashing and terminal damage.

Q: What is the maximum allowable output current rating for this specific power supply unit?

A: The unit is rated for a continuous output current of 10 A at 24 VDC under standard operating temperature thresholds.

Field Installation Guidelines

When mounting the ABB 2VAA008278R001 in an industrial enclosure, technicians must verify that adequate ventilation clearances are maintained above and below the chassis. Furthermore, secure all input and output wiring tightly to the designated screw terminals to minimize contact resistance and prevent thermal runaway. Ensure that the protective earth (PE) grounding conductor is securely fastened to the cabinet chassis prior to applying primary line voltage. Finally, perform a comprehensive multimeter verification of the output voltage rails before connecting downstream control loops.

تحديد

• rtl">


المزايا

• موثوقية عالية في البيئات الصناعية



• يدعم التشغيل المستمر، متوافق مع أنظمة PLC/DCS الرئيسية
