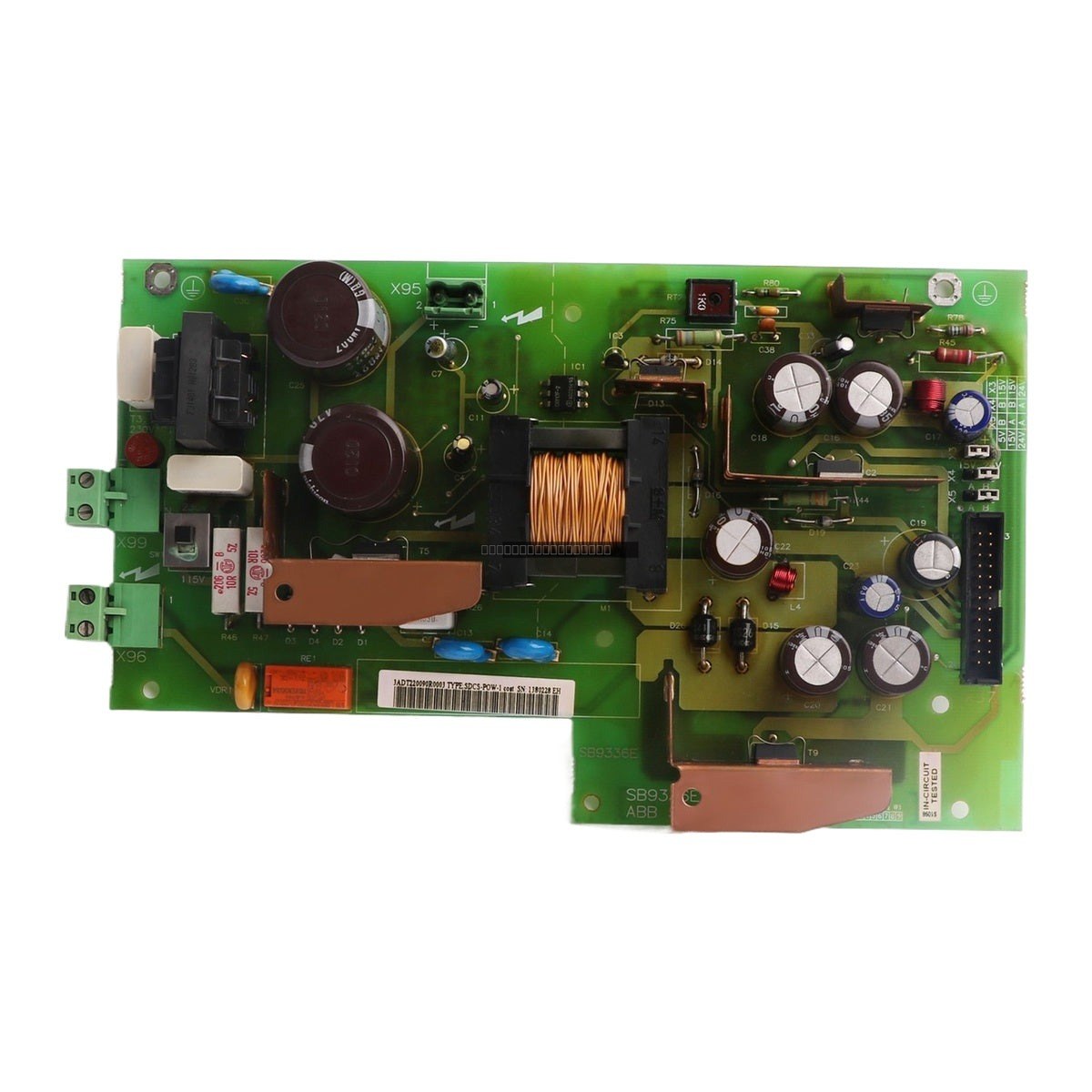

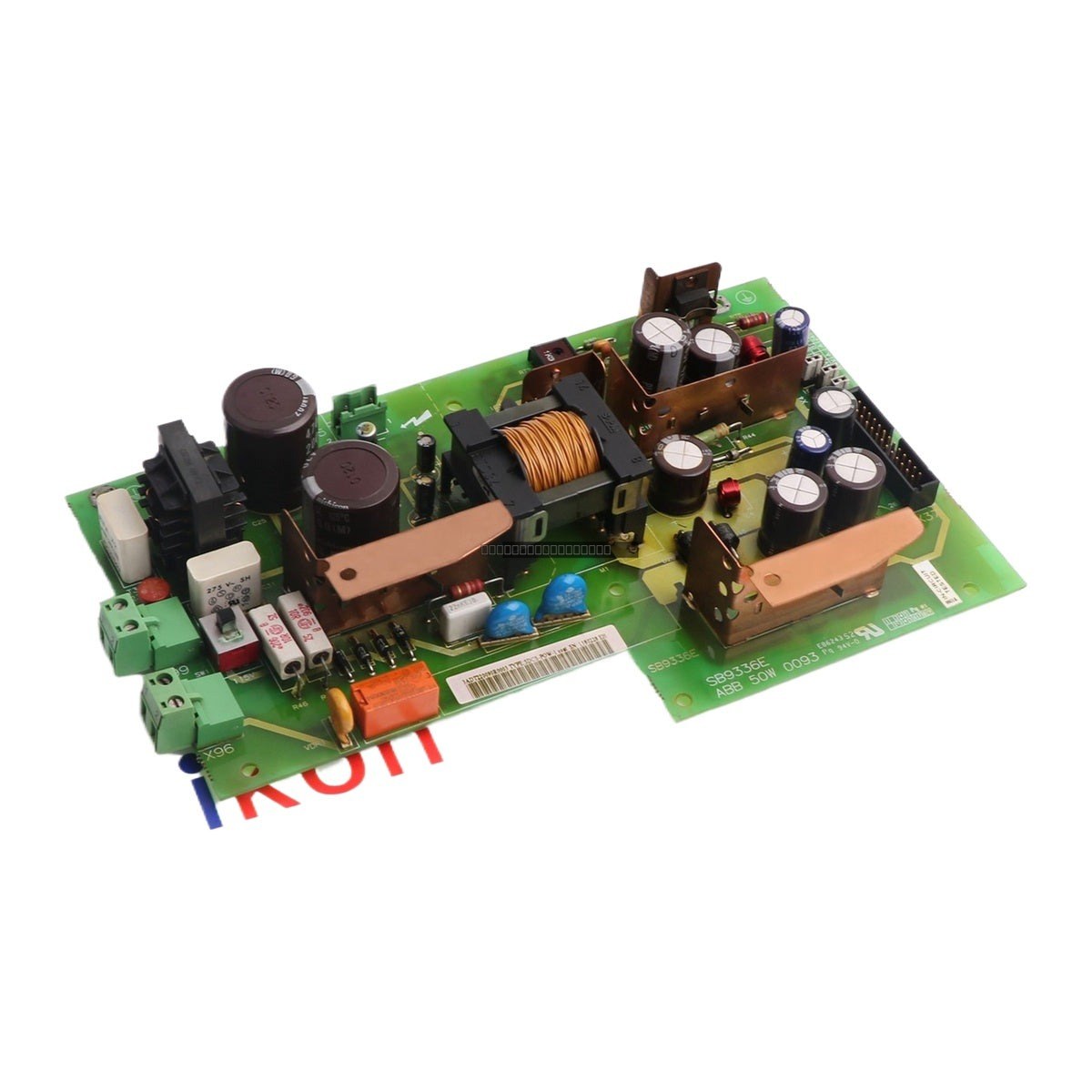

The ABB SDCS-POW-1 (3ADT220090R0003) is a dedicated power supply board designed for use within ABB industrial drive systems. This module provides essential regulated voltage outputs required for the operation of control electronics and peripheral components within the drive architecture.

Features

• Reliable power conversion for industrial drive control systems.
• Multiple output rails to support diverse internal circuitry.
• Designed for integration within specified ABB drive hardware.
• Robust construction suitable for demanding industrial environments.

Technical Specifications

Product Model	SDCS-POW-1
Order Code	3ADT220090R0003
Input Voltage	24 V DC
Output Voltages	+5 V DC, ±15 V DC, +24 V DC
Output Current	5-15 A
Power Rating	50-150 W (typical)
Operating Temperature	-20 degC to +70 degC
Storage Temperature	-40 degC to +85 degC
Humidity	5-95% RH (non-condensing)

Installation Guidelines

• Ensure the drive system is fully de-energized and locked out before attempting to install or remove the power supply board.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
• Verify that all cable connections are secure and seated correctly in their respective terminals.
• Ensure adequate ventilation around the drive cabinet to maintain operating temperatures within the specified range.
• Check for proper grounding of the module to minimize electromagnetic interference (EMI) and ensure system stability.

FAQ

What is the primary function of the SDCS-POW-1?

This module acts as a power supply unit, converting 24 V DC input into the various regulated DC voltages required by the drive's control logic and auxiliary circuits.

Is this part compatible with other drive series?

The SDCS-POW-1 is specific to certain ABB drive configurations. Please verify your drive's hardware manual or the original part number (3ADT220090R0003) against your existing module before installation.
