Description

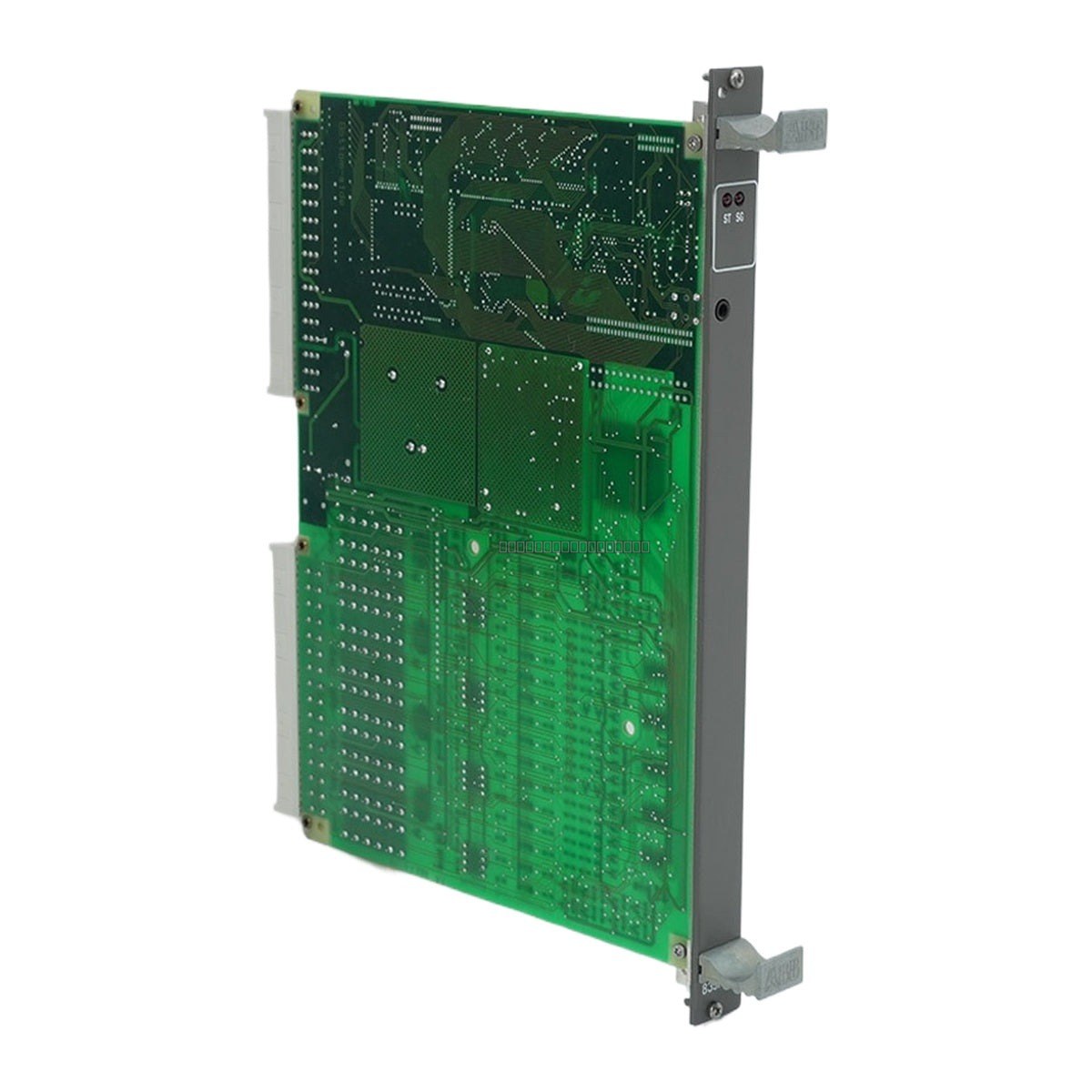

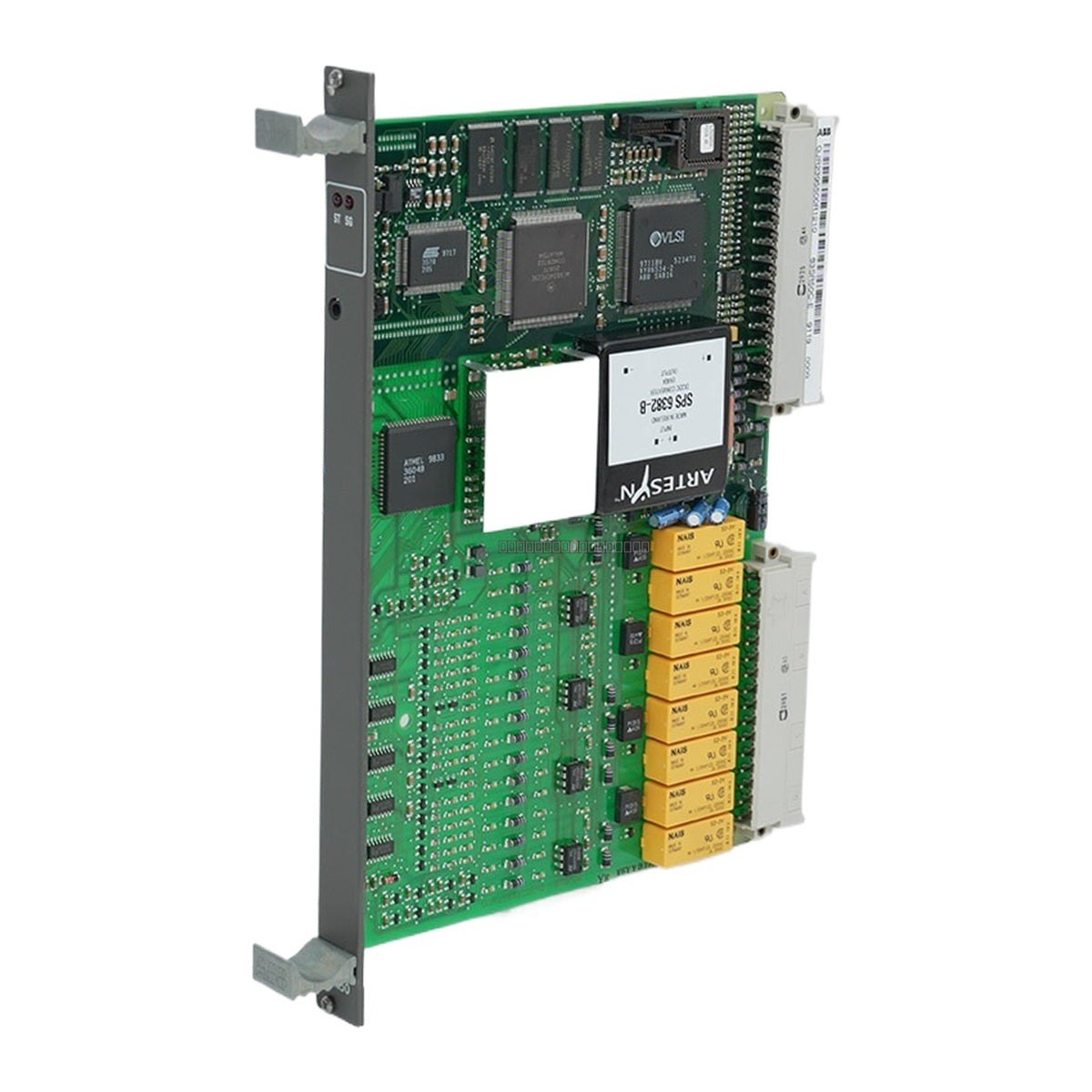

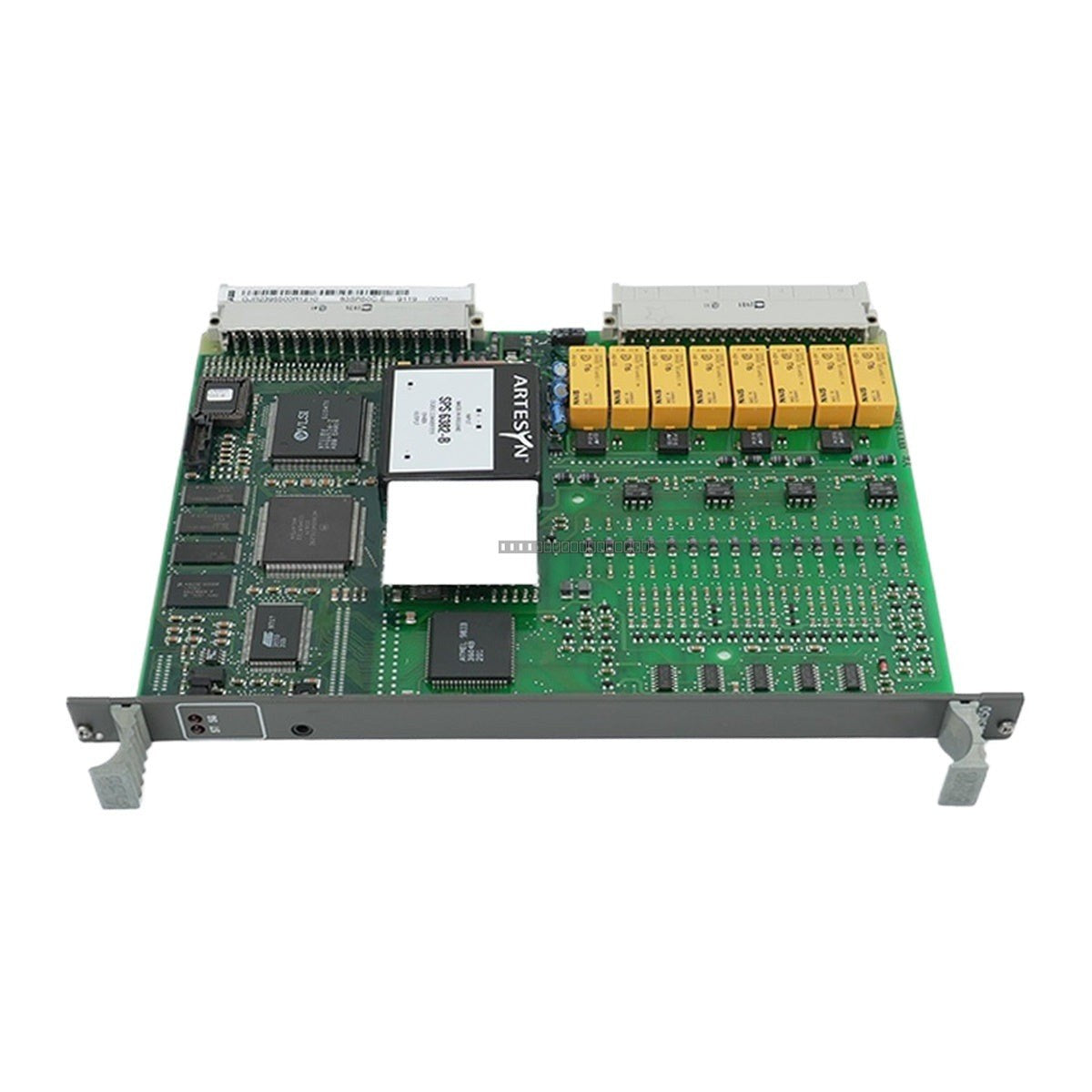

The ABB 83SR50c-E (GJR2395500R1210) is a high-performance control module designed for the Procontrol P14 system. This module is engineered for binary control applications, providing versatile drive control capabilities for reversible and unidirectional drives, actuators, and solenoid valves. It features a multiprocessor design with an integrated 32-bit CPU, allowing for the execution of complex application programs based on predefined function blocks.
Features
- Integrated 32-bit DSP for local processing of application programs.
- Four independent control channels, each featuring four digital inputs (DI) and two digital outputs (DO).
- Supports advanced control modes including 3-step control, signal conditioning, and function group management.
- Designed for high-reliability industrial automation environments within the Procontrol P14 ecosystem.
- Robust isolation between field and logic circuits (1500V AC).
Applications
-
Drive Control: Management of reversible and unidirectional motors and actuators.
-
Substations & Switchgear: Monitoring and control for distribution boards and fault prevention.
-
Renewable Energy: Circuit monitoring and protection for wind and solar power systems.
-
Water Management: Remote SCADA control for transmission and distribution networks.
-
General Automation: Binary signal interfacing for industrial process control.
Technical Specifications
| Parameter |
Specification |
| Model |
83SR50c-E |
| Order Code |
GJR2395500R1210 |
| Supply Voltage |
24V DC (+/- 10%) |
| Power Consumption |
15W (typical) |
| Operating Temperature |
0 degC to +55 degC (derate above 40 degC) |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH (non-condensing) |
| Isolation |
1500V AC (field-to-logic) |
| Processor |
32-bit DSP |
Installation Guidelines
-
Mounting: Designed for installation in Procontrol P14 process stations; mount on a standard DIN rail within a protected industrial cabinet.
-
Handling: Use ESD-safe handling procedures when installing or removing the module to prevent damage to sensitive internal components.
-
Wiring: Ensure all field wiring is routed according to the specific control task requirements. Verify polarity before applying power.
-
Safety: Always power down the system before inserting or removing the module to prevent process disruption or electrical damage.
-
Environment: Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range.
FAQs
What is the primary function of the 83SR50c-E?
The 83SR50c-E is a control module for the Procontrol P14 system, primarily used for binary control, drive management, and function group control in industrial automation.
How many channels does this module provide?
The module provides four independent control channels, with each channel configured for four digital inputs and two digital outputs.
Is this module compatible with live maintenance?
No. Removing or adjusting this module while the system is live is not recommended as it may disrupt the controlled process and cause equipment damage.
