Description

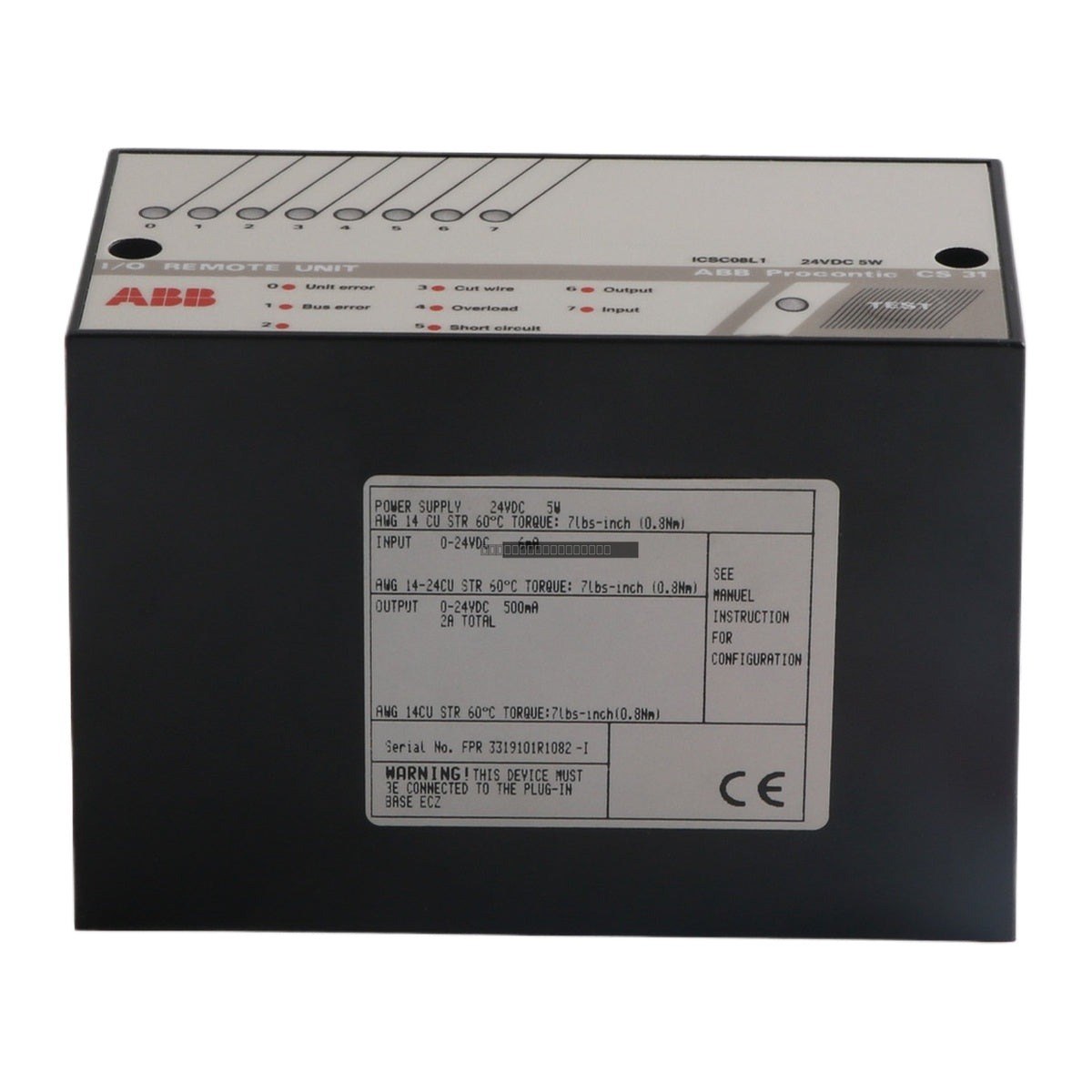

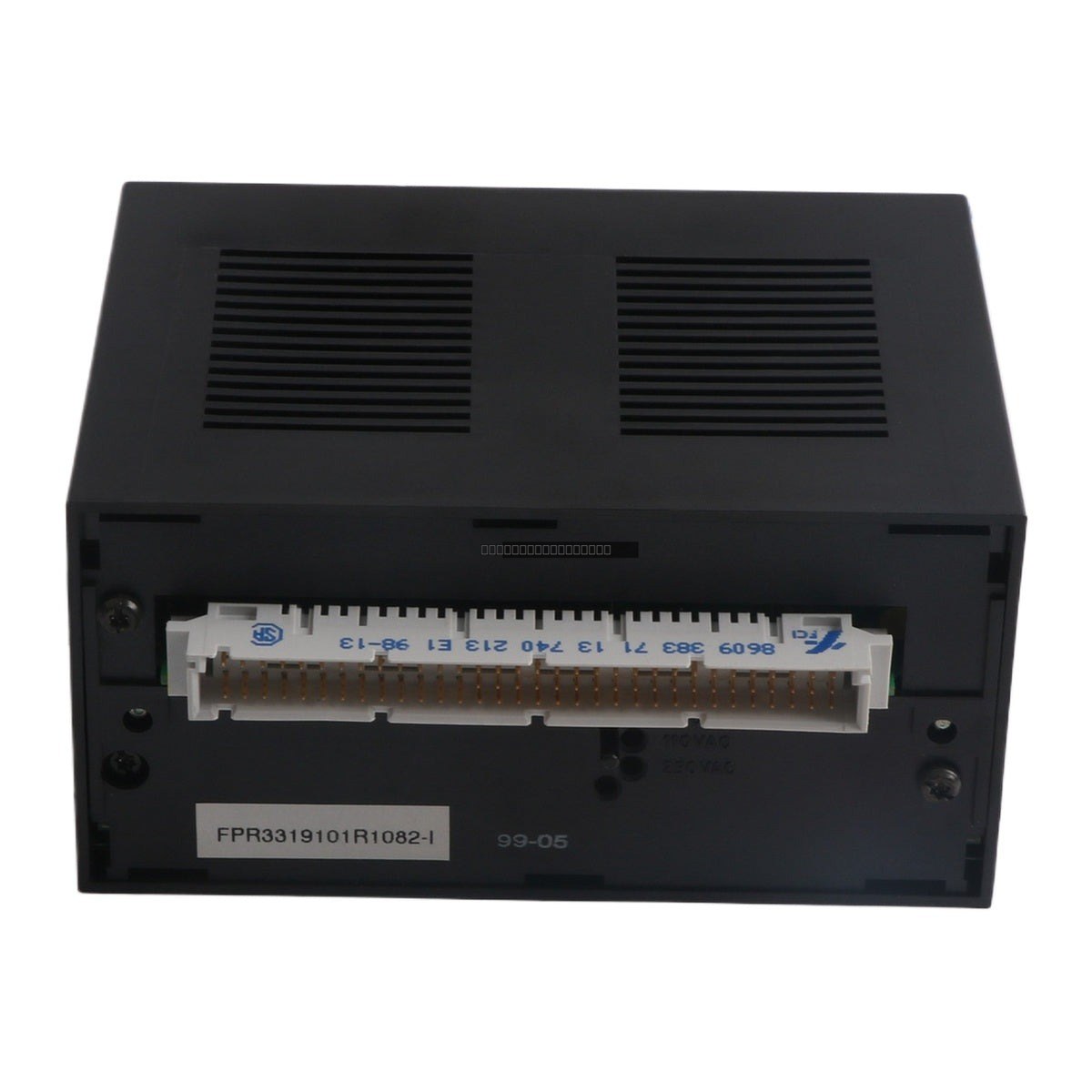

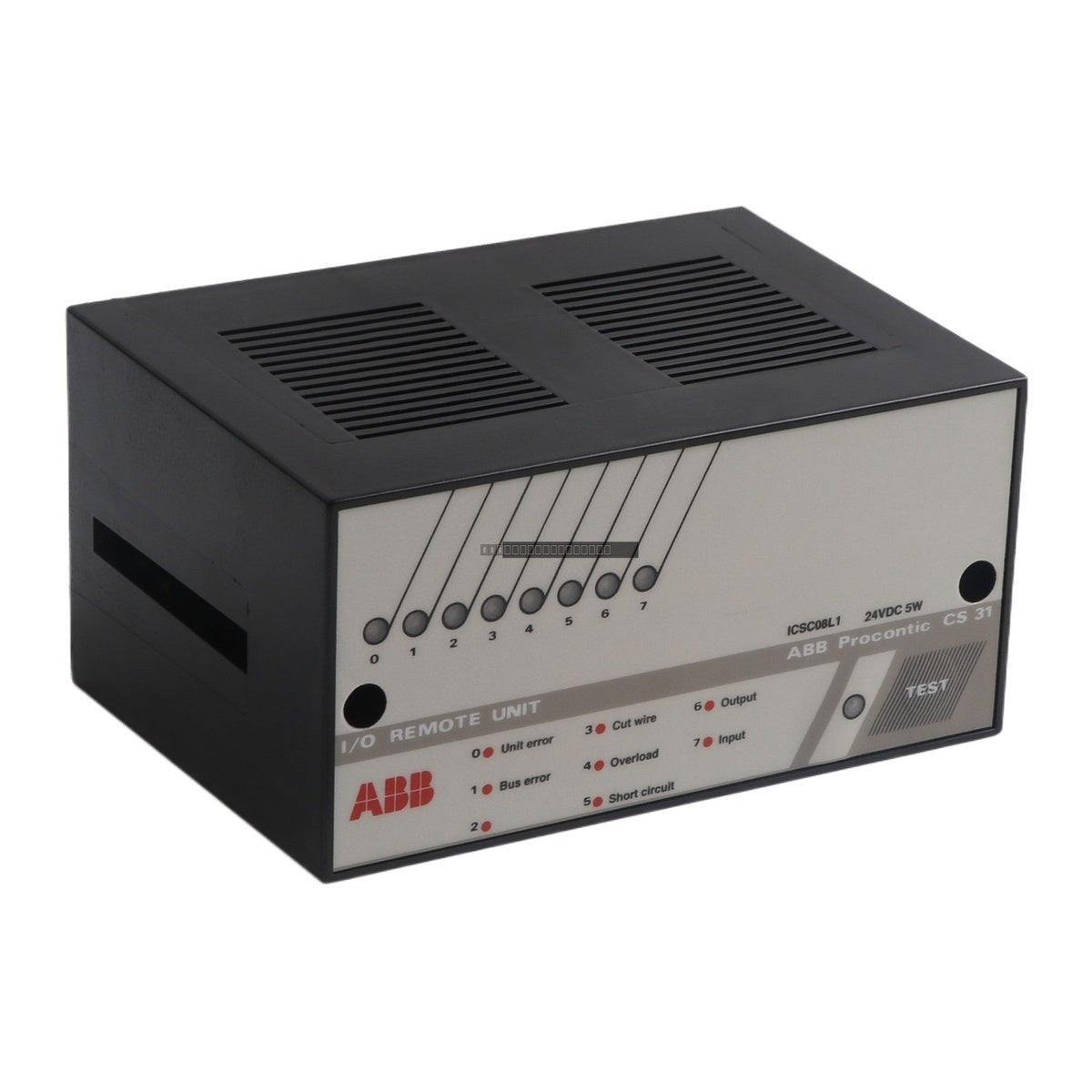

The ABB ICSC08L1 is a remote I/O unit designed for the Procontic CS31 automation system. This module facilitates distributed input and output operations, allowing for efficient signal processing in industrial control environments. Although this unit is now discontinued by the manufacturer, it remains a critical component for maintaining legacy Procontic CS31 installations.
Features
- Designed for integration within the ABB Procontic CS31 fieldbus architecture.
- Supports 24 Vdc operation for reliable I/O signal handling.
- Compact hardware footprint suitable for space-constrained control cabinets.
- Compatible with legacy ABB automation infrastructure.
Technical Specifications
| Model |
ICSC08L1 |
| Spare Model / Order Code |
FPR3319101R1082 |
| System Series |
Procontic CS31 |
| Supply Voltage |
24 Vdc |
| Manufacturer |
ABB |
| Weight |
0.28 kg |
| Tariff Code |
8538907080 |
Installation Guidelines
- Ensure the control system power is fully disconnected before installing or removing the I/O unit to prevent electrical damage.
- Mount the unit in a clean, dry environment, ensuring adequate ventilation to prevent overheating.
- Verify that all wiring connections are secure and follow local electrical codes for industrial control equipment.
- Use shielded cabling where necessary to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to protect internal circuitry.
FAQ
Is the ICSC08L1 still in production? No, this unit has been discontinued by ABB. It is primarily available through secondary market channels or as a refurbished spare.
What is the primary function of this module? The ICSC08L1 acts as a remote I/O interface for the Procontic CS31 system, enabling the controller to communicate with field devices located away from the main processor.
Can I use this as a direct replacement for other CS31 modules? You should verify the specific part number and system configuration requirements. The spare model number associated with this unit is FPR3319101R1082.
