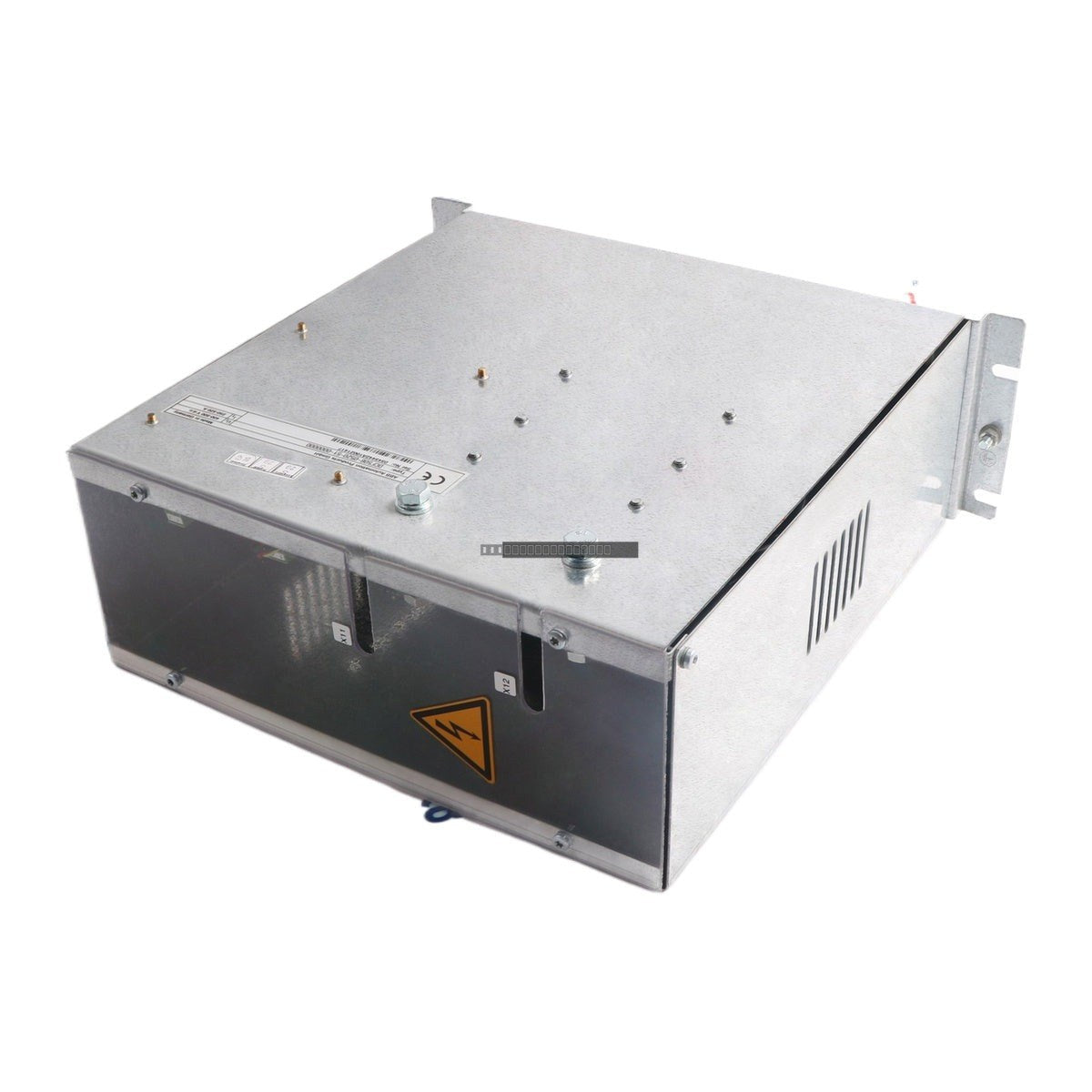

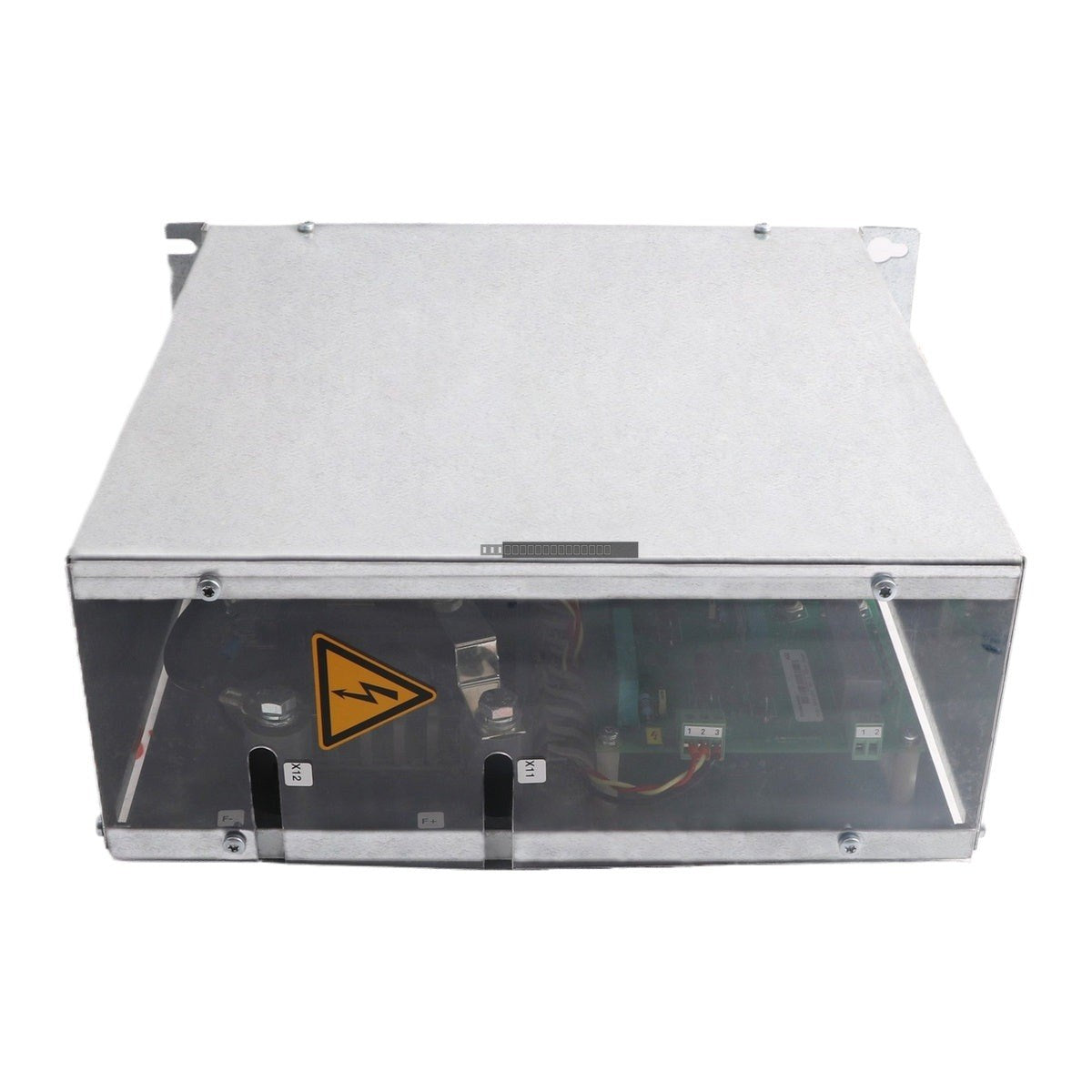

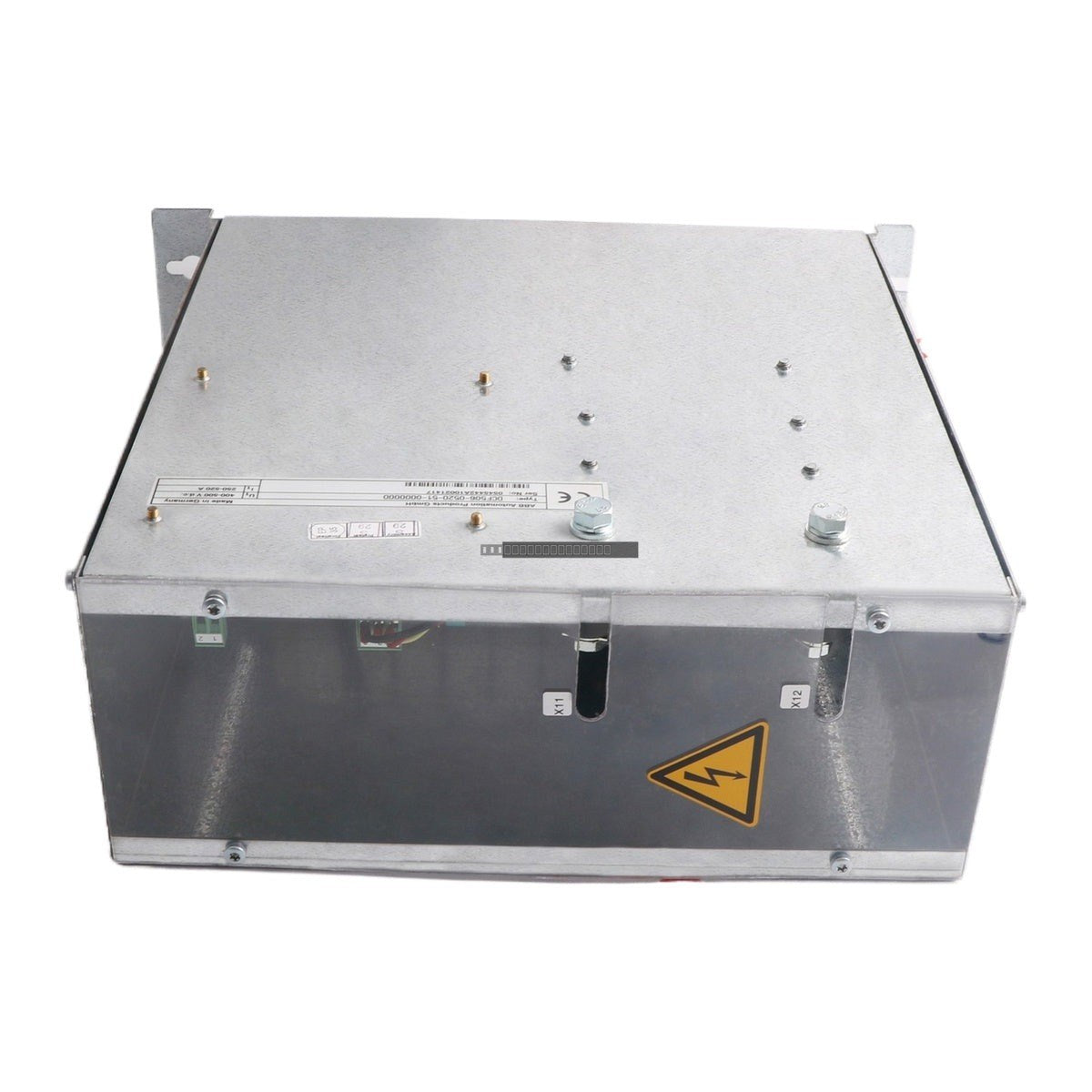

The ABB DCF506-0520-51-0000000 (Product ID: DCF1127119R0001) is an essential overvoltage protection module engineered for high-power DC drive systems. It provides critical safeguarding for power components against inadmissibly high voltages that can occur during field excitation operations, ensuring the longevity and reliability of motor field supply converters rated from 250 A to 520 A.

Features

• Active overvoltage protection for large field exciters.
• Dual anti-parallel thyristor configuration for effective free-wheeling.
• Integrated trigger unit for deterministic response times.
• Relay output for status monitoring of the free-wheeling circuit.
• Designed for 3-phase supply voltages in the 400 V to 500 V range.

Applications

• Metals and Mining: Prevents motor field failures in crushers and conveyor systems.
• Material Handling: Provides torque control and transient spike prevention for cranes and hoists.
• Pulp, Paper, and Plastics: Ensures stable speed control for winders and extruders.
• Chemical and Electrolysis Plants: Protects sensitive electronics from power supply shifts during processing.

Technical Specifications

Product Model	DCF506-0520-51-0000000
Product ID	DCF1127119R0001
Converter Current Range	250 A – 520 A
Voltage Range	400 V – 500 V
Protection Type	Active free-wheeling overvoltage suppression
Response Time	< 5 ms
DC Current Release Threshold	< 0.5 A
Weight	8.2 kg

Installation Guidelines

• Galvanic Isolation: The end-user application must incorporate an independent circuit breaker or dedicated safety fuses upstream to provide complete galvanic isolation during maintenance.
• Grounding: Connect the module independently to the protective earth (PE) busbar. Use heavy-gauge, low-impedance conductors and ensure 360-degree high-frequency grounding for any screened power cable entries to minimize EMI.
• Polarity Check: Verify the absolute polarity of all DC bus attachments (such as C+ and D- terminal paths) before applying system test voltages.
• Handling: Ensure the system is powered down and capacitors are discharged before performing any installation or maintenance on the module.

FAQ

What is the primary function of the DCF506-0520-51?

It functions as an active protection module that monitors field circuit voltage and activates a free-wheeling circuit between F+ and F- terminals to dissipate energy during overvoltage events, preventing damage to semiconductor devices and motor field windings.

Which drive units is this module compatible with?

This module is specifically designed for ABB industrial DC drives, including the DCS800 and DCS880 series, within the specified current and voltage ratings.
