Description

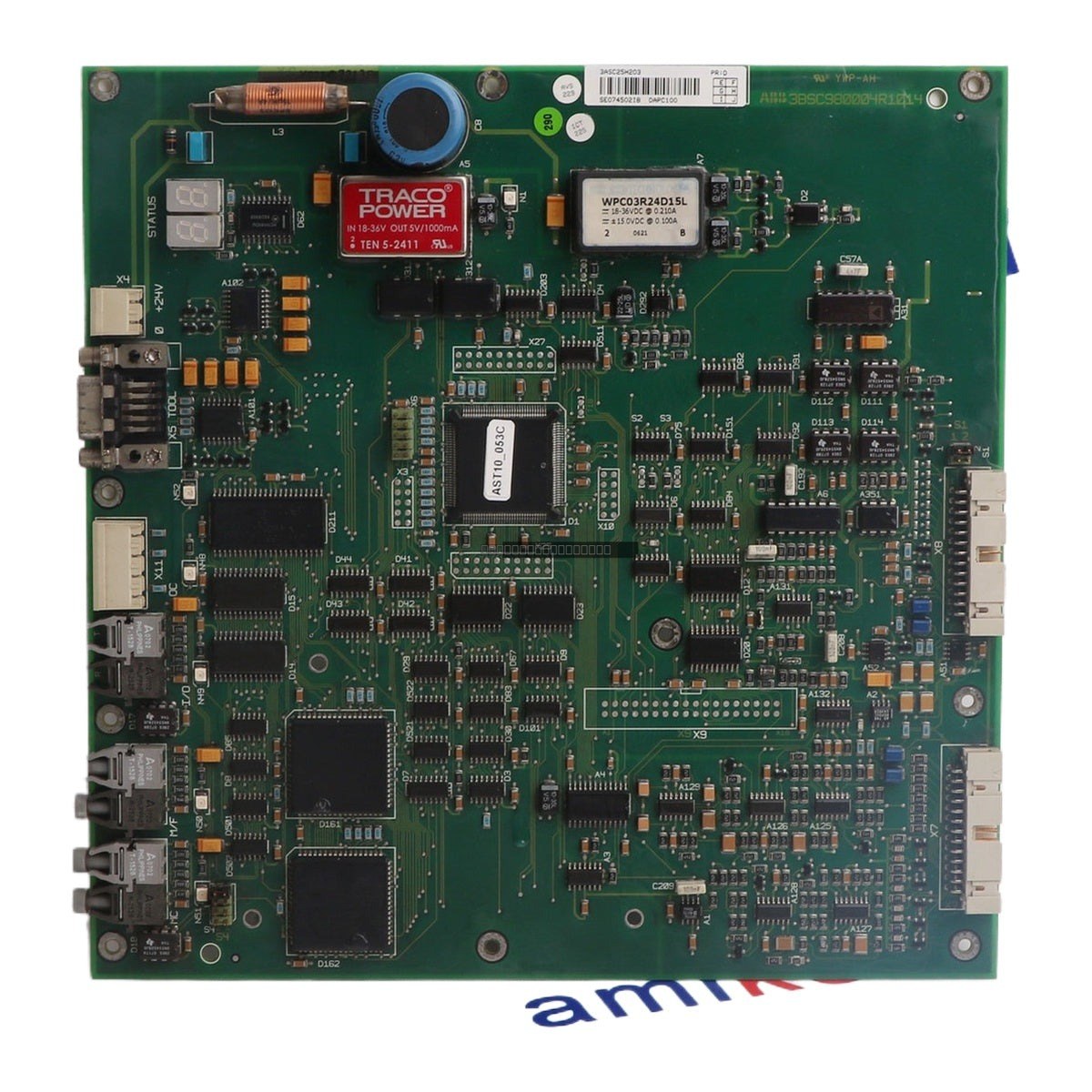

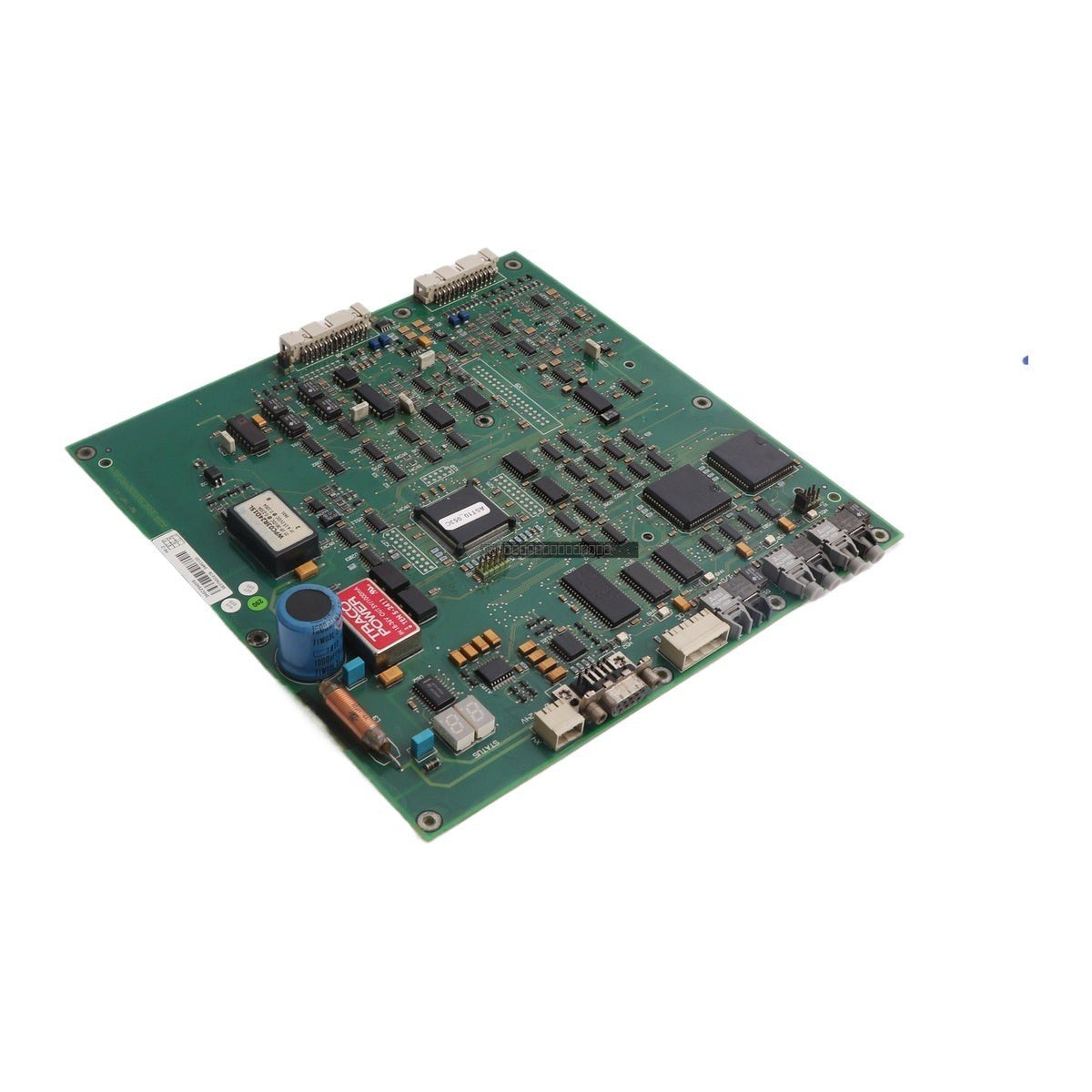

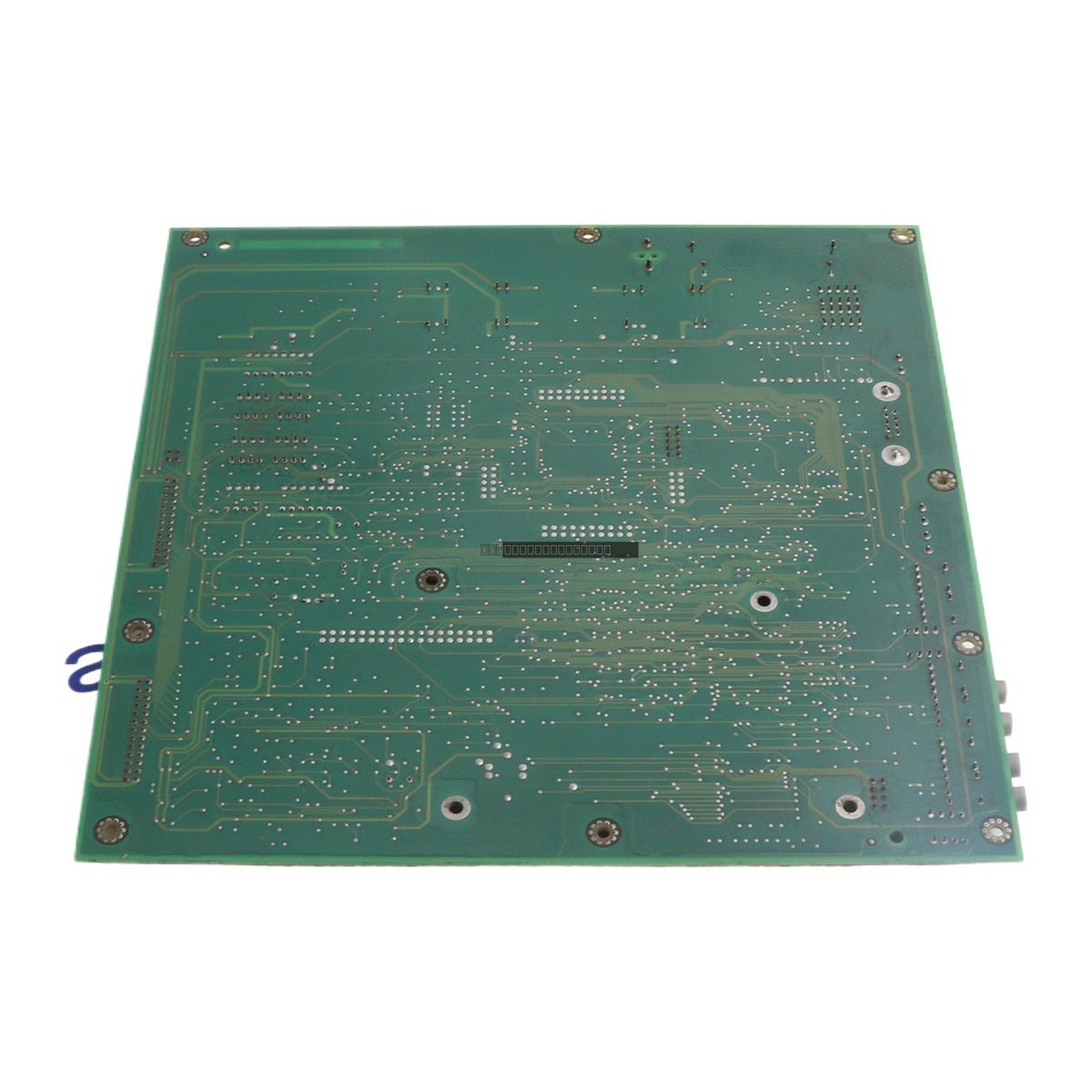

The ABB DAPC100 (Order Code: 3ASC25H203) is a high-performance control board designed for industrial automation and control systems. This module is supplied complete with a CMT memory stick, providing the necessary firmware and configuration storage required for operation within ABB control environments. It serves as a critical component for system logic processing and data management in demanding industrial applications.

Features

• Integrated CMT memory stick for reliable data storage and firmware management.
• Designed for robust performance in industrial control architectures.
• Standardized 24 V DC power supply requirement.
• Wide operating temperature range suitable for controlled industrial environments.
• High-density industrial flash memory for consistent operation.

Technical Specifications

Product Model	DAPC100 3ASC25H203
Supply Voltage	24 V DC
Isolation	500 V DC
Memory	8 GB industrial Flash
Operating Temperature	0 degC to +55 degC
Storage Temperature	-40 degC to +85 degC
Relative Humidity	5% to 95% RH (non-condensing)
Weight	0.34 kg

Installation Guidelines

• Ensure the control system is powered down before installing or removing the DAPC100 board to prevent electrical damage.
• Handle the module using ESD-safe practices to protect sensitive internal components.
• Verify that the power supply voltage is stable at 24 V DC before connection.
• Ensure proper ventilation in the cabinet to maintain operating temperatures within the specified 0 degC to +55 degC range.
• Route signal and power cables away from high-EMI sources to maintain signal integrity.

FAQ

What is included with the DAPC100 3ASC25H203?

This unit is supplied as a control board assembly, which includes the CMT memory stick required for its operational configuration.

What are the power requirements for this board?

The DAPC100 operates on a 24 V DC power supply. Please ensure your system power distribution meets this specification before installation.

Is this module suitable for high-humidity environments?

The module is rated for 5% to 95% relative humidity, provided it is non-condensing. Ensure the enclosure is properly sealed if installed in environments prone to condensation.
