Description

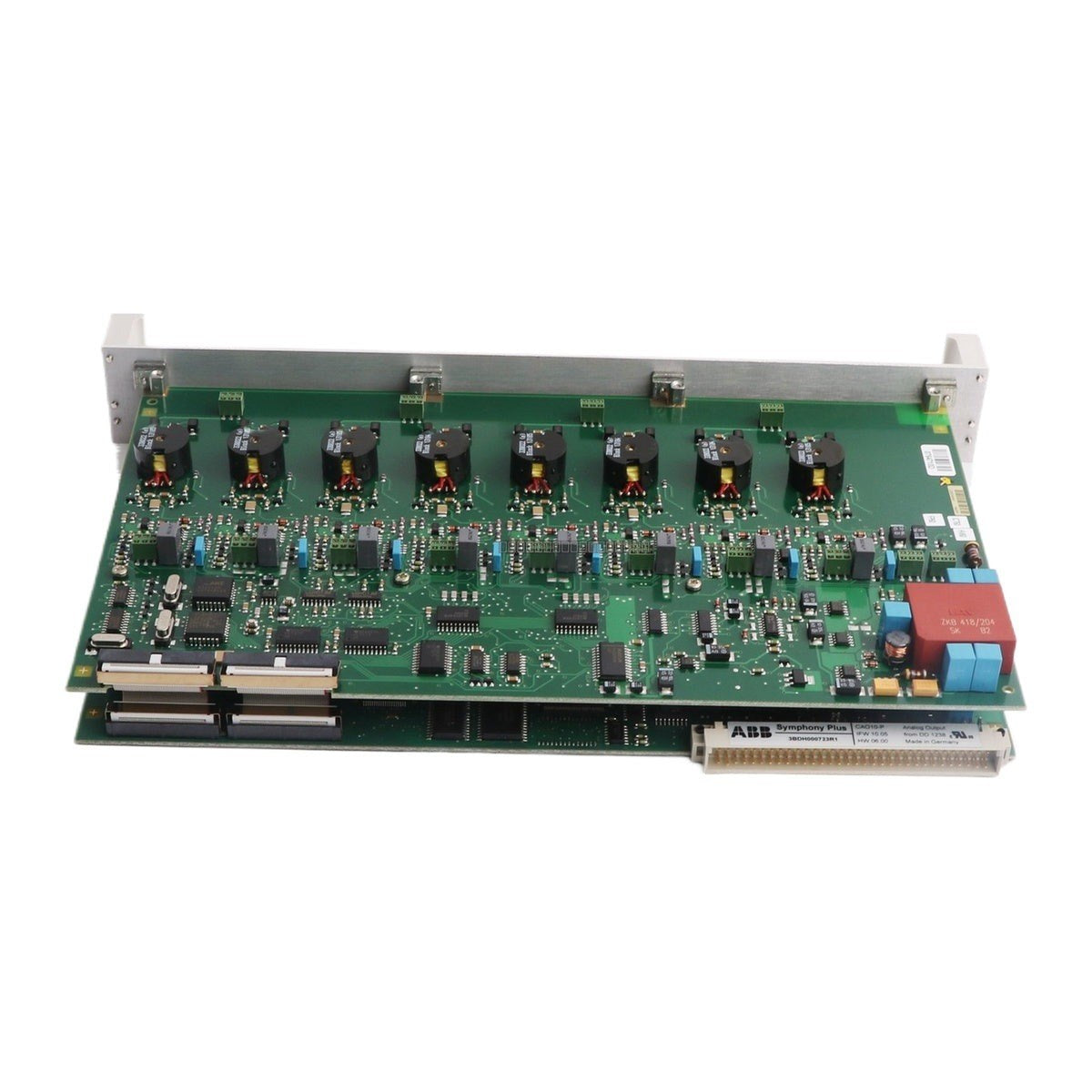

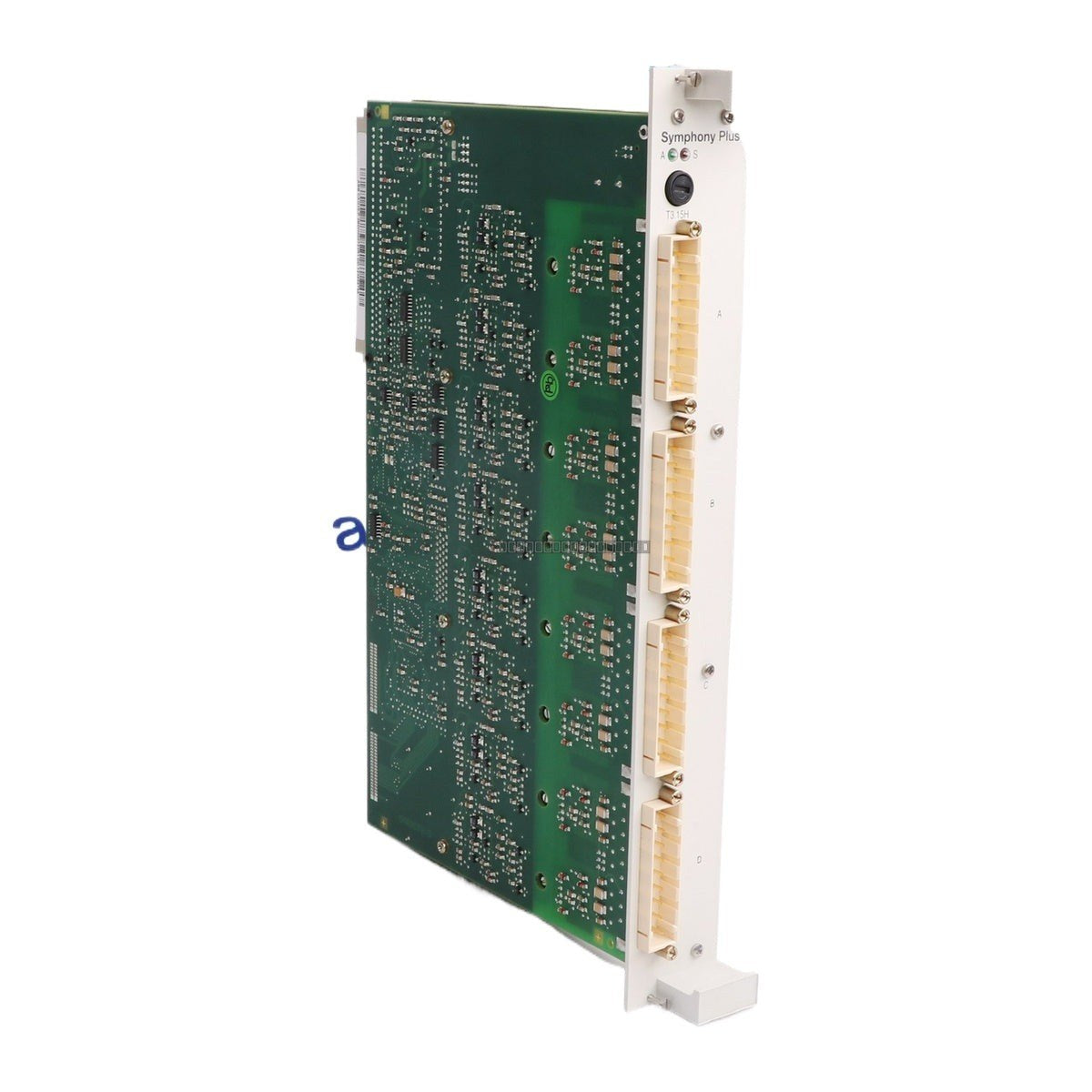

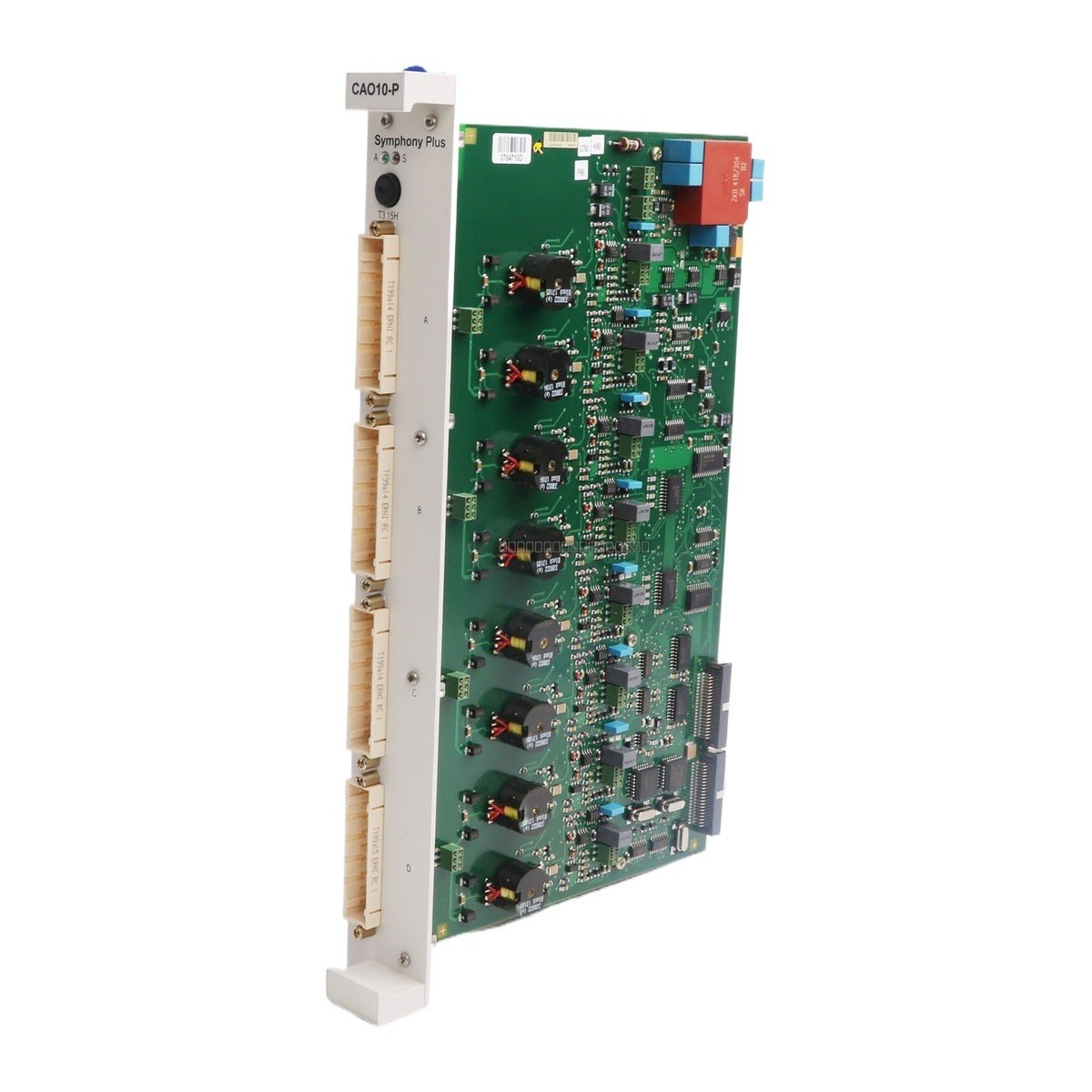

The ABB CAO10-P (Order Code: 3BDH000723R1M211) is a high-performance analog output module designed for industrial control systems. It provides reliable signal conversion and distribution, supporting precise control of field devices in demanding automation environments. This module is engineered for robust performance, featuring channel-by-channel isolation and support for redundant operation, ensuring high availability in critical process control applications.
Features
- 16 analog outputs with configurable signal ranges (0/4 to 20 mA).
- Supports digital communication with field devices via HART protocol (Version 5.0 / 5.1).
- Channel-by-channel isolation for improved signal integrity and fault tolerance.
- Integrated monitoring of loads and module health status.
- Capable of redundant operation to meet high-reliability system requirements.
- Maximum load capacity of 700 Ohm.
Applications
This analog output module is typically utilized in distributed control systems (DCS) for process automation, including chemical processing, power generation, and oil and gas infrastructure. It is ideal for driving actuators, valves, and other field instrumentation requiring precise current or voltage control.
Technical Specifications
| Product Model |
CAO10-P 3BDH000723R1M211 |
| Number of Channels |
16 |
| Output Signals |
0/4-20 mA, 0-10 V DC |
| Output Resolution |
12-bit |
| Max Load |
700 Ohm |
| Power Supply |
24 V DC |
| Isolation |
500 V AC |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH (non-condensing) |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Handle the module using ESD-safe practices to prevent damage to internal electronic components.
- Verify that the module is securely seated in the designated backplane slot to ensure proper electrical contact.
- Route signal cables away from high-voltage lines and high-EMI sources to maintain signal accuracy.
- Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified 0 to 60 degC range.
- Check all terminal connections for proper tightness and polarity before applying power.
FAQ
What is the primary function of the CAO10-P module?
The CAO10-P is an analog output module used to convert digital control signals from the PLC/DCS into analog current or voltage signals (4-20 mA or 0-10 V) to drive external field devices.
Does this module support HART communication?
Yes, the module supports digital communication with HART-compatible field devices (Version 5.0 / 5.1), allowing for device configuration and diagnostics alongside the analog signal.
Is this module suitable for redundant systems?
Yes, the CAO10-P is designed to be capable of redundant operation, which is essential for applications requiring high fault tolerance and continuous uptime.
