Description

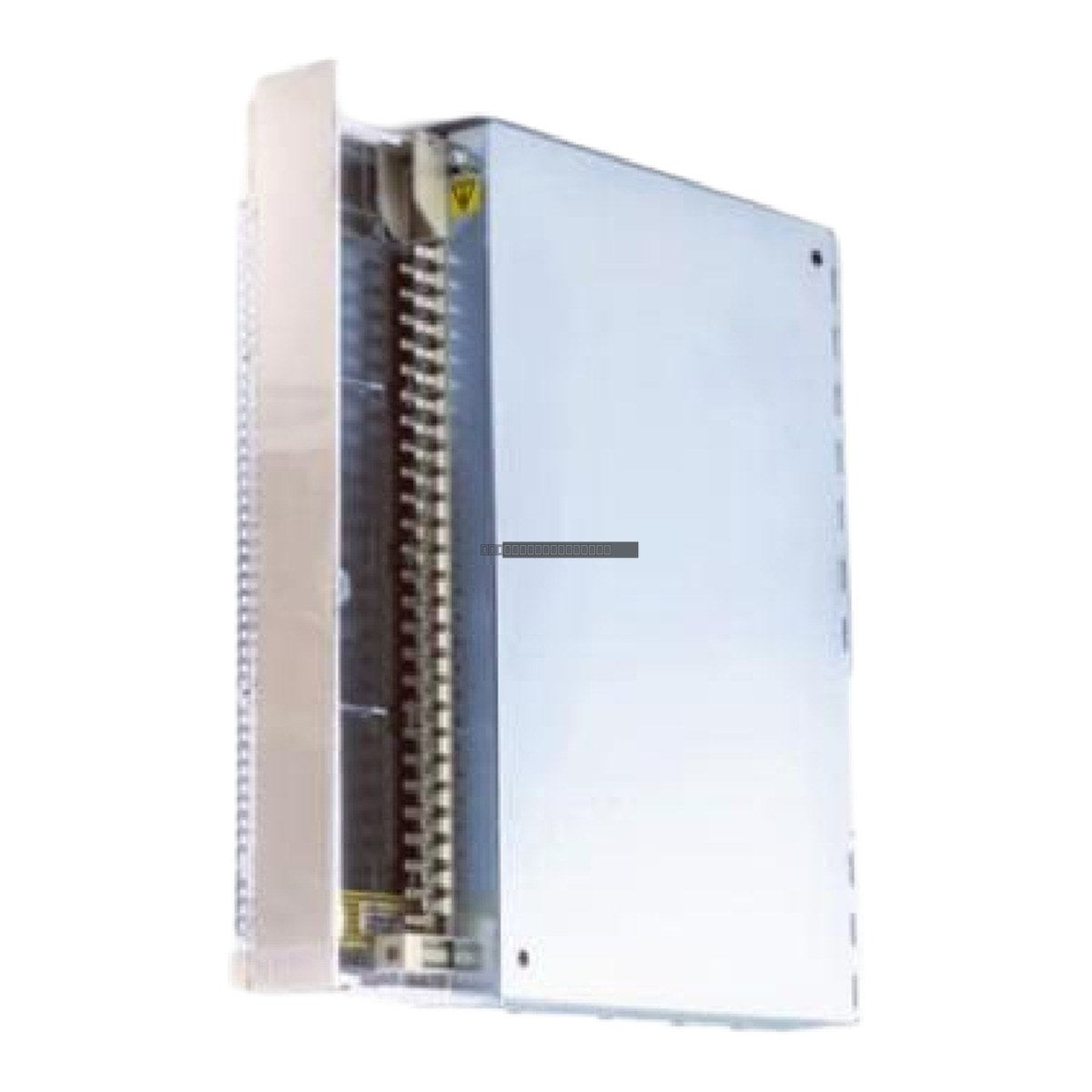

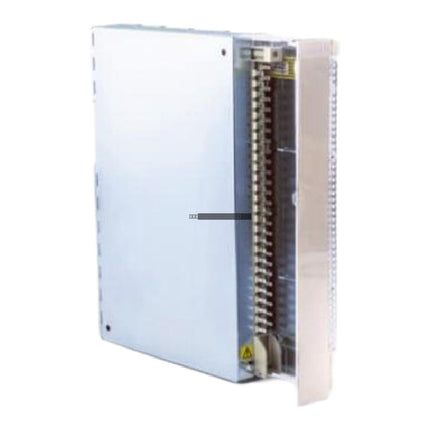

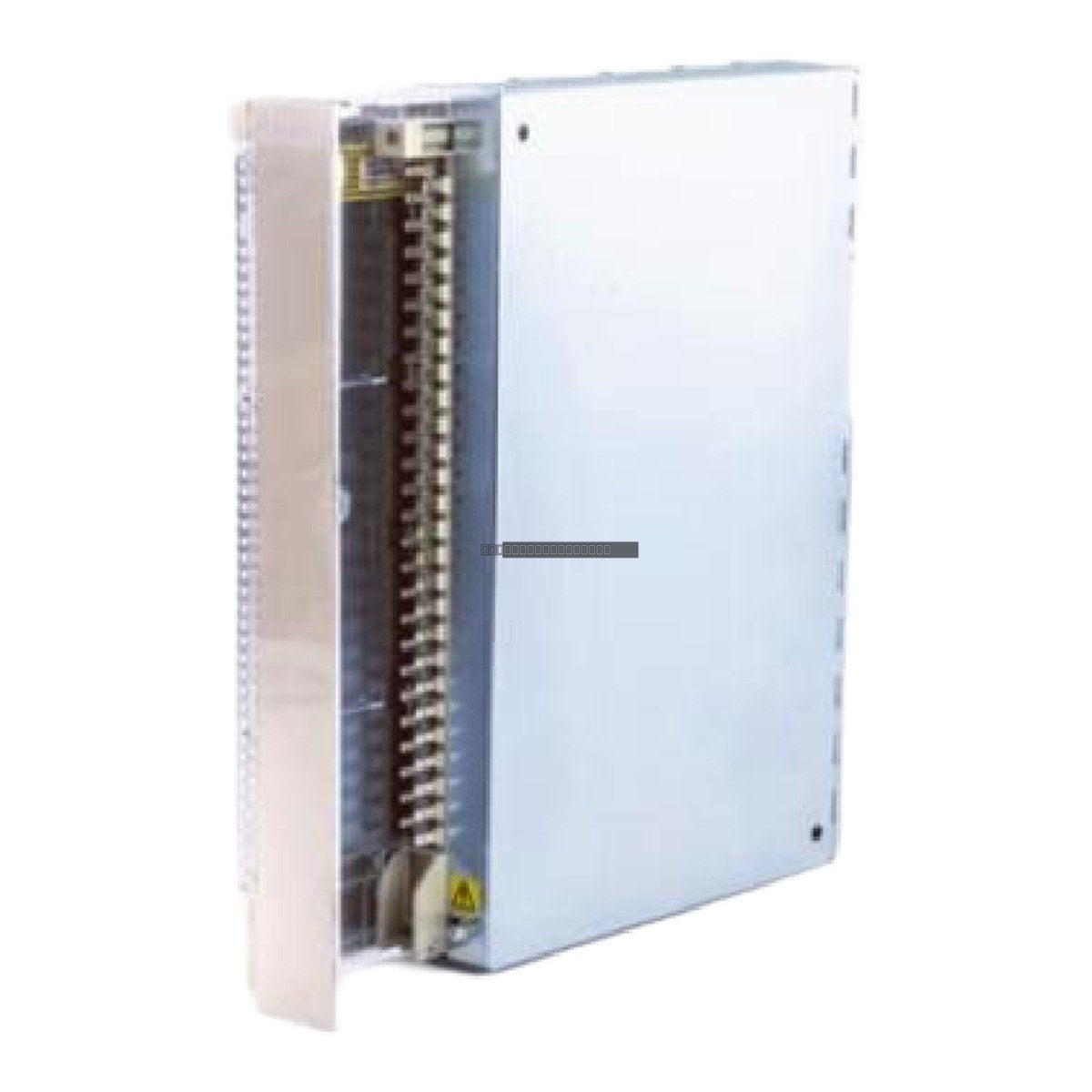

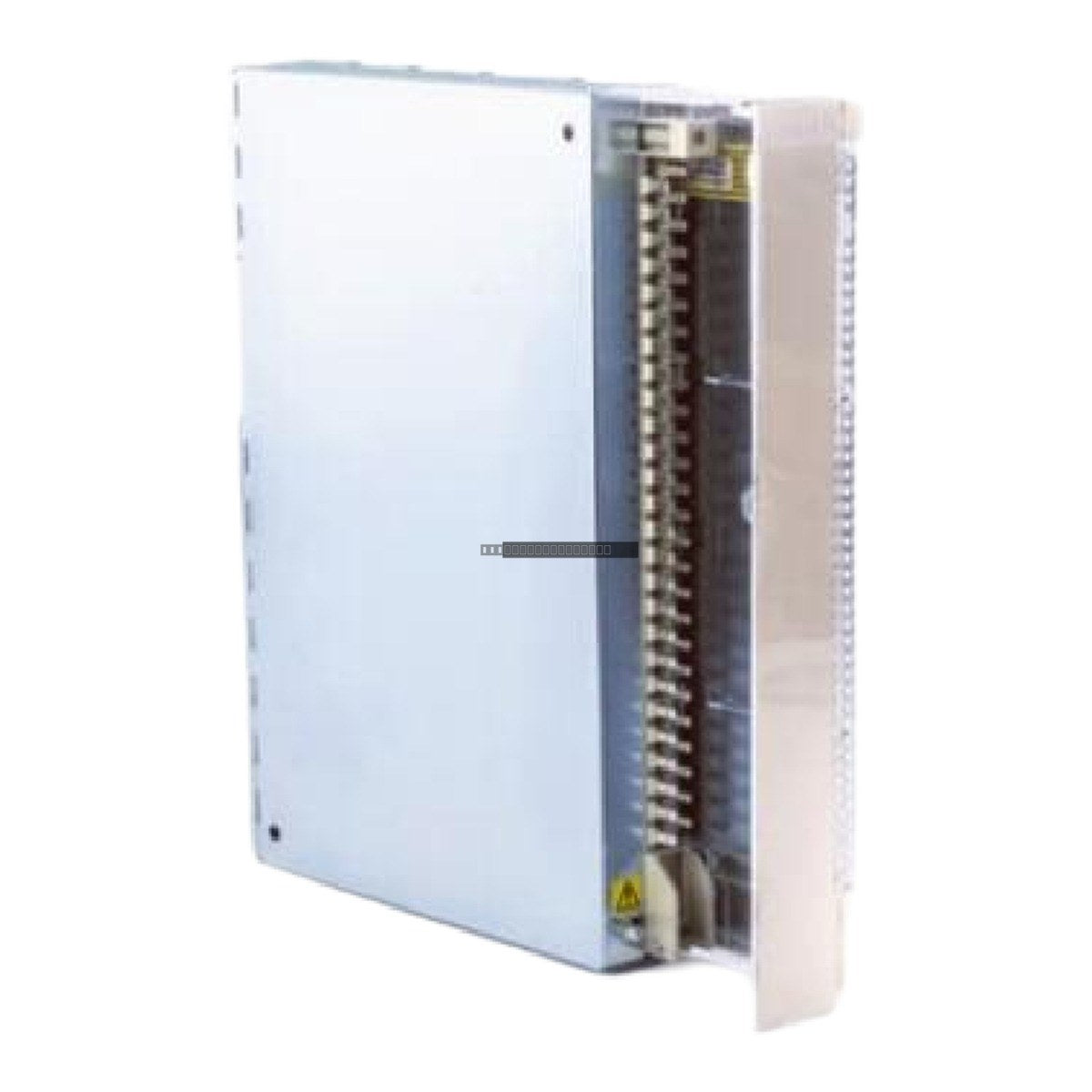

The ABB AI630 (3BHT300011R1) is a high-performance analog input module designed for precision temperature measurement in industrial automation environments. This module features 12 input channels specifically configured for Pt100 resistance temperature detectors (RTDs), providing reliable data acquisition for process control systems.

Features

• 12-channel analog input capacity for high-density monitoring.
• Optimized for Pt100 RTD sensor integration.
• Designed for integration within ABB industrial control architectures.
• Compact form factor suitable for standard control cabinet mounting.

Applications

The AI630 module is primarily utilized in industrial process control applications where accurate temperature monitoring is critical. It is commonly deployed in power generation, chemical processing, and manufacturing facilities to interface field-mounted RTD sensors with the central control system.

Technical Specifications

Product ID	3BHT300011R1
Model	AI630
Input Type	Pt100 RTD
Channel Count	12
Customs Tariff Number	85389091
Net Weight	1.195 kg

Installation Guidelines

• Ensure the control system power is fully disconnected before installing or removing the module to prevent electrical damage.
• Mount the module in a clean, dry environment within an enclosure that provides adequate ventilation to maintain operating temperature limits.
• Use shielded cabling for all RTD inputs to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Verify that all terminal connections are secure and that wiring follows the specific pinout configuration for the AI630 module.
• Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What type of sensors are compatible with the AI630?

The AI630 is specifically designed for use with Pt100 resistance temperature detectors (RTDs).

How many channels does this module support?

This module supports 12 independent analog input channels.
