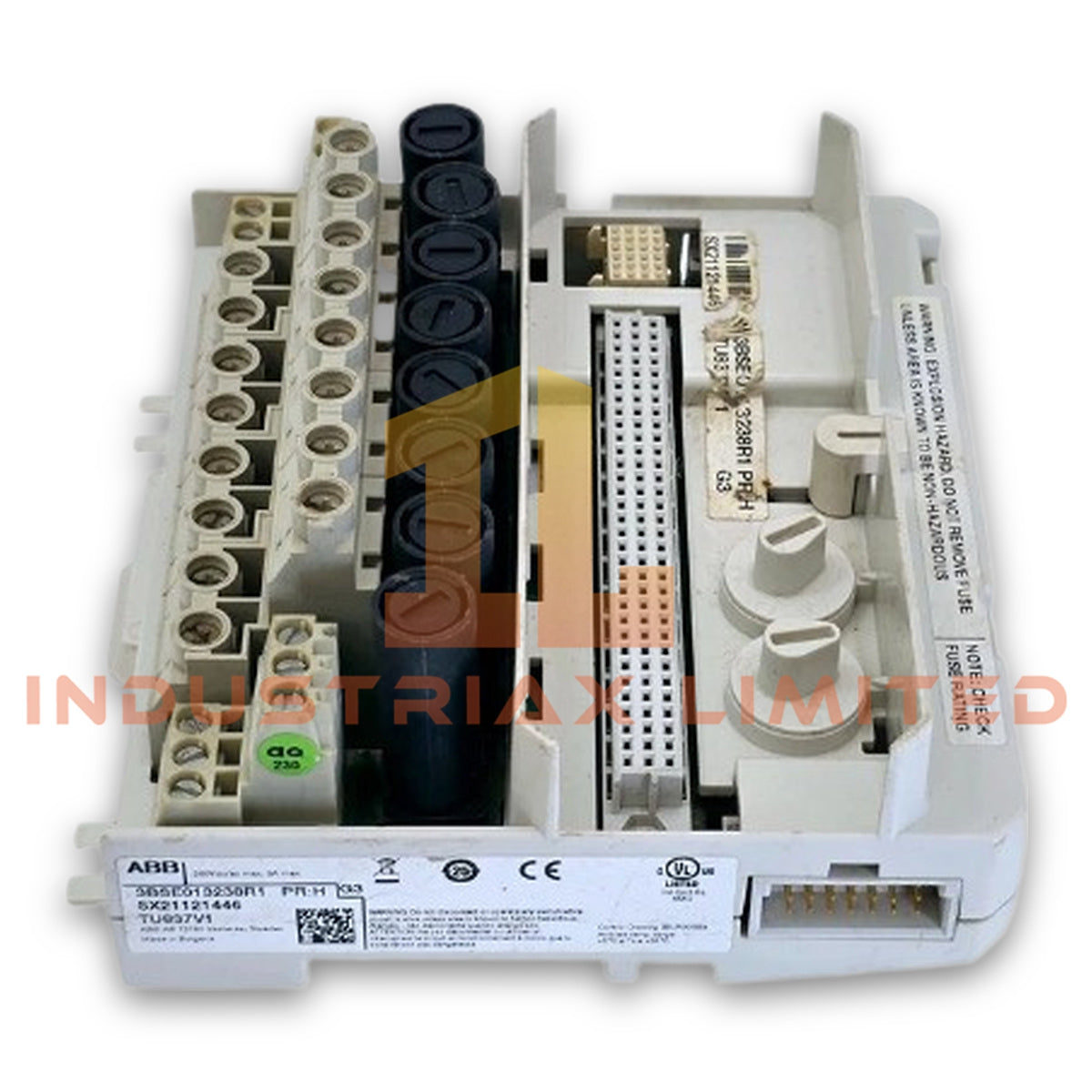

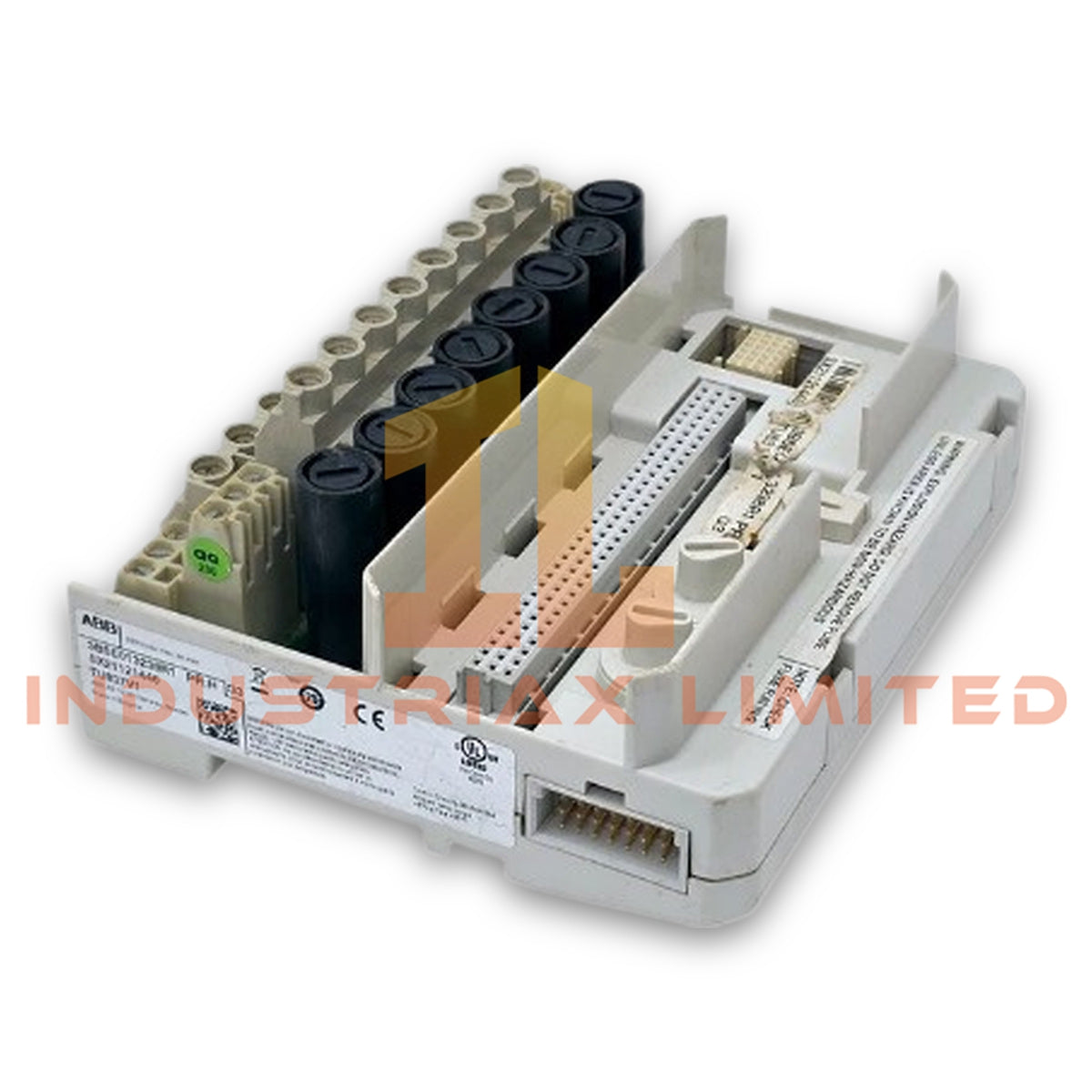

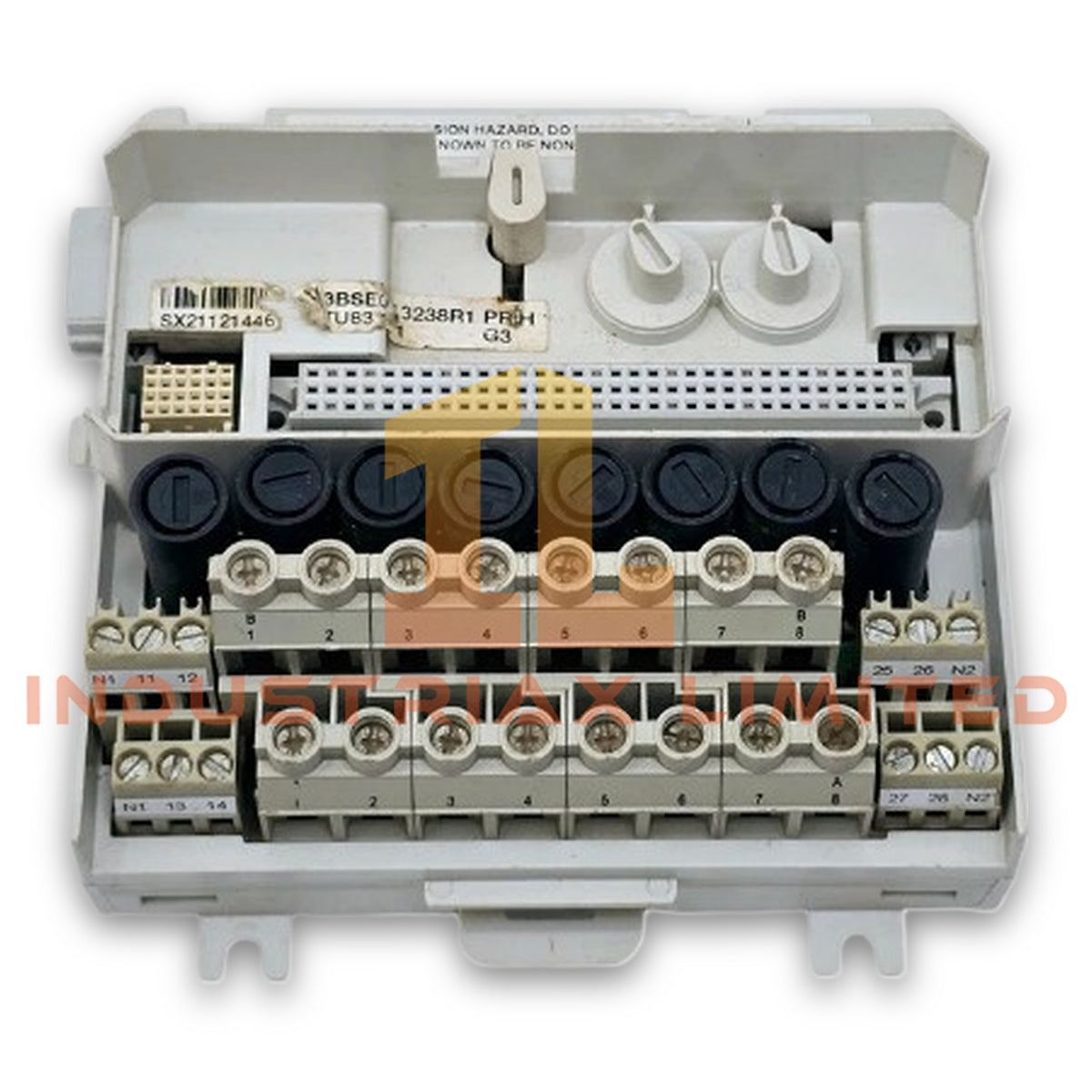

ABB TU837 / TU837V1 S800 I/O Module Termination Unit

Configured for field signal termination and ModuleBus interconnection in the ABB S800 I/O system, the ABB TU837V1 (TU837 Module Termination Unit) provides direct electrical termination between field wiring and the installed I/O module. The unit supports DIN rail mounting and defined conductor sizes for signal and return connections.

Hardware Specifications

Parameter	Specification
Model	TU837 / TU837V1
Brand	ABB
Product Type	Module Termination Unit (MTU)
Series	S800 I/O
Function	Field signal termination and ModuleBus interconnection
Mounting	Standard DIN rail
Signal Connection, Solid Wire	0.2 - 6 mm2
Signal Connection, Stranded Wire	0.2 - 4 mm2
Return Connection, Solid Wire	0.2 - 4 mm2
Return Connection, Stranded Wire	0.2 - 2.5 mm2
Signal Wire Stripping Length	8 mm
Return Wire Stripping Length	7 mm
Recommended Screw Torque	0.5 - 0.6 Nm
Protection Class	IP20
Operating Temp	-40 deg C to +70 deg C
Relative Humidity	5% to 95%, non-condensing
System Compatibility	ABB S800 I/O system

ABB S800 I/O ModuleBus and Termination Characteristics

The TU837V1 provides the physical termination interface between field conductors and the associated S800 I/O module. It also participates in the ModuleBus connection through the MTU assembly.

Furthermore, the termination unit separates field wiring operations from the electronic I/O module interface. This arrangement allows technicians to perform module replacement without removing the field conductors where the installed S800 I/O configuration supports hot-swap operation.

The TU837V1 accepts solid signal conductors from 0.2 - 6 mm2 and stranded signal conductors from 0.2 - 4 mm2. Return terminals accept solid conductors from 0.2 - 4 mm2 and stranded conductors from 0.2 - 2.5 mm2.

The DIN rail mounting arrangement supports horizontal or vertical cabinet installation. Therefore, cabinet layout can accommodate the MTU according to available wiring access and module orientation.

Frequently Asked Questions (FAQ)

Q: What conductor sizes does the TU837V1 support for signal wiring?
A: The signal terminals accept 0.2 - 6 mm2 solid wire and 0.2 - 4 mm2 stranded wire.

Q: What screw torque should technicians apply to the TU837V1 terminals?
A: The supplied specification recommends a screw torque of 0.5 - 0.6 Nm.

Q: Does the TU837V1 consume electrical power?
A: The supplied data does not specify power consumption. The TU837V1 functions as a passive Module Termination Unit rather than an electronic I/O processing module.

Field Installation Guidelines

• Mount the TU837V1 securely on the specified DIN rail before connecting field conductors.
• Verify the installed MTU and I/O module combination against the S800 I/O system configuration.
• Route signal wiring separately from high-voltage or high-current conductors where cabinet design permits.
• Strip signal conductors to 8 mm and return conductors to 7 mm before terminal insertion.
• Apply 0.5 - 0.6 Nm terminal torque according to the supplied specification.
• Ensure each conductor is fully seated and mechanically secured before commissioning.
• Maintain appropriate segregation between signal, power, and grounding conductors.
• Connect cable shields according to the system grounding design and applicable cabinet wiring practices.
• Confirm that the terminal arrangement matches the assigned I/O channel before energizing the field circuit.
• Inspect the IP20 enclosure condition and terminal area after installation.
• Do not infer hot-swap capability solely from the MTU design; verify the complete S800 I/O configuration and applicable module documentation before live replacement.
