Description

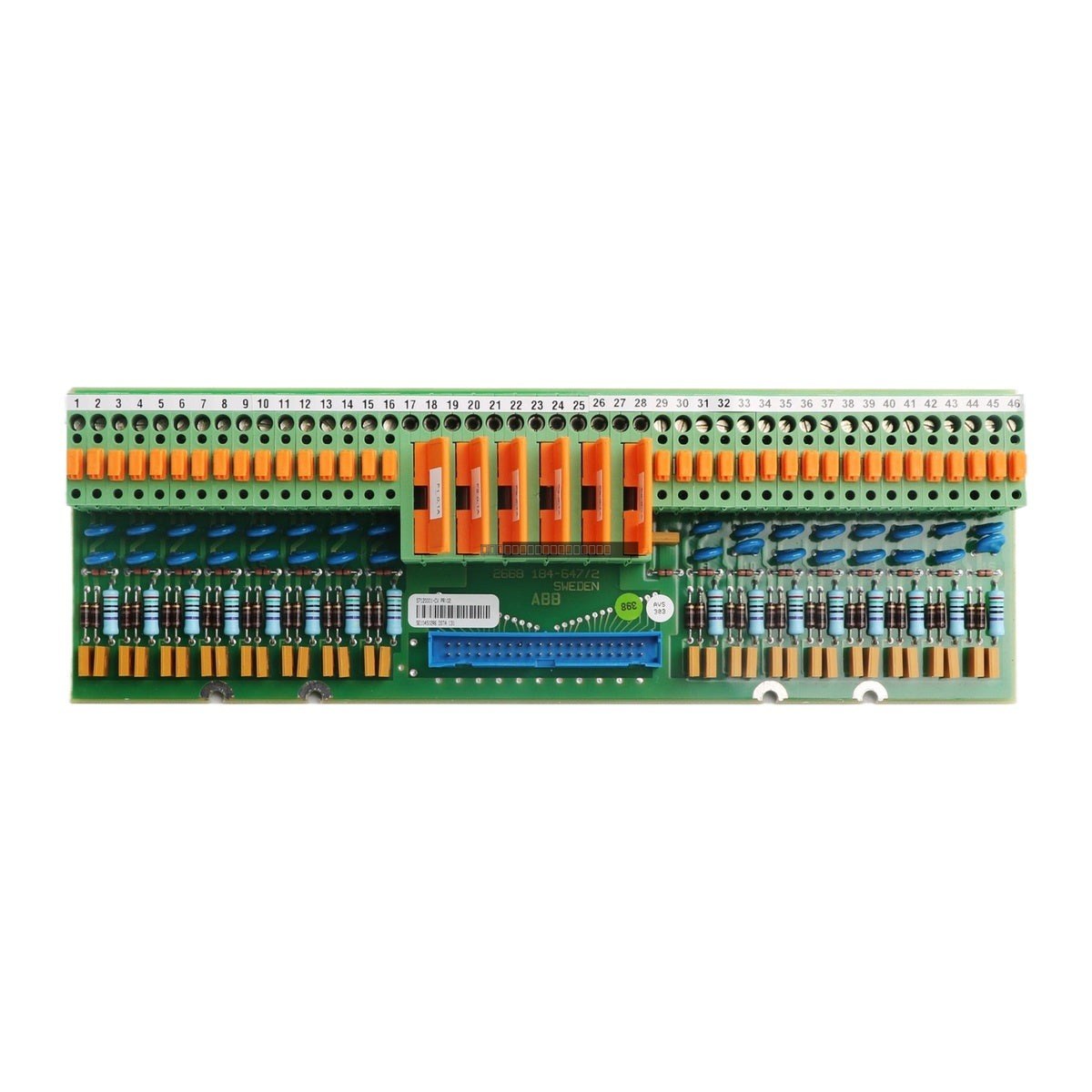

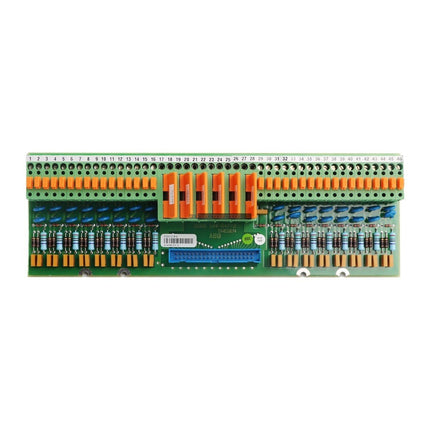

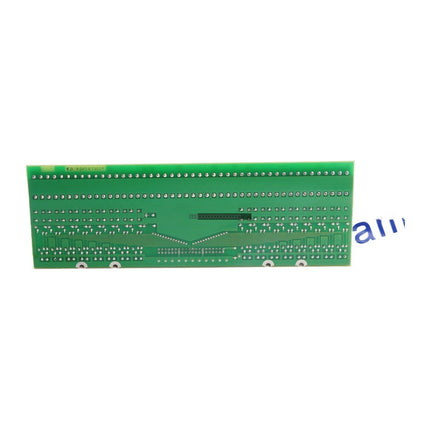

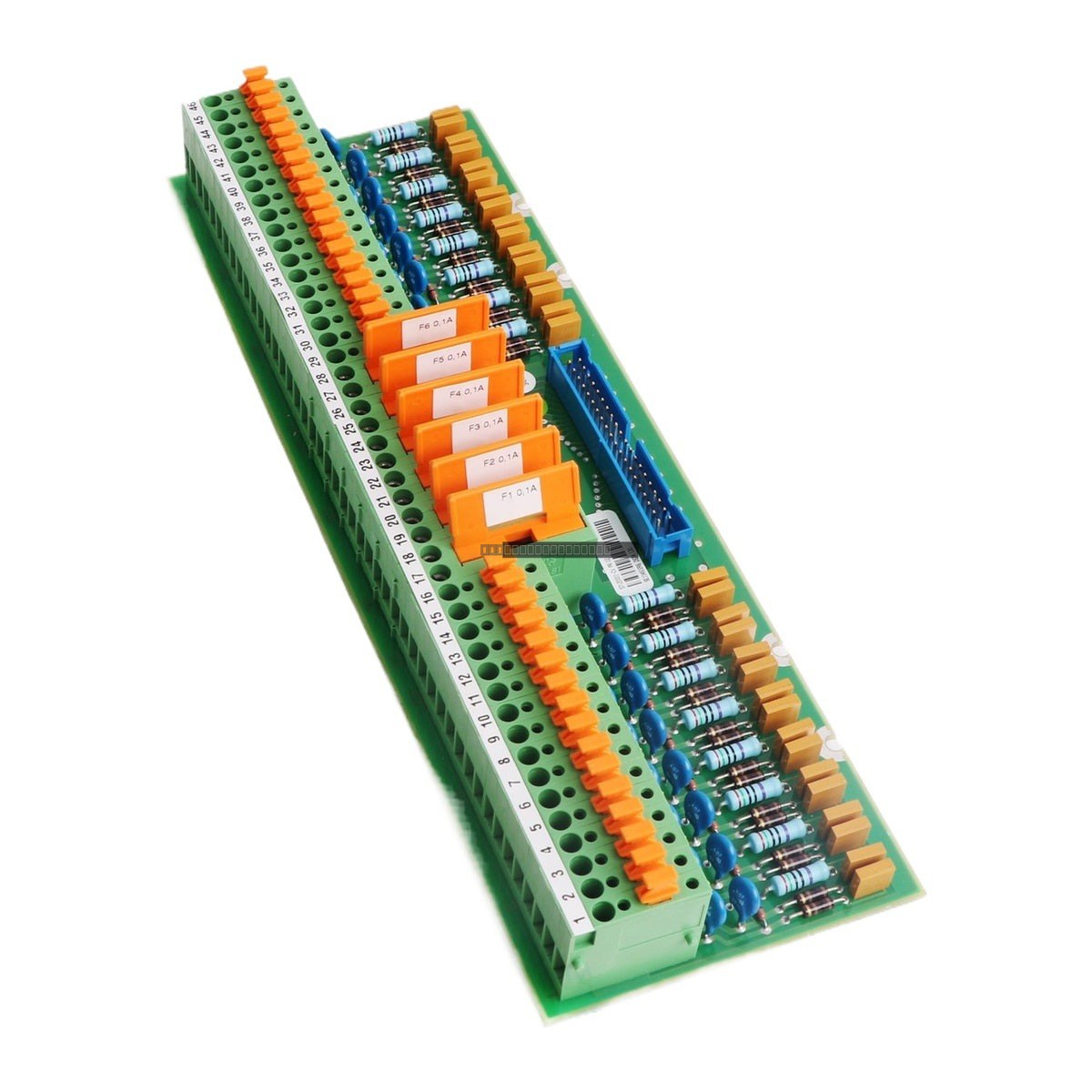

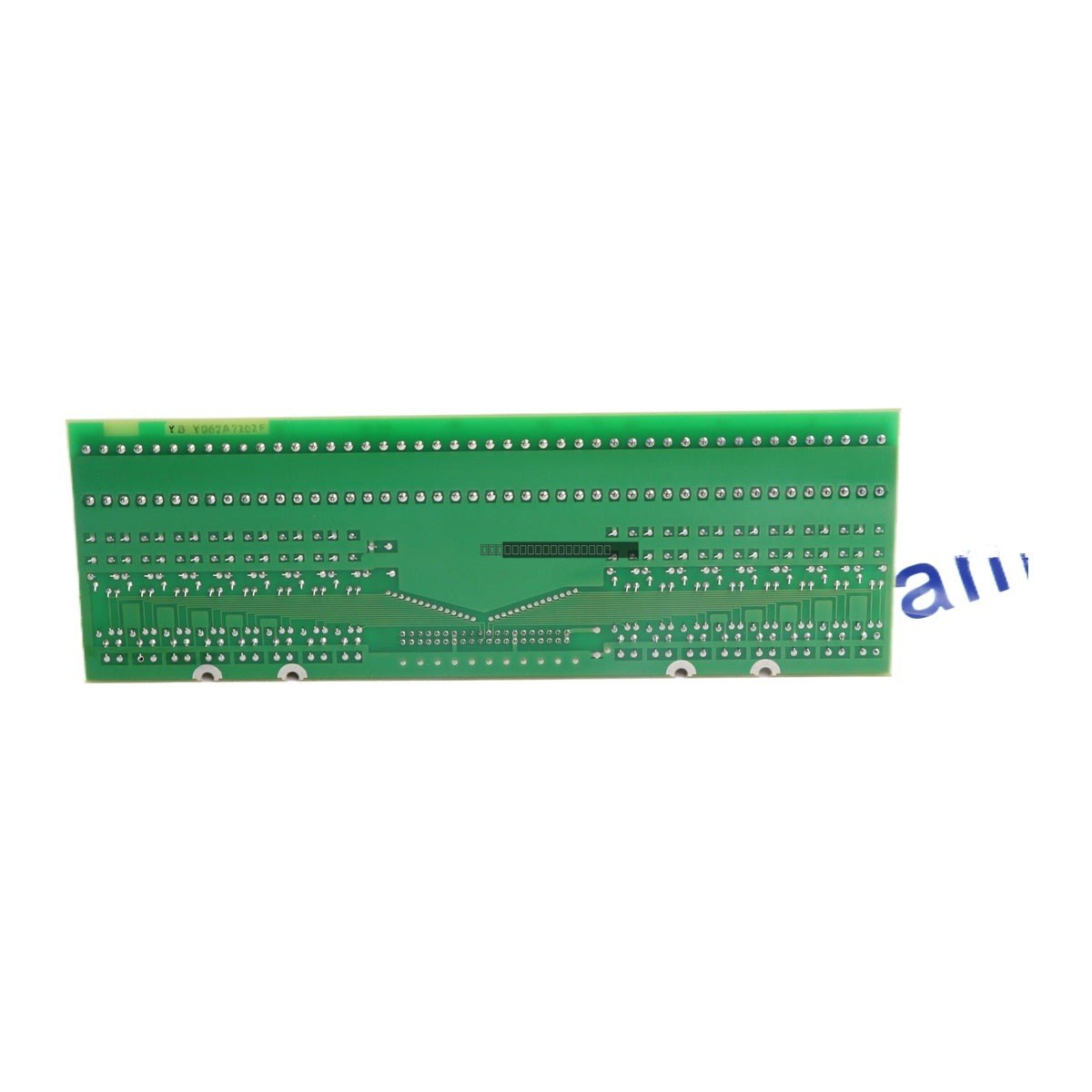

The ABB DSTA131 (57120001-CV) is an analog connection unit designed for the Advant S100 I/O system. This interface module serves as a critical link between field instrumentation and the control system, facilitating reliable signal transmission through high-density screw terminal connections. It is engineered to support analog signal processing requirements within industrial automation environments.

Features

• Designed for seamless integration with Advant S100 I/O series hardware.
• Equipped with robust screw terminal blocks for secure field wiring.
• Features a 40-pin connector interface for system-side communication.
• Compact design optimized for high-density cabinet mounting.
• Supports standard analog signal ranges typical of industrial process control.

Technical Specifications

Product Model	DSTA131 / 57120001-CV
Manufacturer	ABB
Function	Analog Connection Unit
Connection Type	Screw Terminals / 40-Pin Connector
Power Supply	5 V DC
Power Consumption	2-6 W
Isolation	500-1500 V AC
Operating Temperature	-20 degC to +70 degC
Storage Temperature	-40 degC to +85 degC
Humidity	5-95% RH (non-condensing)

Installation Guidelines

• Ensure the control system is powered down before installing or removing the connection unit to prevent electrical damage.
• Mount the unit securely within the designated S100 I/O rack or cabinet space.
• Use appropriate shielded cabling for analog signals to minimize electromagnetic interference (EMI).
• Ensure all screw terminals are tightened to the recommended torque to prevent intermittent signal loss.
• Maintain adequate clearance around the module to facilitate proper airflow and cooling within the enclosure.
• Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.

FAQ

What is the primary function of the DSTA131?

The DSTA131 is an analog connection unit used in the ABB Advant S100 I/O system to interface field signals with the controller via a 40-pin connector and screw terminals.

Is this unit compatible with other I/O systems?

This unit is specifically designed for the Advant S100 I/O series. It is not intended for use with other proprietary I/O families unless explicitly specified by ABB documentation.

What are the environmental requirements for this module?

The unit is rated for operation between -20 degC and +70 degC with a non-condensing humidity range of 5-95%, making it suitable for standard industrial control room or cabinet environments.
