Description

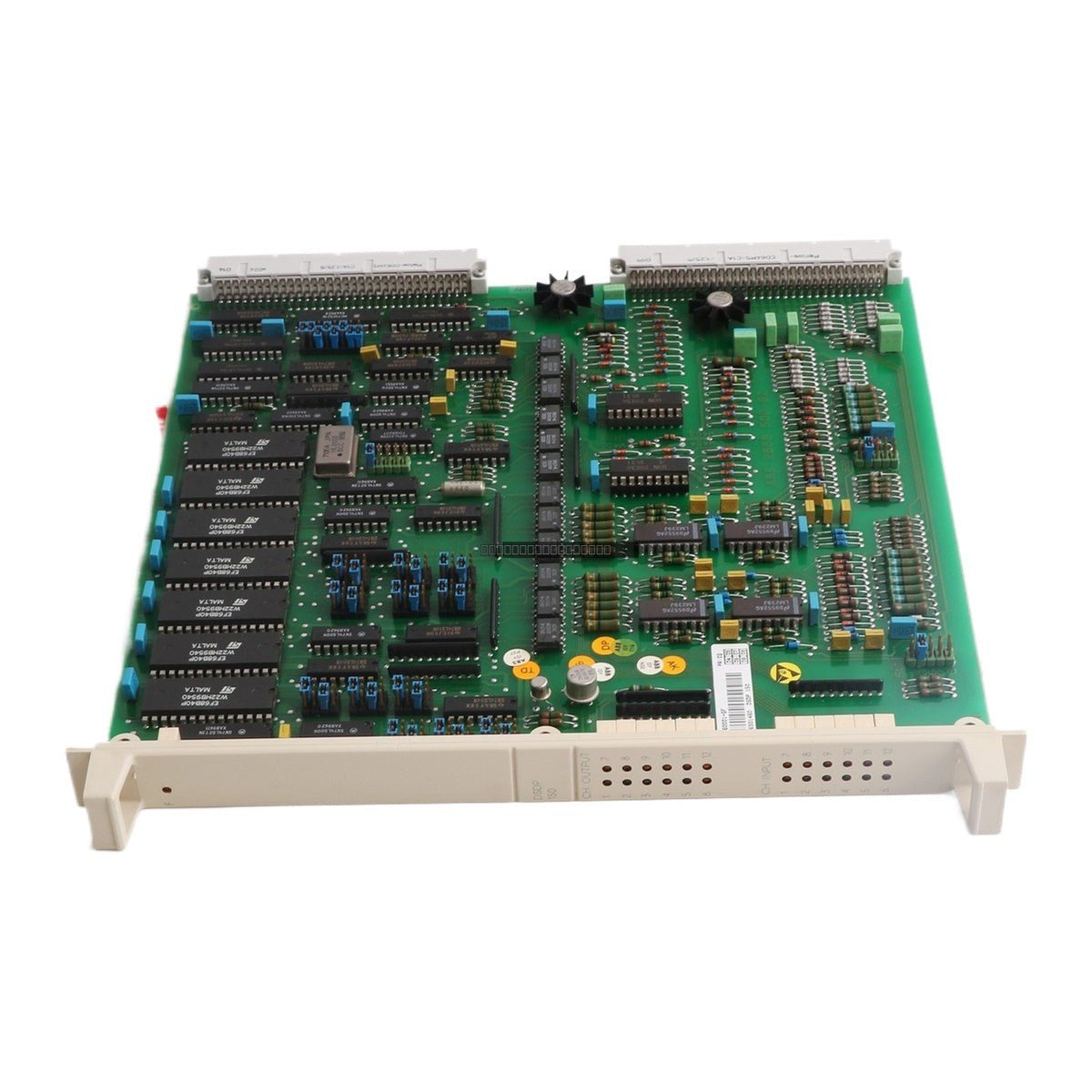

The ABB DSDP150 is a specialized I/O module designed for the Advant S100 I/O system, primarily utilized for pulse counting and positioning applications. This module serves as an interface for high-speed pulse encoders, allowing the control system to track position, speed, or count data with high precision. Although this unit is discontinued by the manufacturer, it remains a critical component for maintaining legacy Advant S100 control architectures.
Features
- Designed for integration with the Advant S100 I/O bus.
- Supports high-speed pulse encoder input processing.
- Enables precise positioning and counting control loops.
- Robust industrial design for standard control cabinet mounting.
- Compatible with legacy ABB Advant controller environments.
Applications
The DSDP150 is typically deployed in industrial automation environments requiring motion feedback or high-frequency pulse monitoring. Common applications include conveyor speed monitoring, rotary encoder feedback for positioning systems, and flow meter pulse totalization within process control loops.
Technical Specifications
| Manufacturer |
ABB |
| Model |
DSDP150 |
| Spare Part Number |
57160001-GF |
| Function |
Pulse Counting and Positioning |
| System Compatibility |
Advant S100 I/O |
| Weight |
0.38 kg |
| Tariff Code |
8538907080 |
Installation Guidelines
- Ensure the Advant S100 rack is powered down before inserting or removing the DSDP150 module to prevent electrical damage.
- Verify that the module is properly seated in the designated slot to ensure reliable backplane communication.
- Use shielded cabling for pulse encoder inputs to minimize electromagnetic interference (EMI) and signal noise.
- Maintain proper grounding practices for the control cabinet to protect sensitive input circuitry.
- Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range for electronic modules.
FAQ
Is the DSDP150 still supported by ABB?
The DSDP150 has been discontinued by the manufacturer. Support is generally limited to legacy system maintenance and the use of refurbished or surplus inventory.
What is the primary function of the DSDP150?
This module is an I/O interface specifically engineered to process pulse signals from encoders, facilitating accurate counting and positioning tasks within the Advant S100 system.
