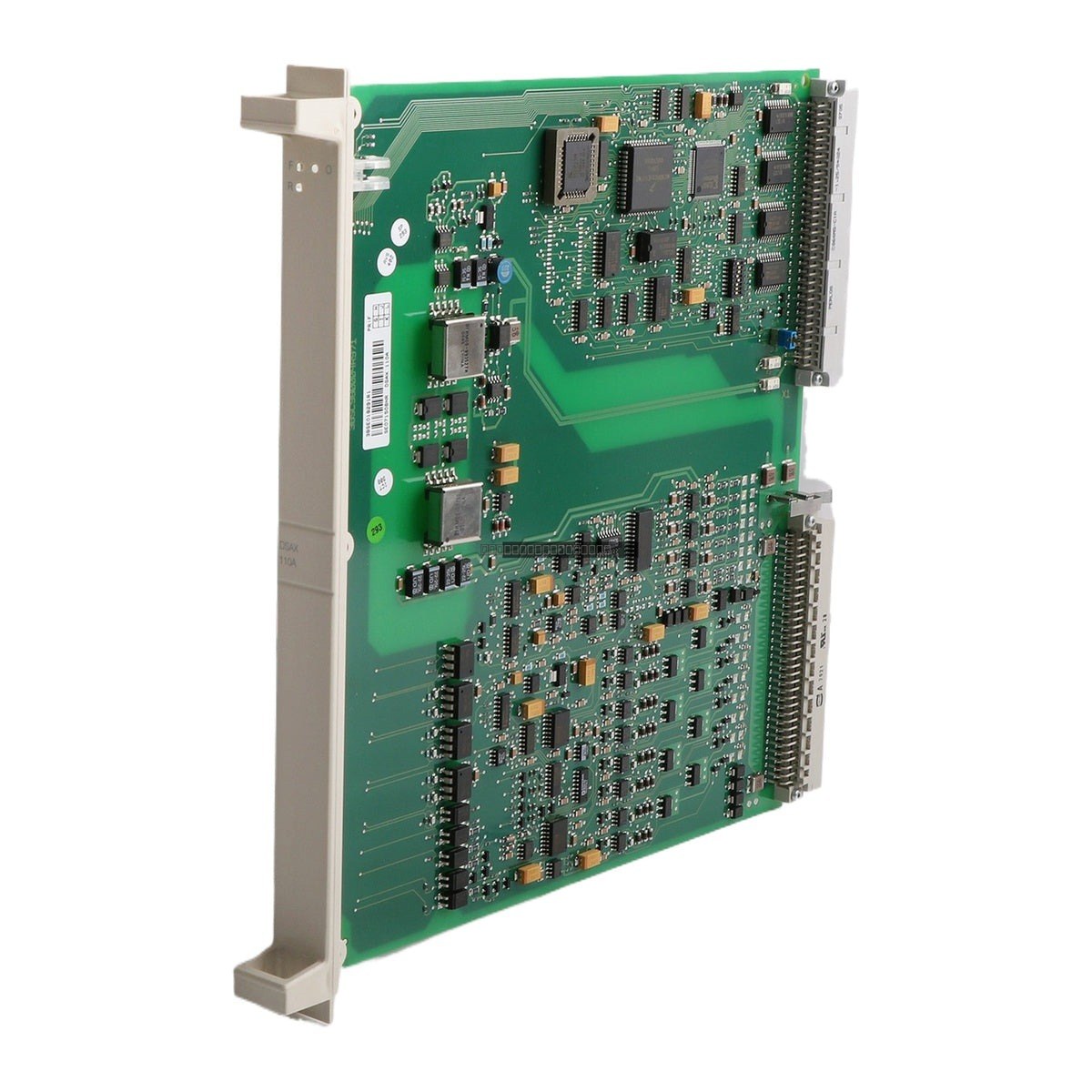

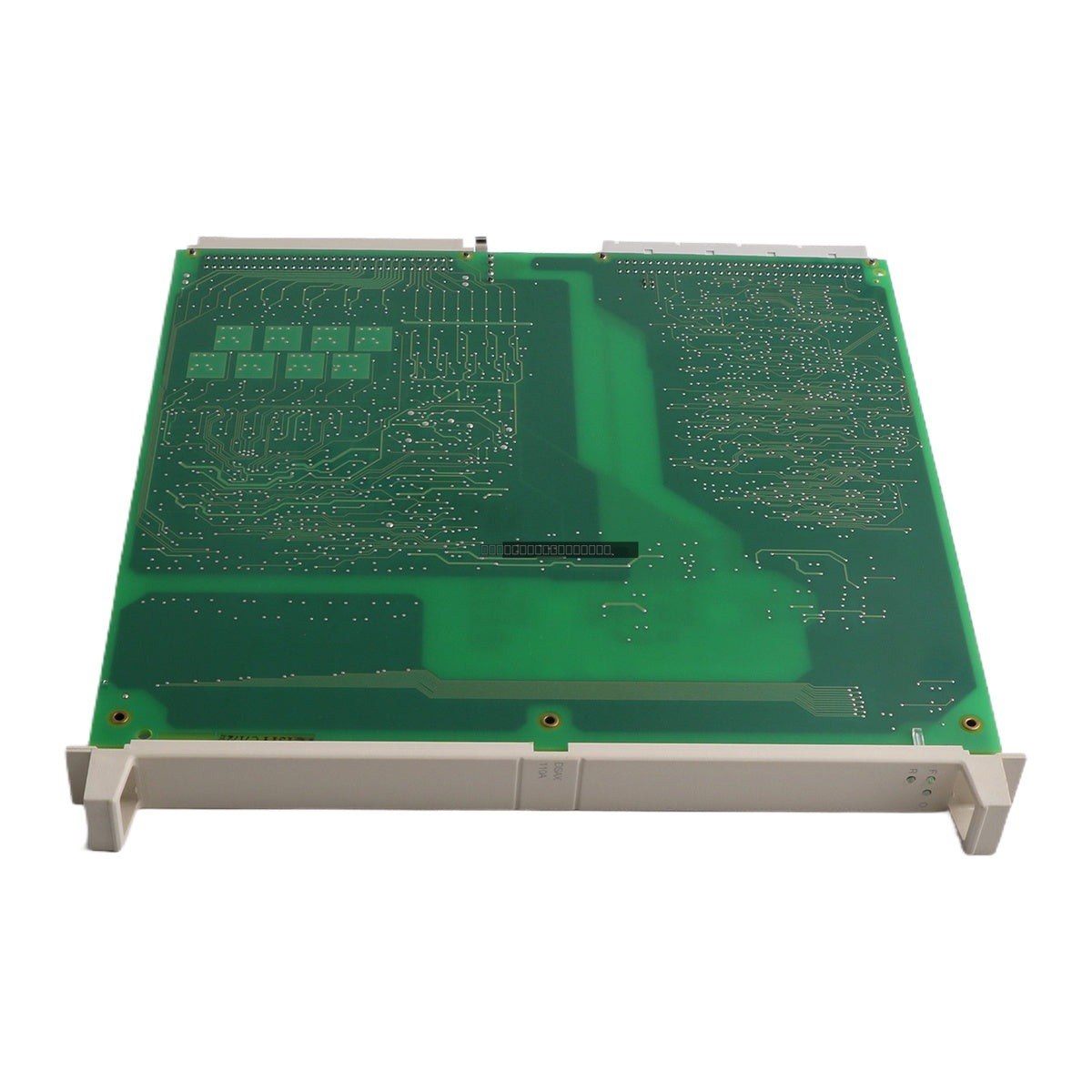

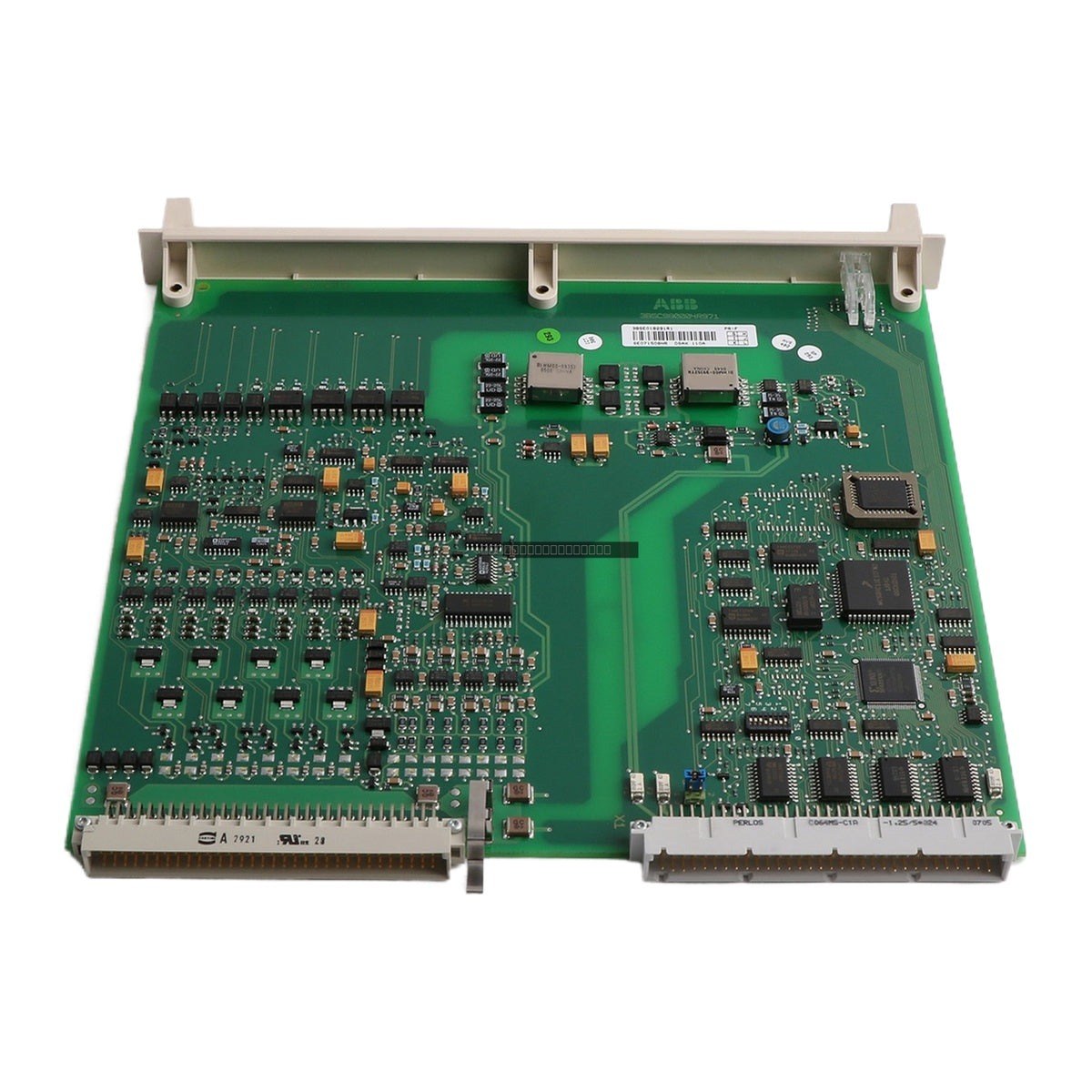

The ABB DSAX110A is a high-performance analog input/output module designed for the Advant S100 I/O system. This module provides reliable signal processing for industrial automation environments, facilitating the integration of analog field devices into the control network. It is identified by the order code 3BSE018291R1 and is engineered for robust operation in demanding process control applications.
Features
- Supports 8 analog input channels and 8 analog output channels for versatile process interfacing.
- Designed for seamless integration with the ABB Advant S100 I/O platform.
- Compact modular design for efficient rack mounting and space management.
- High-precision signal conversion suitable for instrumentation and control loops.
Applications
This module is typically utilized in distributed control systems (DCS) for monitoring and controlling analog process variables such as pressure, temperature, flow, and valve positioning. It is suitable for deployment in power generation, chemical processing, and manufacturing facilities where the S100 I/O architecture is implemented.
Technical Specifications
| Model |
DSAX110A |
| Order Code |
3BSE018291R1 |
| Function |
Analog Input/Output Module |
| Channel Count |
8 Inputs / 8 Outputs |
| Manufacturer |
ABB |
| Weight |
0.28 kg |
Installation Guidelines
- Ensure the power supply is disconnected before installing or removing the module from the I/O rack.
- Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
- Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
- Maintain proper grounding practices for the S100 I/O rack to protect against electrical noise and surges.
- Ensure adequate ventilation in the cabinet to prevent overheating during continuous operation.
FAQ
Is the DSAX110A compatible with older Advant S100 systems?
Yes, the DSAX110A (3BSE018291R1) is designed as a standard component for the Advant S100 I/O family. Please verify your specific system revision to ensure full compatibility.
What is the primary function of this module?
This module acts as an interface between analog field instrumentation and the controller, providing both input signal acquisition and output signal control.
