Description

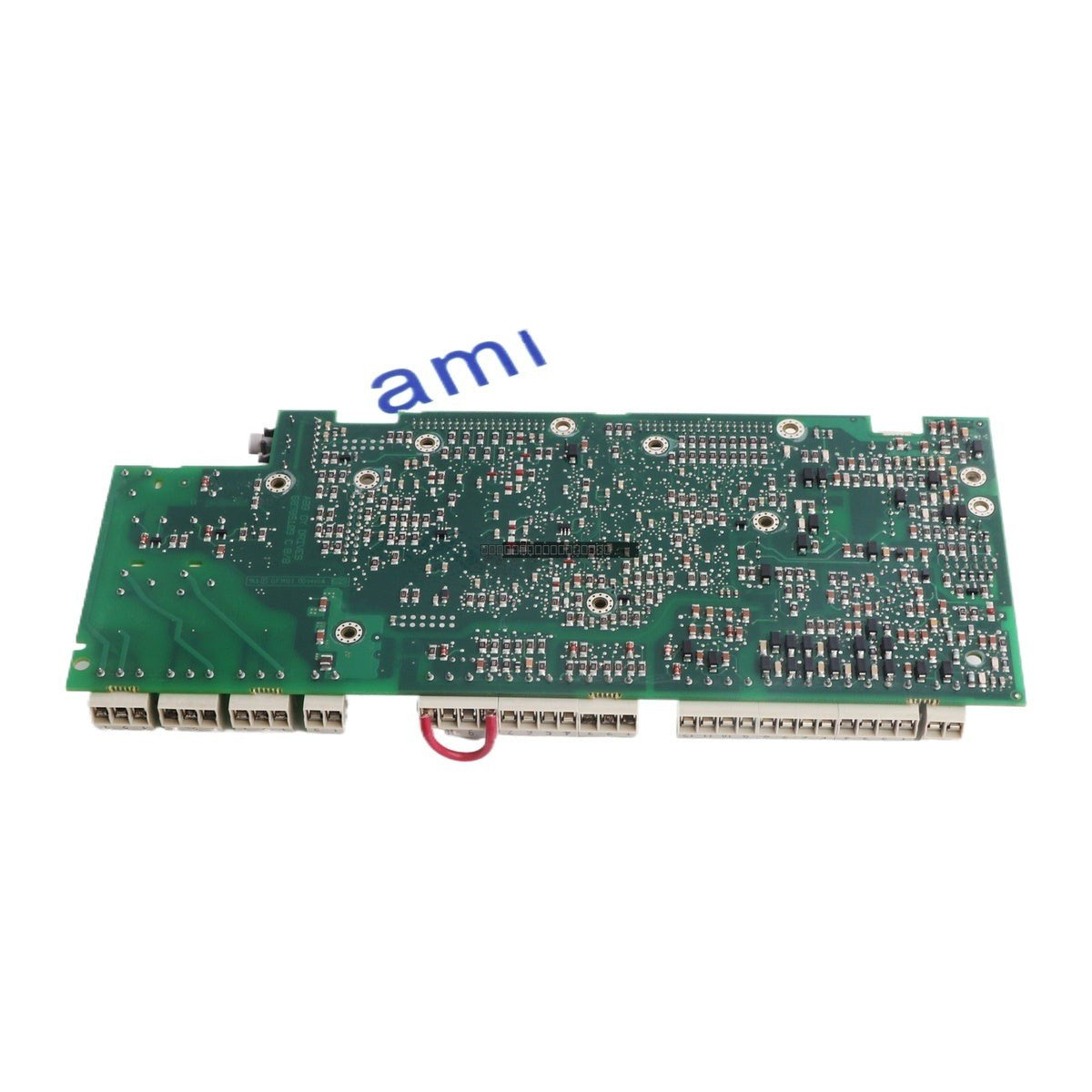

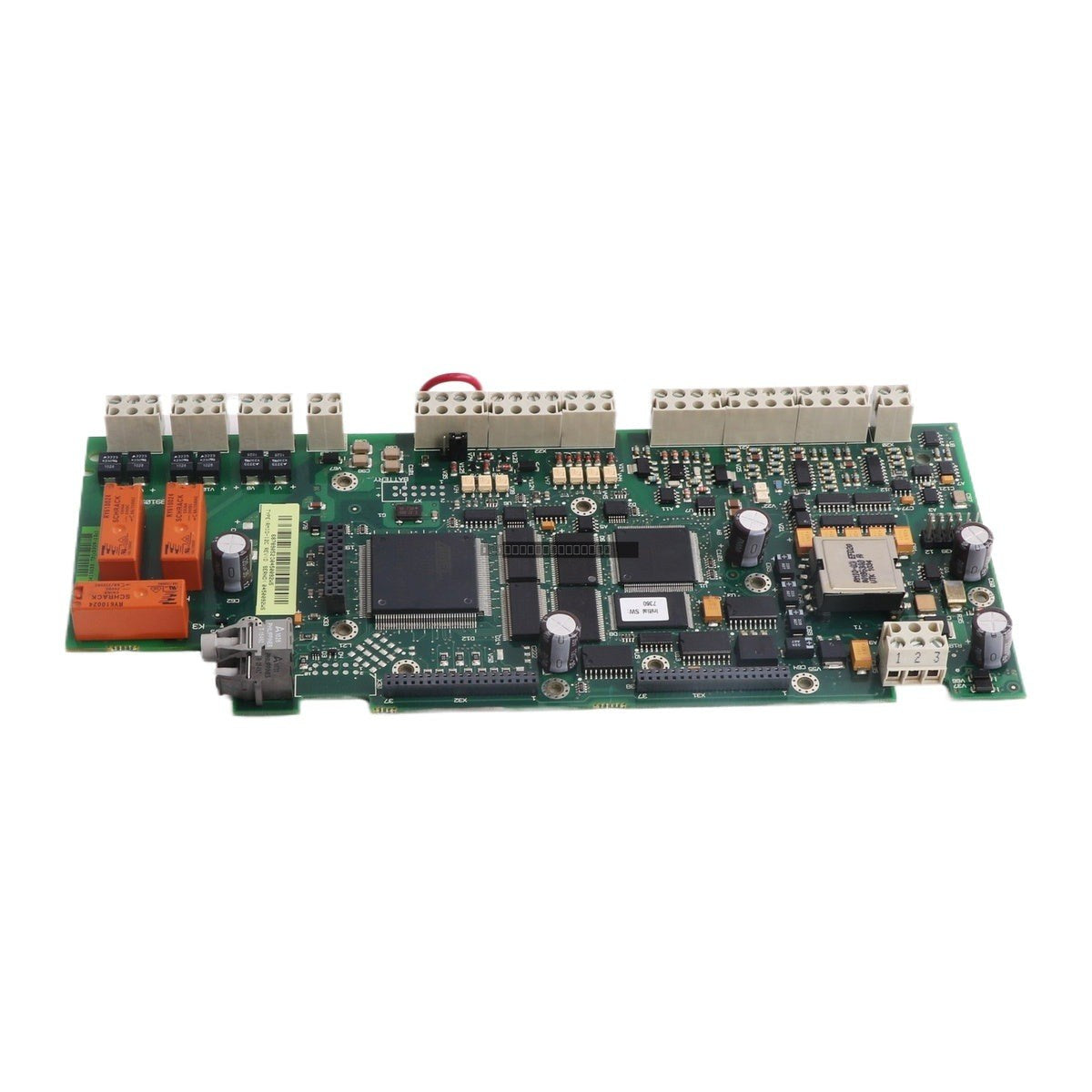

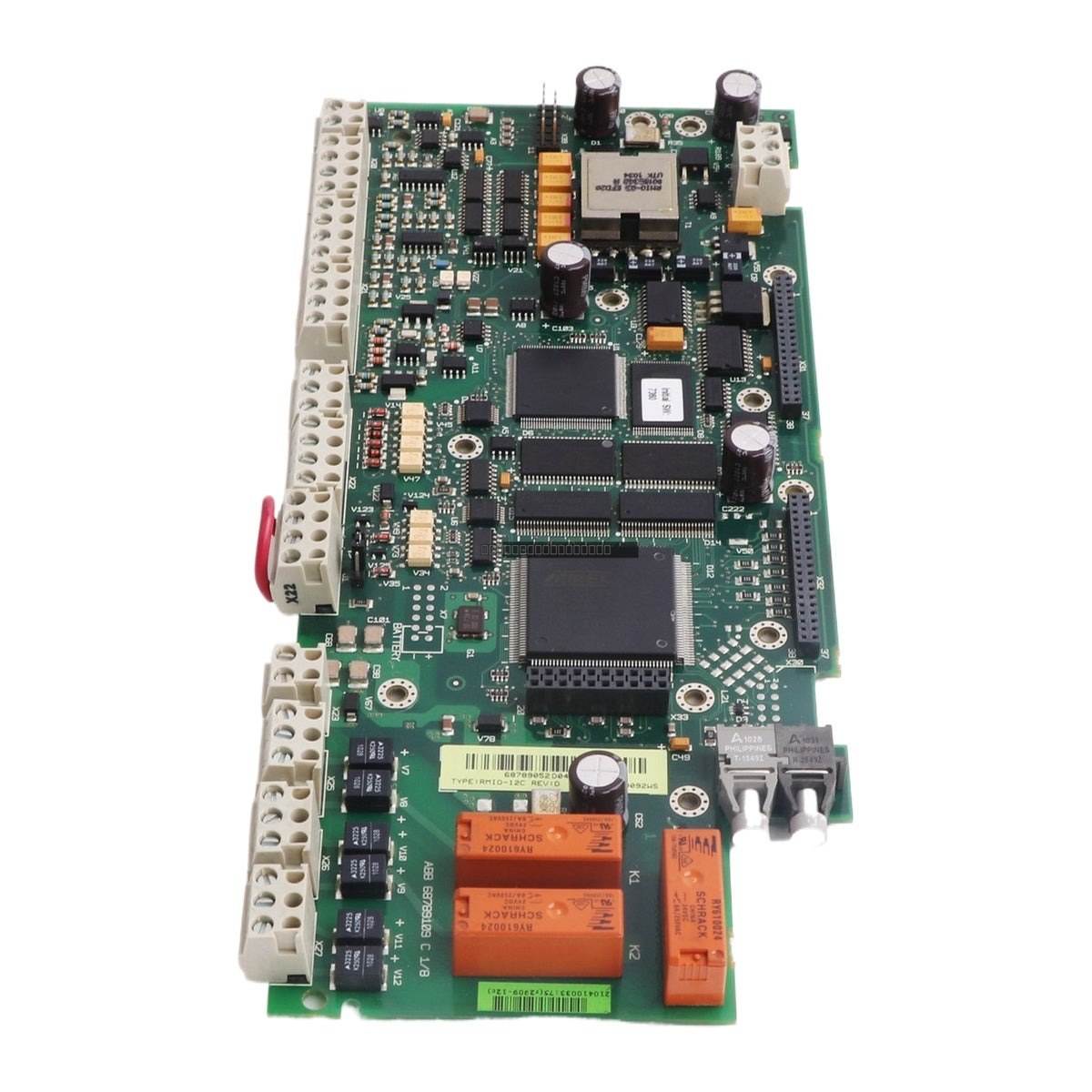

The ABB RMIO-12C (3AUA0000035410P) is a high-performance control unit designed for integration within ABB Advant OCS and Advant-800xA industrial automation systems. This module serves as a critical interface component, facilitating reliable communication and control signal processing in demanding industrial environments. It is engineered to meet rigorous operational standards for power stability and environmental resilience.

Features

• Designed for seamless compatibility with ABB Advant OCS and 800xA control architectures.
• Robust 24 V DC power supply input with a tolerance of ±20%.
• High electrical isolation rating of 500 V AC between channels to prevent signal interference.
• Wide operating temperature range, suitable for harsh industrial settings.
• Low power consumption profile, rated at ≤15 W.

Technical Specifications

Product Model	RMIO-12C 3AUA0000035410P
Supply Voltage	24 V DC (±20%)
Power Consumption	≤15 W
Isolation	500 V AC (channel-to-channel)
Operating Temperature	-25 degC to +70 degC
Relative Humidity	5% to 95% (non-condensing)
Tariff Code	8537101190

Installation Guidelines

• Ensure the control system is powered down before installing or removing the RMIO-12C module to prevent electrical damage.
• Mount the unit in a clean, dry environment, ensuring adequate ventilation to maintain the specified operating temperature range.
• Use appropriate ESD protection measures when handling the module to prevent damage to internal circuitry.
• Ensure all wiring connections are secure and that shielded cables are properly grounded to minimize EMI/RFI impact.
• Verify that the supply voltage matches the 24 V DC requirement before applying power.

FAQ

What systems is the RMIO-12C compatible with?
This unit is specifically designed for use with ABB Advant OCS and Advant-800xA control systems.

What is the operating temperature range for this unit?
The module is rated for operation between -25 degC and +70 degC.

Does this unit require special handling?
Yes, as with all industrial control electronics, it should be handled using standard electrostatic discharge (ESD) precautions and installed in an environment protected from excessive dust and moisture.
