Description

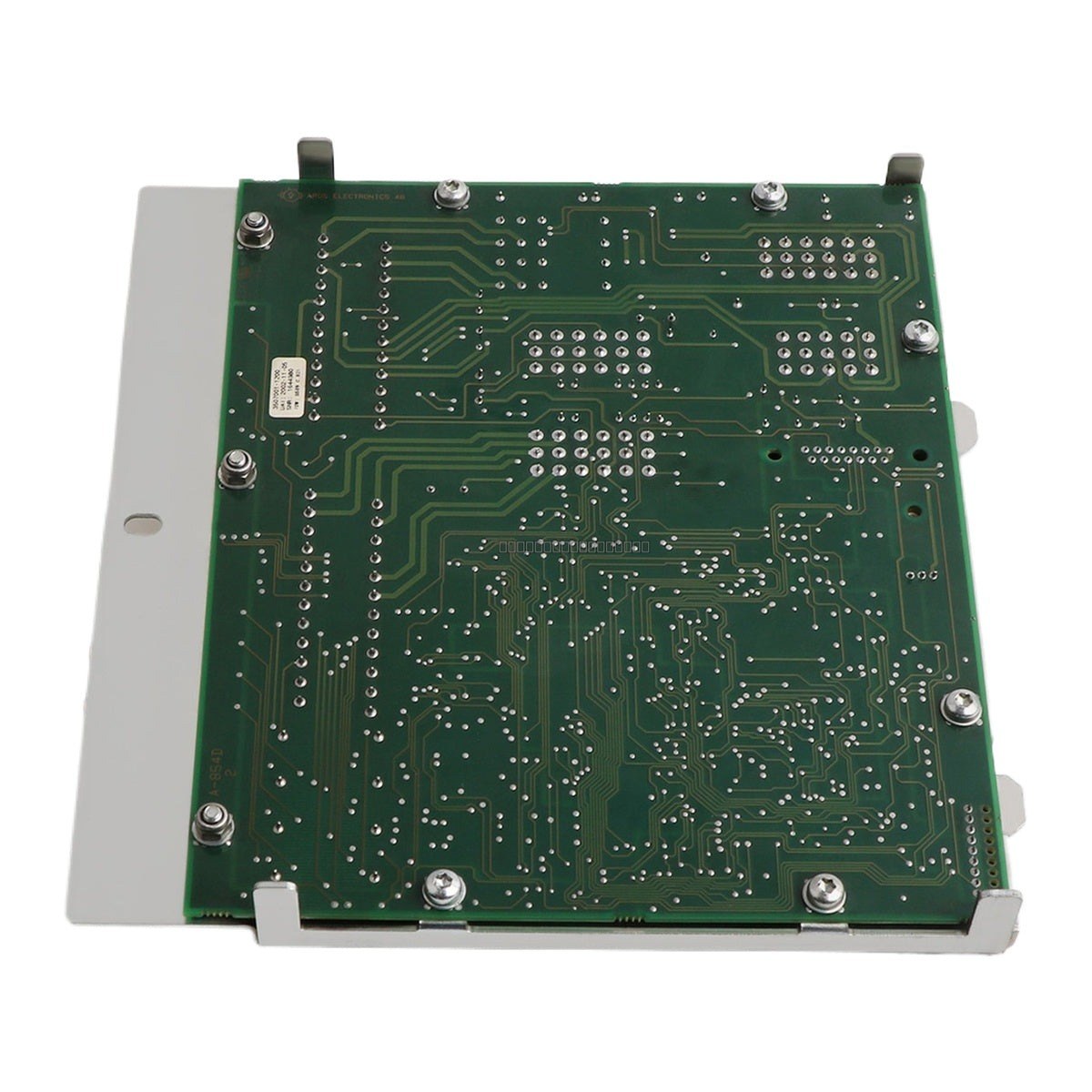

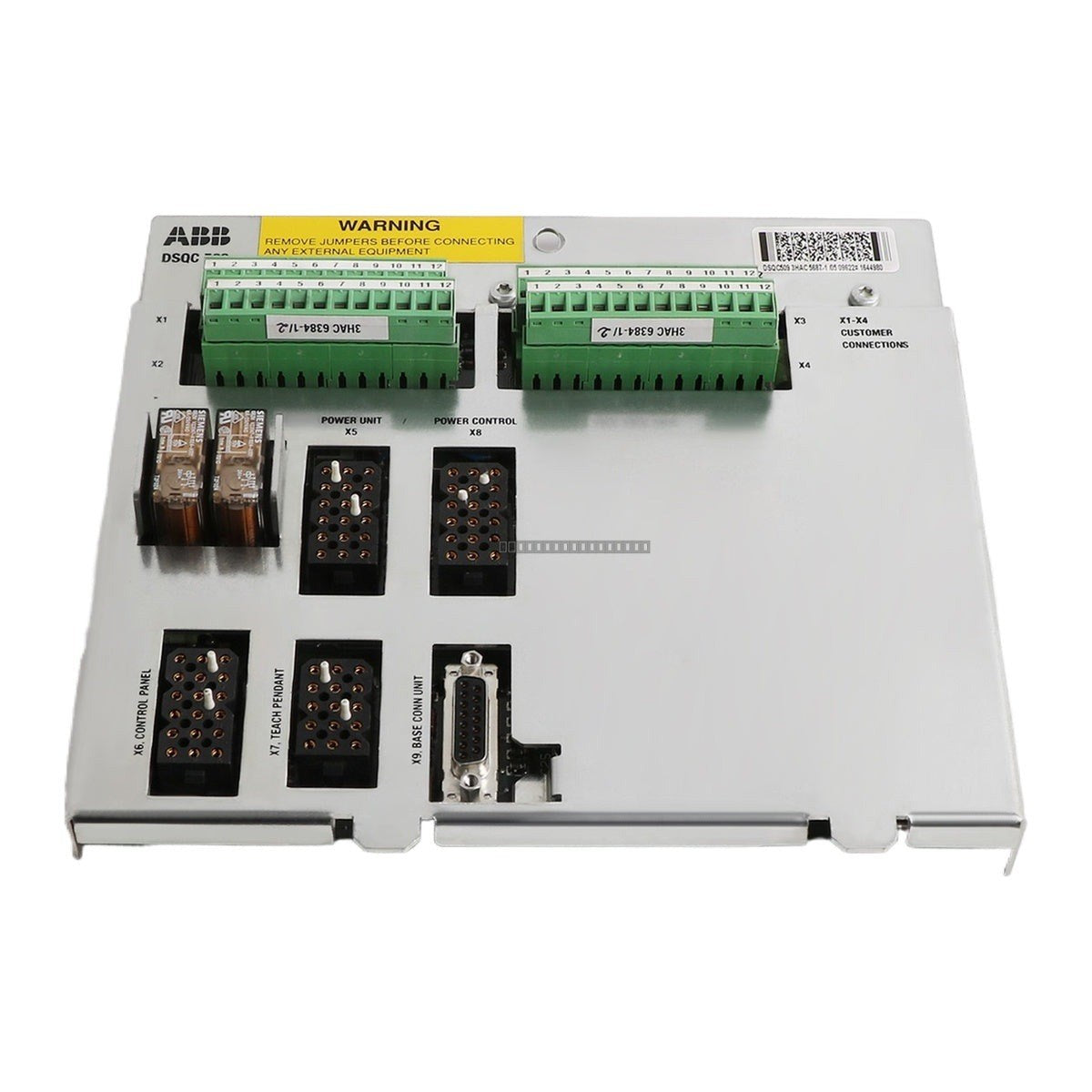

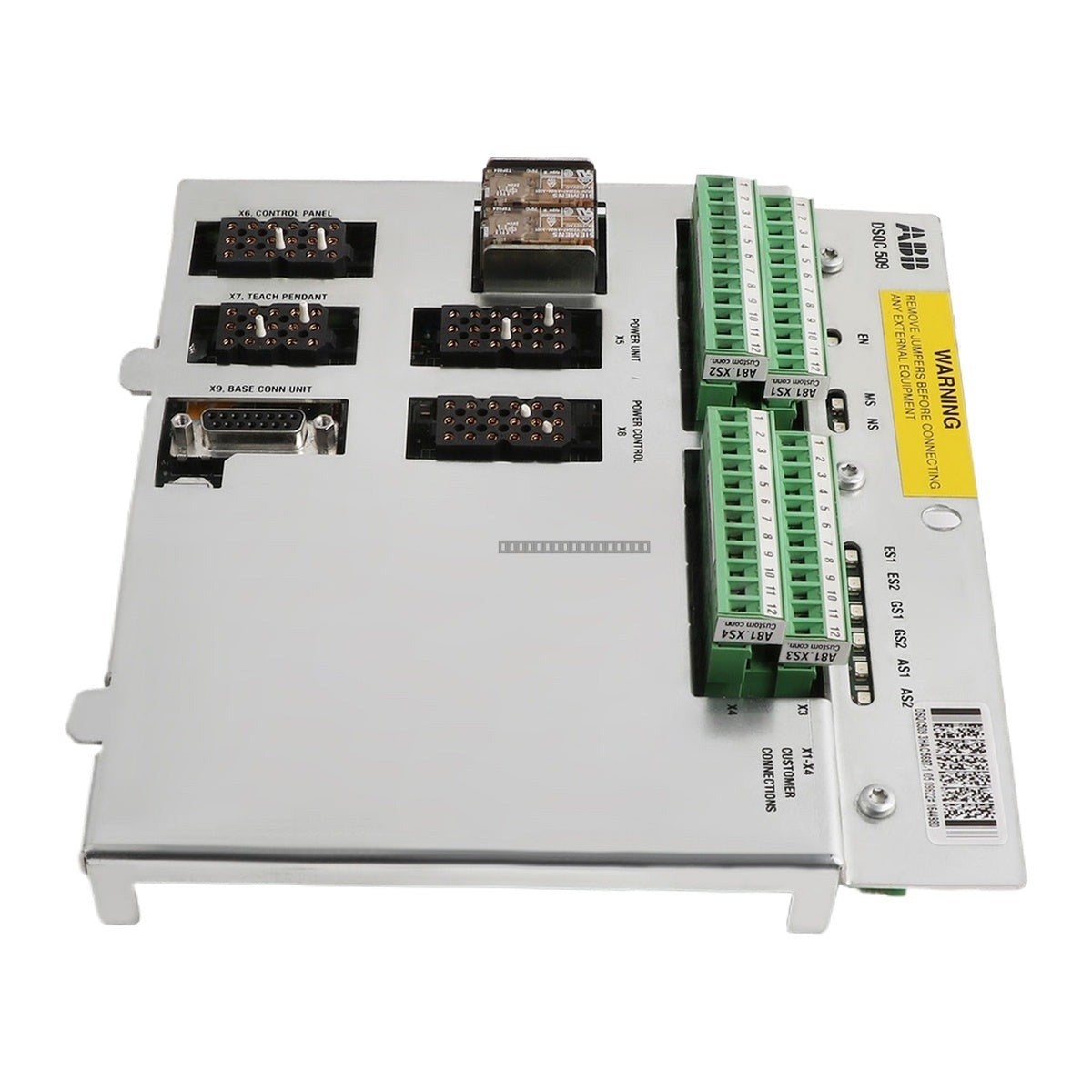

The ABB DSQC509 (3HAC5687-1/05) is a specialized Panel Board Unit designed for integration within ABB Advant OCS and Advant-800xA control systems. This connection unit serves as a critical interface component for PLC panel configurations, facilitating reliable signal distribution and relay switching within industrial automation environments.

Features

• Integrated dual relay configuration for robust switching operations.
• Equipped with five dedicated input ports for versatile signal handling.
• Features dual 2-row connectors to ensure secure and stable wiring connections.
• Designed for high-reliability performance in demanding industrial control panels.

Technical Specifications

Product Model	DSQC509 / 3HAC5687-1/05
Supply Voltage	220 V AC +/- 10%
Internal DC Bus	24 V DC, 5 A
Power Consumption	<= 25 VA
Isolation	2 kV AC
Operating Temperature	-20 degC to +70 degC
Storage Temperature	-25 degC to +85 degC
Humidity	< 95% RH, non-condensing

Installation Guidelines

• Ensure the control panel is fully de-energized before installing or removing the DSQC509 unit.
• Mount the unit in a clean, dry environment, ensuring adequate ventilation to maintain operating temperatures within the specified range.
• Use appropriate shielded cabling for all input connections to minimize EMI interference.
• Verify that all dual 2-row connectors are firmly seated and locked to prevent intermittent signal loss.
• Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.
• Ensure proper grounding of the panel chassis to maintain system isolation integrity.

FAQ

What is the primary function of the DSQC509?

The DSQC509 acts as a connection and interface unit within ABB PLC panels, managing relay-based switching and signal routing between field devices and the control system.

Is this unit compatible with Advant-800xA systems?

Yes, the DSQC509 is designed for use within the ABB Advant OCS and Advant-800xA product families.

What are the power requirements for this module?

The unit operates on a 220 V AC supply with a power consumption of less than 25 VA and provides an internal 24 V DC bus at 5 A.
