Description

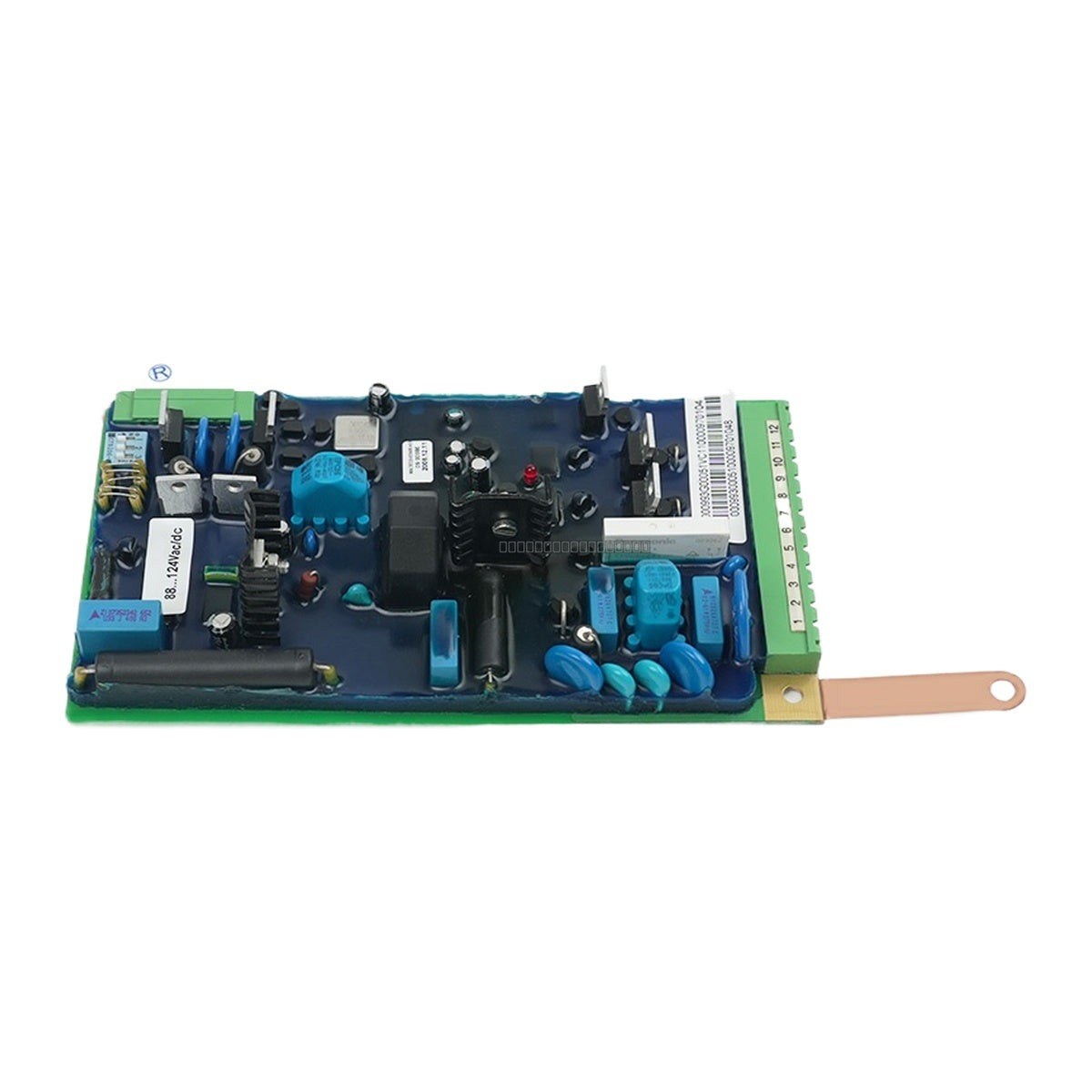

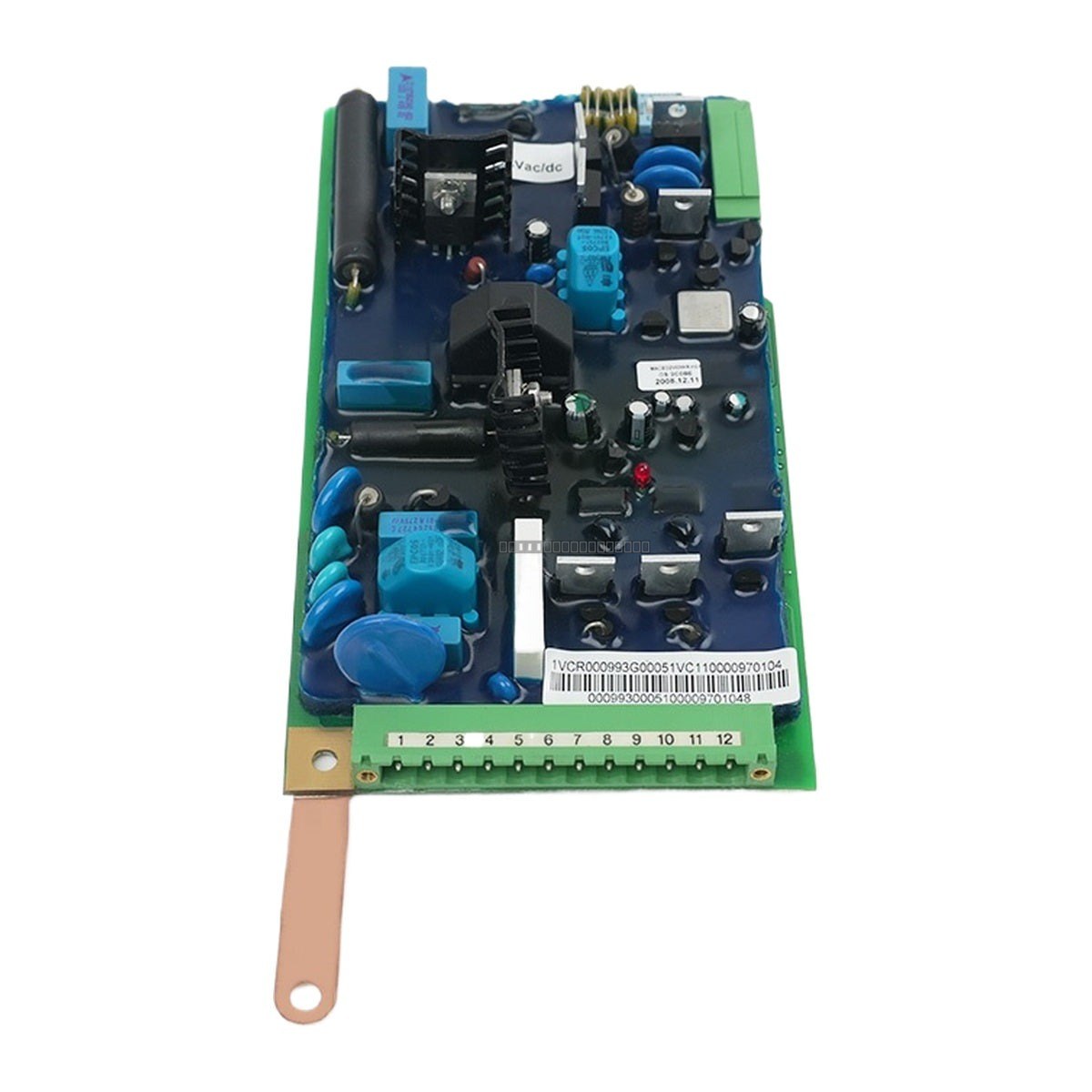

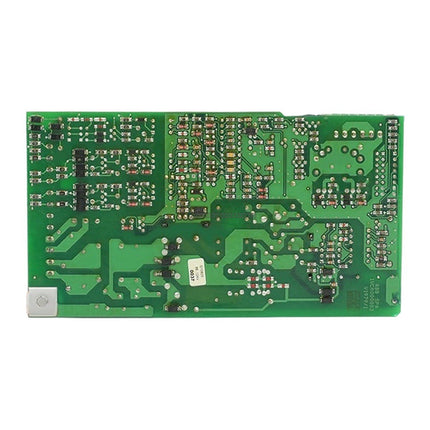

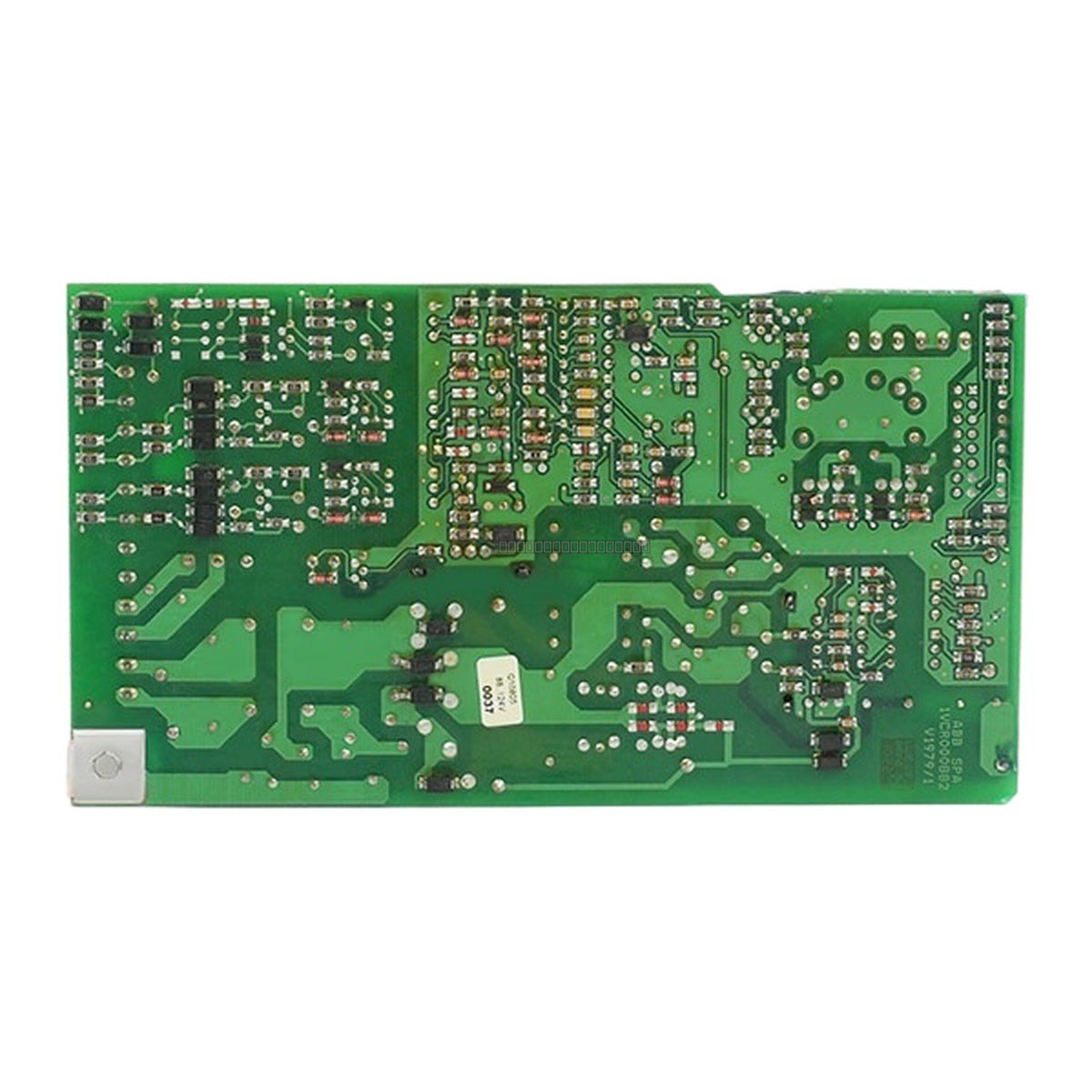

The ABB 1VCR000993G00051 is a high-reliability power supply board designed for use within ABB Advant OCS and Advant 800xA control systems. This module serves as a critical component for power distribution, signal processing, and communication support, ensuring stable operation of I/O and processor modules in demanding industrial environments.
Features
- Designed specifically for ABB Advant and AC 800M series automation platforms.
- Provides stable DC power output for control system components.
- High efficiency design with low output ripple and noise.
- Engineered for robust performance in industrial control cabinets.
Applications
-
Distributed Control Systems (DCS): Powers processor and I/O modules in large-scale automation architectures.
-
Power Generation: Supports control systems for turbines and generators.
-
Pulp & Paper Industry: Coordinates drives, sensors, and machinery in high-speed production lines.
-
Utility Systems: Stabilizes power flow in critical electrical infrastructure.
Technical Specifications
| Manufacturer |
ABB |
| Model |
1VCR000993G00051 |
| Input Voltage Range |
85 - 264 VAC |
| Input Current |
2.5 A max at 100 VAC |
| Main Output Voltage |
+5.1 VDC |
| Output Ripple & Noise |
< 100 mV peak-to-peak |
| Efficiency |
> 85% typical at nominal load |
| Operating Temperature |
0 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5% to 95% non-condensing |
Installation Guidelines
-
Safety First: Ensure the system is fully de-energized before attempting installation or removal of the module.
-
Handling: Use proper ESD (Electrostatic Discharge) precautions when handling the PCB to prevent damage to sensitive electronic components.
-
Mounting: Ensure the module is securely seated in the designated slot within the ABB control terminal or rack.
-
Environment: Maintain adequate ventilation within the cabinet to stay within the specified operating temperature range.
-
Wiring: Verify all power connections are tight and follow local electrical codes for industrial control equipment.
FAQ
Is this product brand new?
Yes, the ABB 1VCR000993G00051 is available as a new, original, and unused component.
Do you provide a warranty?
Yes, we provide a 12-month warranty for this module, covering defects under normal operating conditions from the date of delivery.
Is this module compatible with legacy systems?
Yes, this board is designed for the ABB Advant OCS and Advant 800xA series, making it suitable for both legacy maintenance and ongoing system support.
