Description

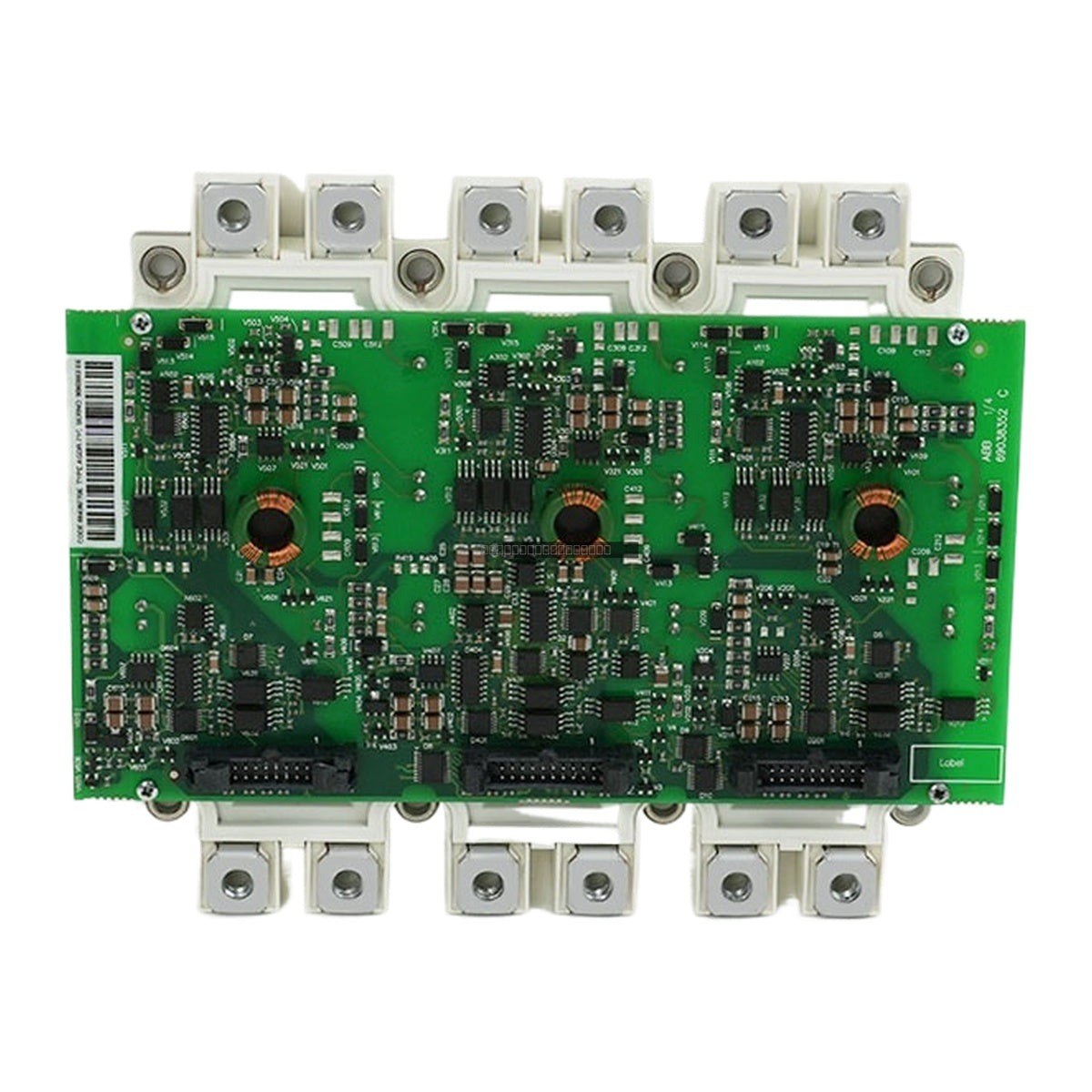

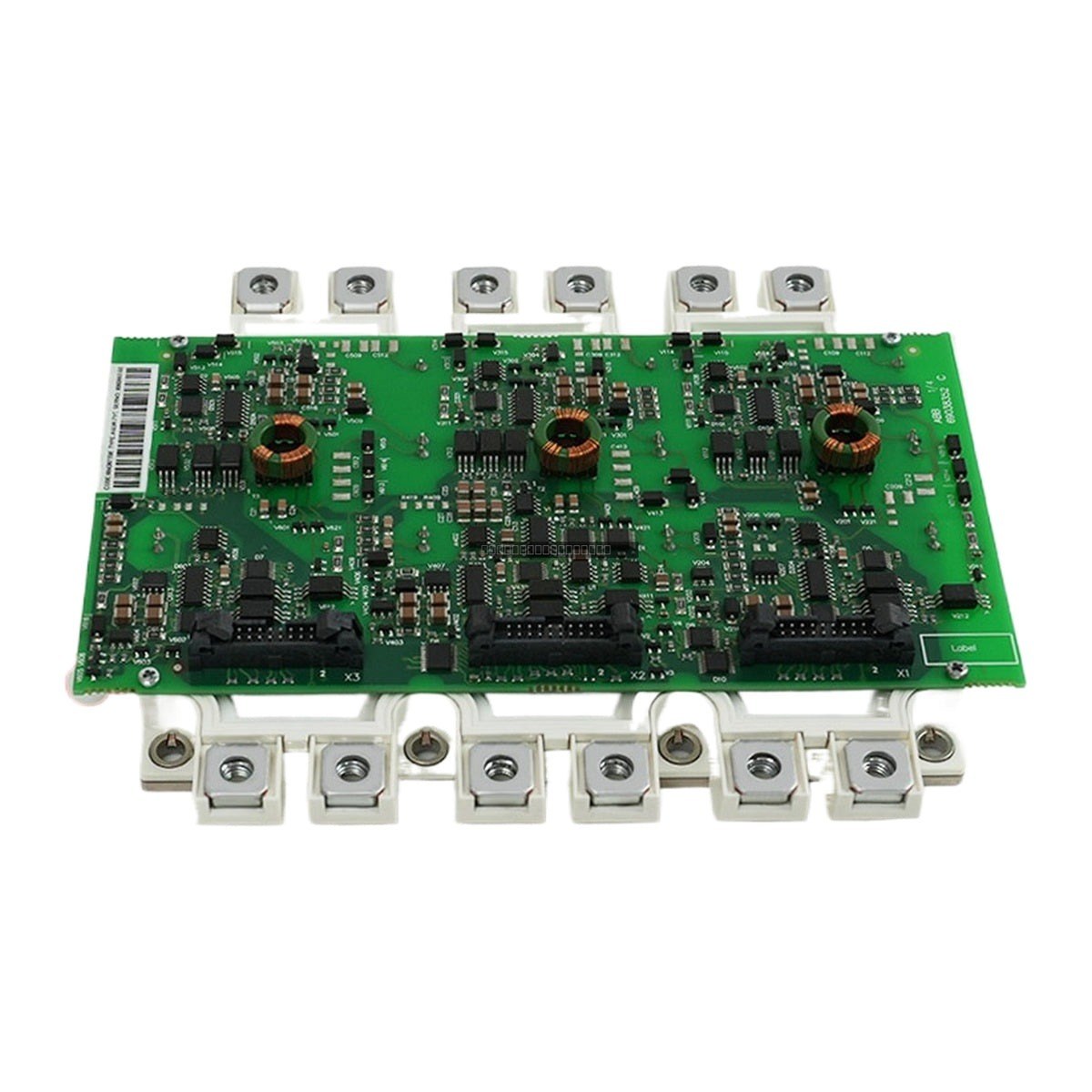

The ABB FS450R12KE3/AGDR-71C is a comprehensive power semiconductor assembly consisting of an Econo+ IGBT module paired with its dedicated gate driver board. This kit is designed for high-performance power conversion applications, specifically within the ABB ACS 800 drive series. As a critical component for motor control and power regulation, this module facilitates efficient switching of high-voltage loads in industrial environments.
Features
- Integrated IGBT module and driver board assembly for simplified maintenance and replacement.
- High power density Econo+ design suitable for demanding industrial drive applications.
- Designed for reliable operation in ACS 800 variable frequency drive systems.
- Robust isolation characteristics for enhanced system safety.
Applications
This IGBT module kit is primarily used in ABB ACS 800 series industrial drives. It serves as the power switching stage for motor control, inverter systems, and power conversion equipment where precise current regulation and high-voltage handling are required.
Technical Specifications
| Product Model |
FS450R12KE3/AGDR-71C |
| Component Type |
IGBT Module Kit (with Driver Board) |
| Voltage Rating |
1200 V |
| Current Rating |
450 A |
| Supply Voltage |
+15 V / -8 V DC |
| Gate Current (Peak) |
+/- 35 A |
| Switching Frequency |
≤ 20 kHz |
| Isolation Voltage |
4 kV AC |
Installation Guidelines
- Ensure the drive system is fully powered down and capacitors are discharged before attempting to remove or install the module.
- Handle the IGBT module using ESD-safe practices to prevent damage to the sensitive gate driver electronics.

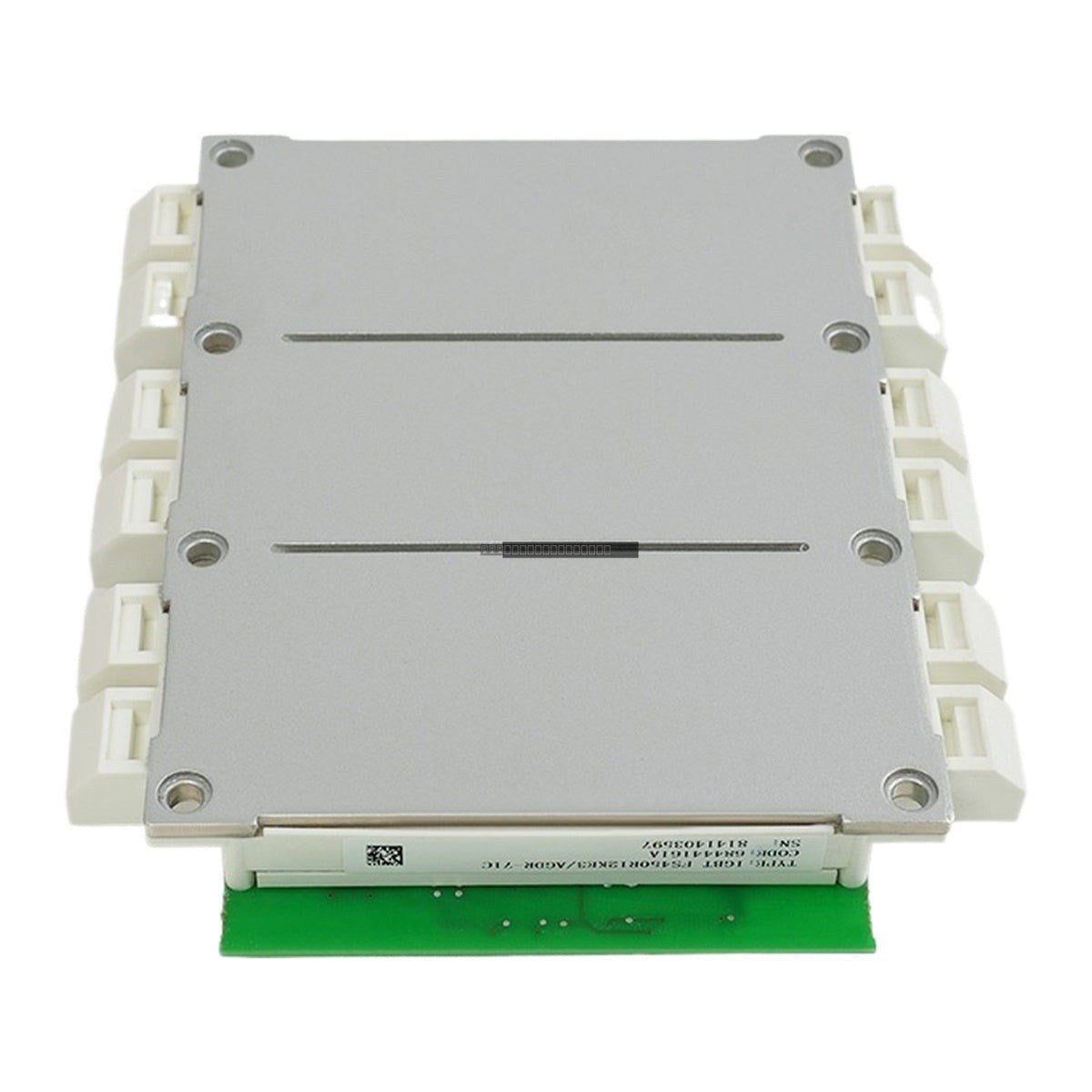

- Verify that the mounting surface is clean, flat, and free of debris to ensure optimal thermal transfer between the module baseplate and the heatsink.
- Apply a thin, uniform layer of high-quality thermal interface material (TIM) if required by the specific heatsink assembly.
- Ensure all electrical connections, particularly the gate control signals and high-power busbar terminals, are torqued to the manufacturer's specified values to prevent arcing or overheating.
- Confirm that the driver board is securely seated and that all ribbon cables or connectors are properly aligned before re-energizing the system.
FAQ
Is this product still in production?
No, this specific assembly has been discontinued by the manufacturer. We provide these units as spare parts for legacy system maintenance and repair.
Does this kit include the driver board?
Yes, the FS450R12KE3/AGDR-71C is supplied as a complete kit including both the IGBT power module and the associated driver board.
