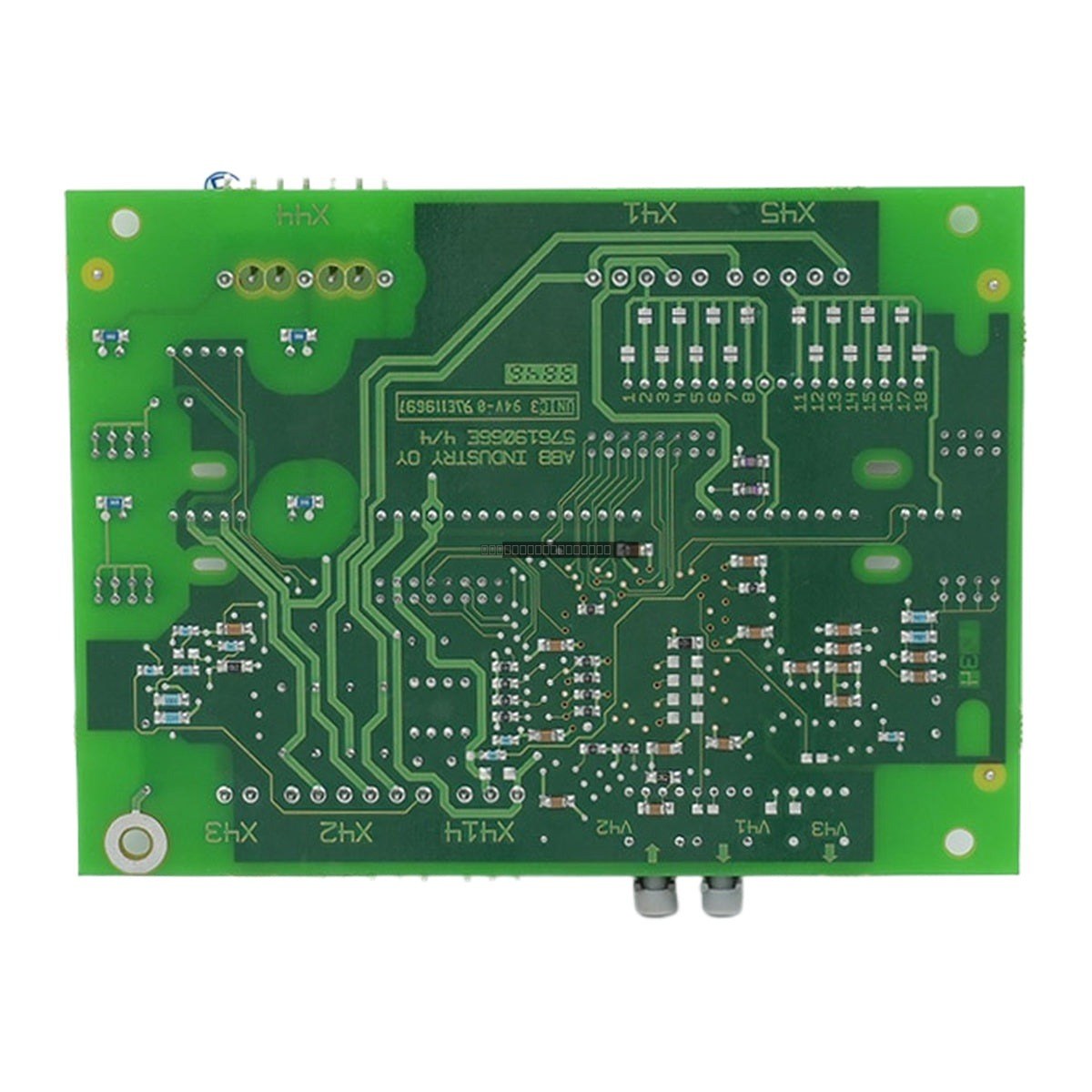

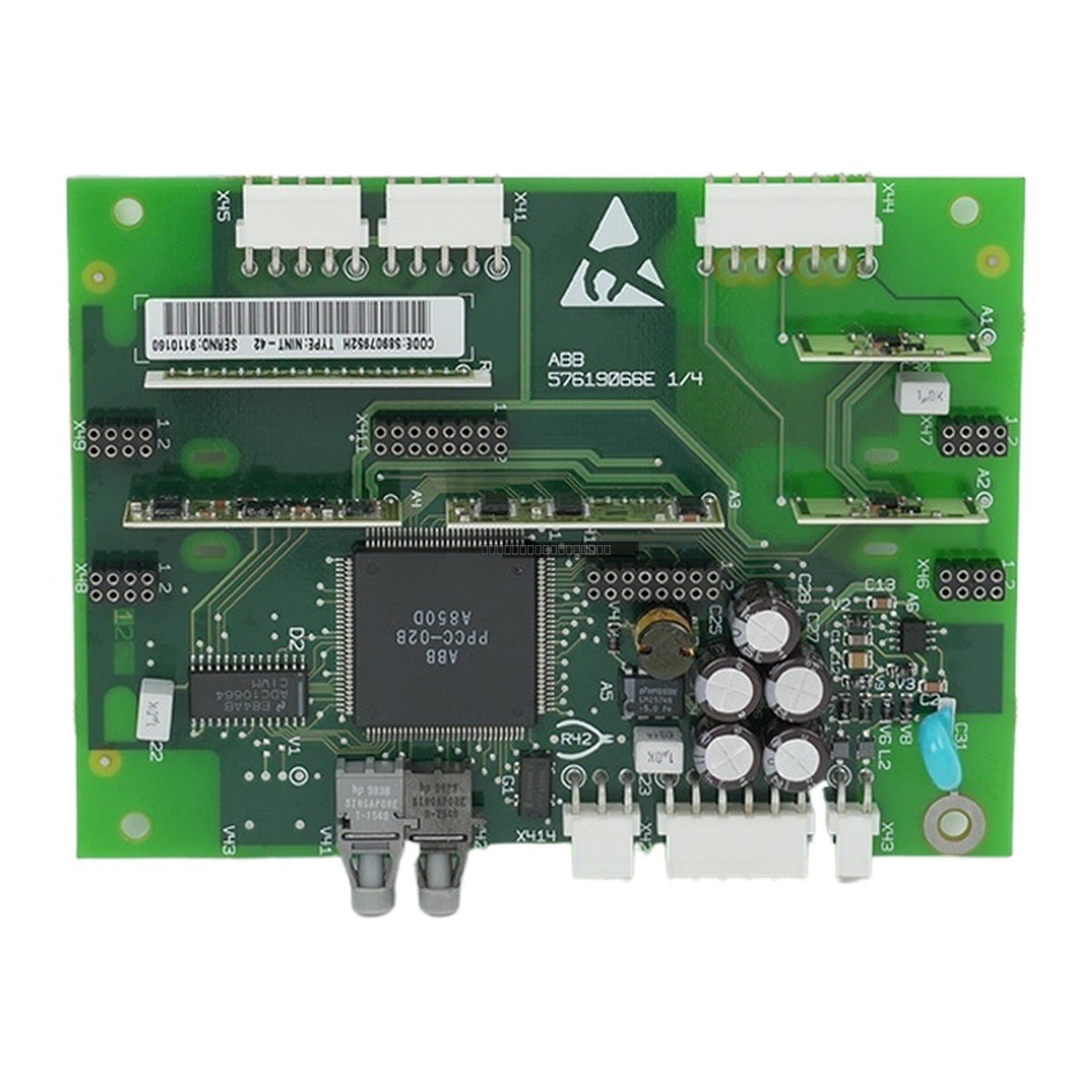

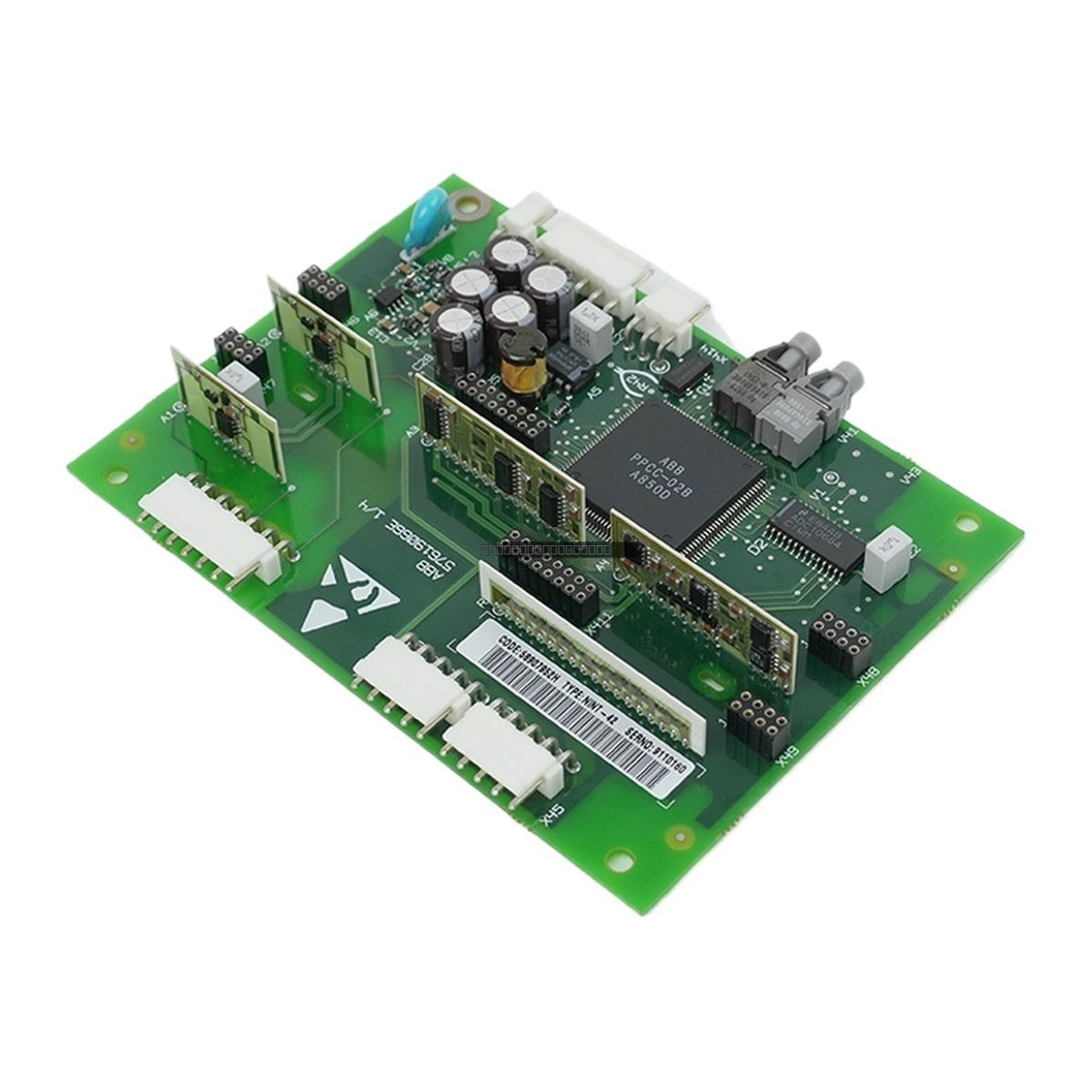

The ABB NINT-42 (Order Code: 58907952H) is a primary Main Circuit Interface Board engineered for the ABB ACS 600 series of industrial AC drives. This module serves as the central interface between the drive's control electronics and the main power stage, facilitating essential communication, signal transmission, and monitoring of power-related functions.
Features
- Centralized control interface for ACS 600 drive architecture.
- Supports high-speed fiber optic communication (PPCC) for noise-immune data transfer.
- Integrated monitoring for current measurement, voltage sensing, and protection functions.
- Compatibility with standard ACS 600 enclosures for efficient maintenance.
- Supports expansion for fieldbus adapters and encoder feedback modules.
Applications
The NINT-42 is utilized in high-power variable frequency drive (VFD) systems across various industrial sectors, including:
- Large-scale compressor and pump control for oil, gas, and refining.
- Process automation in manufacturing and heavy industry.
- Power generation and turbine auxiliary systems.
- Water treatment machinery and high-pressure pumping stations.
Technical Specifications
| Model |
NINT-42 |
| Order Code |
58907952H |
| Spare Model |
61353259E |
| Control Voltage |
24 V DC |
| Operating Temperature |
0 degC to +50 degC |
| Storage Temperature |
-40 degC to +70 degC |
| Relative Humidity |
5% to 95% (non-condensing) |
| Manufacturer |
ABB |
Installation Guidelines
-
Safety: Always disconnect all power sources and verify zero energy before installing or removing the module.
-
Mounting: Secure the board onto the designated mounting plate within the drive converter using the provided fastening hardware.
-
Grounding: Proper earthing is mandatory. Connect the board to the cabinet Protective Earth (PE) busbar using a copper braid or cable to ensure EMC compliance and safety.
-
Connections: Carefully attach phase and DC busbars, ensuring no damage to insulation components. Secure all ribbon cables and voltage measurement wires, ensuring connectors are fully locked.
-
Configuration: Before commissioning, ensure the board is configured to match the specific converter type using the dedicated configuration pads on the PCB.
FAQ
What is the primary function of the NINT-42?
The NINT-42 acts as the central interface board for the ACS 600 series, managing bidirectional flow of control commands, measurement signals, and diagnostic data between the power semiconductors and the drive control processor.
How do I troubleshoot communication failures?
Communication issues, particularly PPCC link errors, are often caused by degraded fiber optic cables. Inspect and replace fiber links as a first step. If the issue persists, the NINT-42 board or the NIOC board may require diagnostic testing or replacement.
What is the difference between the NINT-42 and NINT-42C?
The 'C' suffix denotes a conformal-coated version of the board, designed to provide enhanced protection against moisture, conductive dust, and harsh environmental contaminants in demanding industrial settings.
