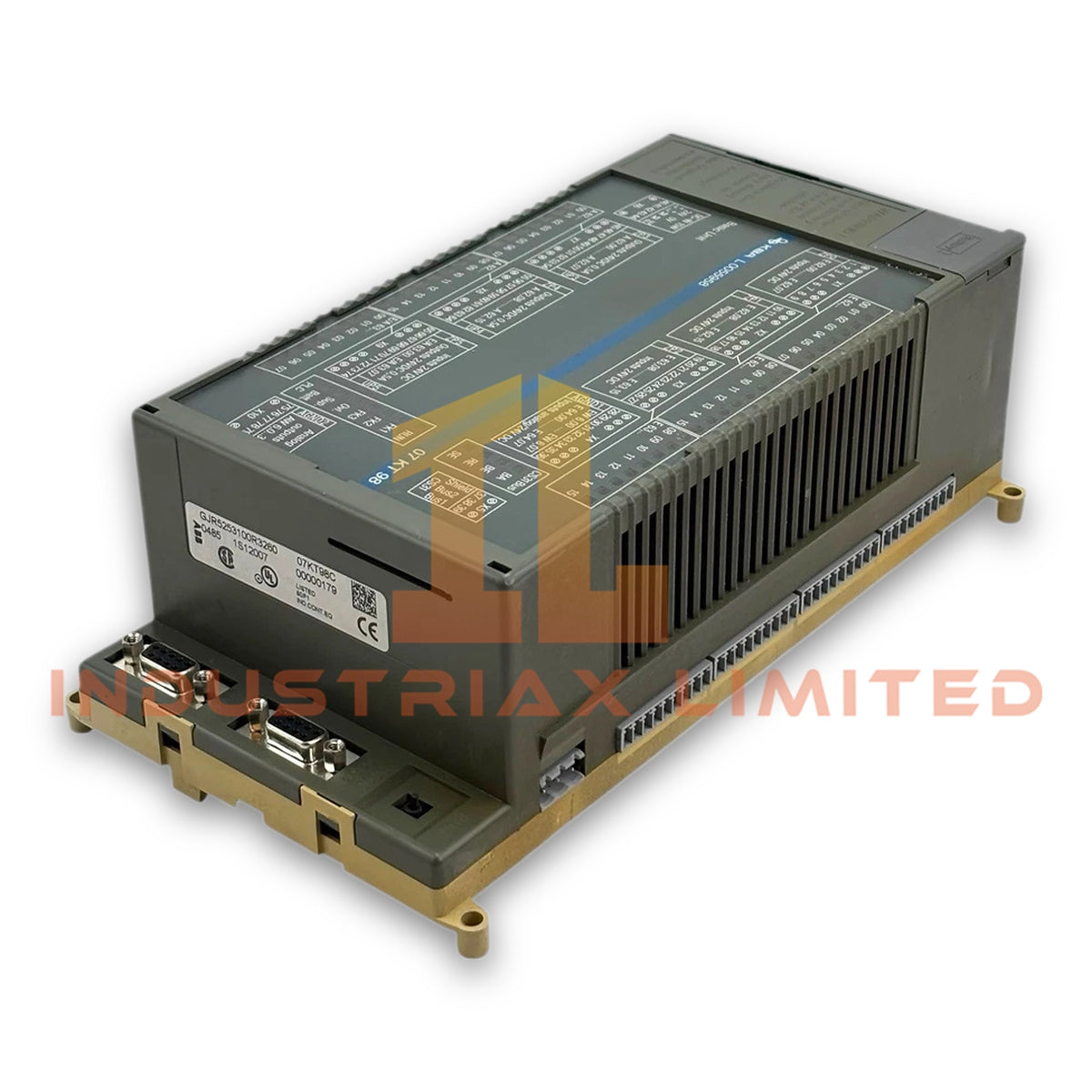

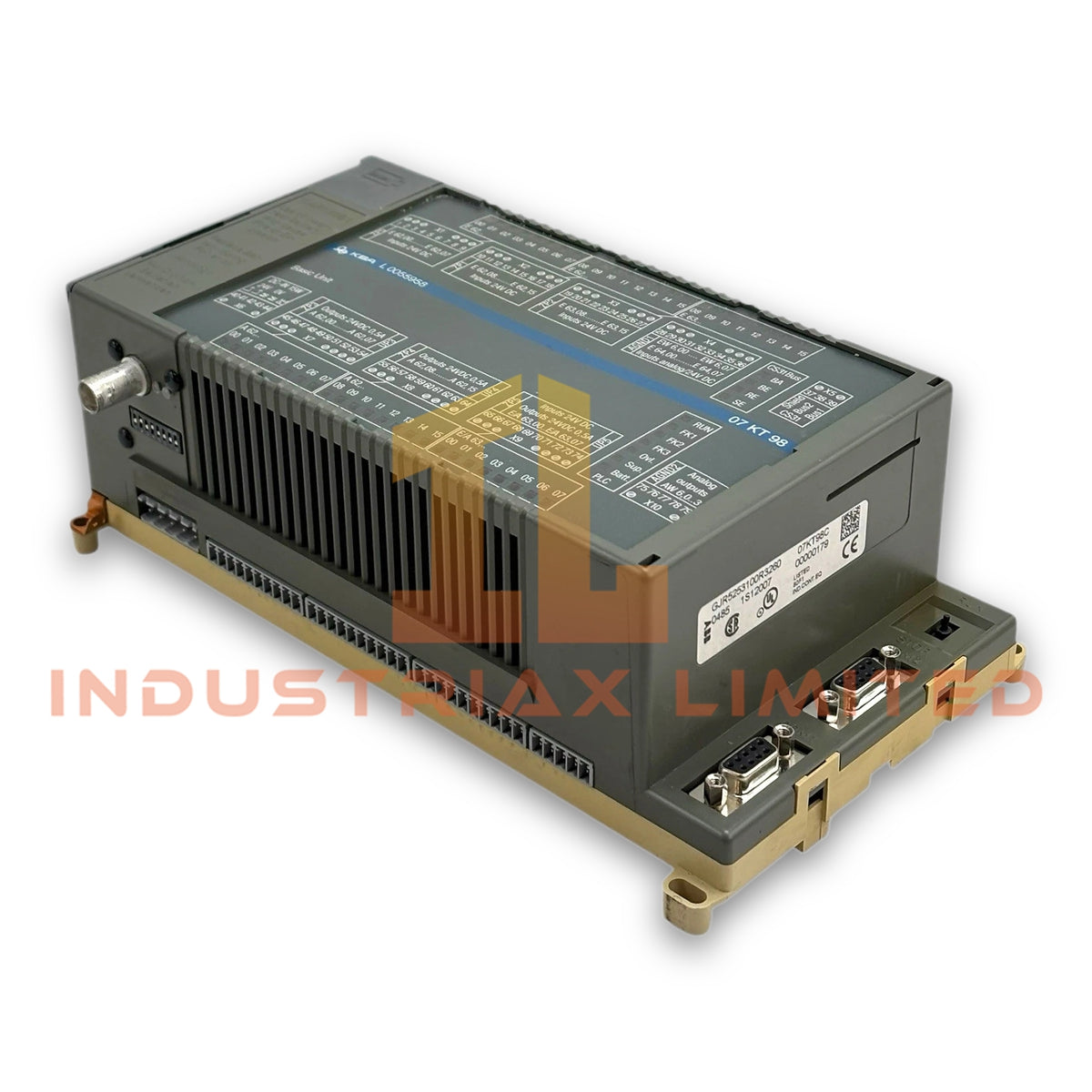

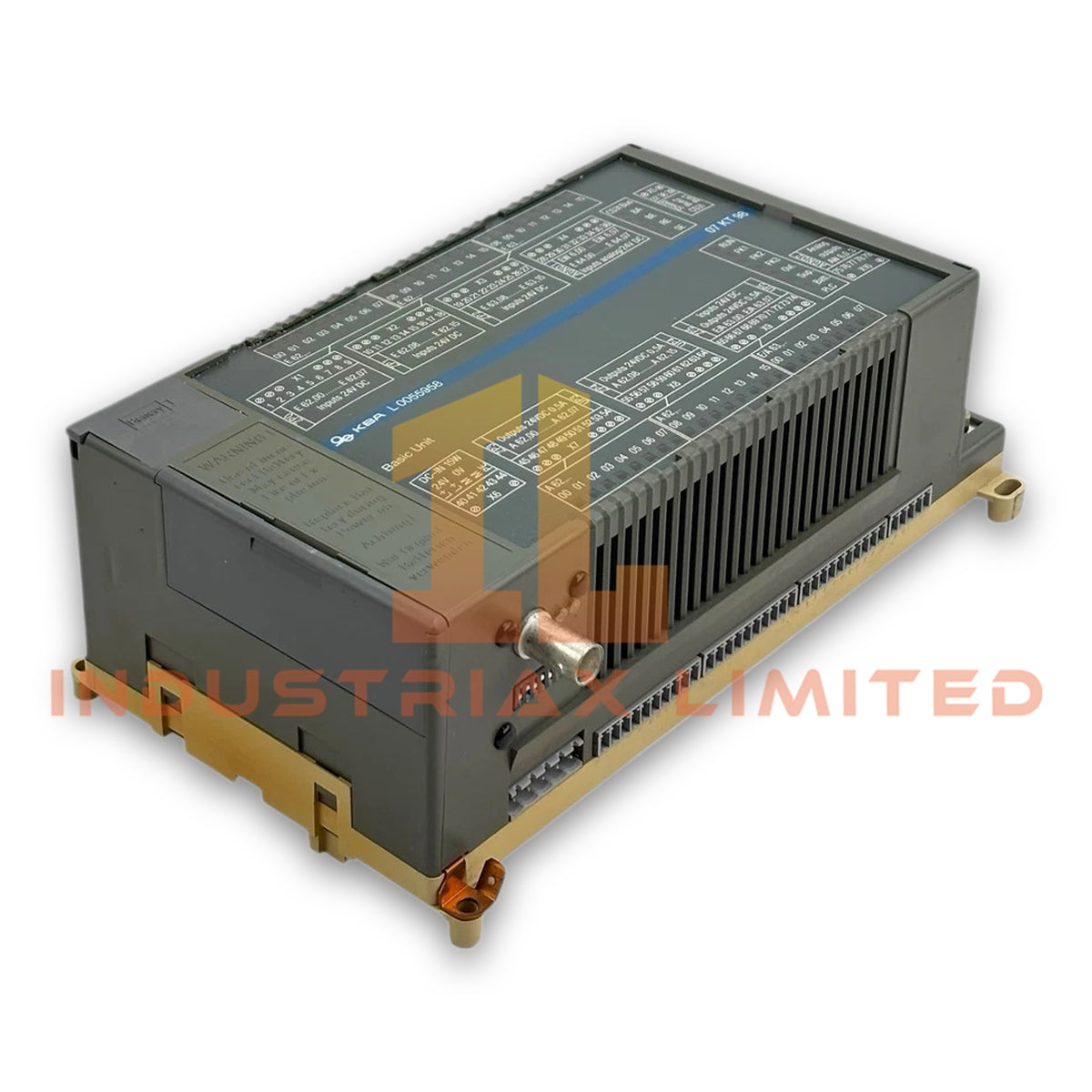

ABB 07KT98C (GJR5253100R3260) Advant Controller 31 PLC Basic Unit

Configured for data acquisition, control execution, and industrial network communication in ABB Advant Controller 31 systems, the ABB 07KT98C (GJR5253100R3260) (07KT98C PLC Basic Unit) provides direct physical and electrical execution. The unit processes controller data, interfaces with connected I/O modules, and supports configured communication functions within the AC31 automation architecture.

Hardware Specifications

Parameter	Specification
Model	07KT98C (GJR5253100R3260)
Brand	ABB
Product Line	Advant Controller 31 (AC31)
Product Type	PLC Basic Unit / Central Processing Unit (CPU)
Part Number / Catalog Code	GJR5253100R3260
Module Type	07KT98C
Origin	Sweden
Weight	Approx. 0.9 kg - 1.0 kg
Dimensions	Not specified in the provided technical data
Mounting	DIN-rail or panel mounting in industrial control cabinets
Communication	Built-in Ethernet and serial communication interfaces, depending on system configuration
Supported Communication Functions	TCP/IP, Modbus, and ARCNET/RCOM, depending on system configuration
I/O Architecture	Supports expansion through compatible digital and analog I/O modules
Operating Temp	-20 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Relative Humidity	5% to 95%, non-condensing

AC31 I/O Scaling and Firmware Compatibility

The ABB 07KT98C (GJR5253100R3260) operates within the Advant Controller 31 architecture and provides the processing function required for connected automation I/O. Consequently, system expansion depends on the configured controller hardware and compatible digital or analog I/O modules.

I/O density scaling should therefore follow the electrical loading limits and addressing configuration defined for the installed AC31 system. In addition, firmware compatibility must be verified before controller replacement or software updates, particularly when the existing installation contains legacy communication or remote I/O configurations.

The communication arrangement also depends on the installed system configuration. Therefore, Ethernet, serial, TCP/IP, Modbus, and ARCNET/RCOM functions should be confirmed against the controller firmware and connected network architecture before commissioning.

Frequently Asked Questions

Q: Can the ABB 07KT98C (GJR5253100R3260) be installed directly on a DIN rail?
A: Yes. The provided data specifies DIN-rail or panel mounting for installation in an industrial control cabinet. The mounting surface should provide adequate mechanical support and clearance for wiring and service access.

Q: Does the ABB 07KT98C (GJR5253100R3260) support I/O expansion?
A: Yes. The controller can operate with compatible digital and analog I/O expansion modules within the ABB Advant Controller 31 system architecture. The final I/O configuration must follow the applicable system addressing and electrical loading requirements.

Q: Are firmware and communication settings interchangeable between all AC31 installations?
A: No. Firmware compatibility and communication functions depend on the installed controller configuration and connected system components. Therefore, existing firmware, network parameters, and communication interfaces should be verified before replacement or system modification.

Field Installation Guidelines

Install the ABB 07KT98C (GJR5253100R3260) on a correctly secured DIN rail or approved panel mounting surface inside a suitable industrial enclosure.

Before wiring, isolate the external supply and verify the controller power circuit. Keep communication wiring separated from high-current switching conductors where practical. In addition, route signal and network cables to minimize electromagnetic interference from motors, contactors, and variable-speed drives.

Terminate cable shields according to the grounding practice specified for the installed AC31 system. Do not create uncontrolled multiple shield grounding paths unless the system design specifically requires them.

Verify connector engagement and wiring identification before applying power. Then confirm controller communication, connected I/O status, and configured network parameters during commissioning. Firmware and communication compatibility should also be checked before replacing an existing controller in a running installation.
