Description

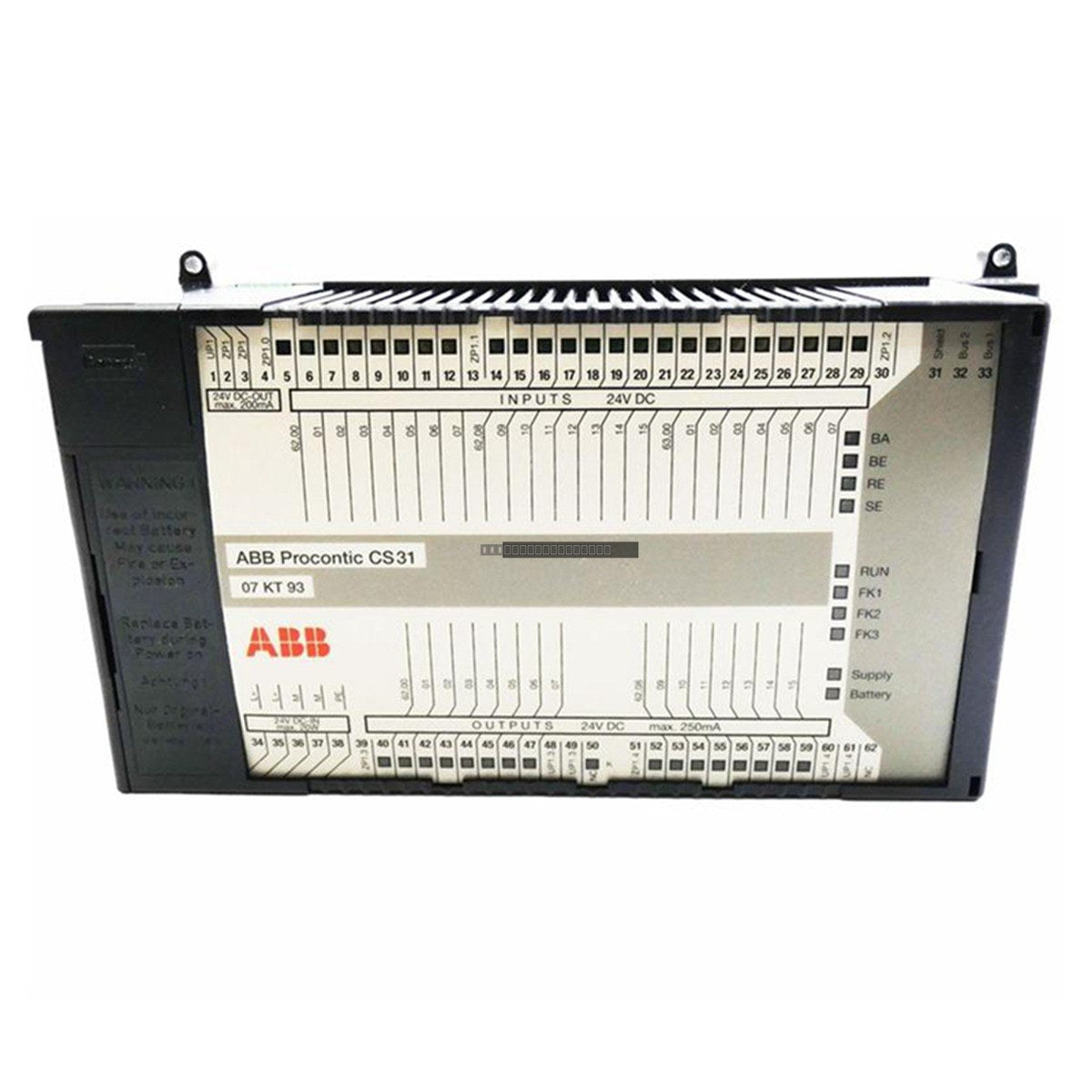

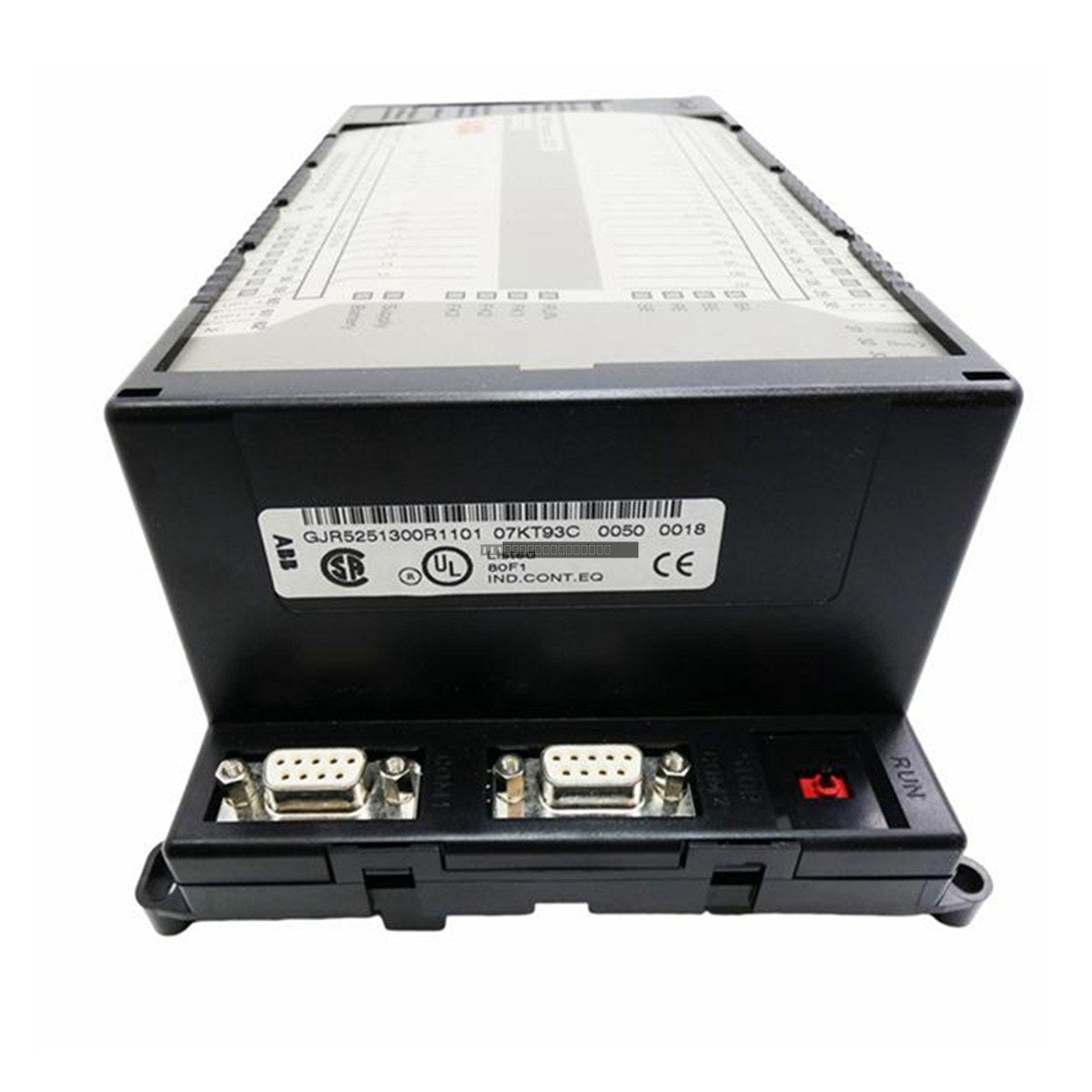

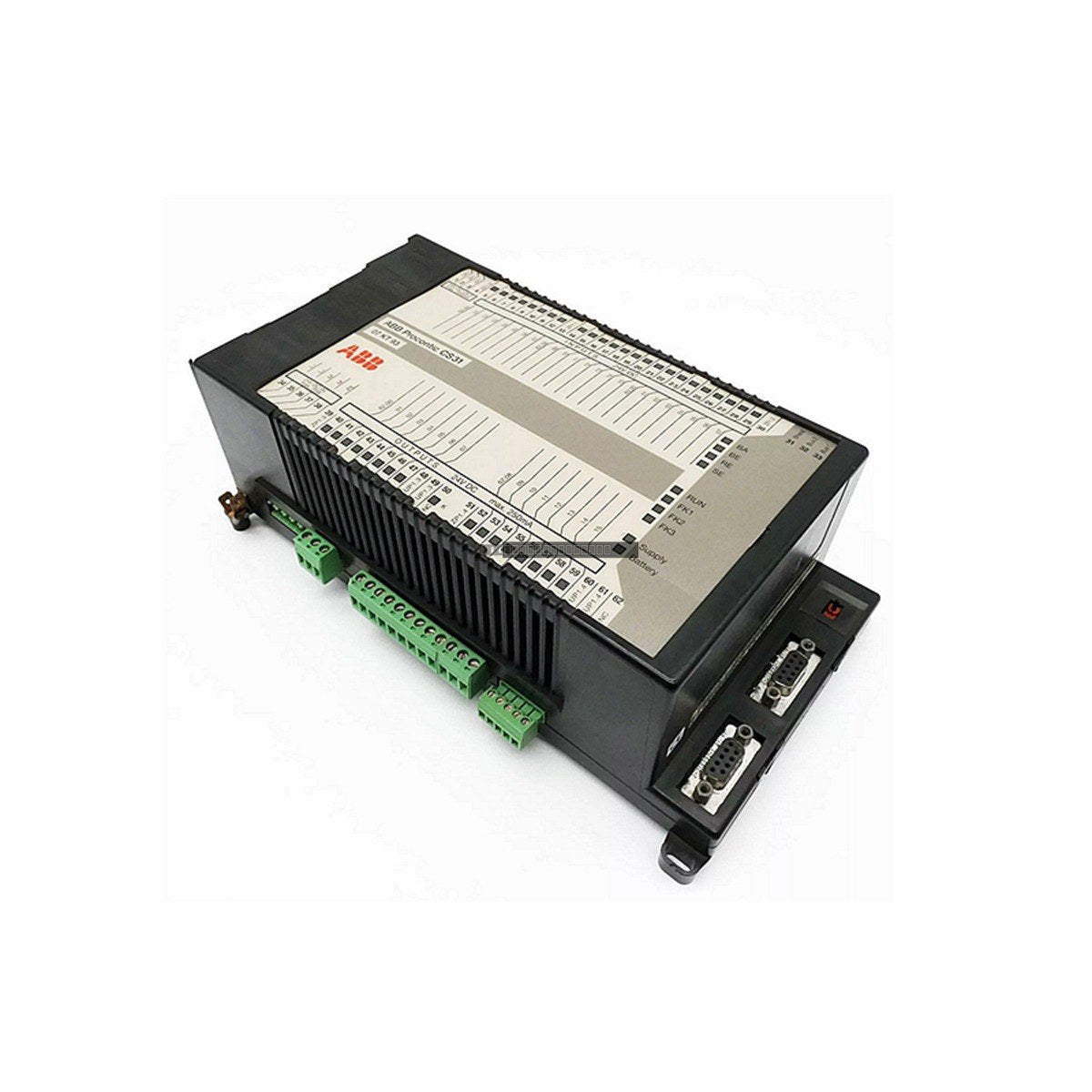

The ABB 07KT93 is a high-performance central processing unit belonging to the Procontic CS31 90 Series. Designed for industrial automation and control tasks, this unit provides robust logic processing capabilities, integrated I/O management, and versatile communication options to support complex machine control and process automation applications.
Features
- Integrated CPU with 14 K flash EPROM memory for reliable program storage.
- Equipped with 24 x 24 VDC digital inputs.
- Features 16 x 24 VDC transistor outputs rated at 0.5A per channel.
- Dual programmable RS-232 serial ports for peripheral connectivity.
- RS-485 system bus support for distributed I/O and networking.
- Built-in real-time clock for timestamping and scheduled operations.
- Advanced high-speed counter functionality up to 10 kHz.
- Integrated PID control functions for precise process regulation.
- Operates on a standard 24 VDC power supply.
Applications
The 07KT93 is suitable for a wide range of industrial environments, including packaging machines, assembly lines, and small to medium-scale process control systems where reliable sequence control and high-speed input monitoring are required.
Technical Specifications
| Model |
07KT93 |
| Series |
Procontic CS31 90 Series |
| Supply Voltage |
24 VDC |
| Digital Inputs |
24 x 24 VDC |
| Digital Outputs |
16 x 24 VDC (0.5A Transistor) |
| Memory |
14 K flash EPROM |
| Communication |
2 x RS-232, 1 x RS-485 |
| Special Functions |
High-speed counter (10 kHz), PID control, Real-time clock |
Installation Guidelines
- Ensure the unit is installed in an enclosure that provides adequate protection against environmental contaminants and moisture.
- Maintain proper ventilation around the unit to prevent overheating; verify that ambient temperatures remain within the manufacturer's specified operating range.
- Always disconnect power before performing any wiring, module insertion, or removal to prevent electrical damage or injury.
- Use shielded cables for communication lines (RS-232/RS-485) and route them separately from high-voltage power lines to minimize electromagnetic interference (EMI).
- Ensure a solid, low-impedance connection to the system ground to maintain signal integrity and safety.
- Handle with standard ESD (Electrostatic Discharge) precautions during installation and maintenance.
FAQ
What is the primary function of the 07KT93?
The 07KT93 serves as a central control unit (PLC) for the ABB Procontic CS31 system, managing logic execution, I/O handling, and communication tasks.
Does this unit support external communication?
Yes, it features two programmable RS-232 ports and an RS-485 system bus for integration with other devices and fieldbus networks.
What is the power requirement for this module?
The unit operates on a 24 VDC power supply.
