Description

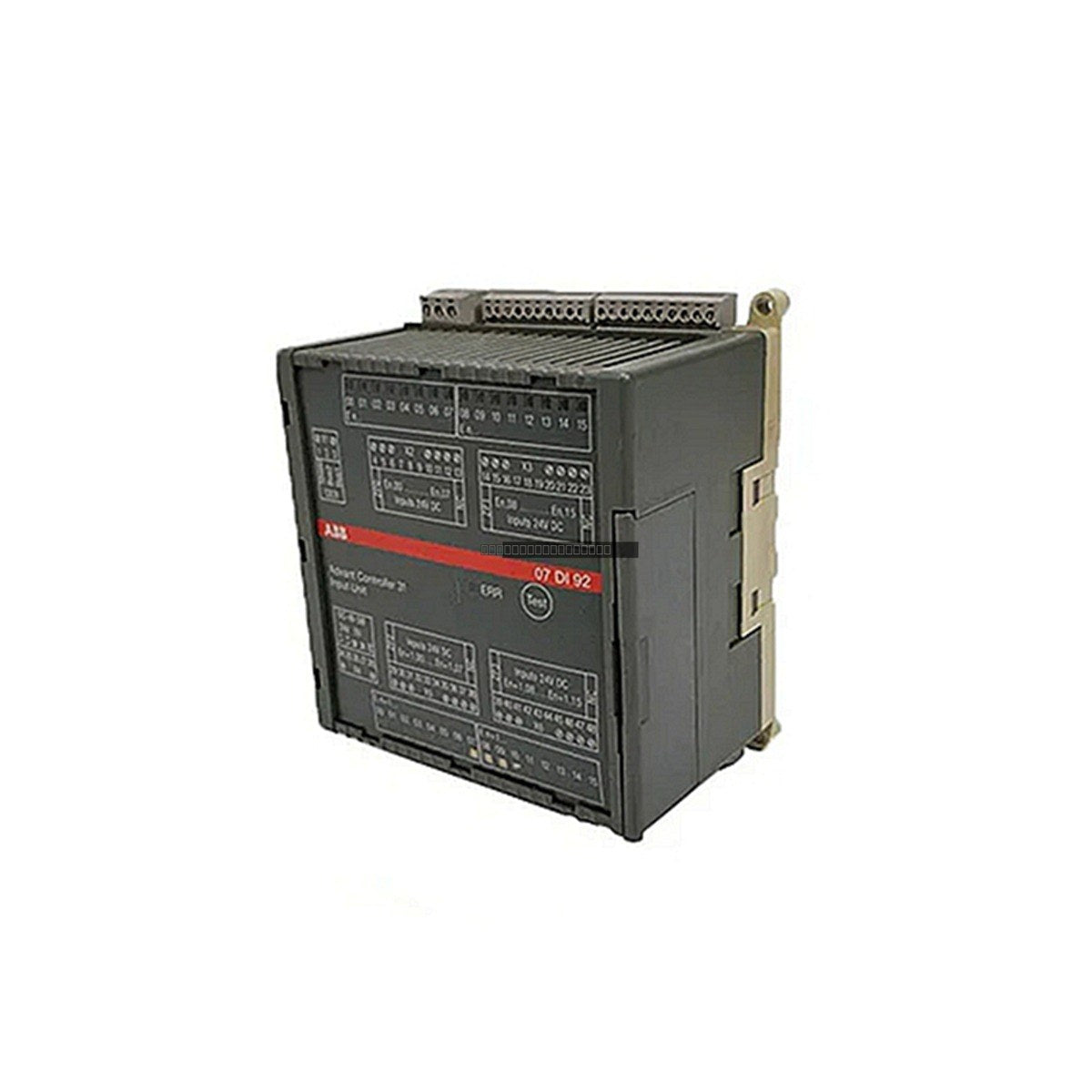

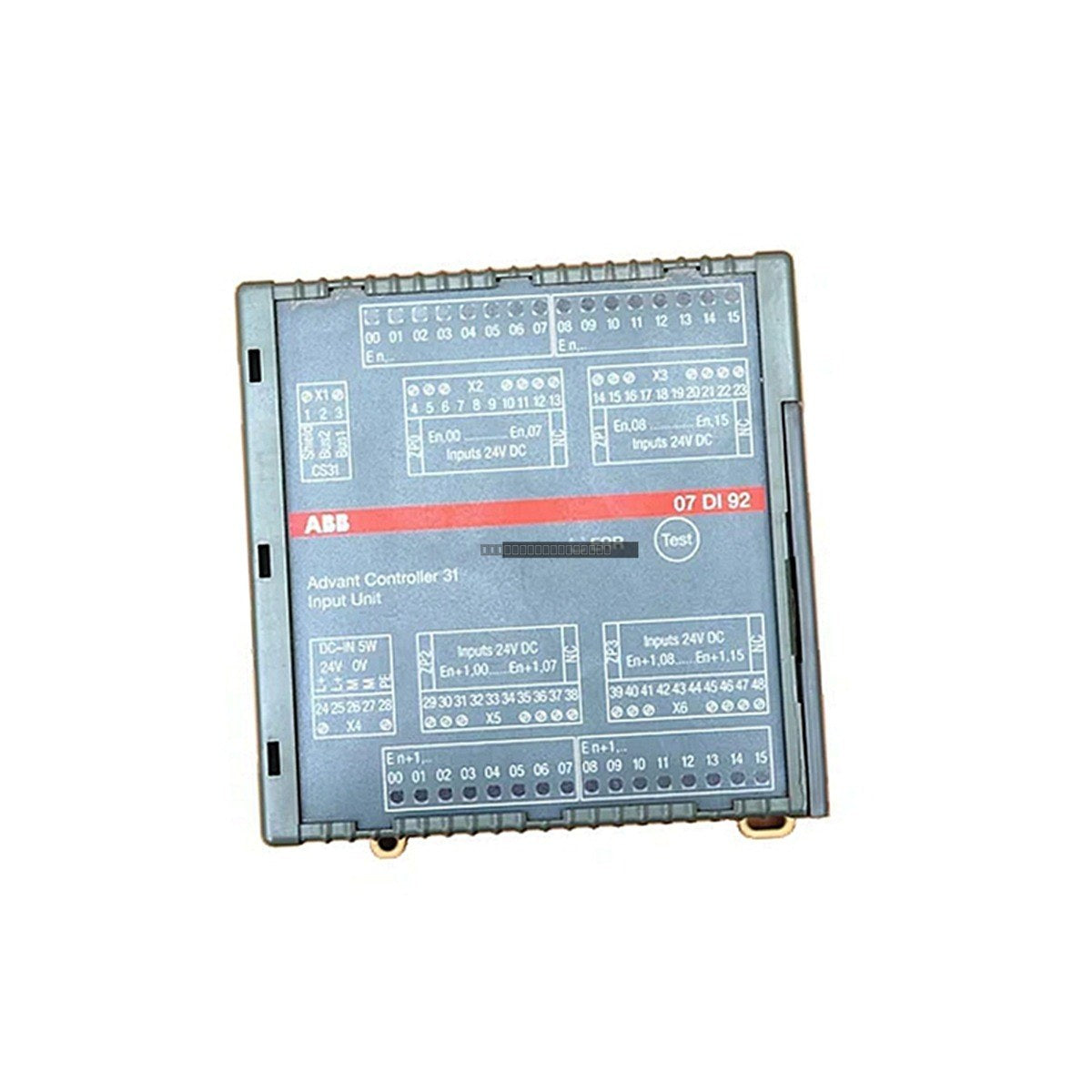

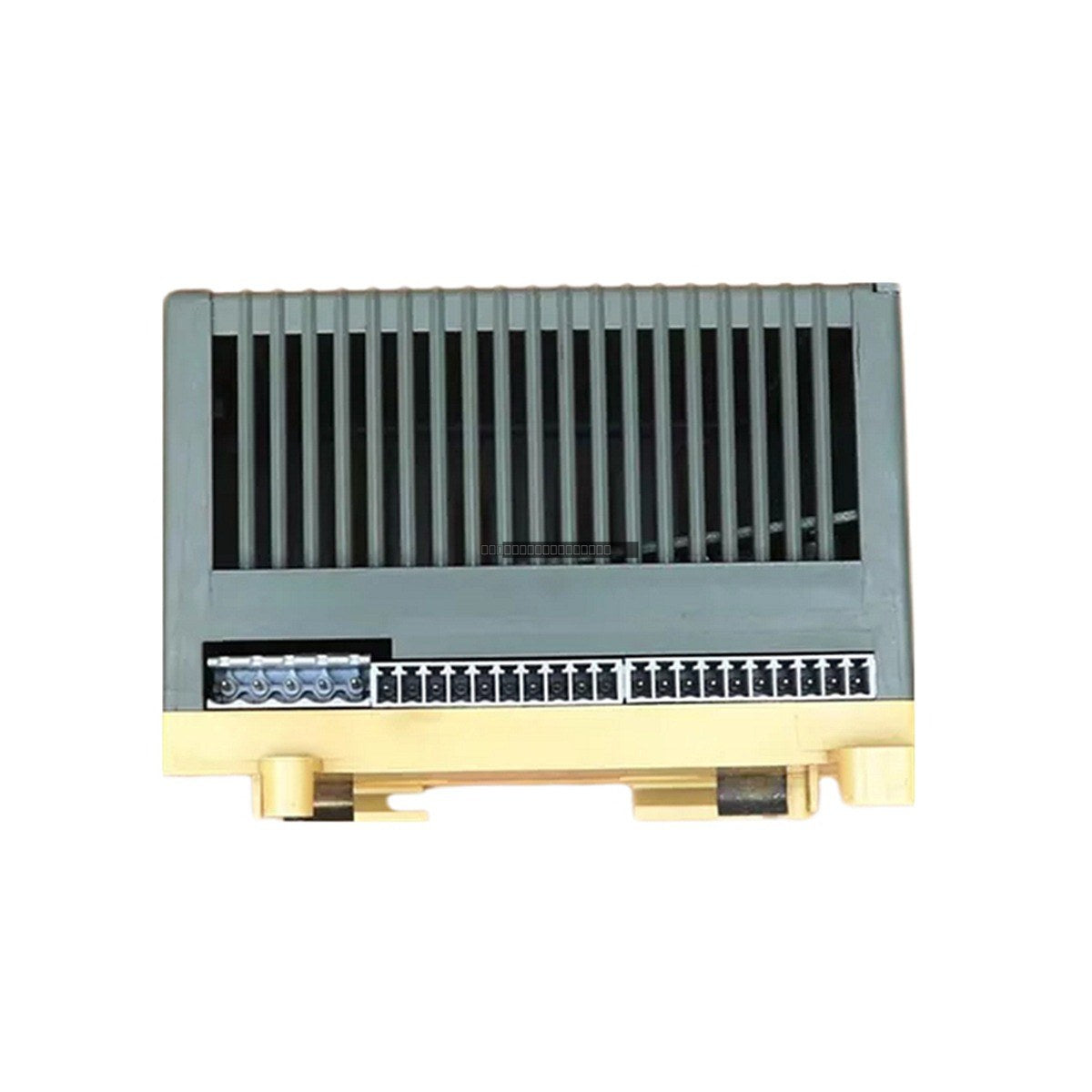

The ABB 07 DI 92 WT92 (GJR5252400R4101) is a high-density digital input module designed for industrial automation applications. This module provides reliable signal processing, allowing for the integration of 32 digital inputs into your control system architecture. Engineered for consistent performance, it operates efficiently with a 24VDC supply, making it suitable for a wide range of standard industrial sensing and monitoring tasks.
Features
- Provides 32 dedicated digital input channels for high-density I/O requirements.
- Standard 24VDC operating voltage compatible with common industrial sensors and switches.
- Designed for robust operation within an ambient temperature range of 0 to +55 degC.
- Compact modular design suitable for standard control cabinet integration.
Technical Specifications
| Model Number |
07 DI 92 WT92 |
| Order Code |
GJR5252400R4101 |
| Number of Channels |
32 |
| Input Type |
Digital |
| Supply Voltage |
24 V DC |
| Operating Temperature |
0 to +55 degC |
| Storage Temperature |
-25 to +70 degC |
| Certifications |
CE, CSA, LR |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module from the rack or backplane.
- Handle the module using proper ESD precautions to prevent damage to internal electronic components.
- Verify that the supply voltage matches the 24VDC specification before applying power to the I/O terminals.
- Maintain proper ventilation in the control cabinet to keep the ambient temperature within the specified 0 to +55 degC range.
- Route signal wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
FAQ
What is the primary function of the ABB 07 DI 92 WT92?
This module serves as a digital input interface, converting field-level digital signals into a format processed by the ABB control system.
Is this module compatible with standard 24VDC systems?
Yes, the module is designed for 24VDC input applications, which is standard for most industrial automation and PLC environments.
What should I do if the module is exposed to temperatures outside the operating range?
Operating outside the specified 0 to +55 degC range may result in reduced reliability or permanent damage. Always ensure the cabinet cooling system is functioning correctly.
