Yokogawa AAI835-S50 Analog I/O Modules

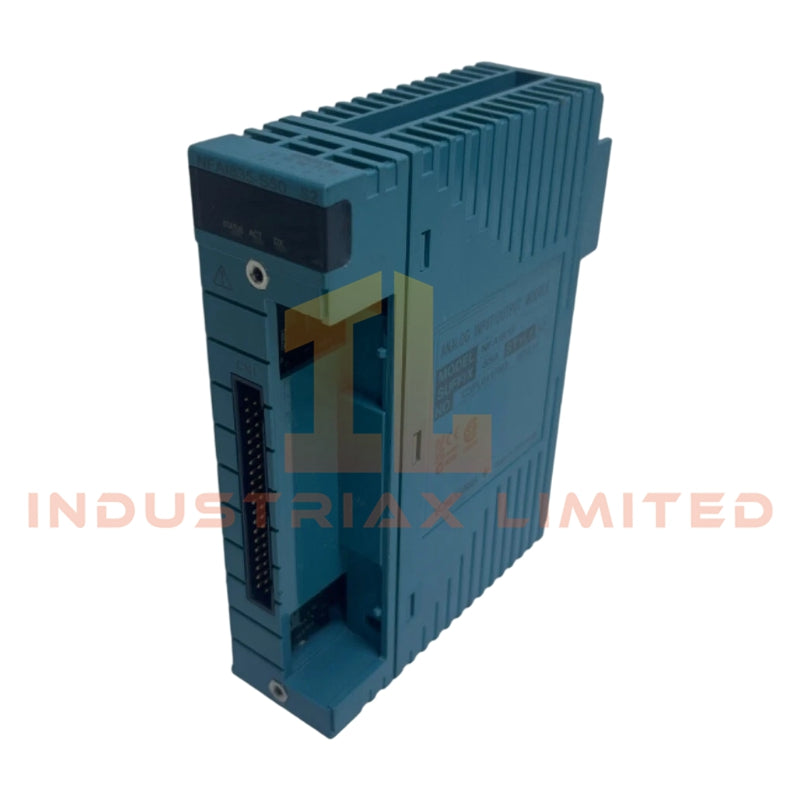

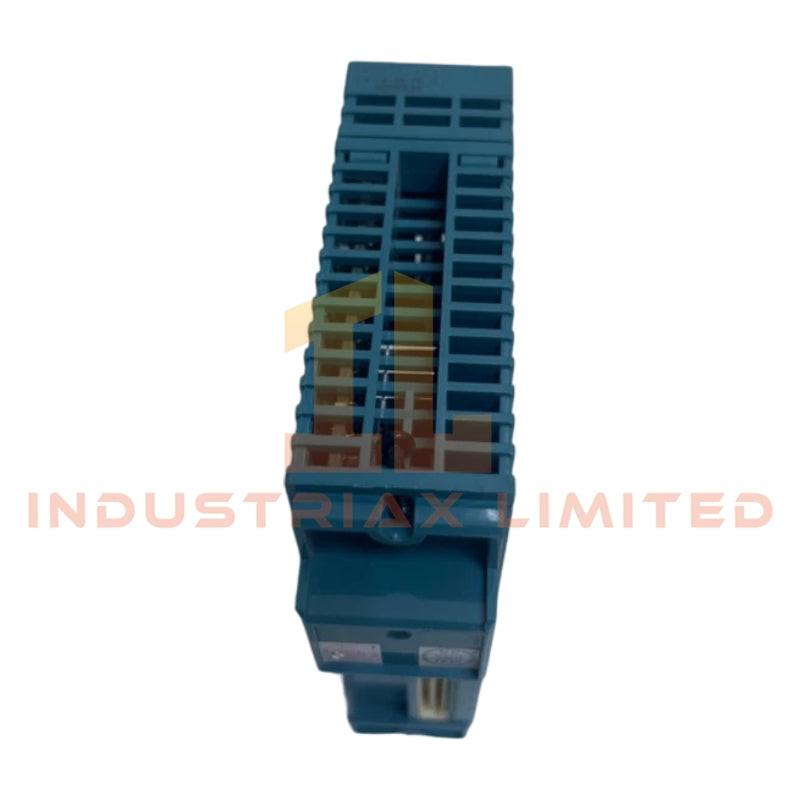

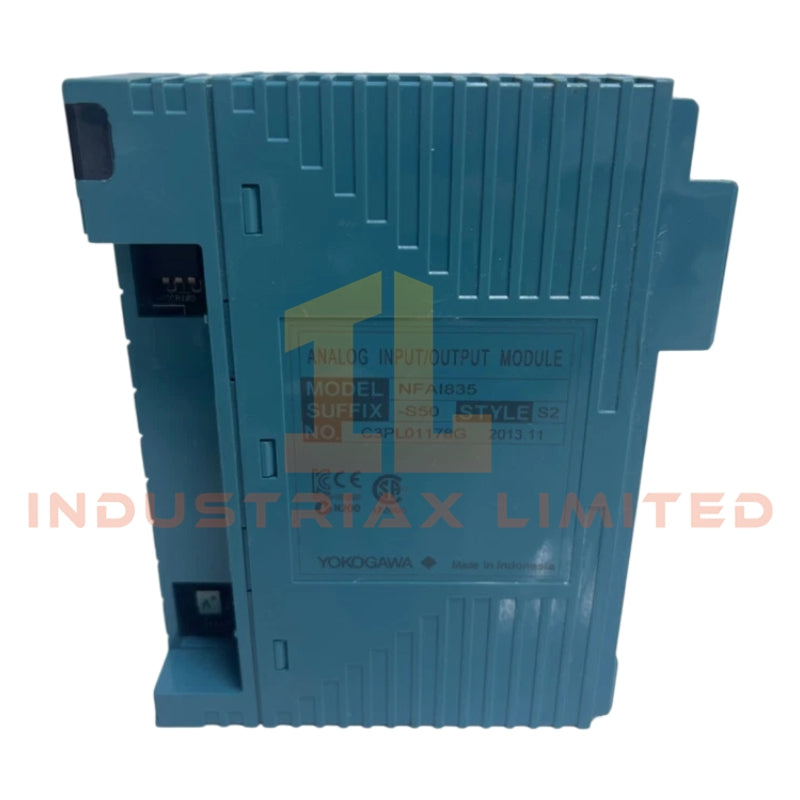

TheYokogawa AAI835-S50also cataloged as theAAI835Analog I/O Modules, operates as a dedicated hardware component for analog signal acquisition and analog signal actuation within STARDOM distributed controller I/O architectures. Configured for 4 to 20 mA current loop interfacing in STARDOM I/O networks,theYokogawa AAI835-S50(AAI835Analog I/O Modules) provides direct physical/electrical execution. The module implements 4-channel isolated input and 4-channel isolated output conversion with channel-to-channel electrical separation and loop current handling for field instrumentation interfaces.

Suffix Breakdown & Model Matrix

• AAI835: Analog input/output mixed module family
• -S: Standard type configuration
• 5: No explosion protection rating
• 0: Basic type hardware revision

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AAI835-S50
Origin	Japan
Weight	0.3 kg
Dimensions	33 mm x 130 mm x 107 mm
OperatingTemp	Not specified in provided data
PowerConsumption	360 mA @ 5 VDC / 450 mA @ 24 VDC
Input Signal	4 to 20 mA DC
Output Signal	4 to 20 mA DC
Channels	4 input / 4 output isolated
Electrical Isolation	Channel-to-channel isolation
Load Resistance	0 to 750 ohm
Data Refresh Cycle	10 ms

Channel-to-Channel Isolation & 4-20 mA Loop Architecture

The AAI835-S50 implements galvanically isolated analog channel architecture for both input and output stages, reducing inter-channel coupling effects in multi-loop process control configurations. Each channel supports 4 to 20 mA transmission class signaling, aligned with standard process instrumentation loops. The isolation structure is designed to maintain signal integrity under mixed field wiring conditions where loop ground potential differences may exist. Input/output conversion is synchronized through a deterministic refresh cycle suitable for STARDOM controller scan integration.

Frequently Asked Questions

Q: Can the AAI835-S50 channels be hot-swapped during operation?
A: Hot-swap capability is not specified for this module. In standard practice, removal or insertion should be performed under system power isolation to prevent backplane transient disturbance.

Q: What is the backplane current impact of this module?
A: The module draws 360 mA at 5 VDC and 450 mA at 24 VDC depending on system supply configuration, which must be considered in rack-level power budgeting.

Q: Does each channel support independent isolation?
A: Yes, the module implements isolated channel architecture, ensuring separation between individual analog input and output channels.

Field Installation Guidelines

• Ensure system power is fully isolated prior to module insertion or removal
• Maintain shield termination at designated grounding points to minimize loop noise
• Use approved MIL connector cable or KS1 dedicated wiring to maintain signal integrity
• Observe correct polarity for 4 to 20 mA loop wiring on each channel terminal
• Avoid routing analog loops parallel to high-voltage or high-frequency switching conductors
• Verify backplane current capacity before full I/O slot population
