Yokogawa A1BR4D-05 Terminal Board

Configured for RTD signal termination in CENTUM VP and CENTUM CS 3000 I/O architectures, the Yokogawa A1BR4D-05 (A1BR4D Terminal Board) provides direct physical/electrical execution for resistance temperature detector field wiring interfacing across Yokogawa DCS platforms.

Suffix Breakdown & Model Matrix

• A1BR4D: RTD input terminal board base model for analog temperature signal termination
• -0: Fixed configuration identifier (standardized base allocation)
• 5: Basic variant, no explosion protection

Hardware Specifications

Parameter	Specification
Model	A1BR4D-05
Brand	Yokogawa
Origin	Japan
Weight	Approx. 0.30 kg (terminal block assembly)
PowerConsumption	Passive module (no direct power consumption)
Channel Capacity	16 RTD input channels

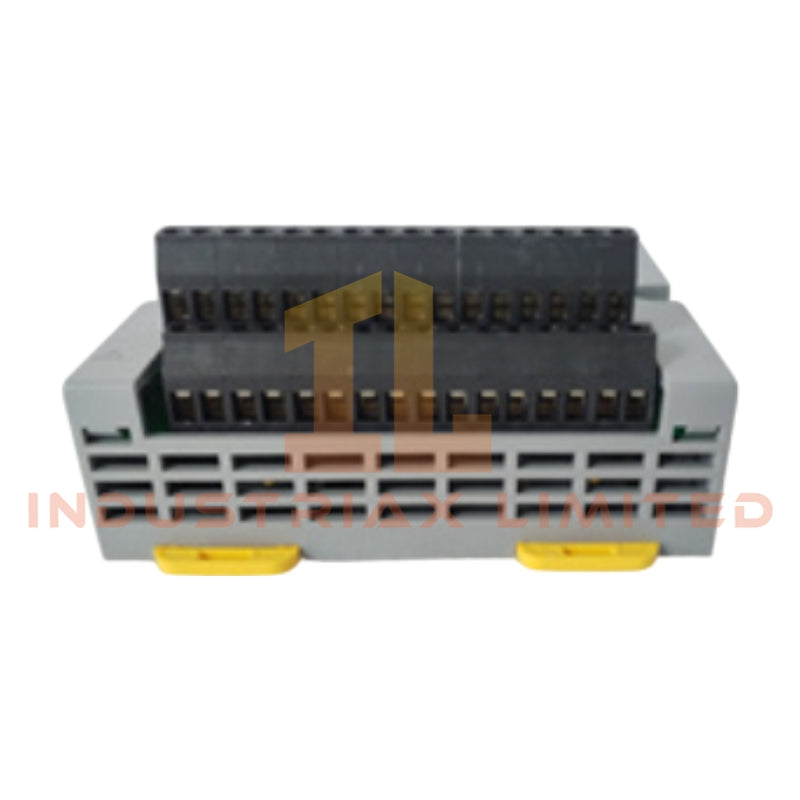

Wiring Type	Pressure clamp terminal
Compatible I/O Module	AAR145 RTD Input Module
Compatible Cable	AKB335 Signal Cable

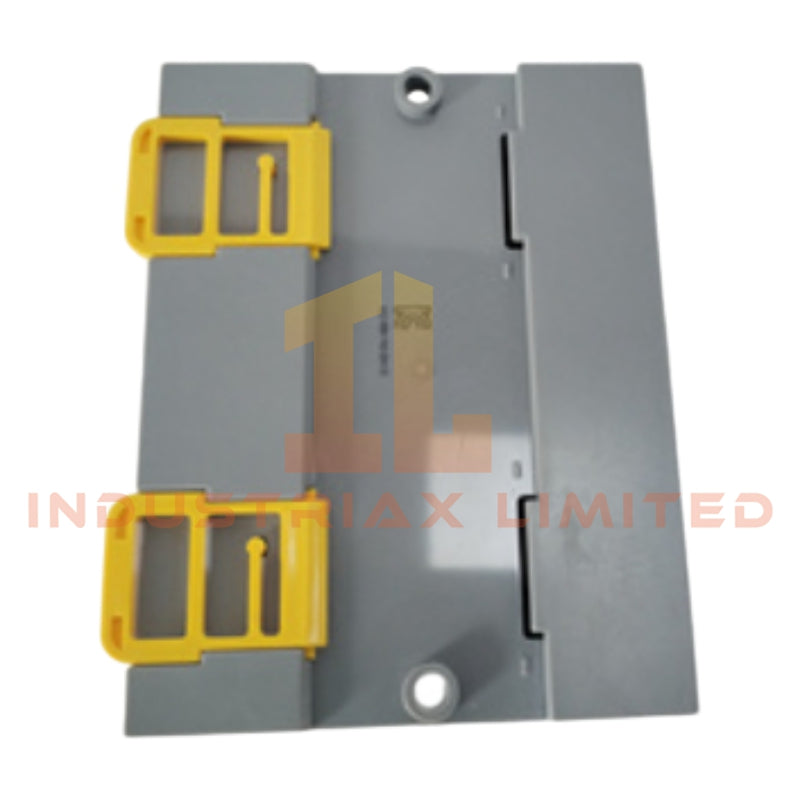

Mounting	DIN rail mounting

Yokogawa RTD Signal Interface Characteristics

Yokogawa Field Input/Output terminal architecture implements channel-level segregation for RTD measurement integrity within DCS acquisition chains. The A1BR4D-05 maintains structured separation between field wiring and analog input modules, supporting high-density temperature acquisition via 2-wire, 3-wire, and 4-wire RTD configurations depending on system design.

Within CENTUM VP I/O topology, RTD resistance conversion is handled at the module level, while the terminal board provides passive distribution and mechanical termination. Channel-to-channel wiring layout minimizes cross-coupling paths in dense cabinet configurations, particularly in multi-rack CENTUM CS 3000 deployments. Signal integrity is preserved through controlled impedance routing and standardized terminal spacing.

Frequently Asked Questions

Q1: Does the A1BR4D-05 support hot-swap operation?
A1: The terminal board is passive; hot-swap capability depends on the connected AAR145 I/O module and system rack configuration, not the terminal board itself.

Q2: Is channel isolation implemented on the terminal board?
A2: Electrical isolation is implemented at the I/O module level. The terminal board provides physical separation but no active galvanic isolation circuitry.

Q3: Can 2-wire and 3-wire RTD sensors be mixed on the same board?
A3: Mixing is possible only if the associated I/O module supports multiple RTD wiring methods and channel configuration allows independent setup per input channel.

Field Installation Guidelines

• Maintain separation between RTD signal cables and high-voltage or switching power lines
• Ensure shield termination is grounded at a single control cabinet reference point to avoid ground loop formation
• Verify correct wire pairing according to RTD type (2-wire, 3-wire, 4-wire) before terminal insertion
• Apply uniform torque/pressure on clamp terminals to avoid intermittent resistance readings
• Route cables with controlled bend radius to prevent mechanical stress on terminal points
• Ensure DIN rail mounting is mechanically locked to avoid vibration-induced loosening in cabinet environments
