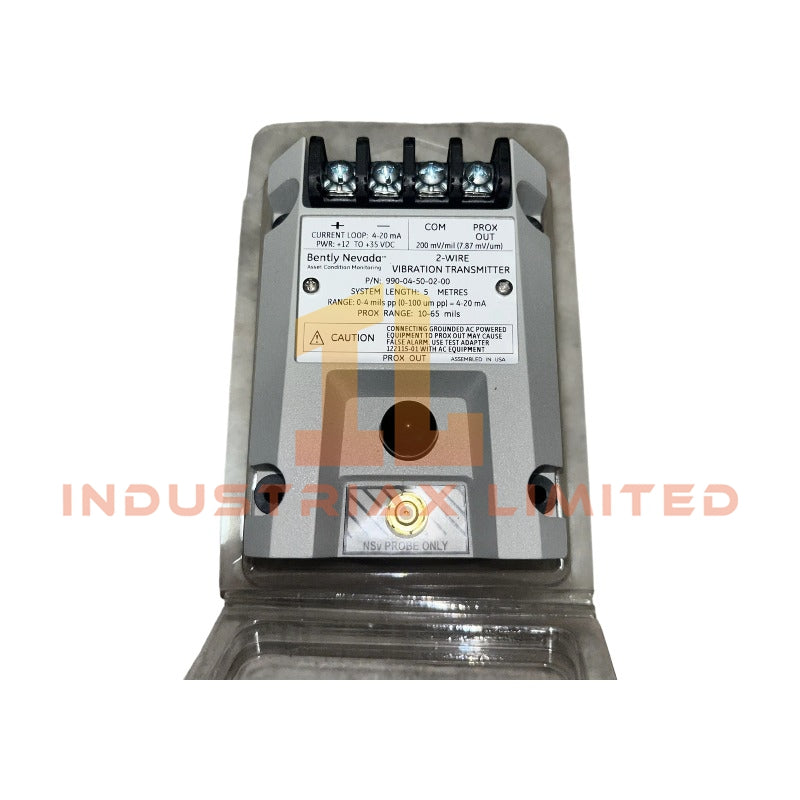

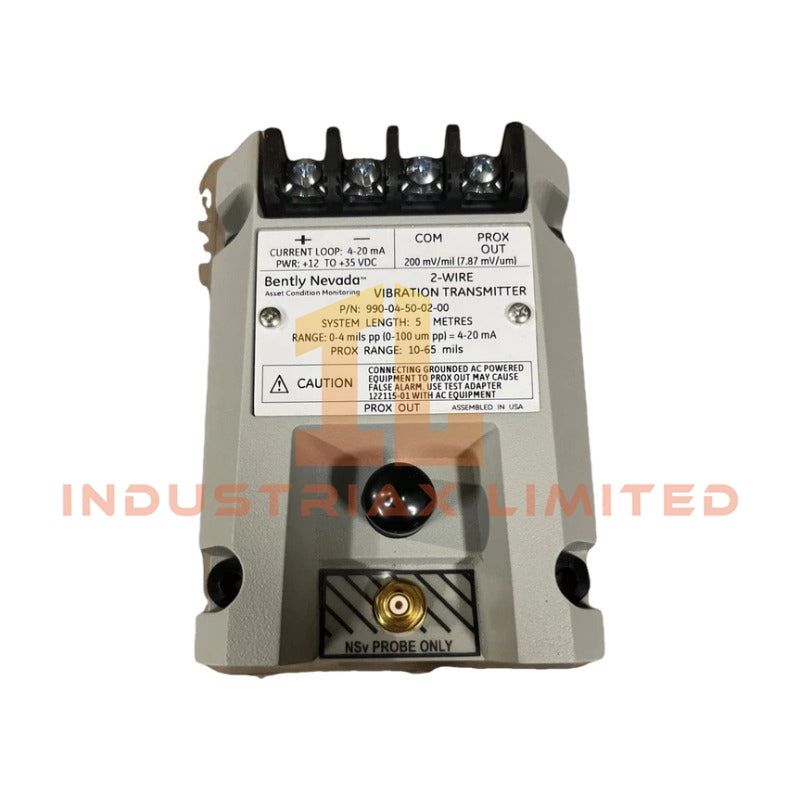

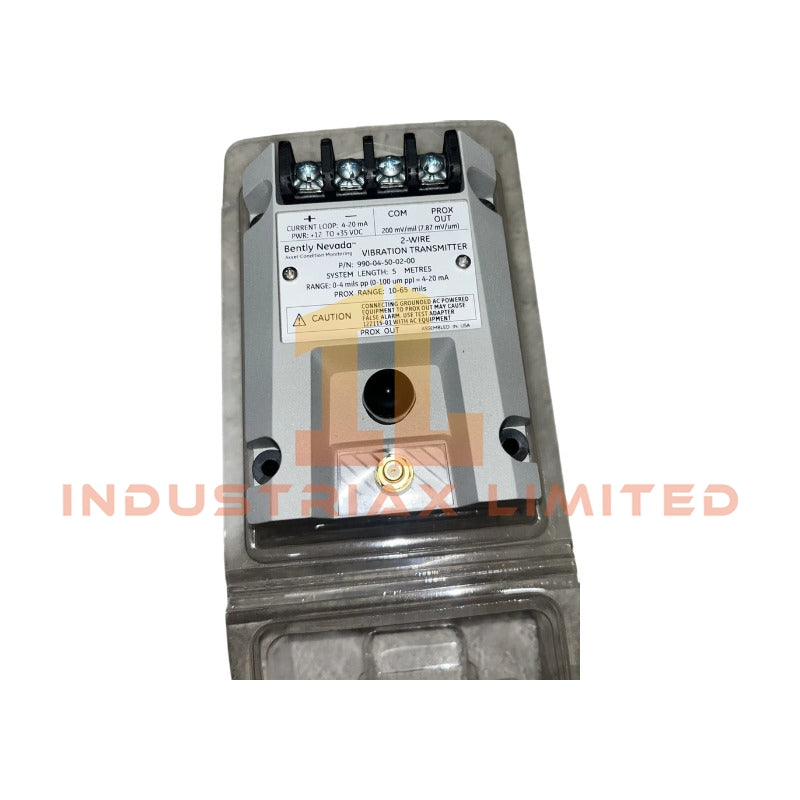

TheBently Nevada 990-04-50-02-00，also cataloged as the990-04-50-02-00 Vibration Transmitter, operates as a dedicated hardware component for converting proximity probe gap displacement signals into proportional 4-20 mA loop output within 990 machinery monitoring architectures.
Suffix Breakdown & Model Matrix
04: Full-scale range option 0-4 mils pp (0-100 μm pp)
50: System length option 5.0 m (16.4 ft) probe cable
Eddy-Current Probe Scaling & Gap Voltage Validation
Within the Bently Nevada 990 transmitter architecture, signal conditioning is aligned to eddy-current probe linearization curves, where shaft displacement is translated from AC eddy probe response into a calibrated DC loop output. The internal scaling stage maintains gap voltage validation referencing a nominal -10 VDC bias domain, ensuring linear translation of mechanical displacement into electrical signal representation. Cross-talk suppression is implemented at the input stage to reduce interference between adjacent probe channels in multi-channel machinery trains.
Frequently Asked Questions
Q1: Can the unit be hot-swapped during operation? A: The device is designed for fixed bulkhead installation. Electrical loop interruption is required prior to removal; no hot-swap mechanism is implemented at module level.
Q2: Does the system length option affect signal accuracy? A: The 5.0 m system length is calibrated to maintain probe-to-transmitter impedance matching. Deviations beyond specified length require recalibration of scaling response.
Q3: Is external power conditioning required? A: The transmitter operates on loop-powered architecture; external conditioning is dependent on host monitoring system loop design.
Field Installation Guidelines
Install using bulkhead screws with rigid mechanical support to prevent micro-vibration-induced drift
Maintain coaxial integrity of probe cabling and avoid sharp bending radius below standard industrial cabling limits
Ensure probe extension cable shielding is terminated at a single ground point to avoid ground loop interference
Route signal wiring away from high-frequency drive or inverter cables to reduce induced noise coupling
Verify loop continuity before system energization to prevent transient overcurrent conditions
