Bently Nevada 9200-06-01-11-04 Velocity Transducer Configured for casing vibration velocity measurement in machinery protection and condition monitoring systems, the Bently...
اقرأ المزيد

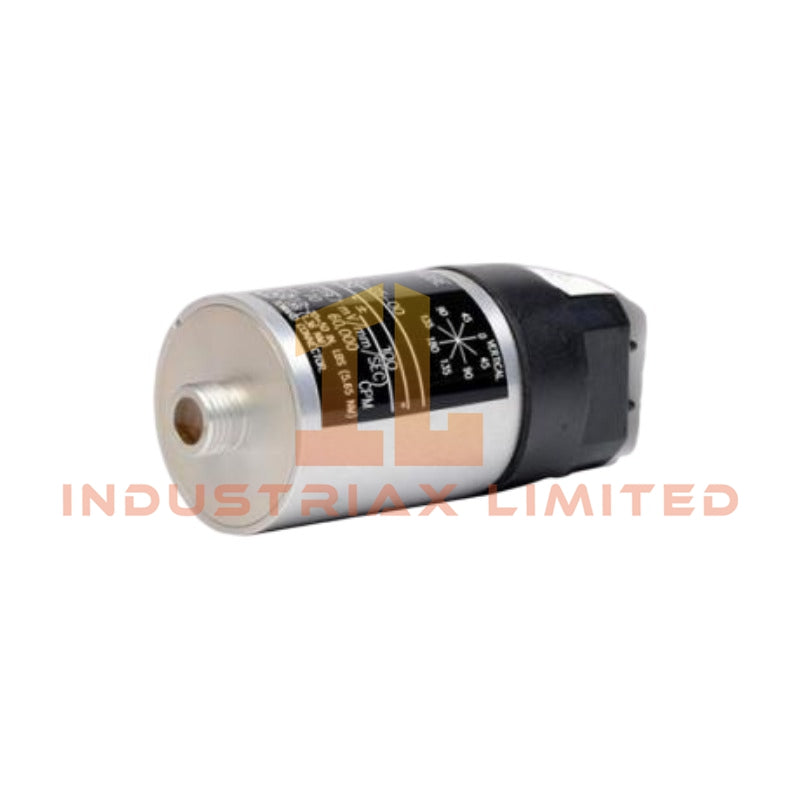

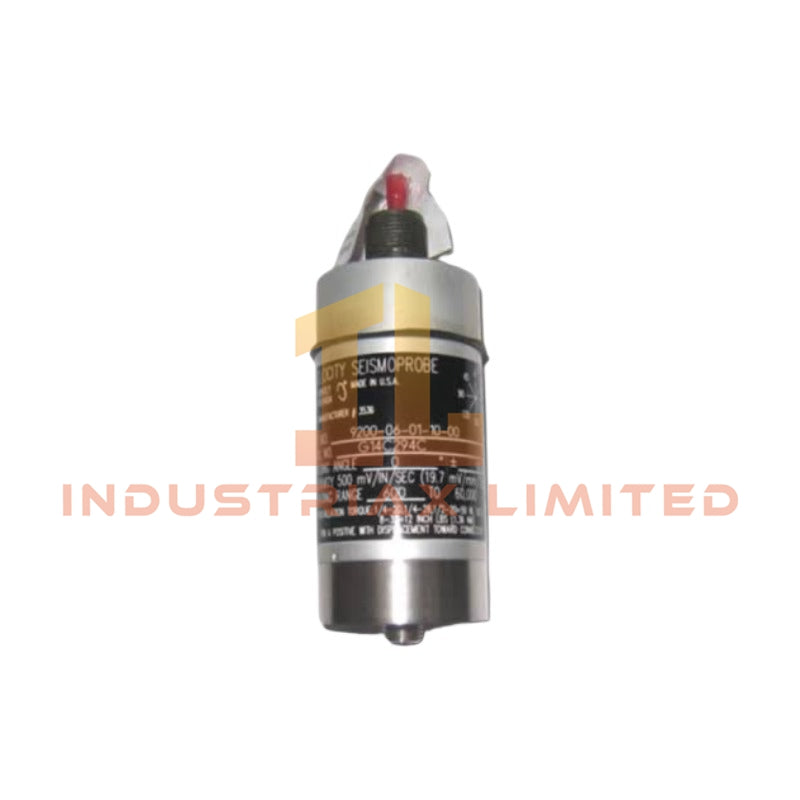

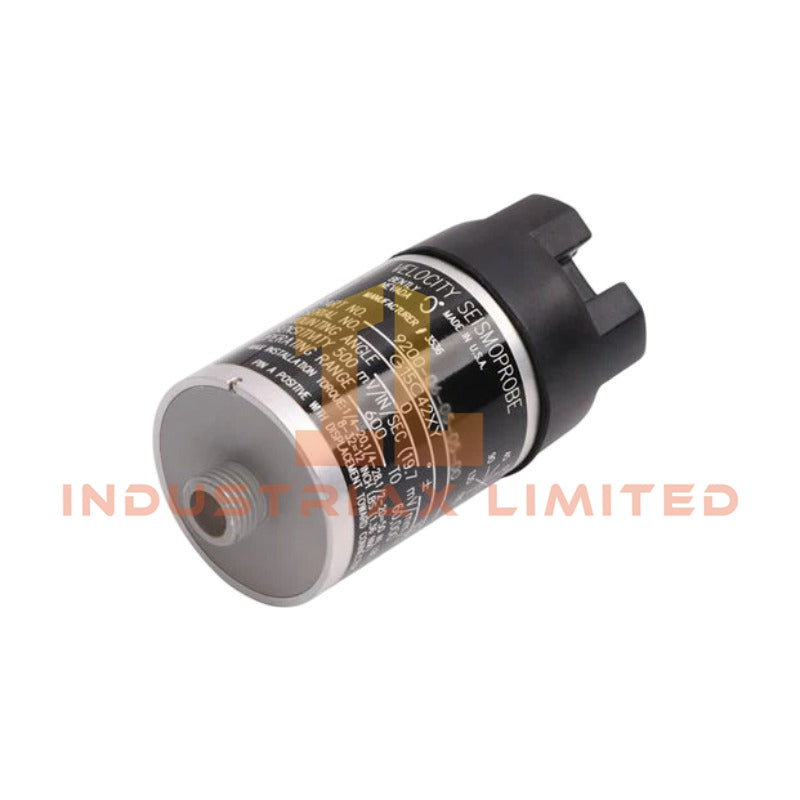

Configured for casing vibration velocity measurement in machinery protection and condition monitoring systems, the Bently Nevada 9200-06-01-11-04 (9200-06-01-11-04 Velocity Transducer) provides direct physical signal generation through a self-generating moving-coil electromagnetic mechanism within vibration monitoring loops.
Eddy-Current Scaling and Cross-Talk Suppression in 9200 Series Architecture
The 9200 series output behavior is governed by velocity-to-voltage transduction derived from moving-coil induction relative to casing vibration velocity. Signal integrity is maintained through mechanical isolation of the seismic mass and electromagnetic shielding of the coil assembly. In multi-channel vibration monitoring environments, cross-talk suppression is achieved by maintaining independent grounding paths and minimizing shared impedance coupling in the return path. Although the device is self-generating, loop validation in proximity probe hybrid systems may reference gap voltage scaling conventions (including -10 VDC reference targets in displacement systems) for correlation between velocity and displacement domains.
Frequently Asked Questions
Q: Does the 9200-06-01-11-04 require external excitation voltage? A: No. The transducer is a self-generating moving-coil device producing a voltage proportional to vibration velocity.
Q: Can the output be connected directly to PLC analog input modules? A: Yes, provided the input supports AC-coupled millivolt-level signals and proper impedance matching is implemented.
Q: What limits the low-frequency response? A: The mechanical resonant system (spring-mass structure) limits accurate response below approximately 15 Hz.
Field Installation Guidelines
The transducer shall be installed using the specified 1/2-20 UNF stud mounting interface with rigid mechanical coupling to the machine casing. Mounting surfaces must be flat, clean, and free of paint or oxidation to ensure consistent transmissibility of vibration energy.
Signal cable routing shall maintain separation from high-voltage conductors and switching devices to minimize induced noise. Shield termination is typically performed at the monitoring system end only, avoiding ground loops.
Mechanical orientation should align the sensing axis with the dominant vibration direction (radial or axial as required by machine geometry). Installation torque shall remain within manufacturer-defined limits to prevent case deformation or sensitivity drift.
تحديد
rtl">
المزايا
موثوقية عالية في البيئات الصناعية
يدعم التشغيل المستمر، متوافق مع أنظمة PLC/DCS الرئيسية
