Description

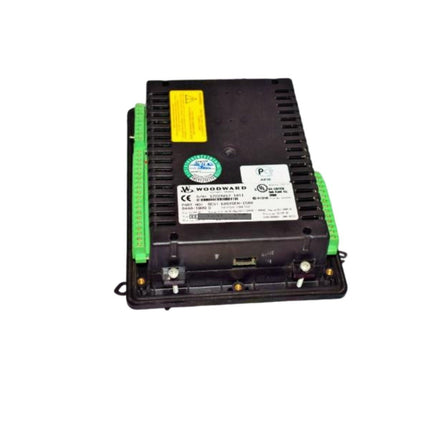

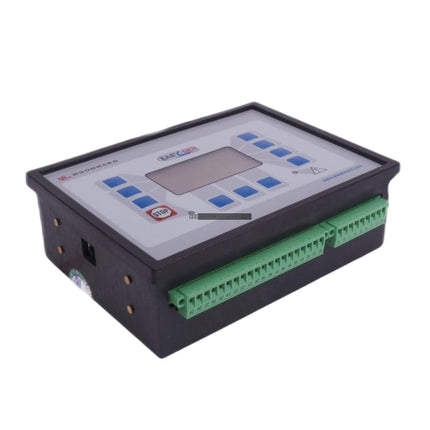

The Woodward EASYGEN-1500 (8440-1750) is a compact, robust control unit engineered for comprehensive management of turbine and generator set applications. This module integrates advanced synchronization, engine control, and protection logic into a single hardware interface. It is designed to provide high-precision load sharing and seamless power source transitions in demanding environments, including power generation plants, marine propulsion systems, and industrial emergency backup grids. By delivering real-time diagnostic data and automated sequencing, the 8440-1750 helps minimize system downtime and protects critical mechanical assets.
Features
- Integrated automatic mains failure (AMF) sensing capabilities.
- Supports multi-unit load distribution via high-speed communication bus protocols.
- Redundant sensing inputs to maintain operational integrity during individual sensor faults.
- Front-panel HMI for rapid field configuration and monitoring.
- PC-based service tool compatibility for advanced PID loop calibration and protection setpoint management.
- Engineered for high reliability in harsh electromagnetic interference (EMI) environments.
Applications
- Industrial power generation and distribution systems.
- Marine propulsion and auxiliary power management.
- Emergency standby power and backup grid synchronization.
- Automated engine sequencing and load sharing applications.
Technical Specifications
| Model |
8440-1750 EASYGEN-1500 |
| Brand |
Woodward |
| Operating Temperature |
-20 to 70 deg C |
| Power Supply |
12/24 VDC (8 to 40 VDC continuous) |
| Power Consumption |
15 W |
| Display Type |
Liquid Crystal Display (LCD) with backlighting |
| I/O Configuration |
Configurable Discrete and Analog I/O channels |
Installation Guidelines
- Ensure the unit is mounted in a location protected from direct moisture and extreme vibration.
- Maintain proper clearance for cooling and access to the front-panel HMI.
- Use shielded cabling for all communication and analog signal lines to mitigate EMI effects.
- Verify that the DC power supply is within the 8 to 40 VDC range before applying power.
- Always power down the system before inserting or removing the module or connecting I/O wiring.
- Ensure a solid chassis ground connection to the control cabinet backplane to maintain electromagnetic compatibility.
FAQ
Is the 8440-1750 compatible with PC-based configuration tools?
Yes, the EASYGEN-1500 supports specialized Woodward PC-based service tools, allowing for detailed configuration of protection setpoints and PID control loops beyond what is available on the front-panel HMI.
What is the operating voltage range for this module?
The unit is designed for 12/24 VDC systems and operates continuously within a range of 8 to 40 VDC.
