System Overview

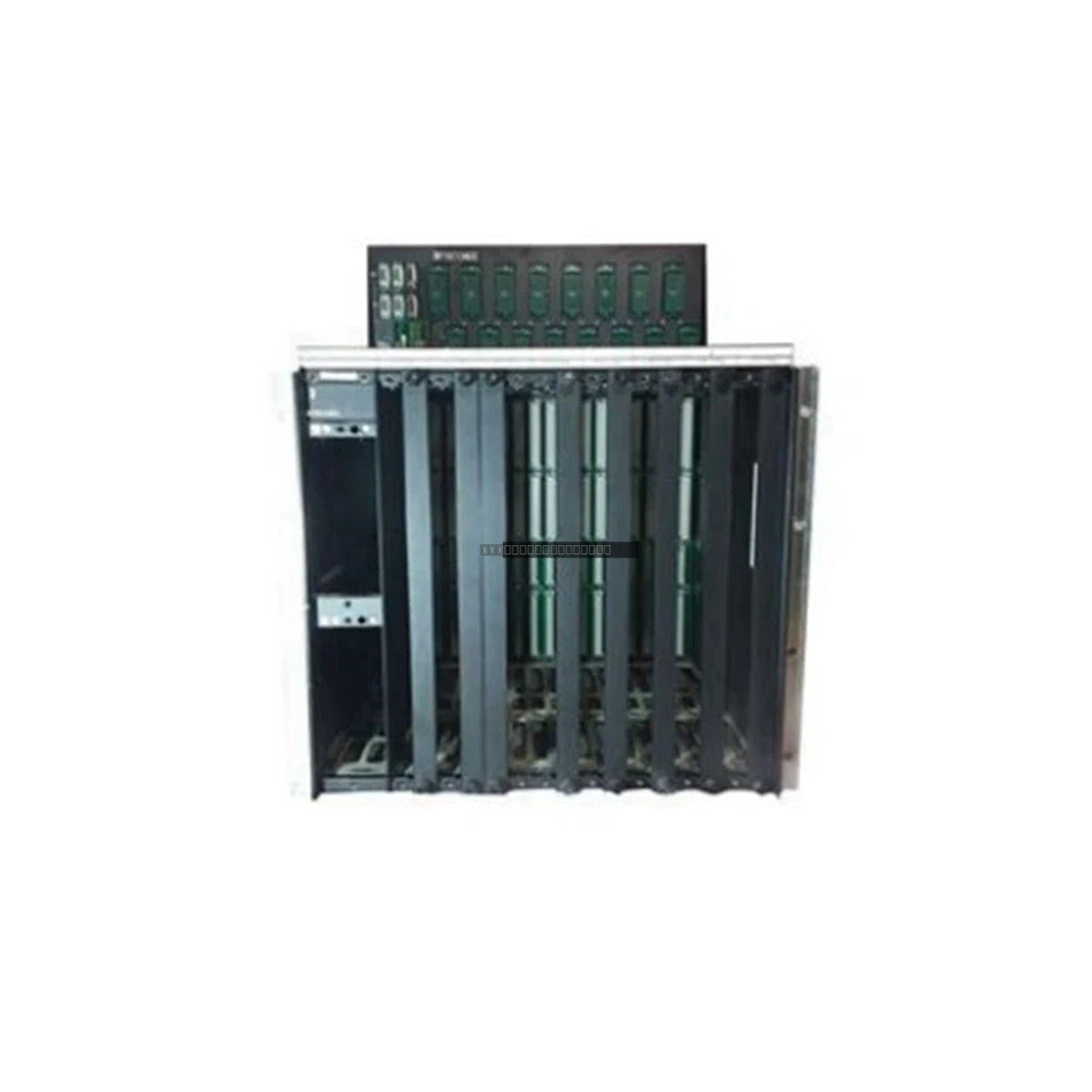

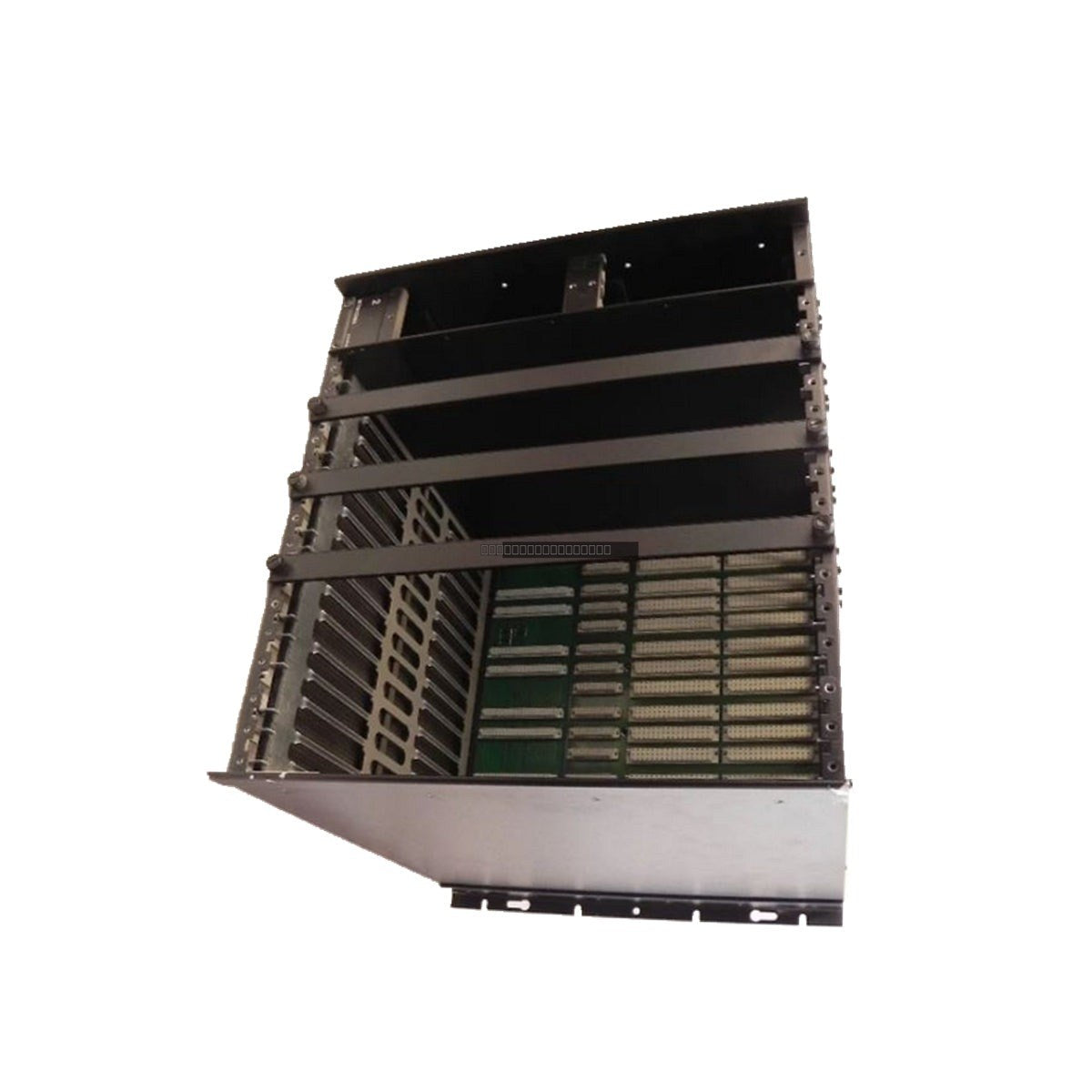

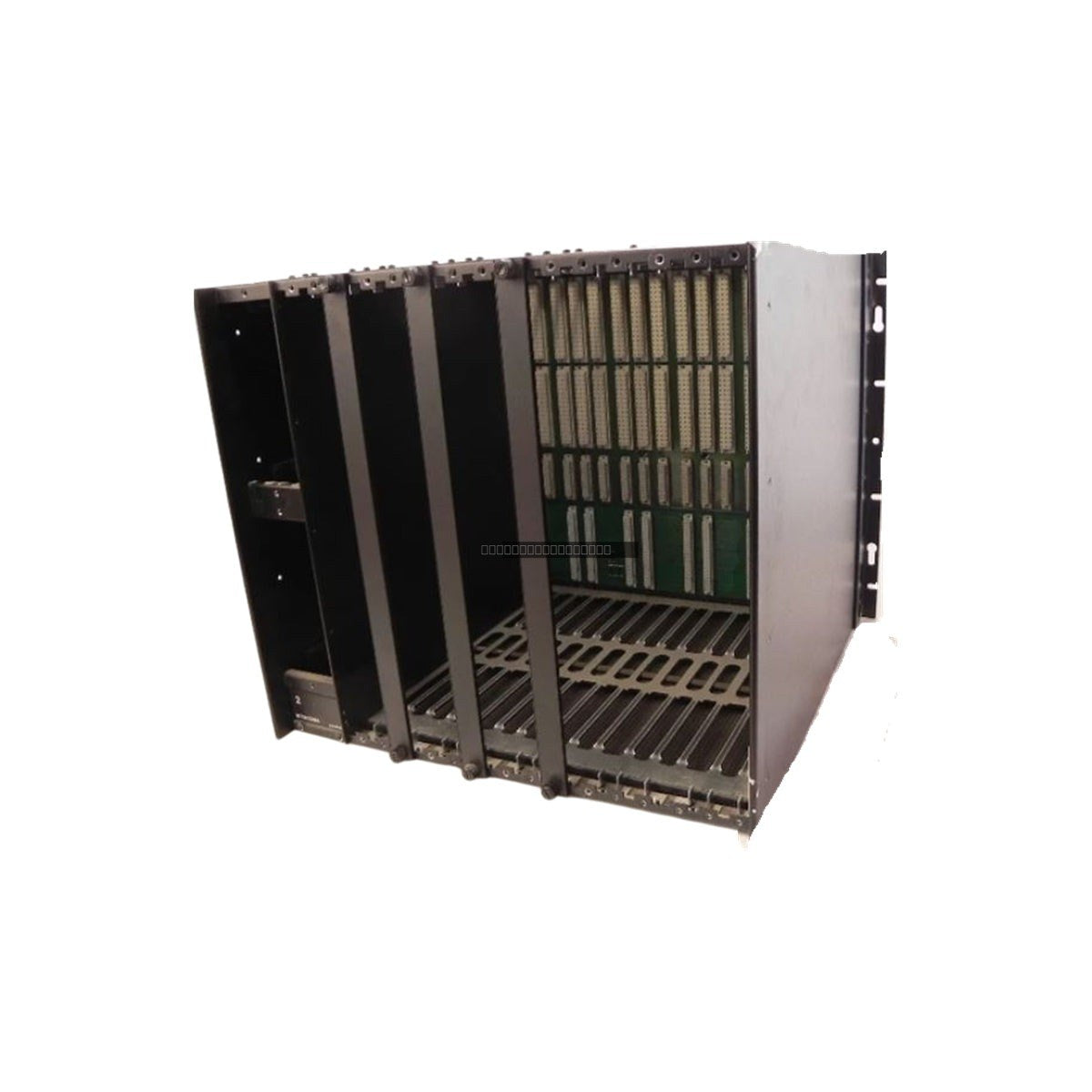

The Triconex 8111 High Density Main Chassis acts as the foundational infrastructure for Triple Modular Redundant (TMR) safety systems. Engineered for high-availability environments, this chassis provides the physical mounting and electrical backplane necessary to host Triconex control processors and I/O modules. It is specifically designed to support SIL 3 safety integrity requirements in demanding industries such as oil and gas, power generation, and chemical processing, ensuring reliable operation through robust, vibration-resistant construction.
Architectural Features
The 8111 chassis utilizes a passive backplane design that facilitates seamless, low-latency communication between triplicated controller sets. It supports dual-redundant power supplies, ensuring that the critical internal logic bus remains powered during potential power source interruptions. The high-density layout allows for efficient module packing, which optimizes cabinet space while maintaining sufficient thermal management for continuous operation. The metallic chassis also serves as a protective enclosure, offering shielding against electromagnetic interference (EMI) in harsh industrial settings.
Technical Specifications
| Model |
8111 |
| Brand |
Invensys Triconex |
| Module Capacity |
Triconex TMR Series modules |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Relative Humidity |
5-95 percent non-condensing |
| Mounting |
19-inch Rack Mount or Panel Mount |
Installation Guidelines
- Ensure the chassis is mounted in a clean, dry environment within an appropriately rated industrial cabinet.
- Verify that the mounting surface is level and capable of supporting the static load of the chassis and installed modules.
- Maintain adequate clearance around the chassis to facilitate proper airflow and thermal dissipation.
- Always power down the chassis and associated power supplies before inserting or removing any I/O or processor modules.
- Use proper grounding techniques for the chassis frame to ensure effective EMI shielding and electrical safety.
- Handle modules with care to avoid damaging the backplane connectors or card guide alignments.
FAQ
Is the 8111 chassis compatible with all Triconex modules? The 8111 is designed for the Triconex TMR series; please verify specific module compatibility with your system revision.
Does this chassis support redundant power? Yes, the 8111 is engineered to accommodate dual-redundant power supply modules to maintain continuous system uptime.
What is the primary function of the passive backplane? The passive backplane provides the physical connectivity for the triplicated system, ensuring zero-latency communication between redundant controller sets without the risk of active component failure on the bus.
