Description

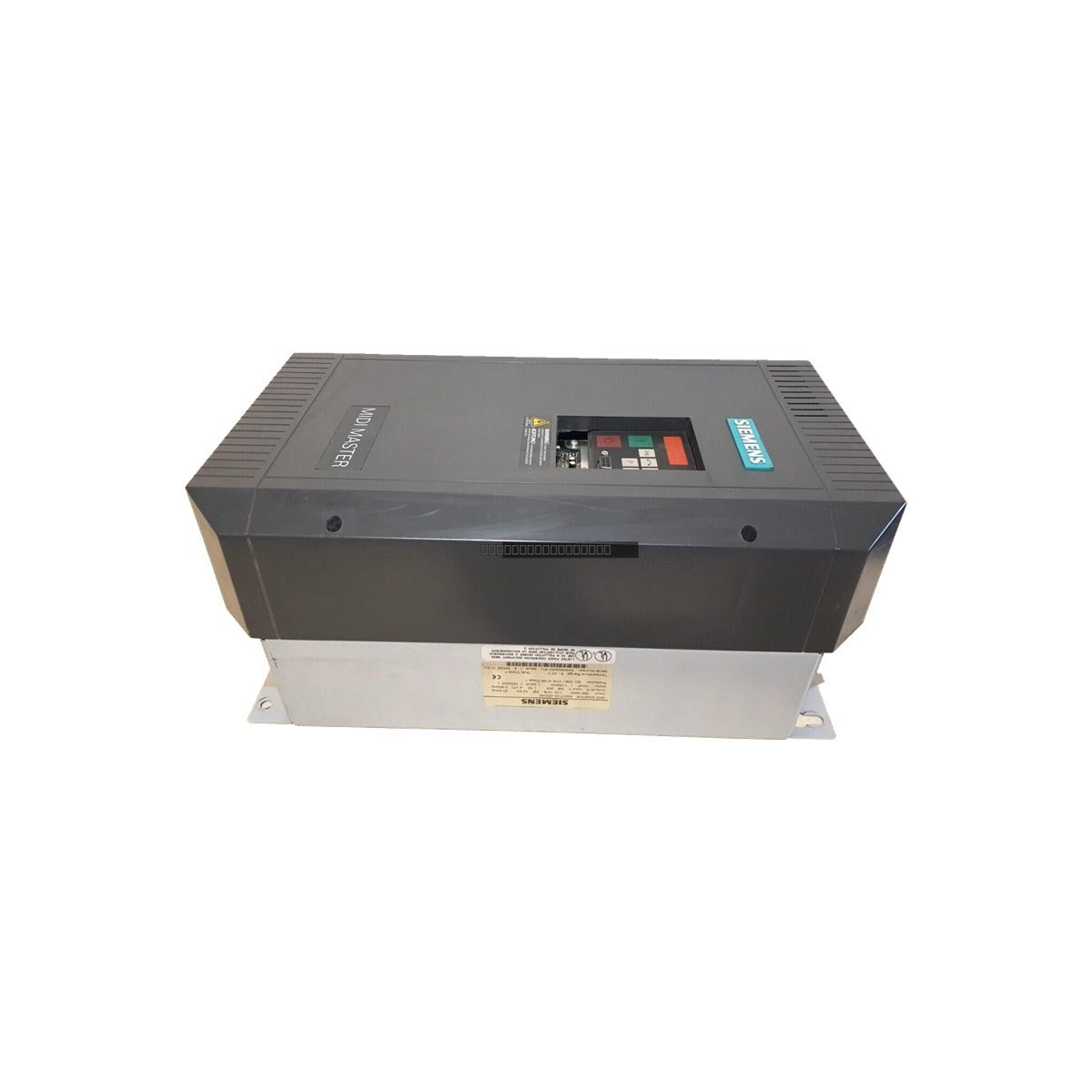

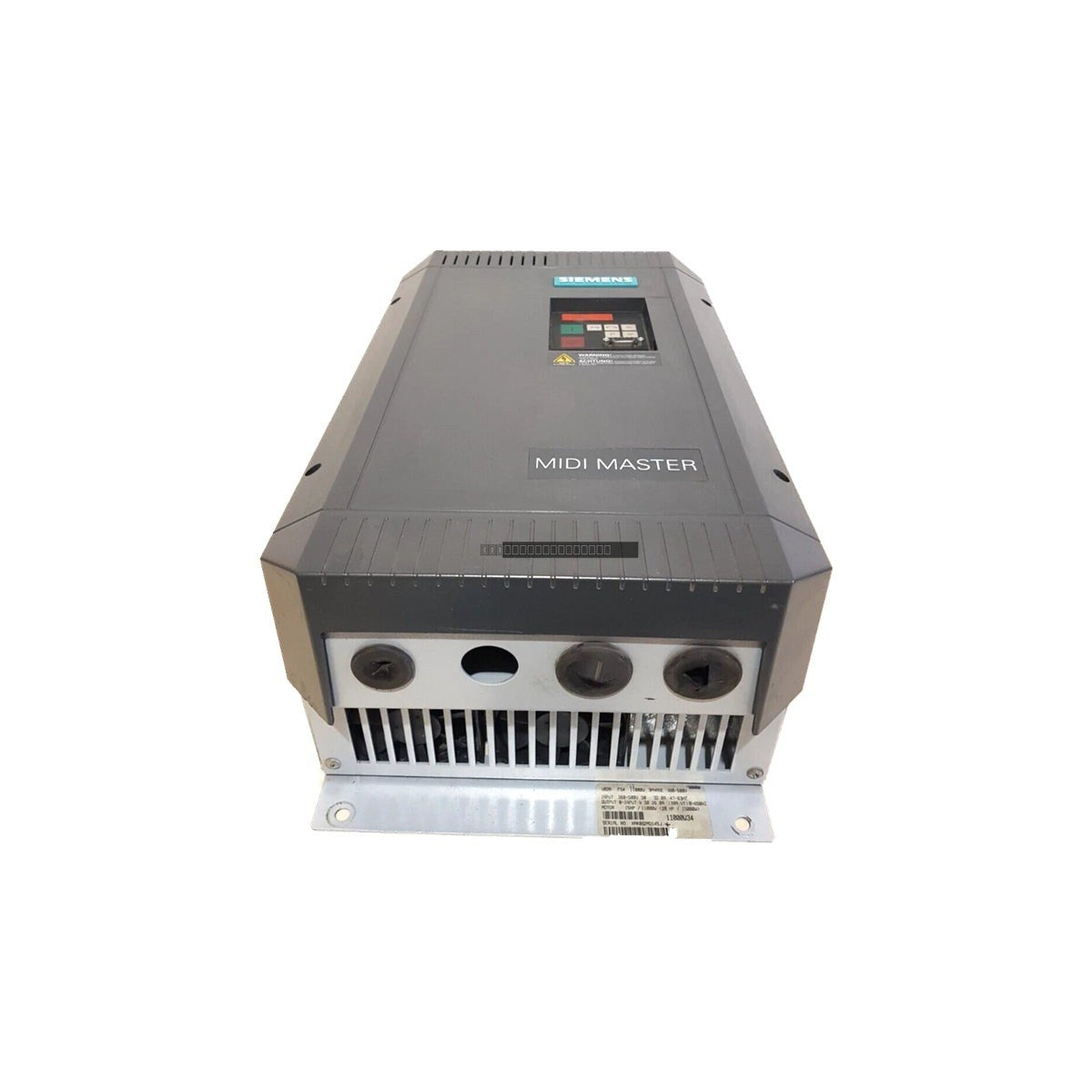

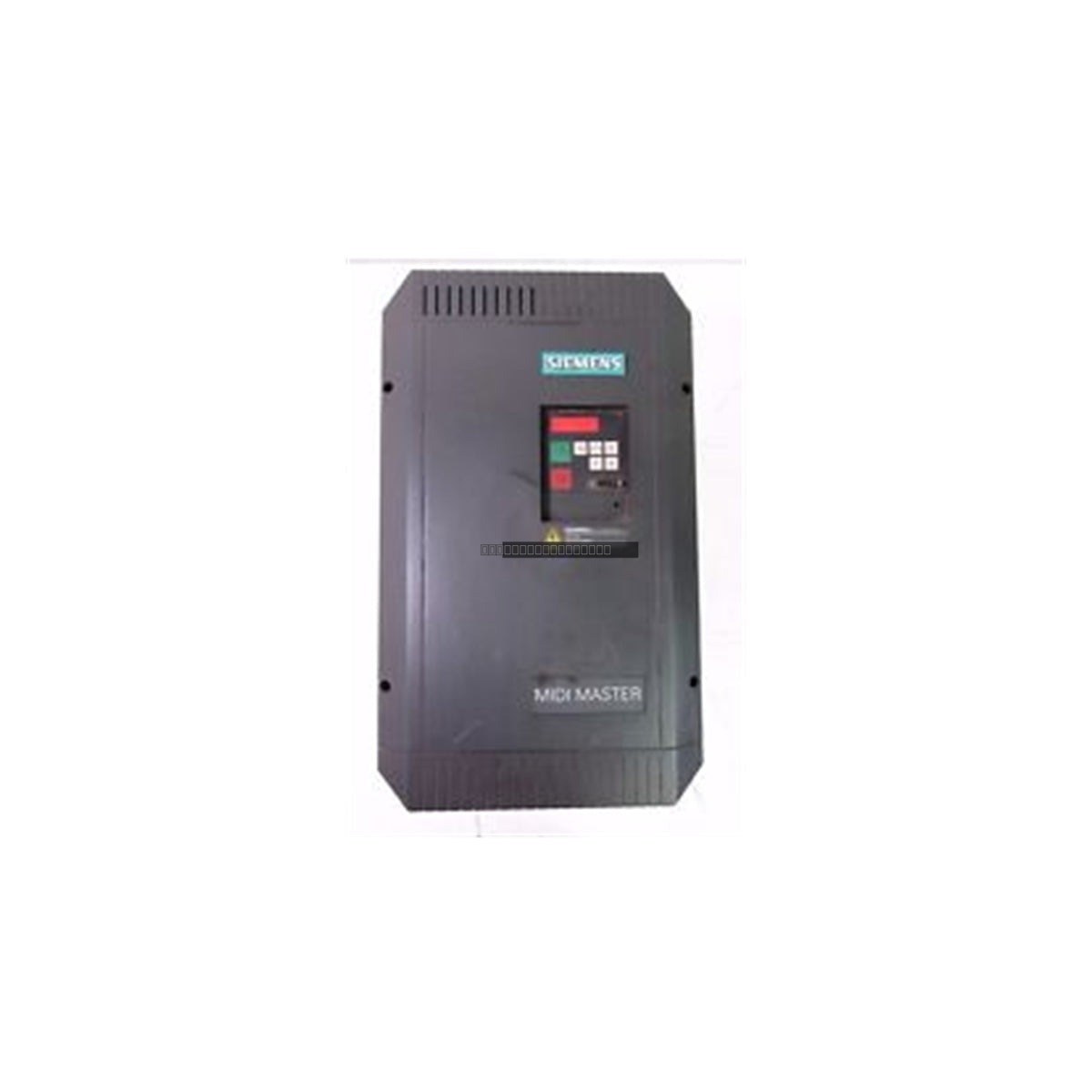

The Siemens 6SE3122-4DG40 is a high-performance frequency converter from the SIMOVERT P MIDI MASTER series, designed for the precise speed and torque regulation of 3-phase AC motors. This drive is engineered to convert fixed-frequency line voltage into variable voltage and frequency output, enabling soft-starting capabilities and optimized motor efficiency across a variety of industrial loads. It is a critical component for reducing mechanical stress on drive trains and minimizing unplanned downtime in continuous process environments.
Features
- Advanced Pulse Width Modulation (PWM) inverter architecture for precise motor control.
- High-torque performance at low speeds, suitable for high-inertia applications.
- Integrated protection suite including overcurrent, undervoltage, and thermal monitoring.
- Supports 3-phase input voltage ranges from 380 V to 500 V.
- Forced air cooling system for reliable operation under load.
Applications
The 6SE3122-4DG40 is widely utilized in heavy-duty industrial sectors, including:
- Mining ventilation systems
- Water treatment and pumping stations
- Factory conveyor and material handling systems
- General industrial automation and process control
Technical Specifications
| Model |
6SE3122-4DG40 |
| Brand |
Siemens |
| Series |
SIMOVERT P MIDI MASTER |
| Power Rating |
15 kW |
| Input Voltage |
380 to 500 VAC, 3-Phase |
| Rated Current |
32 Amp |
| Input Frequency |
50/60 Hz |
| Output Frequency |
0 to 650 Hz |
| Operating Temperature |
0 to 40 deg C |
| Cooling Method |
Internal Forced Air Fan |
| Protection Rating |
IP20 |
Installation Guidelines
- Ensure the drive is mounted in a vertical position to allow for proper airflow through the cooling vents.
- Maintain adequate clearance around the unit to prevent heat accumulation.
- Always disconnect and lock out power before performing wiring or maintenance on the terminal blocks.
- Use shielded cables for motor connections to minimize electromagnetic interference (EMI) with control signals.
- Verify that the input voltage matches the drive specifications before applying power.
- Ensure the chassis is properly grounded to a common plant earth point to ensure safety and signal integrity.
FAQ
What is the primary function of the 6SE3122-4DG40?
This unit is a frequency converter used to control the speed and torque of 3-phase AC motors by adjusting the frequency and voltage supplied to the motor, allowing for energy-efficient operation and soft-start functionality.
What type of cooling does this drive require?
The unit features an internal forced-air fan. Ensure that the intake and exhaust vents are not obstructed during installation to maintain optimal operating temperatures.
Can this drive be used in high-inertia applications?
Yes, the SIMOVERT P architecture is designed to provide high-torque performance even at low speeds, making it suitable for applications with high-inertia loads such as conveyors and pumps.
